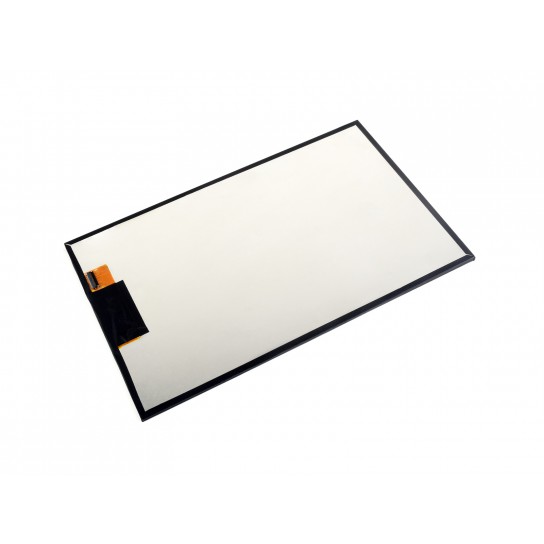

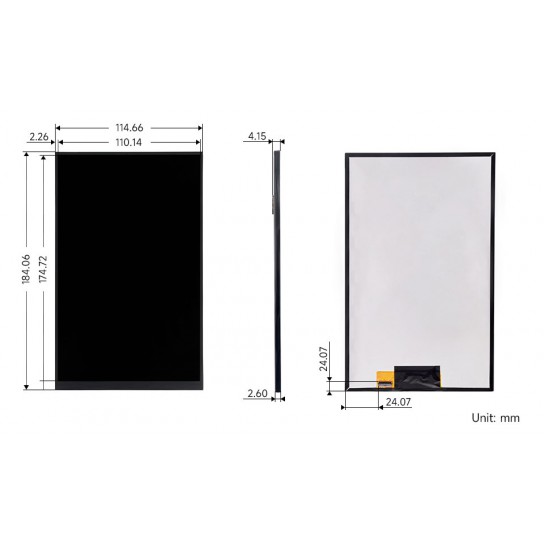

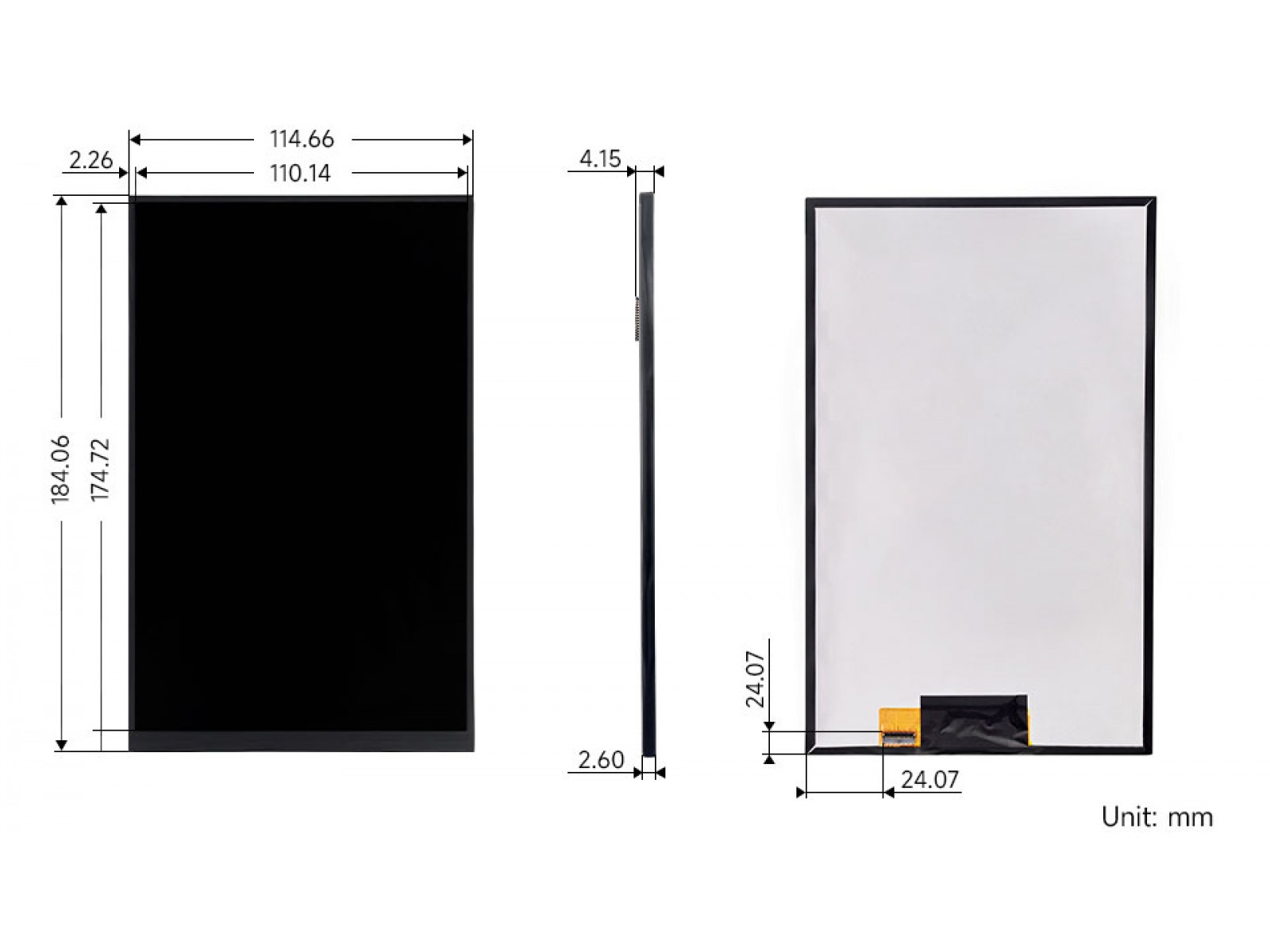

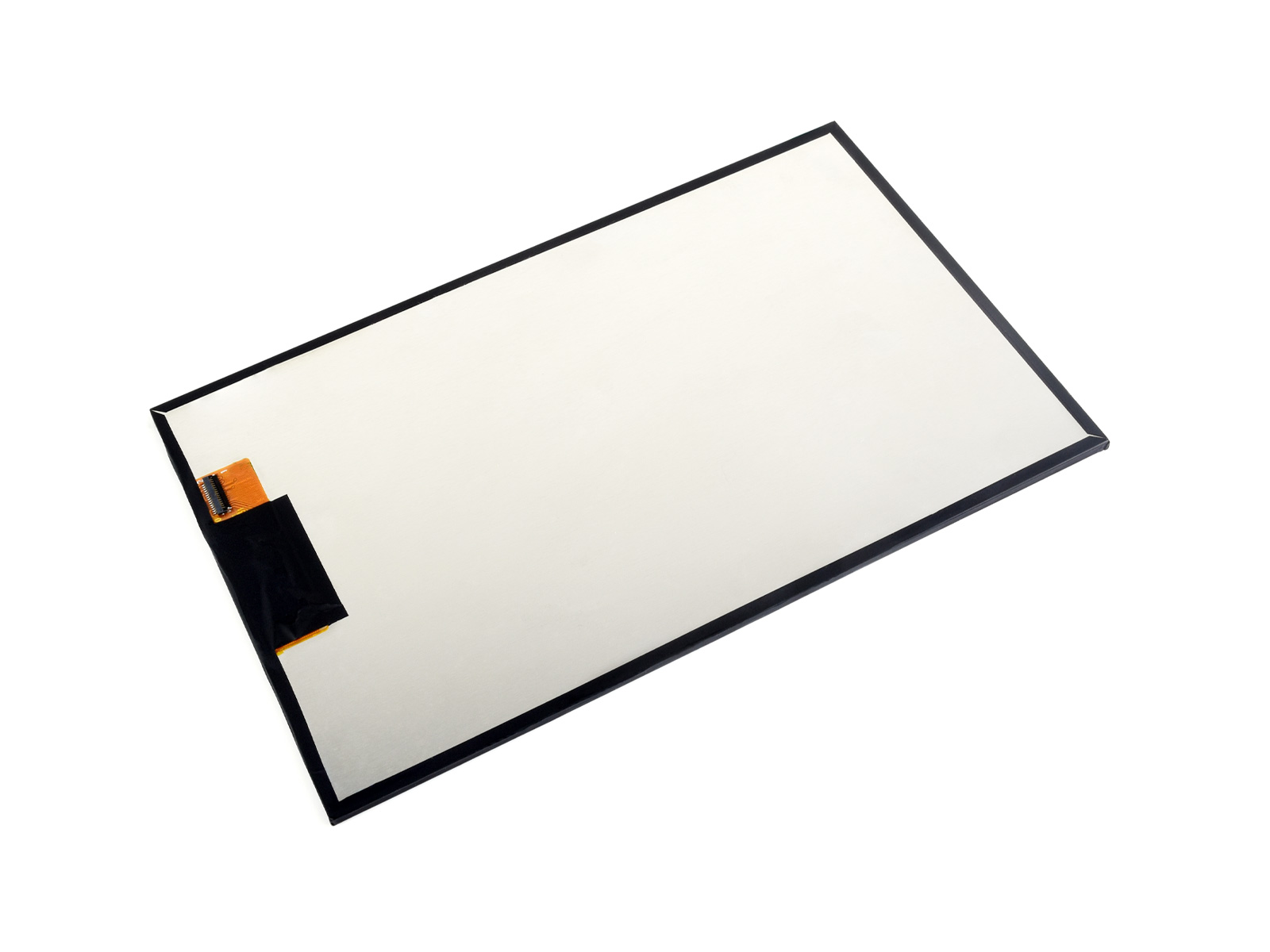

| PIN |
Symbol |
Description |
| 1 |
LEDA |
Power for LED backlight (Anode) |
| 2 |
LEDA |
Power for LED backlight (Anode) |
| 3 |
LEDA |
Power for LED backlight (Anode) |
| 4 |
NC |
No connect |
| 5 |
LEDK |
Power for LED backlight (Cathode) |
| 6 |
LEDK |
Power for LED backlight (Cathode) |
| 7 |
LEDK |
Power for LED backlight (Cathode) |
| 8 |
LEDK |
Power for LED backlight (Cathode) |
| 9 |
GND |
Ground |
| 10 |
GND |
Ground |
| 11 |
MIPI_D2+ |
HSSI_D2_P are differential small amplitude signals |
| 12 |
MIPI_D2- |
HSSI_D2_N are differential small amplitude signals |
| 13 |
GND |
Ground |
| 14 |
MIPI_D1+ |
HSSI_D1_P are differential small amplitude signals |
| 15 |
MIPI_D1- |
HSSI_D1_P are differential small amplitude signals |
| 16 |
GND |
Ground |
| 17 |
MIPI_CLK+ |
HSSI_CLK_P are differential small amplitude signals |
| 18 |
MIPI_CLK- |
HSSI_CLK_N are differential small amplitude signals |
| 19 |
GND |
Ground |
| 20 |
MIPI_D0+ |
HSSI_D0_P are differential small amplitude signals |
| 21 |
MIPI_D0+ |
HSSI_D0_N are differential small amplitude signals |
| 22 |
GND |
Ground |
| 23 |
MIPI_D3+ |
HSSI_D3_P are differential small amplitude signals |
| 24 |
MIPI_D3- |
HSSI_D3_N are differential small amplitude signals |
| 25 |
GND |
Ground |
| 26 |
TE |
Output for monitoring |
| 27 |
RESET |
Global reset pin |
| 28 |
ID |
Ground. If not used, Please No Connect |
| 29 |
IOVCC |
Power supper 1.8V |
| 30 |
VCI |
Power supper 3.0~3.6V |
| 31 |
VCI |
Power supper 3.0~3.6V |
