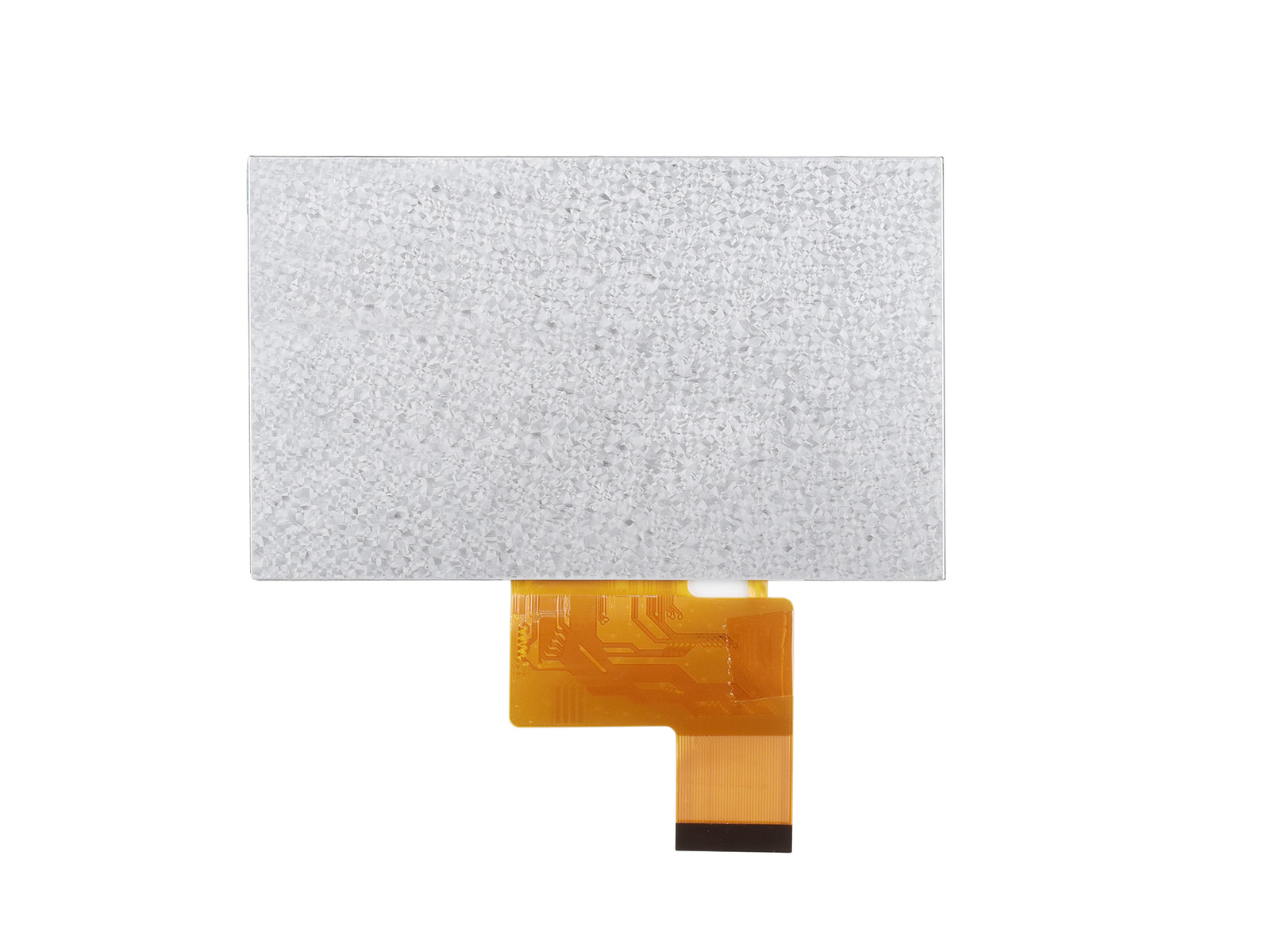

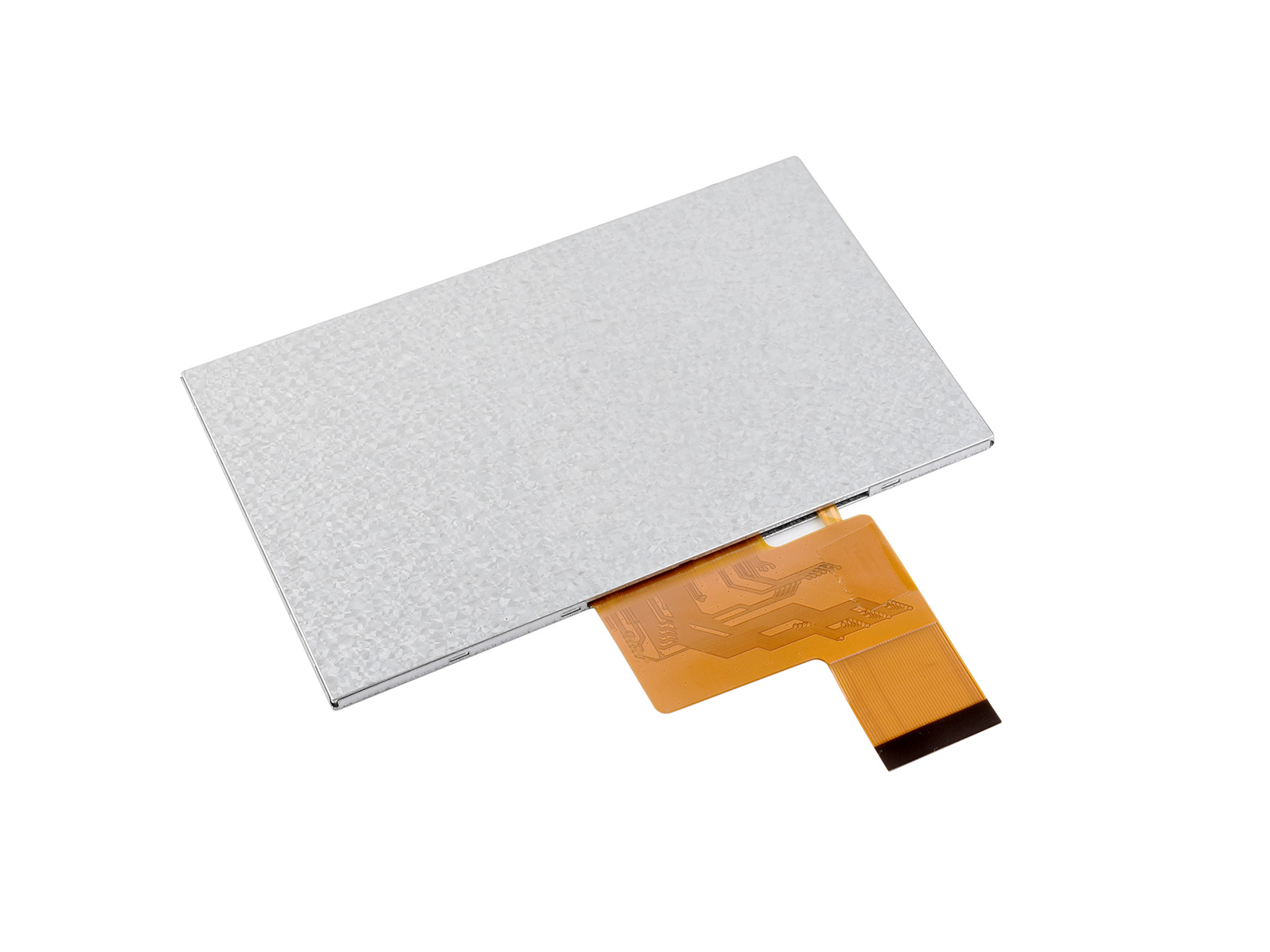

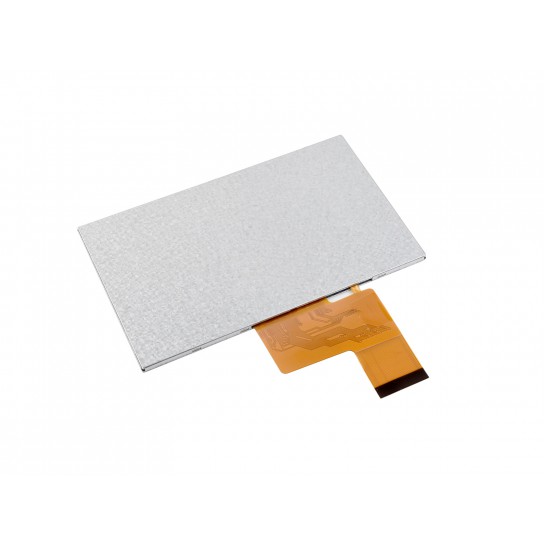

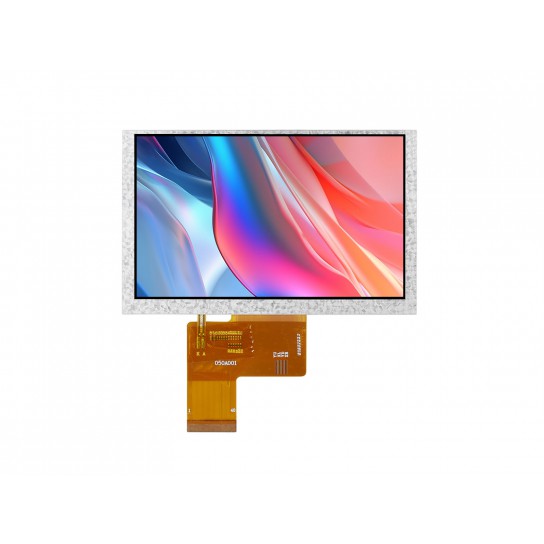

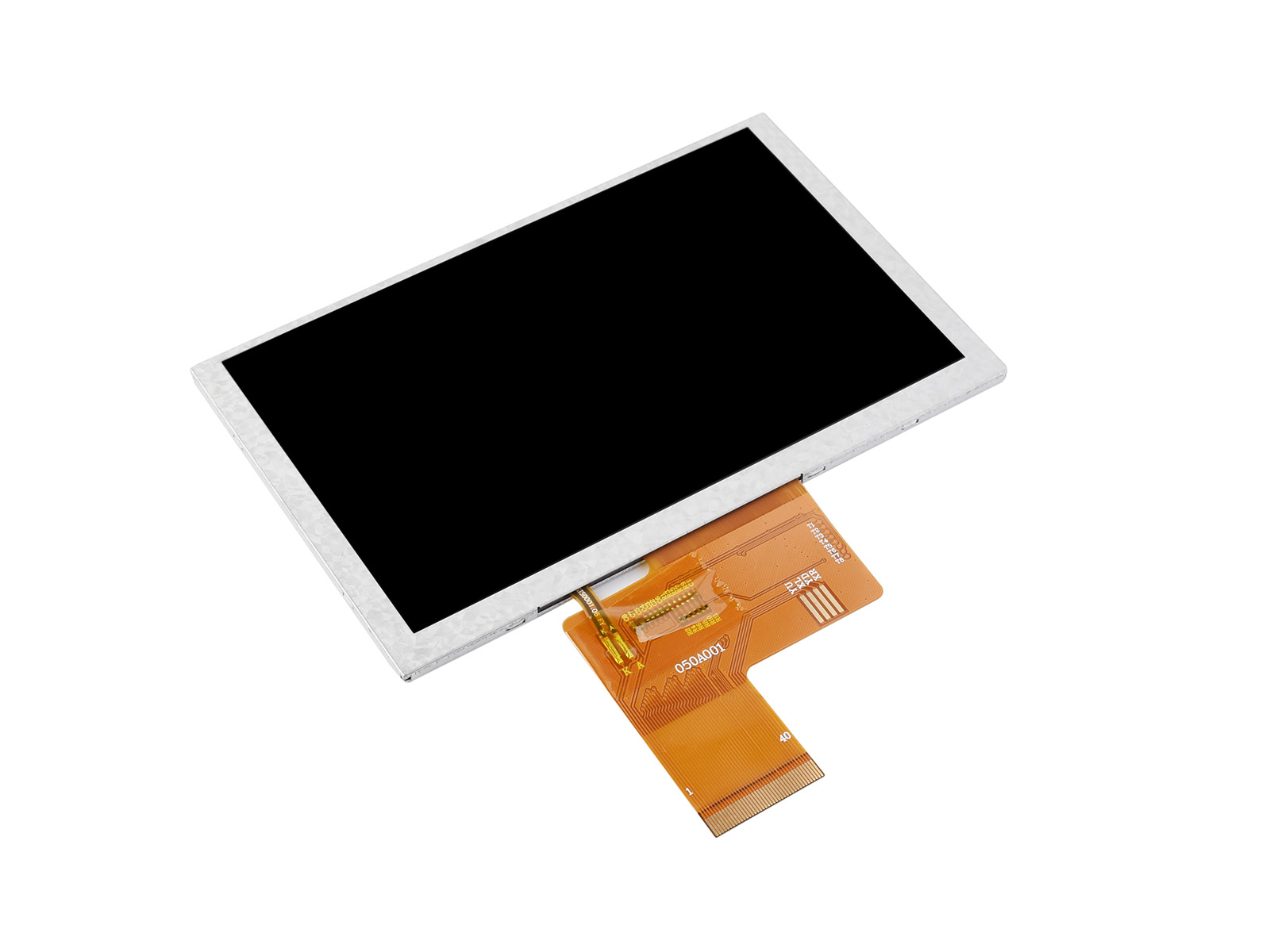

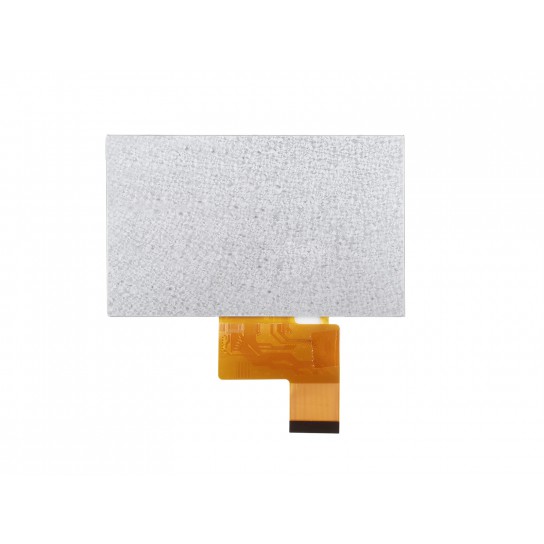

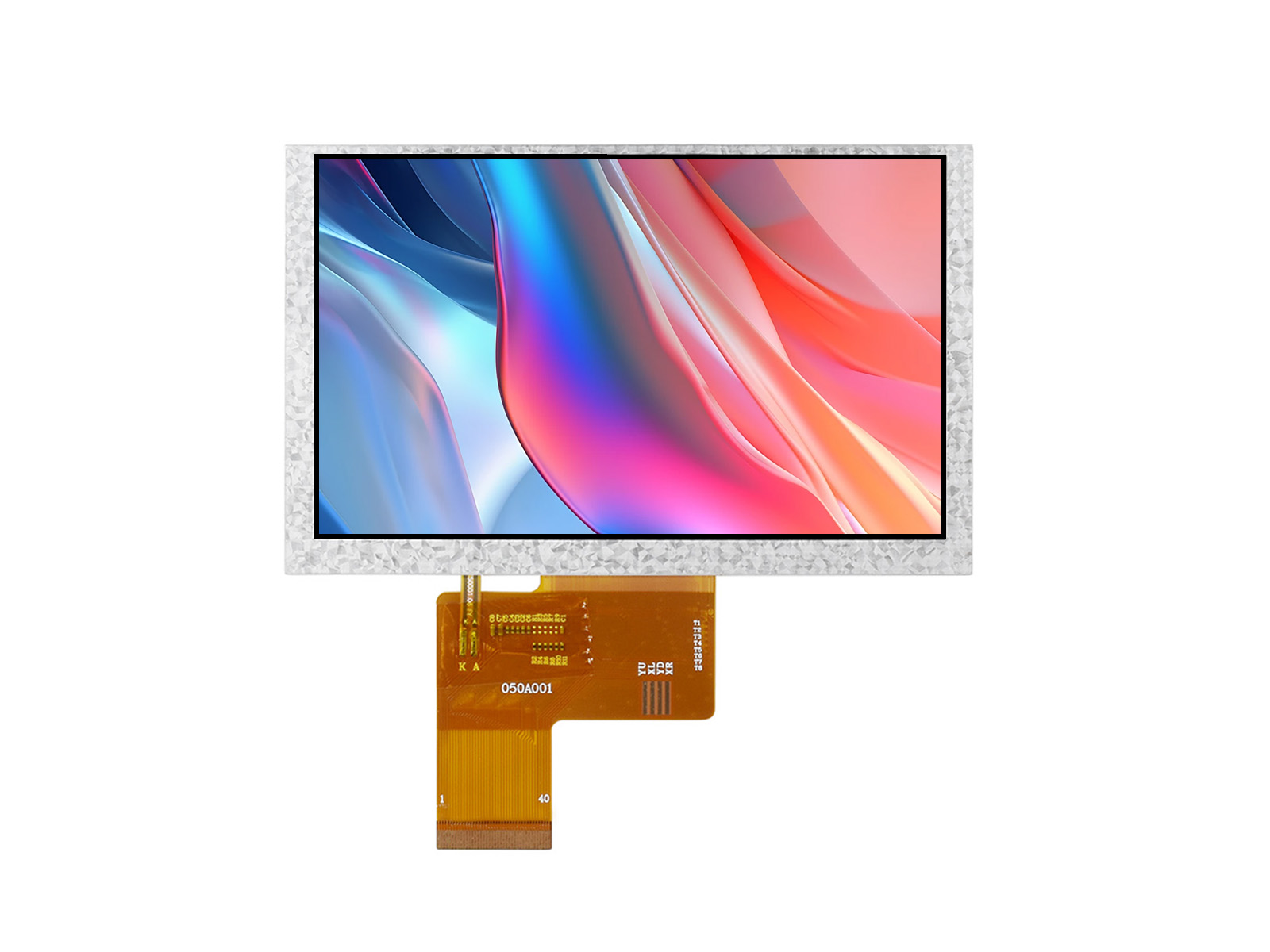

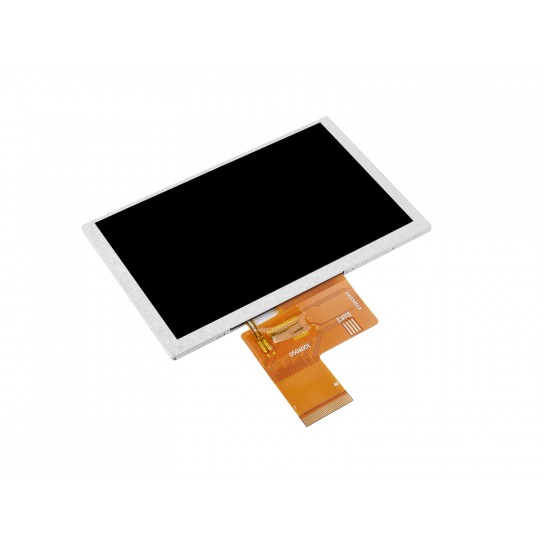

5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle

5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
5inch IPS LCD Display, 5" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle
$16.99
  • Stock: In Stock
  • Model: LF50-800480-ARA
  • Weight: 0.30kg
Key parameters
Size5"Resolution800×480
Display PanelIPSViewing Angle160°
Display Color16.7MDisplay colour gamut50%NTSC
Brightness400cd/m² (MAX)Contrast ratio1000:1
Outline Dimension (mm)120.70(H)×75.80(V)×2.95(T)Display area108(H)×64.8(V)
Pixel pitch (mm)0.135(H)×0.135(V)communication interfaceRGB888
Operation temperature-10~60°CStorage temperature-20~70°C
RGB Interface Definition
PINSymbolDescription
1KB/L Power input PIN Cathode
2AB/L Power input PIN anode
3GNDGround
4VDDPower input
5~12R0-R7Red data
13~20G0-G7Green data
21~28B0-B7Blue data
29GNDGround
30PCLKData clock signal
31DISPStandby Mode
DISP="1", Normal Operation
DISP="0", Standby mode.
32HSYNCHorizontal synchronizing signal
33VSYNCVertical synchronizing signal
34DEData ENABLE input
35RESETReset pin
36GNDGround
37~40NCNC

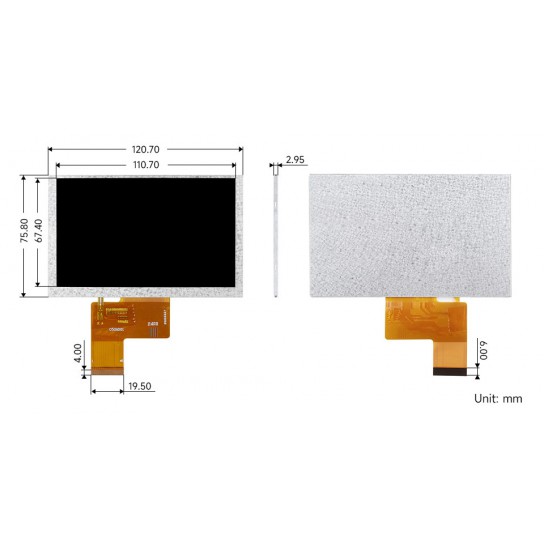

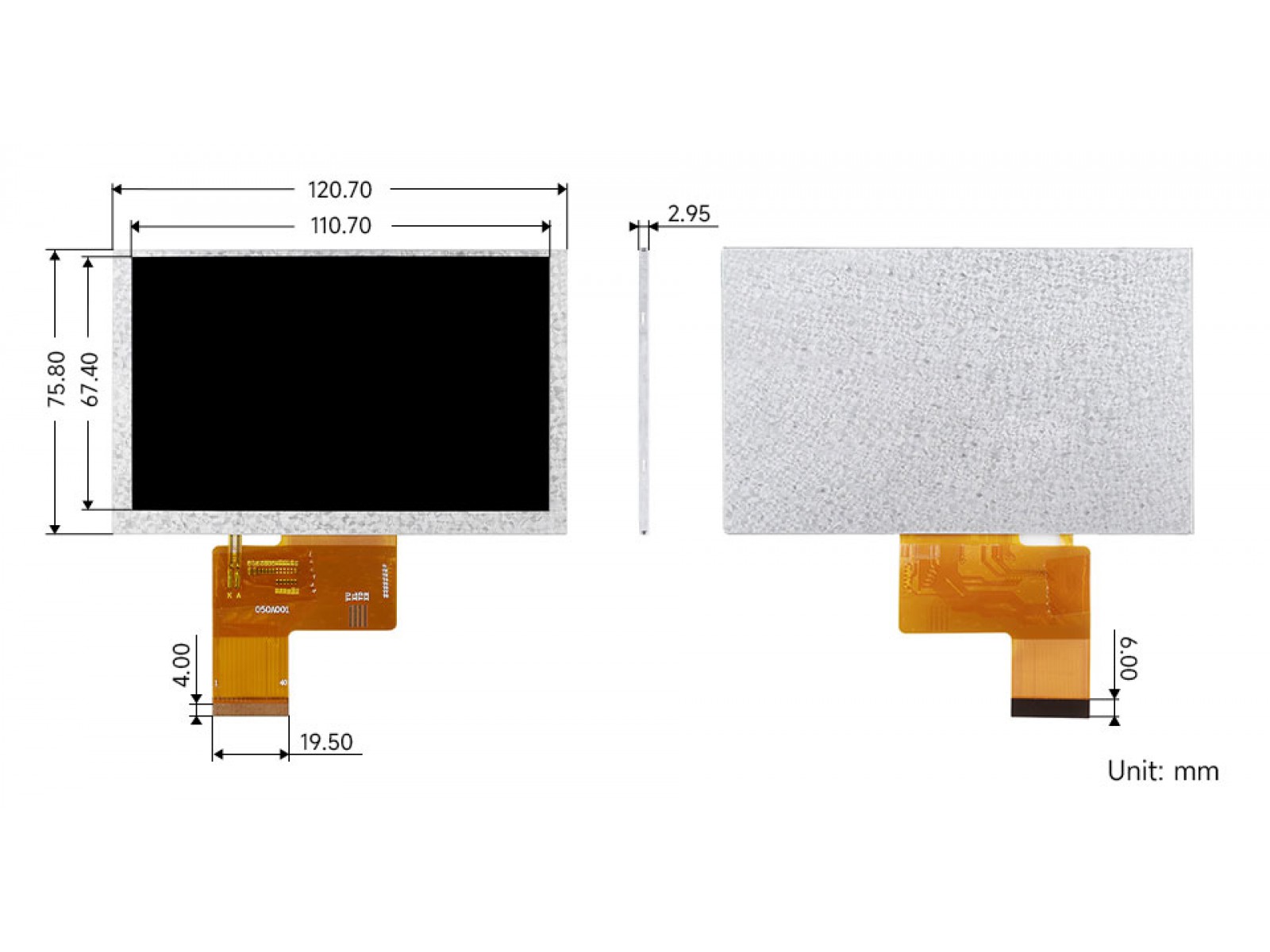

Dimensions
Selection Guide
PRODUCTSIZERESOLUTIONDISPLAY PANELDISPLAY COLOR GAMUTBRIGHTNESS (MAX)CONTRAST RATIOOUTLINE DIMENSION (mm)DISPLAY AREA (mm)COMMUNICATION INTERFACE
LF43-800480-ARA
LF43-800480-ARA
4.3"800×480IPS50%NTSC600cd/m²1200:1105.50×67.20×3.0095.04×53.858RGB888
LF50-800480-ARA
LF50-800480-ARA
5"800×480IPS50%NTSC400cd/m²1000:1120.90×75.80×2.95108.0×64.8RGB888
LF70-800480-TRA
LF70-800480-TRA
7"800×480TFT-500cd/m²500:1164.9×100.0×3.5154.08×85.92RGB888
LF70-800480-ARA
LF70-800480-ARA
7"800×480IPS50%NTSC550cd/m²1000:1164.00×97.00×2.60154.84×85.632RGB888
LF70-1024600-ARA
LF70-1024600-ARA
7"1024×600IPS55%NTSC400cd/m²1000:1164.00×97.00×2.60154.2144×85.92RGB888
LF80-8001280-AMA
LF80-8001280-AMA
8"800×1280IPS60%NTSC500cd/m²1200:1114.66×184.16×2.60107.64×172.22MIPI
LF101-8001280-AMA
LF101-8001280-AMA
10.1"800×1280IPS60%NTSC500cd/m²1200:1143.0×228.60×2.60135.36×216.58MIPI

Package Contains

LF50-800480-ARA × 1
