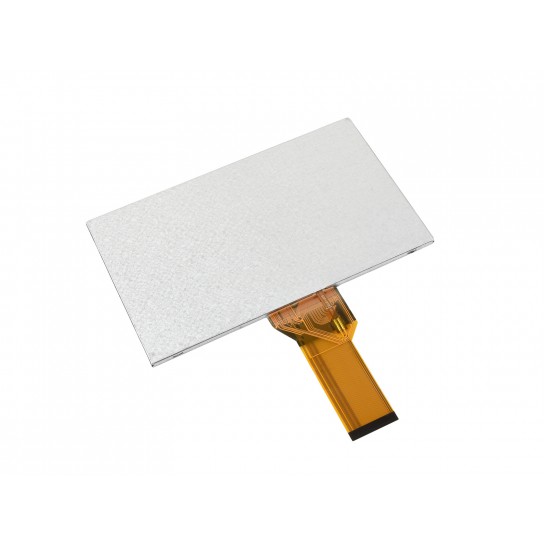

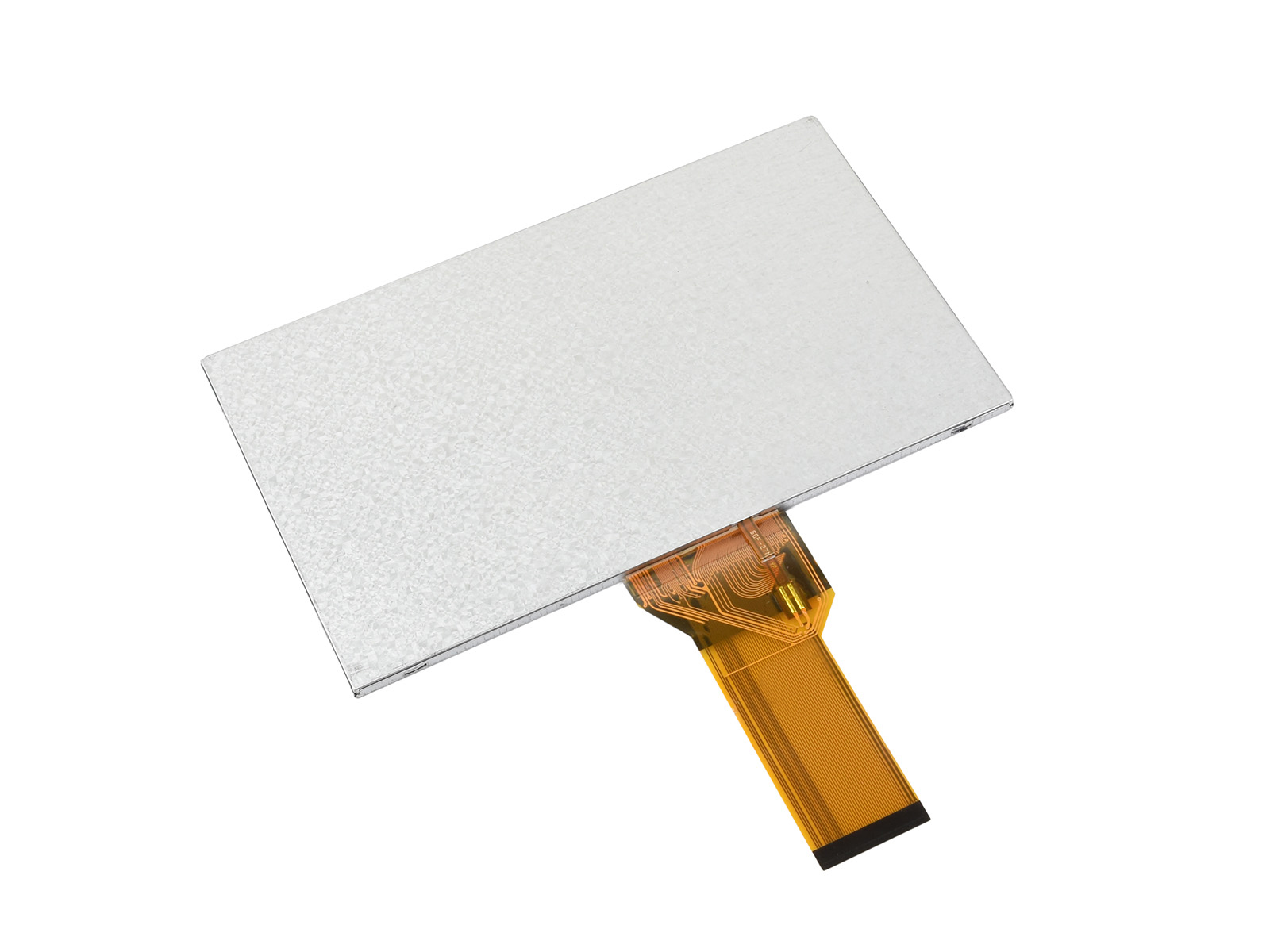

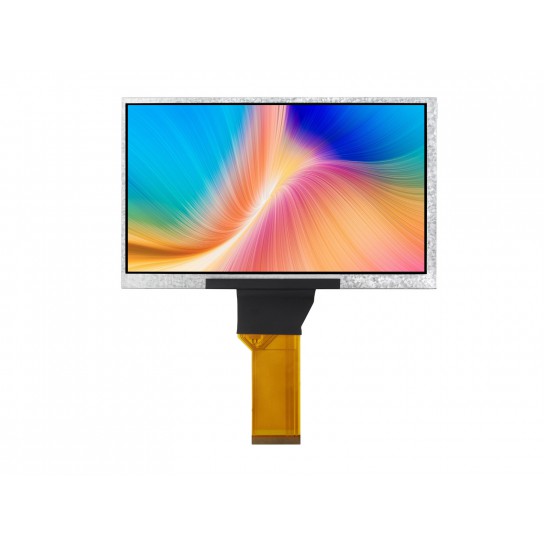

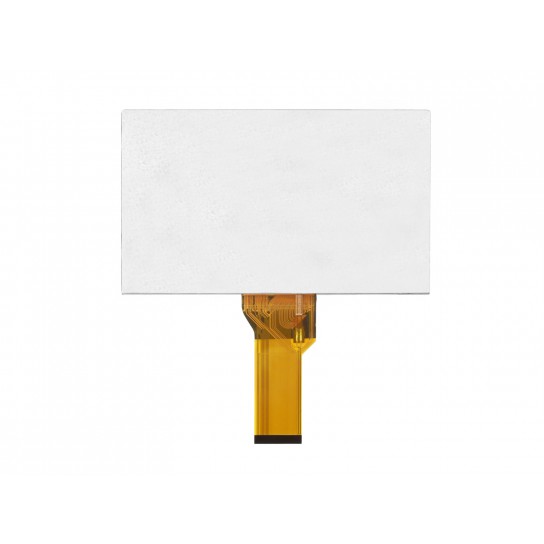

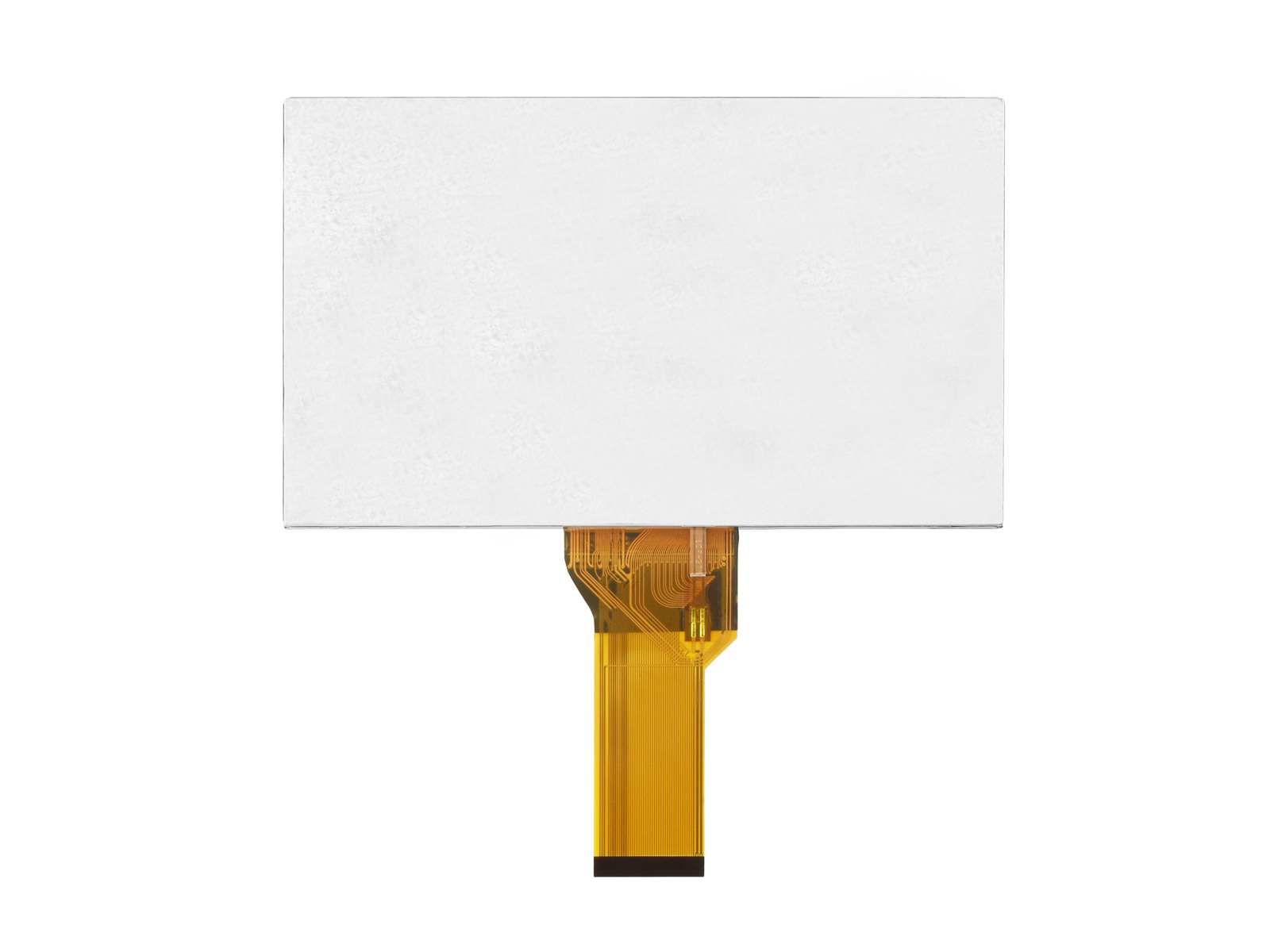

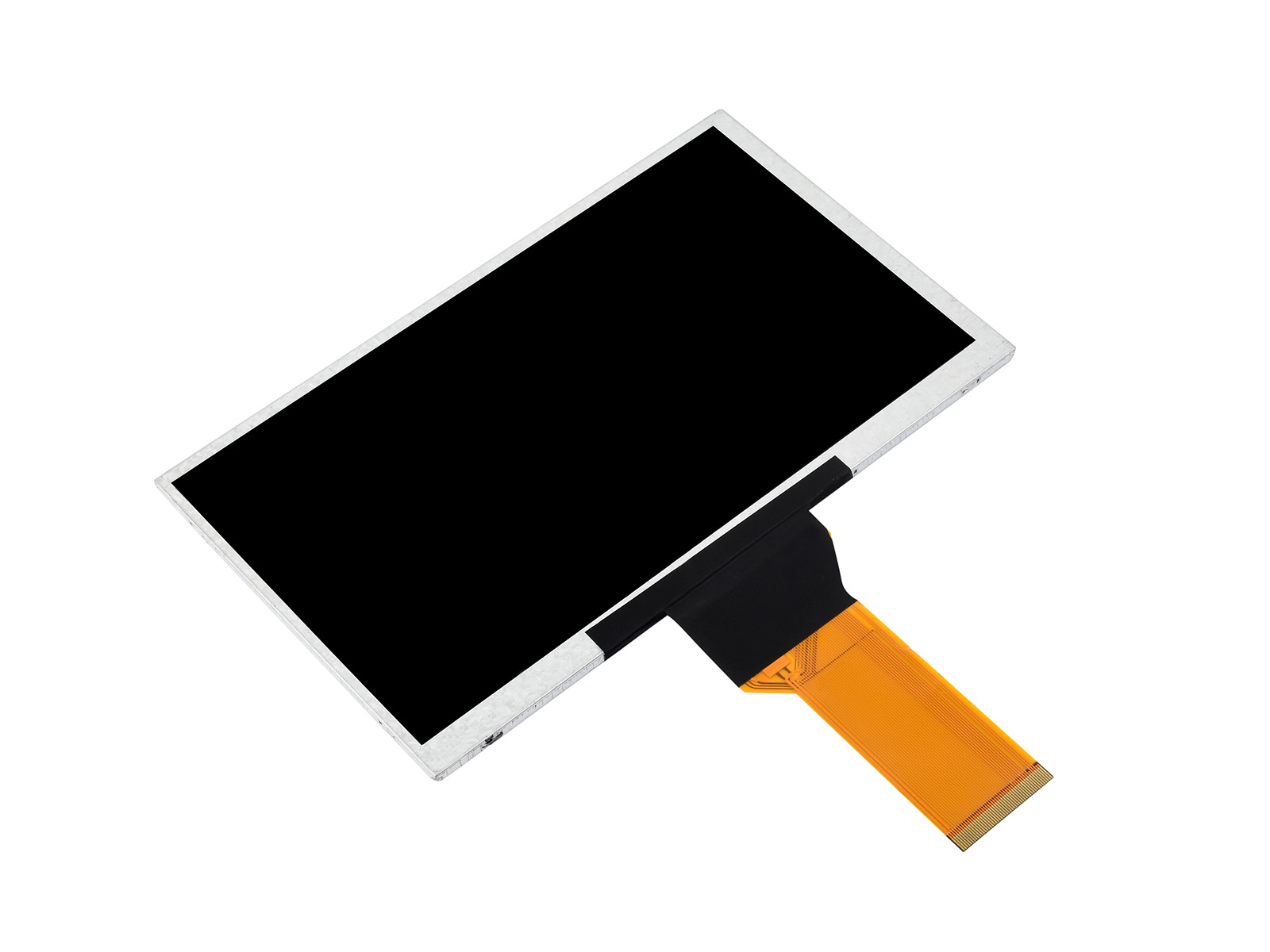

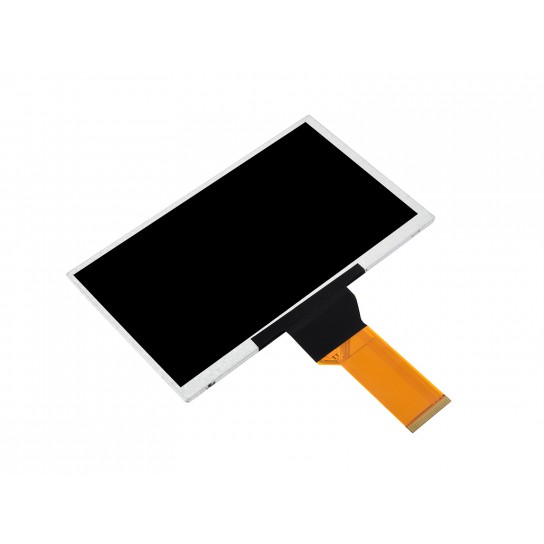

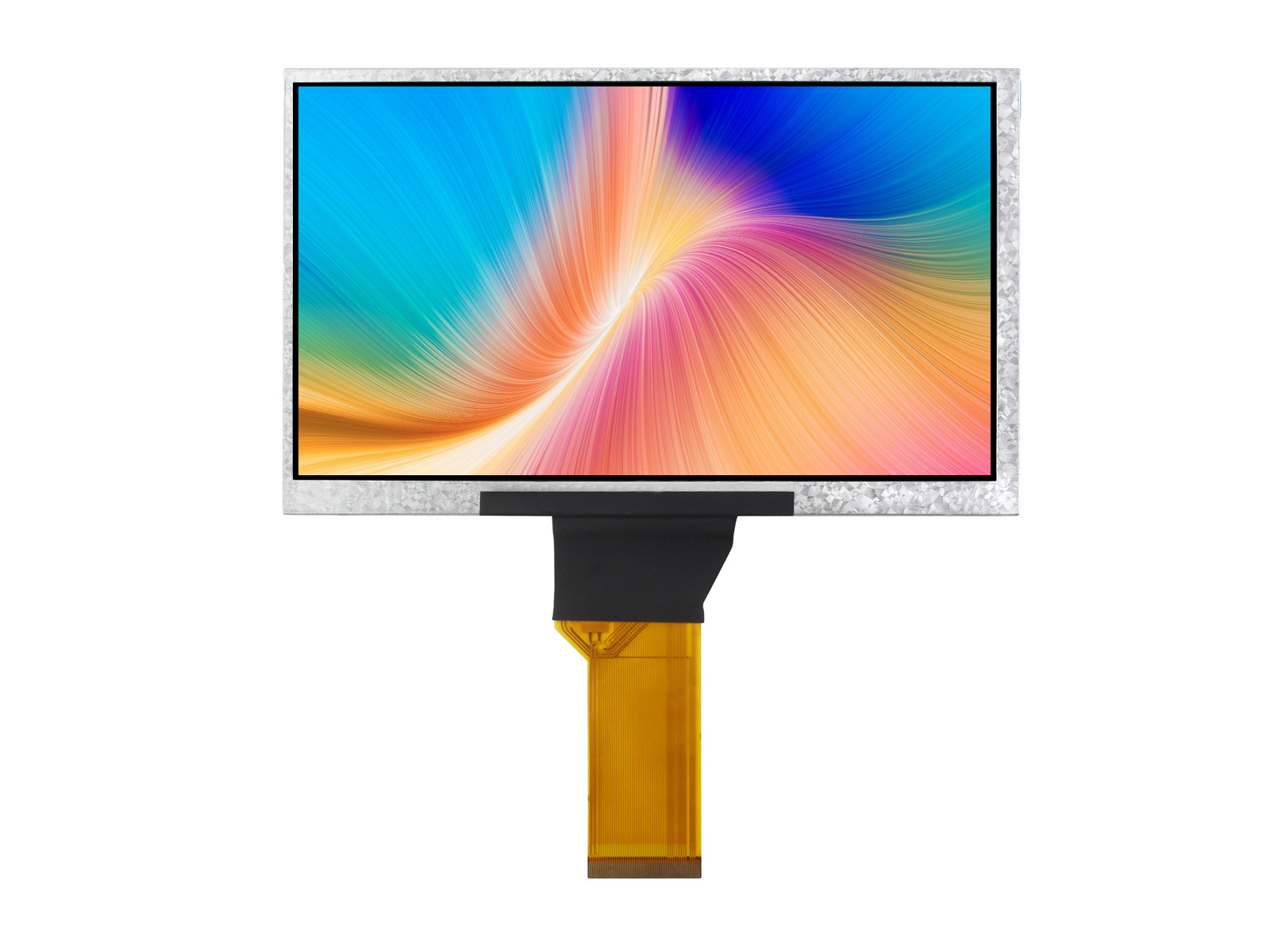

7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color

7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
7inch TFT LCD Display, 7" 800×480 High Resolution TFT LCD Panel, RGB Interface, TFT Screen, 800×480, Full Color
$16.99
  • Stock: In Stock
  • Model: LF70-800480-TRA
  • Weight: 0.18kg
  • Dimensions: 164.90mm x 100.00mm x 3.50mm
  • SKU: 26902
Key parameters
Size7"Resolution800×480
Display PanelTFTViewing Angle-
Brightness500cd/m² (MAX)Contrast ratio500:1
Outline Dimension (mm)164.9(H)×100.0(V)×3.5(D)Display area154.08(W)×85.92(H)
Pixel pitch (mm)0.0642(W)×0.1790(H)communication interfaceRGB888
Operation temperature-20~70°CStorage temperature-30~80°C
RGB Interface Definition
PINSymbolI/ODescriptionRemark
1VLED+PPower for LED backlight (Anode)
2VLED+PPower for LED backlight (Anode)
3VLED-PPower for LED backlight (Cathode)
4VLED-PPower for LED backlight (Cathode)
5GNDPPower ground
6VCOMICommon voltage
7DVDDPPower for digital circuit
8MODEIDE/SYNC mode selectNote 1
9DEIData input enable
10VSIVertical Sync Input
11HSIHorizontal Sync Input
12B7IBlue data (MSB)
13~17B6~B2IBlue data
18B1IBlue dataNote 2
19B0IBlue data (LSB)Note 2
20G7IGreen data (MSB)
21~25G6~G2IGreen data
26G1IGreen dataNote 2
27G0IGreen data (LSB)Note 2
28R7IRed data (MSB)
29~33R6~R2IGreen data
34R1IRed dataNote 2
35R0IRed data (LSB)Note 2
36GNDPPower ground
37DCLKISample clockNote 3
38GNDPPower Ground
39L/RILeft/right selection
40U/DIUp/down selection
41VGHPGate ON Voltage
42VGLPGate OFF Voltage
43AVDDPPower for analog circuit
44RESETIGlobal reset pin
45NC-No connection
46VCOMICommon voltage
47DITHIDithering function
48GNDPPower Ground
49NC-No connection
50NC-No connection

I: input, O: output, P: power
Note 1: DE/SYNC mode select. Normally pull high.

  • When select DE mode, MODE="1", VS and HS must be grounded.
  • When select SYNC mode, MODE="0", DE must be grounded.
Note 2: When input 18 bits RGB data, the two low bits of R, G and B data must be grounded.
Note 3: Data shall be latched at the falling edge of DCLK.

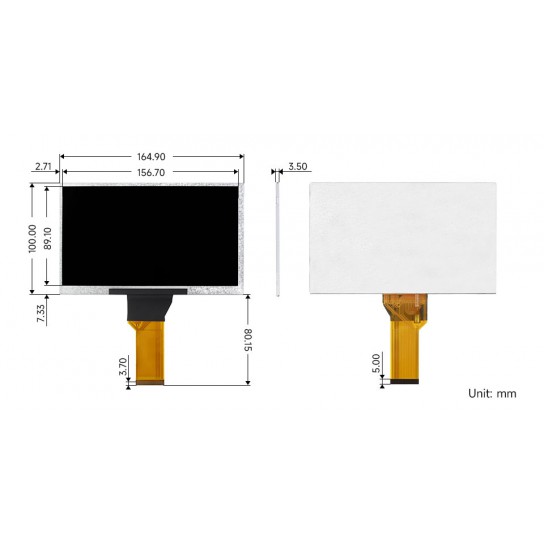

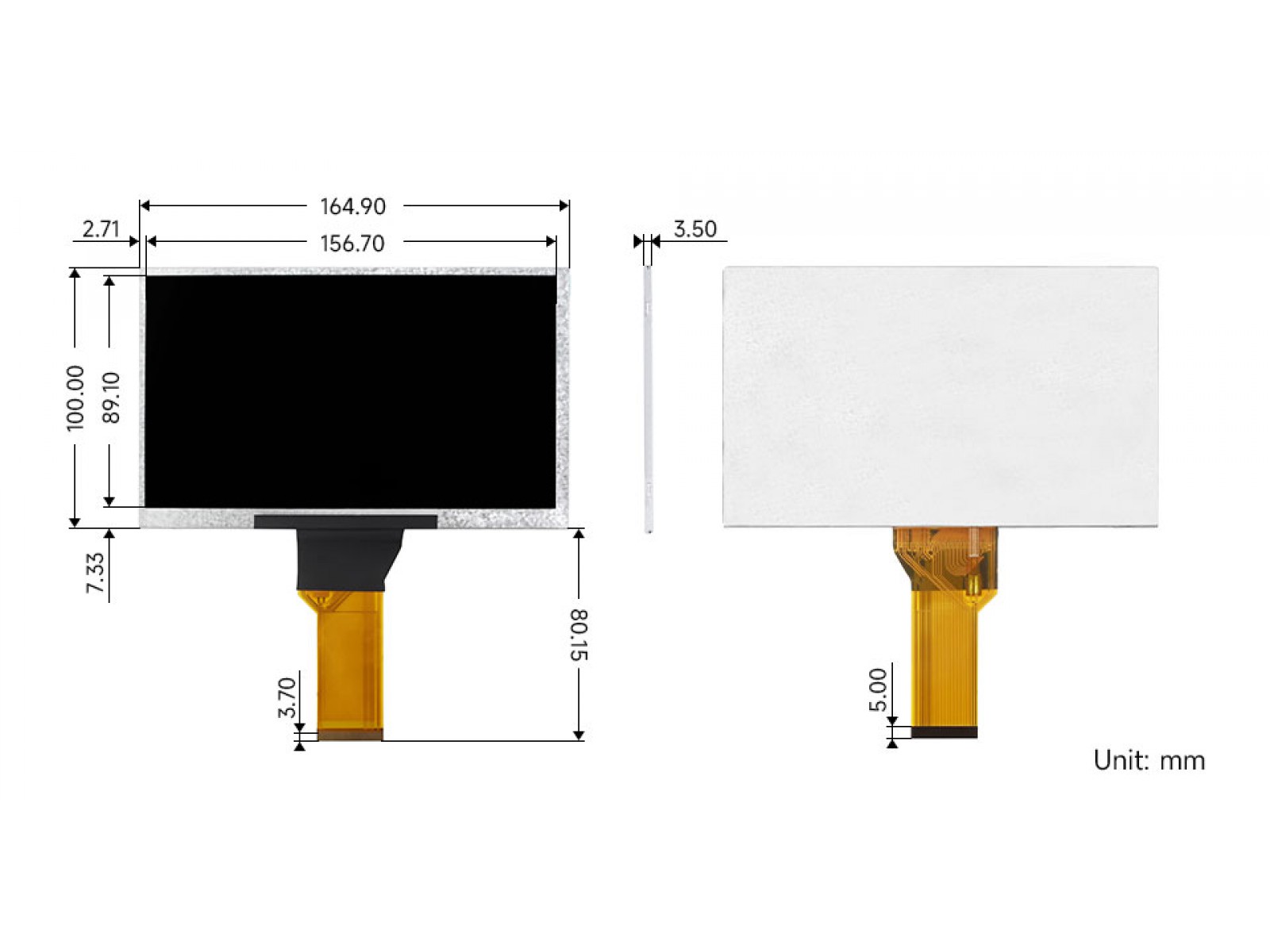

Dimensions
Selection Guide
PRODUCTSIZERESOLUTIONDISPLAY PANELDISPLAY COLOR GAMUTBRIGHTNESS (MAX)CONTRAST RATIOOUTLINE DIMENSION (mm)DISPLAY AREA (mm)COMMUNICATION INTERFACE
LF43-800480-ARA
LF43-800480-ARA
4.3"800×480IPS50%NTSC600cd/m²1200:1105.50×67.20×3.0095.04×53.858RGB888
LF50-800480-ARA
LF50-800480-ARA
5"800×480IPS50%NTSC400cd/m²1000:1120.90×75.80×2.95108.0×64.8RGB888
LF70-800480-TRA
LF70-800480-TRA
7"800×480TFT-500cd/m²500:1164.9×100.0×3.5154.08×85.92RGB888
LF70-800480-ARA
LF70-800480-ARA
7"800×480IPS50%NTSC550cd/m²1000:1164.00×97.00×2.60154.84×85.632RGB888
LF70-1024600-ARA
LF70-1024600-ARA
7"1024×600IPS55%NTSC400cd/m²1000:1164.00×97.00×2.60154.2144×85.92RGB888
LF80-8001280-AMA
LF80-8001280-AMA
8"800×1280IPS60%NTSC500cd/m²1200:1114.66×184.16×2.60107.64×172.22MIPI
LF101-8001280-AMA
LF101-8001280-AMA
10.1"800×1280IPS60%NTSC500cd/m²1200:1143.0×228.60×2.60135.36×216.58MIPI

Package Contains

LF70-800480-TRA × 1
