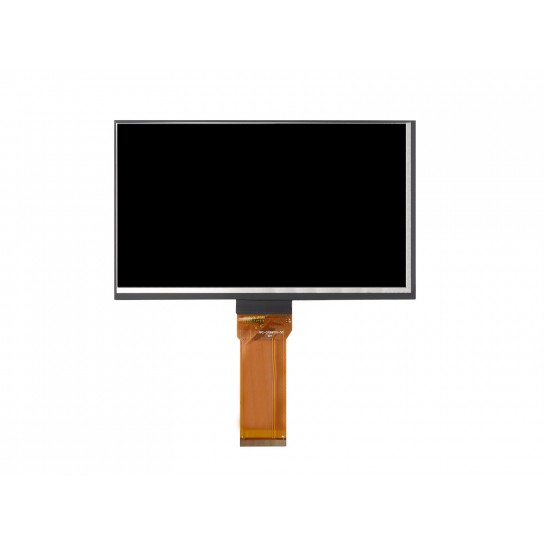

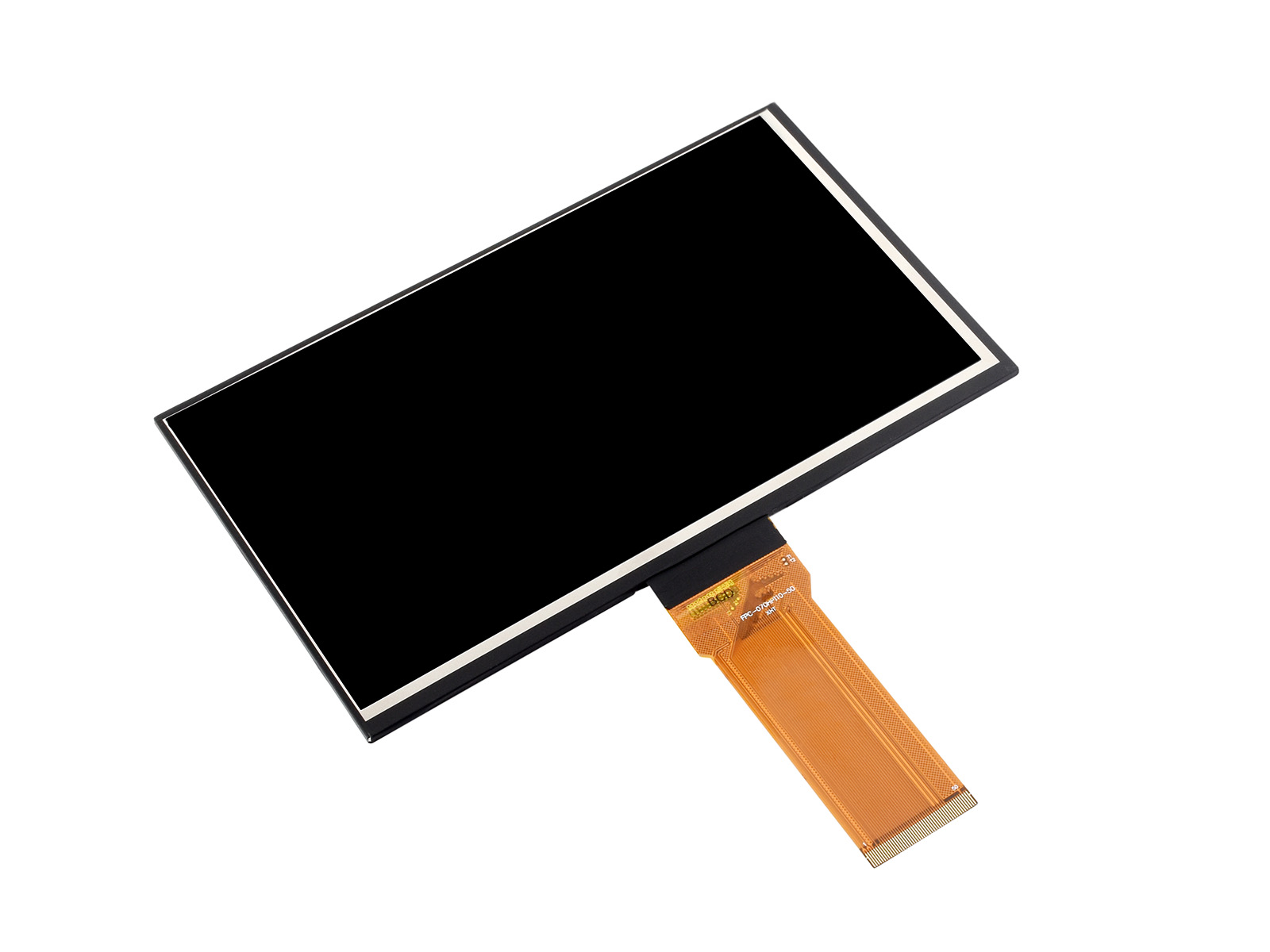

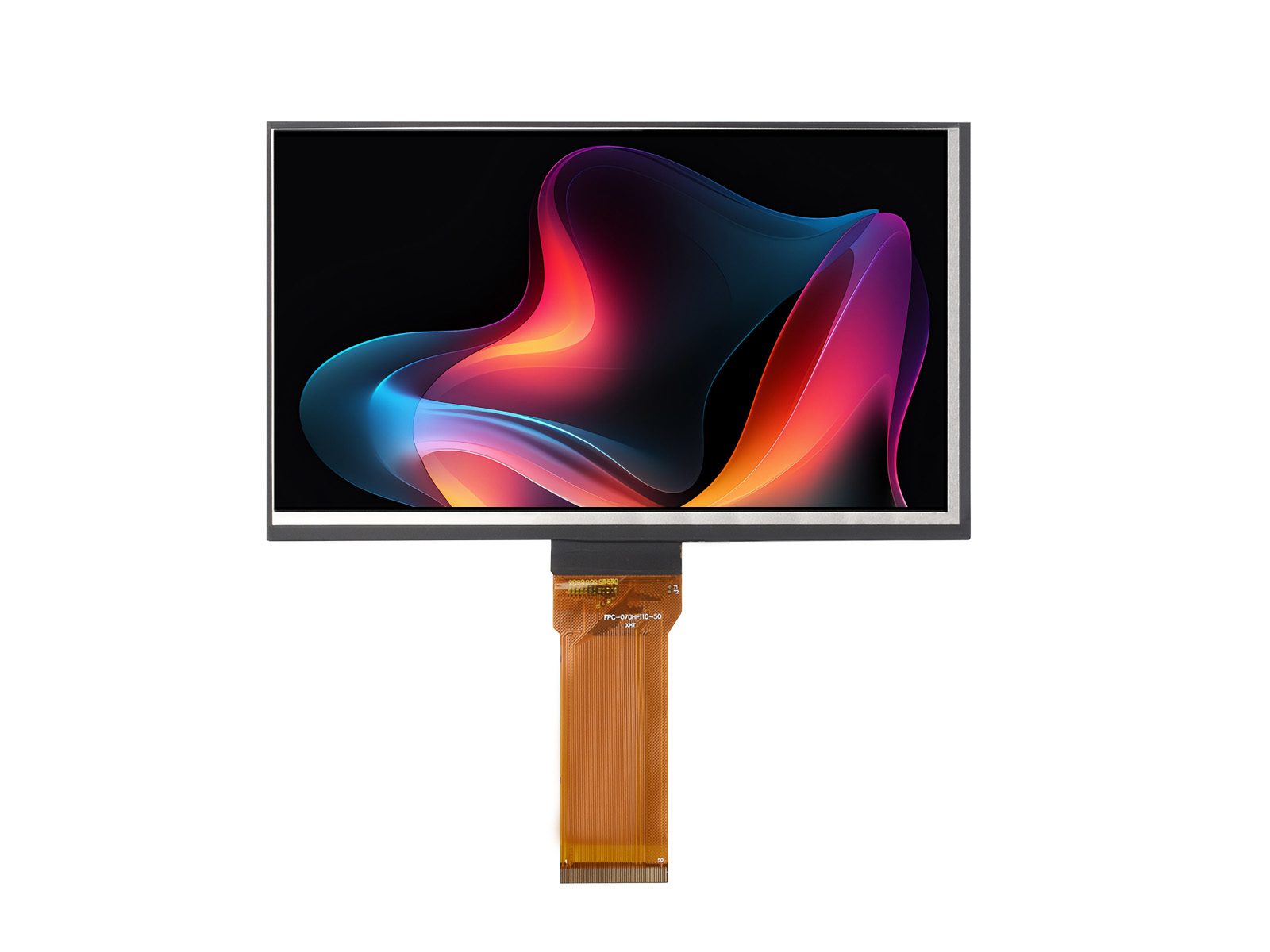

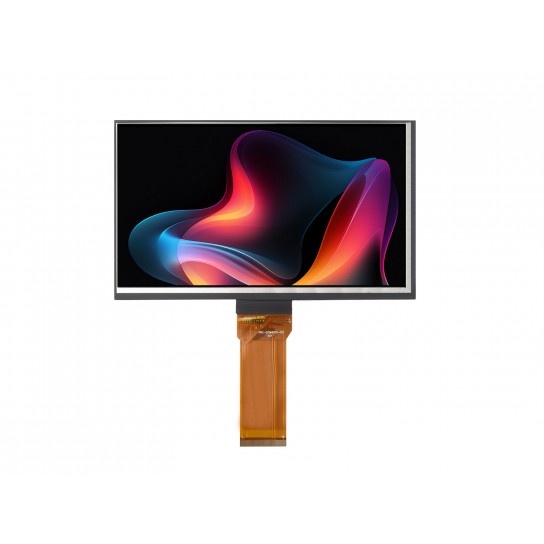

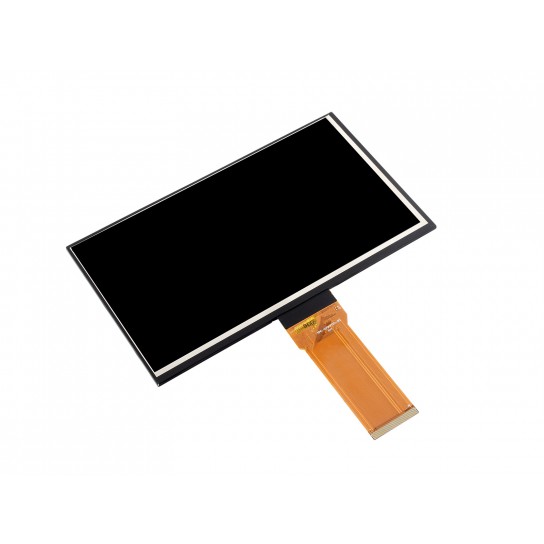

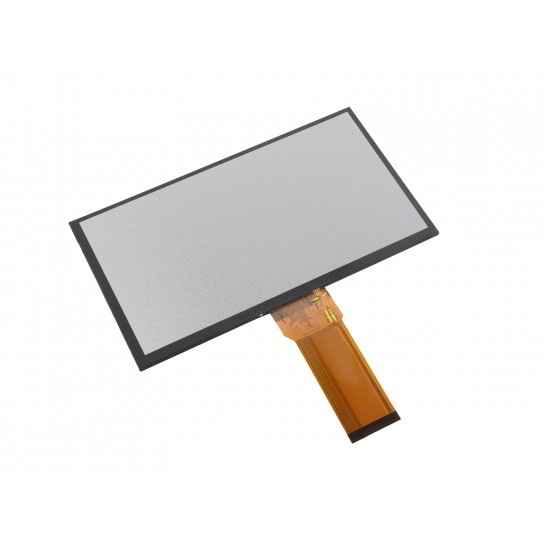

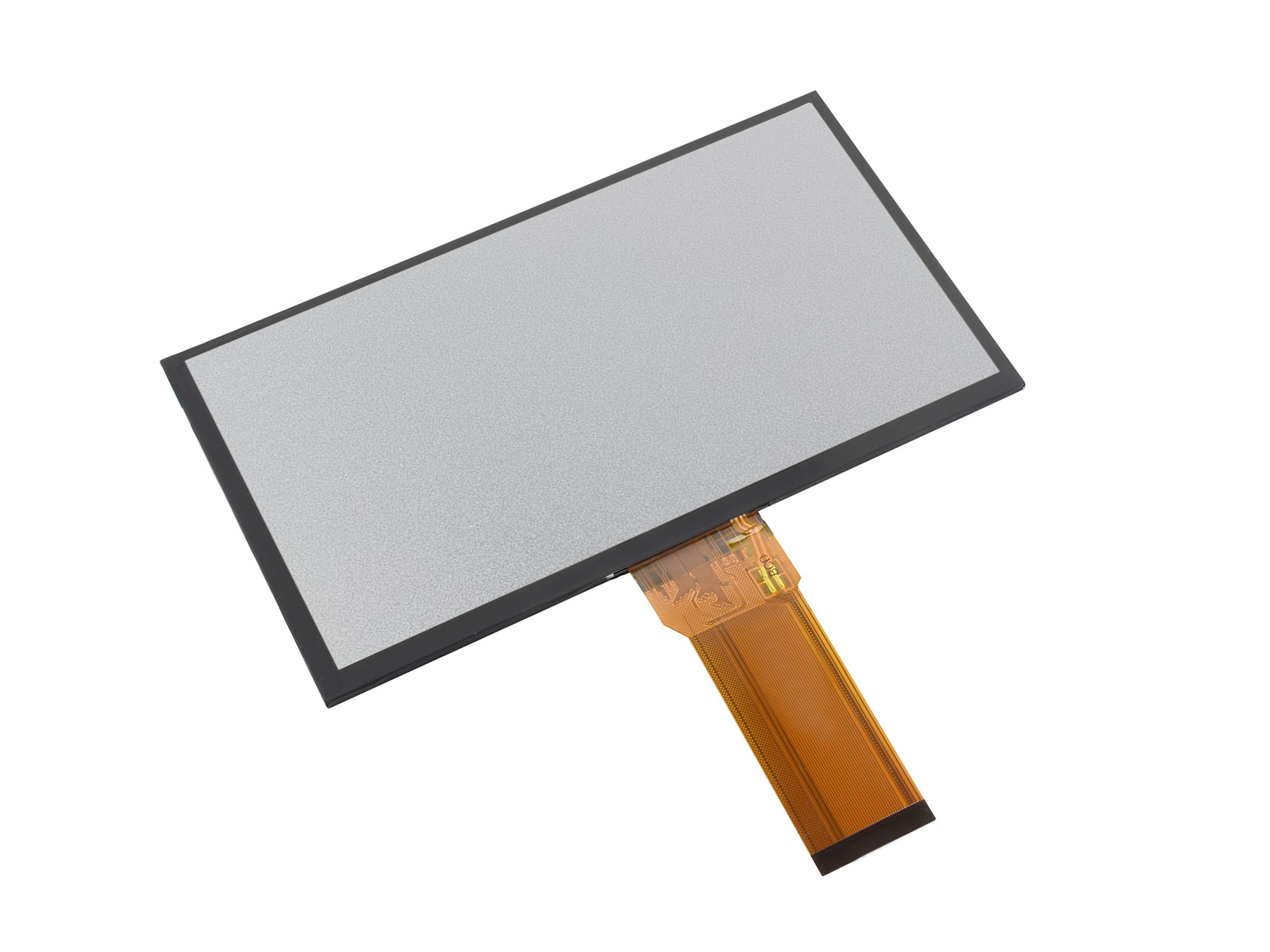

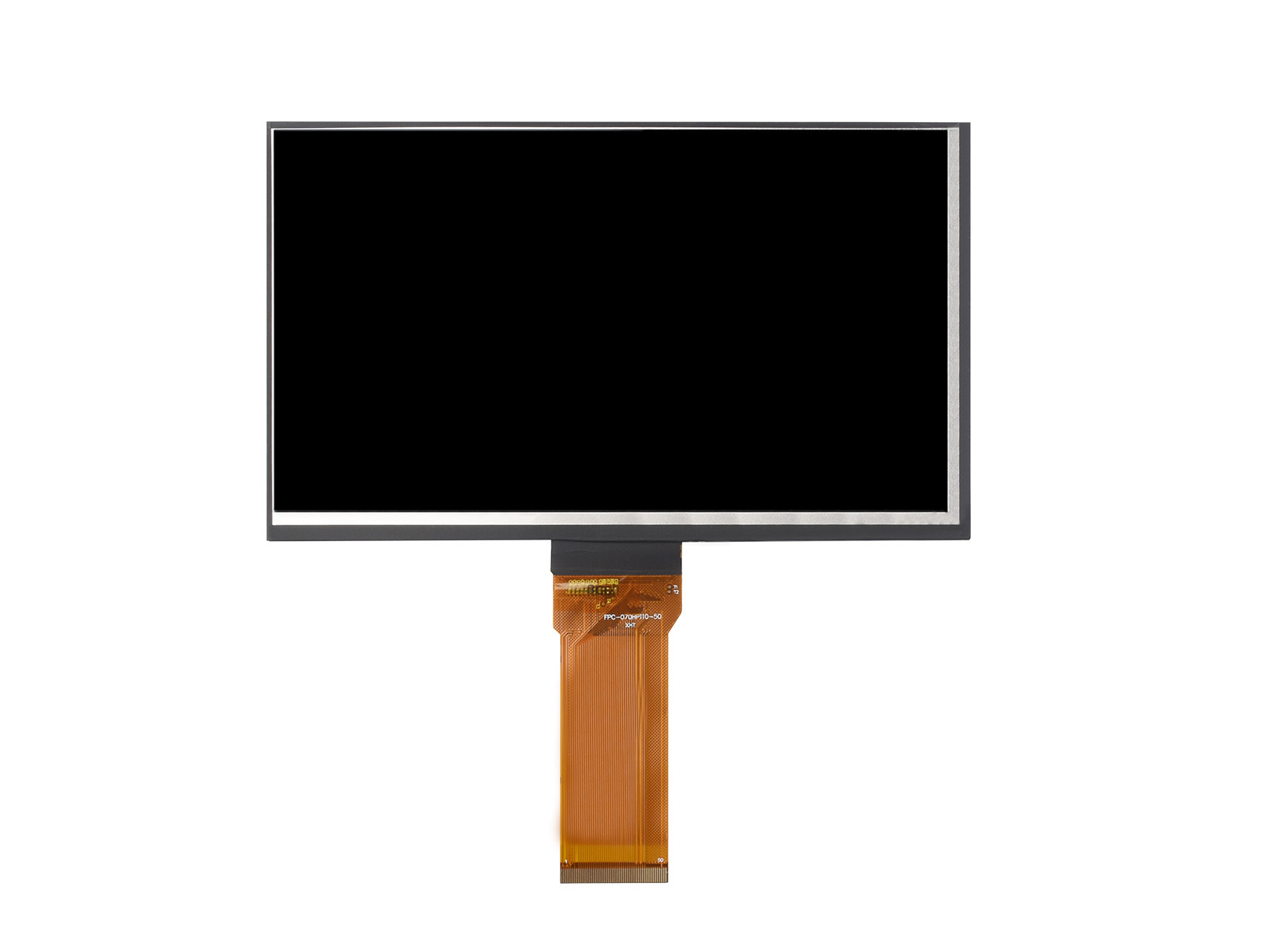

Name: 7inch IPS LCD Display, 7" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color
Brand: LUCKFOX
SKU: 26903
Price: 17.99 USD
Availability: OutOfStock

Key parameters

Size	7"	Resolution	800×480
Display Panel	IPS	Viewing Angle	170°
Display Color	16.7M	Display colour gamut	50%NTSC
Brightness	550cd/m² (MAX)	Contrast ratio	1000:1
Outline Dimension (mm)	164.00(H)×97.00(V)×2.60(T)	Display area	153.840(H)×85.632(H)
Pixel pitch (mm)	-	communication interface	RGB888
Operation temperature	-20~70°C	Storage temperature	-30~80°C

RGB Interface Definition

PIN	Symbol	I/O	Description	Remark
1	VLED+	P	Power for LED backlight (Anode)
2	VLED+	P	Power for LED backlight (Anode)
3	VLED-	P	Power for LED backlight (Cathode)
4	VLED-	P	Power for LED backlight (Cathode)
5	GND	P	Power Ground
6	VCOM	I	Common voltage
7	DVDD	P	Digital Power
8	MODE	I	DE/SYNC mode select	Note 1
9	DE	I	Data Input Enable
10	VSYNC	I	Vertical Sync Input
11	HSYNC	I	Horizontal Sync Input
12	B7	I	Blue data (MSB)
13~17	B6~B2	I	Blue data
18	B1	I	Blue data	Note 2
19	B0	I	Blue data (LSB)	Note 2
20	G7	I	Green data (MSB)
21~25	G6~G2	I	Green data
26	G1	I	Green data	Note 2
27	G0	I	Green data (LSB)	Note 2
28	R7	I	Red data (MSB)
29~33	R6~R2	I	Green data
34	R1	I	Red data	Note 2
35	R0	I	Red data (LSB)	Note 2
36	GND	P	Power Ground
37	DCLK	I	Clock input	Note 3
38	GND	P	Power Ground
39	L/R	I	Left/Right Selection
40	U/D	I	Up/Down Selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin
45	NC	-	No connection
46	VCOM	I	Common Voltage
47	DITH	I	Dithering function enable control
48	GND	P	Power Ground
49	NC	-	No connection
50	NC	-	No connection

I: input, O: output, P: power
Note 1: DE/SYNC mode select. Normally pull high.

When MODE=H, DE mode.
When MODE=L, SYNC mode.

Note 2: When input 18 bits RGB data, the two low bits of R, G and B data must be grounded.
Note 3: Data shall be latched at the falling edge of DCLK.

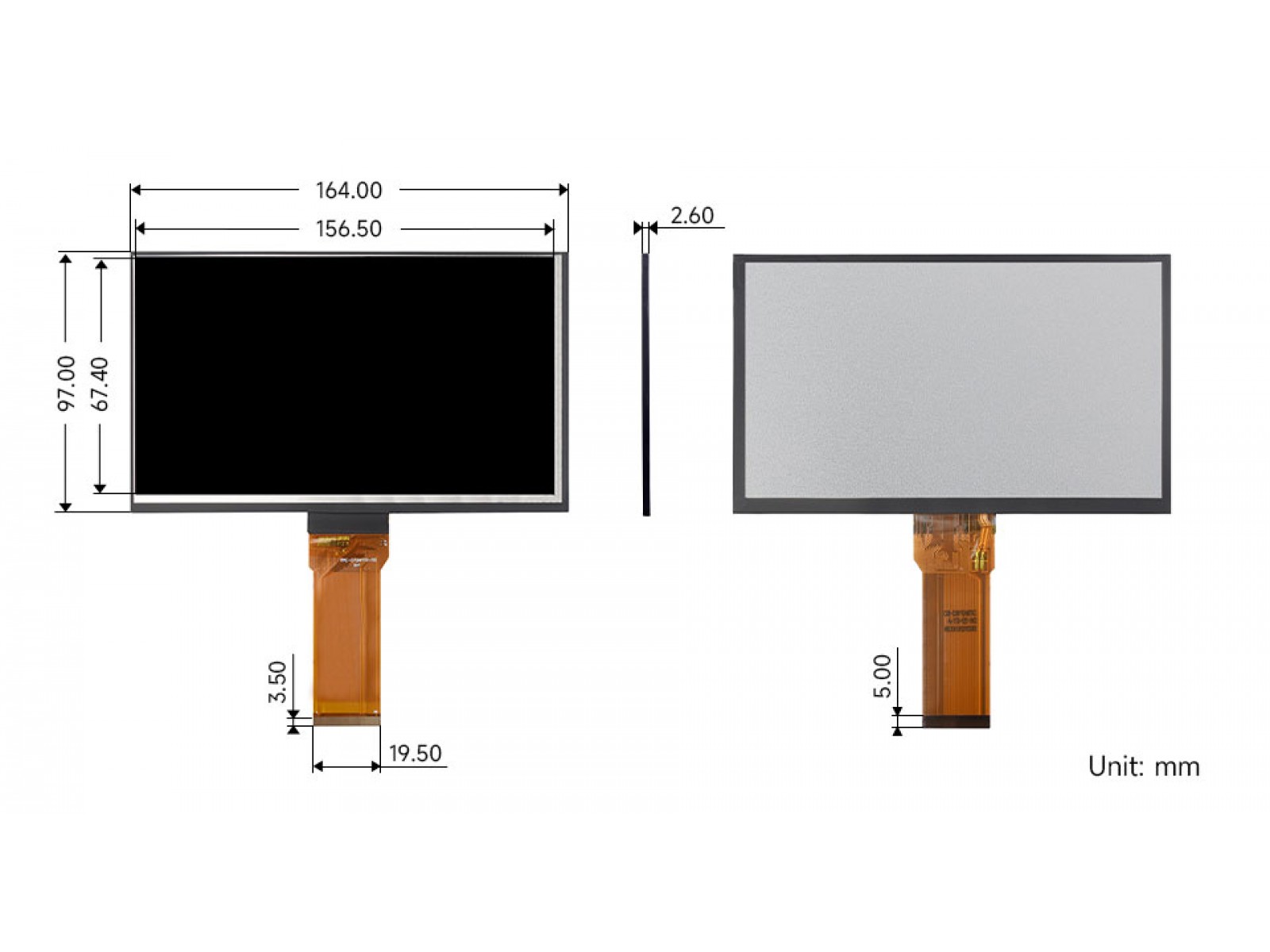

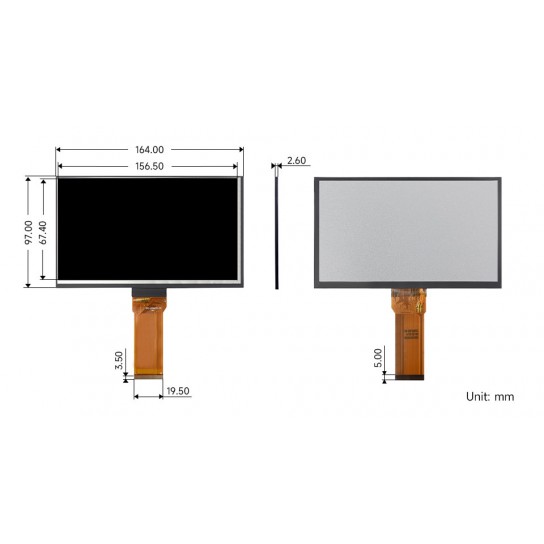

Dimensions

Selection Guide

PRODUCT	SIZE	RESOLUTION	DISPLAY PANEL	DISPLAY COLOR GAMUT	BRIGHTNESS (MAX)	CONTRAST RATIO	OUTLINE DIMENSION (mm)	DISPLAY AREA (mm)	COMMUNICATION INTERFACE
LF43-800480-ARA	4.3"	800×480	IPS	50%NTSC	600cd/m²	1200:1	105.50×67.20×3.00	95.04×53.858	RGB888
LF50-800480-ARA	5"	800×480	IPS	50%NTSC	400cd/m²	1000:1	120.90×75.80×2.95	108.0×64.8	RGB888
LF70-800480-TRA	7"	800×480	TFT	-	500cd/m²	500:1	164.9×100.0×3.5	154.08×85.92	RGB888
LF70-800480-ARA	7"	800×480	IPS	50%NTSC	550cd/m²	1000:1	164.00×97.00×2.60	154.84×85.632	RGB888
LF70-1024600-ARA	7"	1024×600	IPS	55%NTSC	400cd/m²	1000:1	164.00×97.00×2.60	154.2144×85.92	RGB888
LF80-8001280-AMA	8"	800×1280	IPS	60%NTSC	500cd/m²	1200:1	114.66×184.16×2.60	107.64×172.22	MIPI
LF101-8001280-AMA	10.1"	800×1280	IPS	60%NTSC	500cd/m²	1200:1	143.0×228.60×2.60	135.36×216.58	MIPI

7inch IPS LCD Display, 7" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color

$17.99
