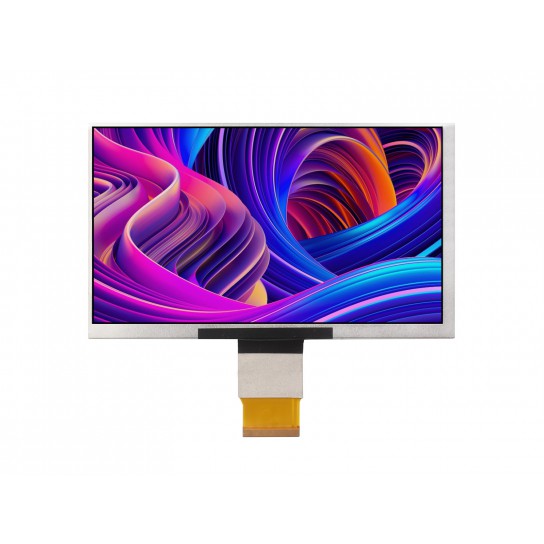

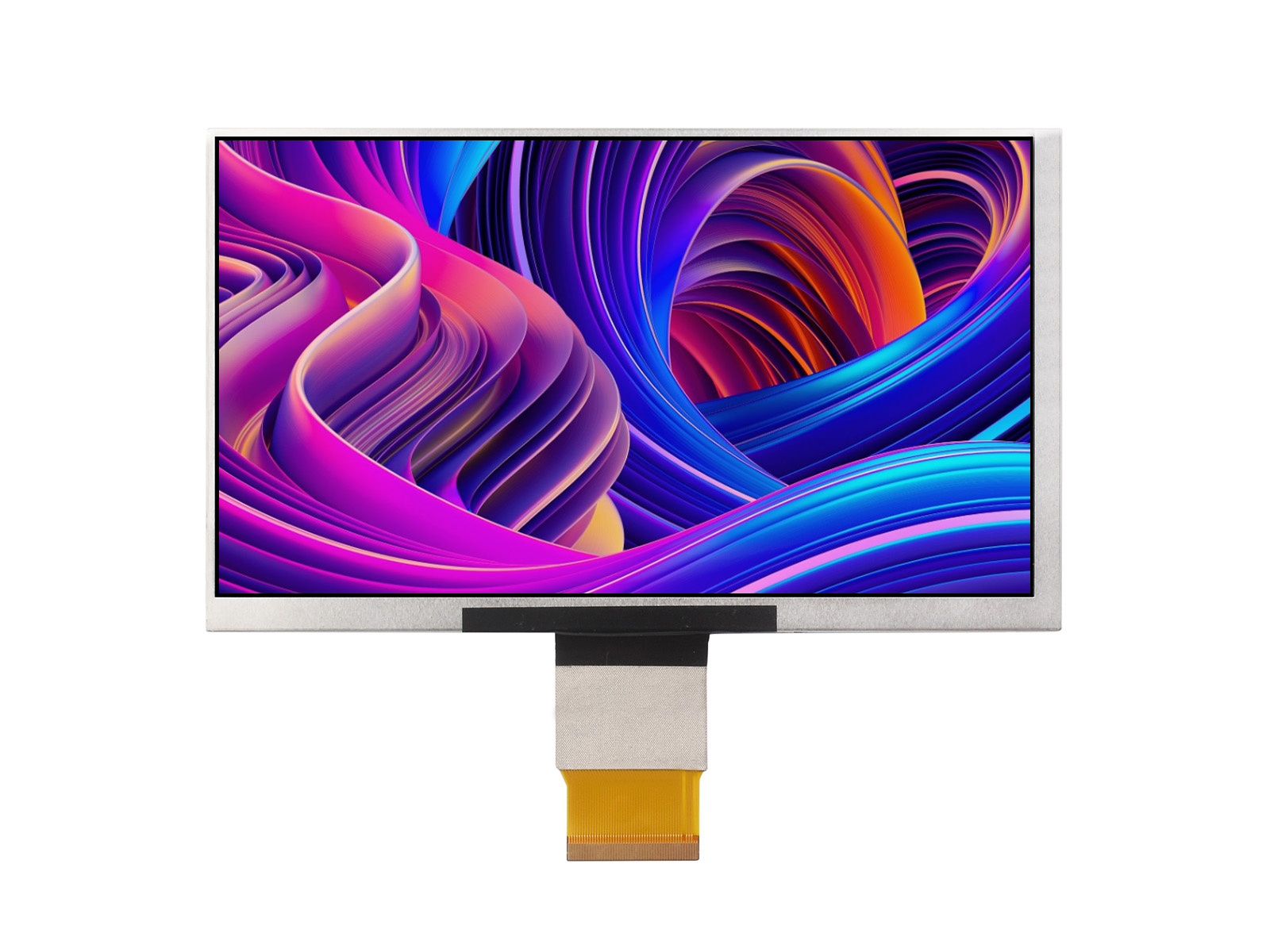

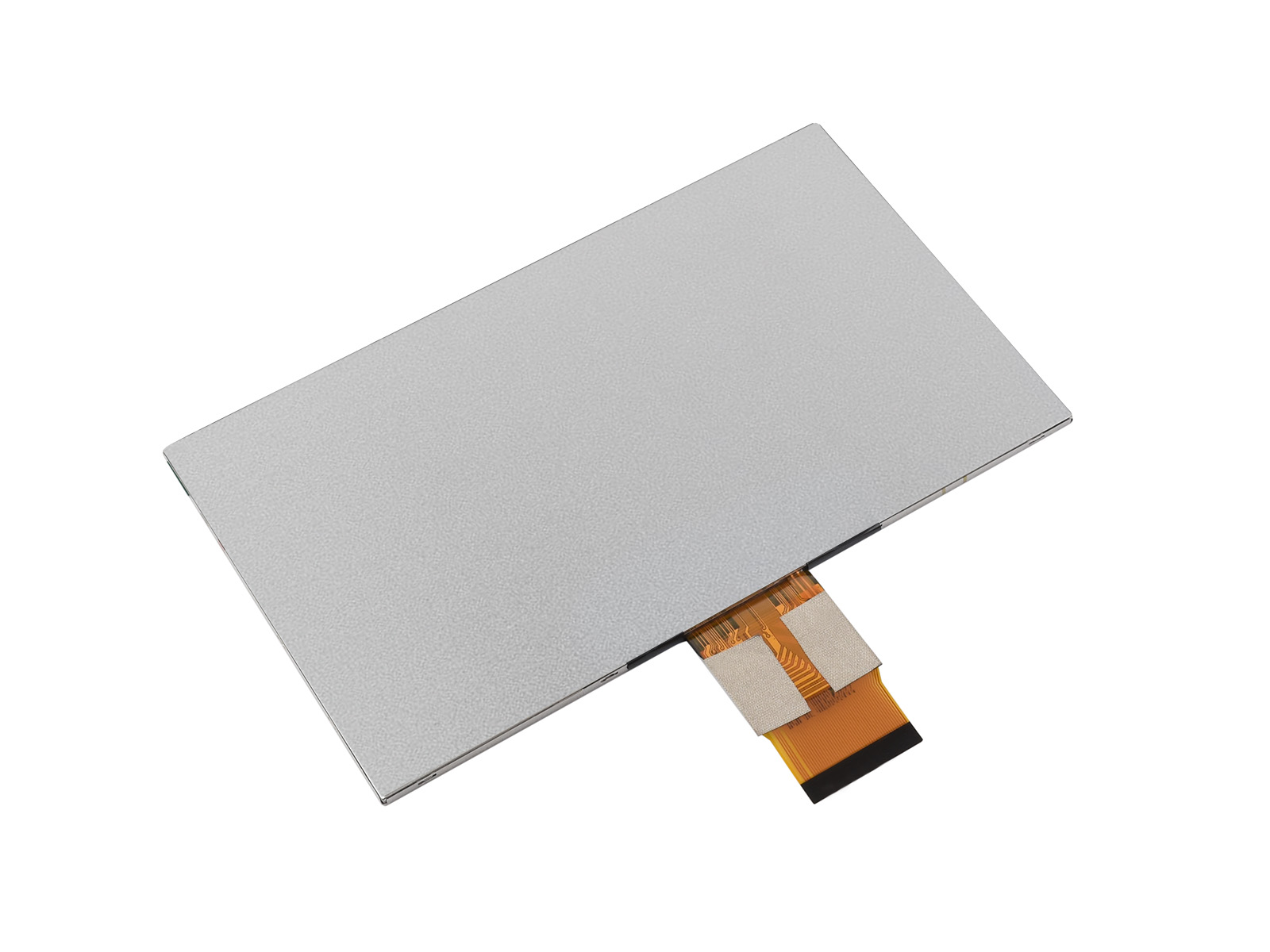

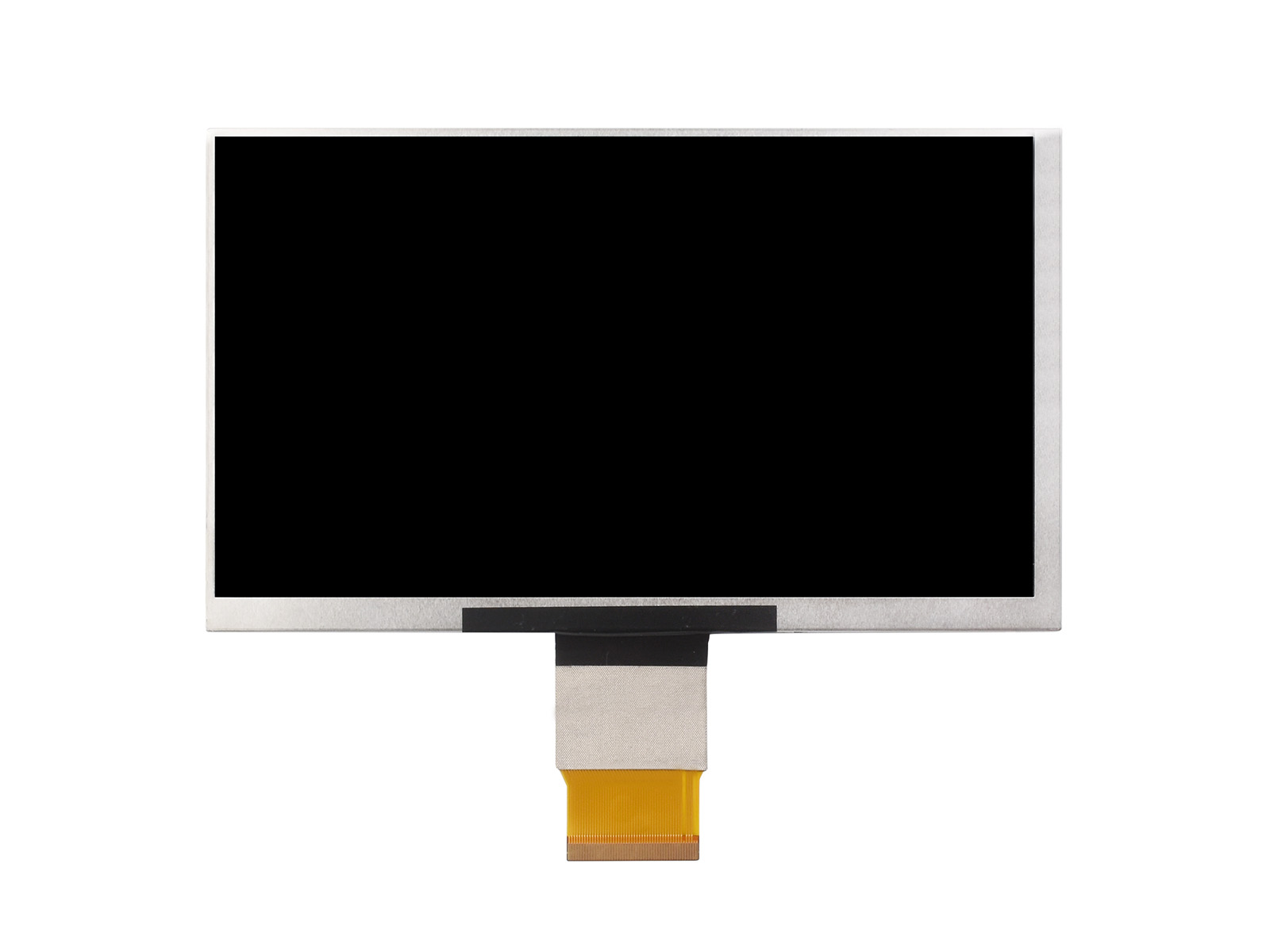

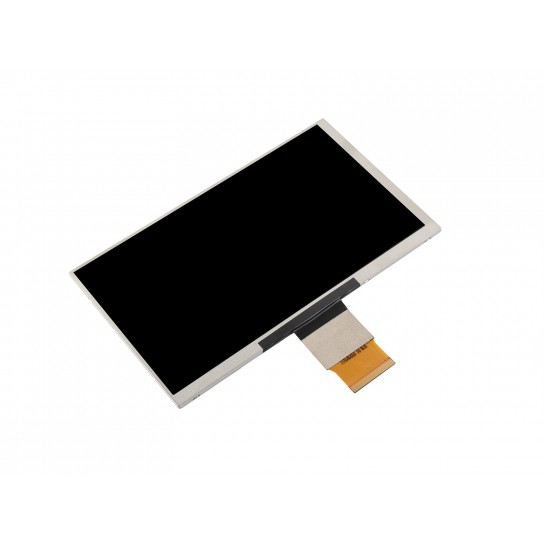

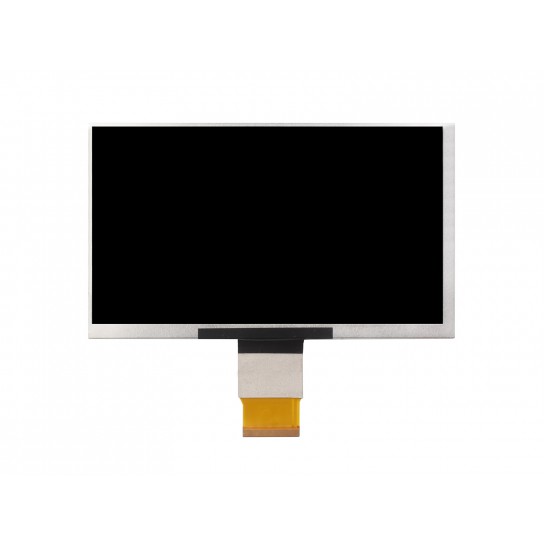

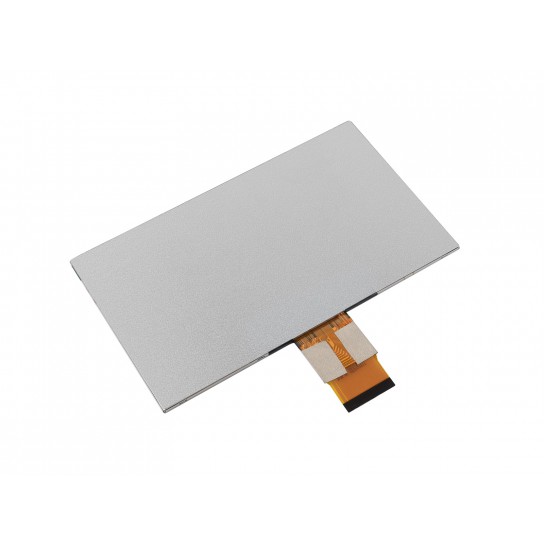

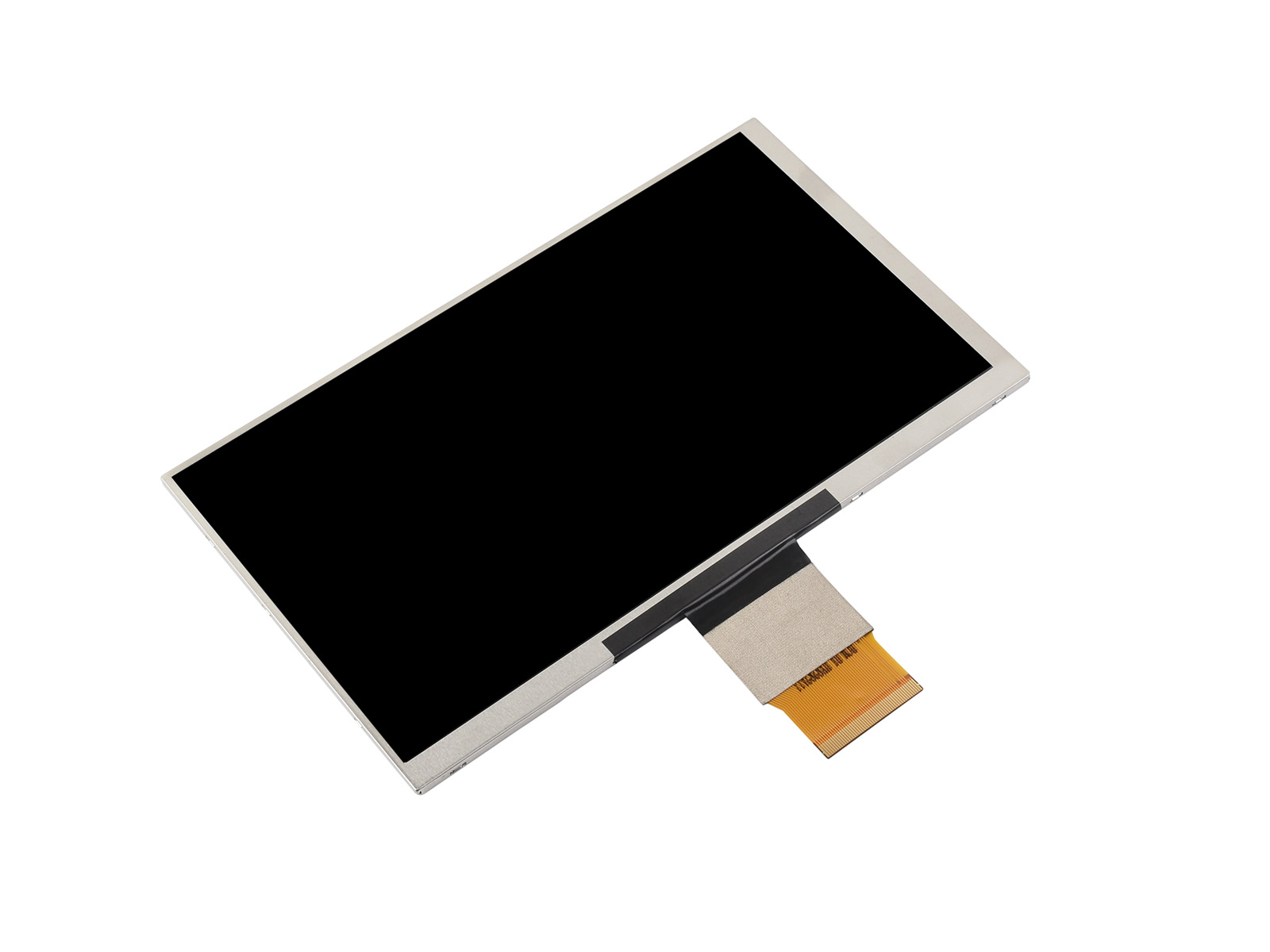

7inch IPS LCD Display, 7" 1024×600 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, Full Color, Wide Viewing Angle

  • Brand:LUCKFOX
  • Model:LF70-1024600-ARA
  • SKU:26904
  • Battery:Not included

  • $17.99

    Out Of Stock
Add to Wish List
Compare this Product
Key parameters
Size 7" Resolution 1024×600
Display Panel IPS Viewing Angle 170°
Display Color 16.7M Display colour gamut 55%NTSC
Brightness 400cd/m² (MAX) Contrast ratio 1000:1
Outline Dimension (mm) 164.0(H)×97.0(V)×2.6(T) Display area 154.2144(H)×85.92(H)
Pixel pitch (mm) 0.1506(H)×0.1432(V) communication interface RGB888
Operation temperature -20~70°C Storage temperature -30~80°C
RGB Interface Definition
PIN Symbol Description Remark
1 A Power for LED backlight (Anode)
2 A Power for LED backlight (Anode)
3 K Power for LED backlight (Cathode)
4 K Power for LED backlight (Cathode)
5 GND Power Ground
6 VCOM Common voltage
7 VDD Digital Power
8 MODE DE/SYNC mode select. Normally pull high Note 1
9 DE Data Input Enable
10 VS Vertical sync input. Negative polarity
11 HS Horizontal sync input. Negative polarity
12 B7 Blue data (MSB)
13~18 B6~B1 Blue data
19 B0 Blue data (LSB)
20 G7 Green data (MSB)
21~26 G6~G1 Green data
27 G0 Green data (LSB)
28 R7 Red data (MSB)
29~34 R6~R1 Red data
35 R0 Red data (LSB) Note 2
36 GND Power Ground
37 DCLK Clock input
38 GND Power Ground
39 L/R Left/Right Display Control Note 2
40 U/D Up/Down Display Control Note 3
41 VGH Positive Power for TFT
42 VGL Negative Power for TFT
43 AVDD Analog Power
44 RESET Global reset pin Note 4
45 NC No connection
46 VCOM Common Voltage
47 DITH Dithering setting Note 5
48 GND Power Ground
49 NC No connection
50 NC No connection

Note 1: DE/SYNC mode select. Normally pull high.

  • H: DE mode.
  • L: HS/VS mode.
Note 2: Source right pr left sequence control.
  • L/R="L", shift left: last data=S1<-S2...S1200=first data
  • L/R="H", shift right: last data=S1->S2...S1200=last data
Note 3: Gate up or down scan control.
  • U/D="L", down shif: G1->G2...->G480
  • L/R="H", up shift: l G1<-G2...<-G480
Note 4: Clobal reset pin. Active low to enter reset state.
  • Syggest to connect with an RC reset circuit for stability. Normally pull high.
Note 5: Dithering setting: DITH="L" 8-bit resolution (default setting).
  • DITH="H" 6-bit resolution (last 2 bits of input data truncated).

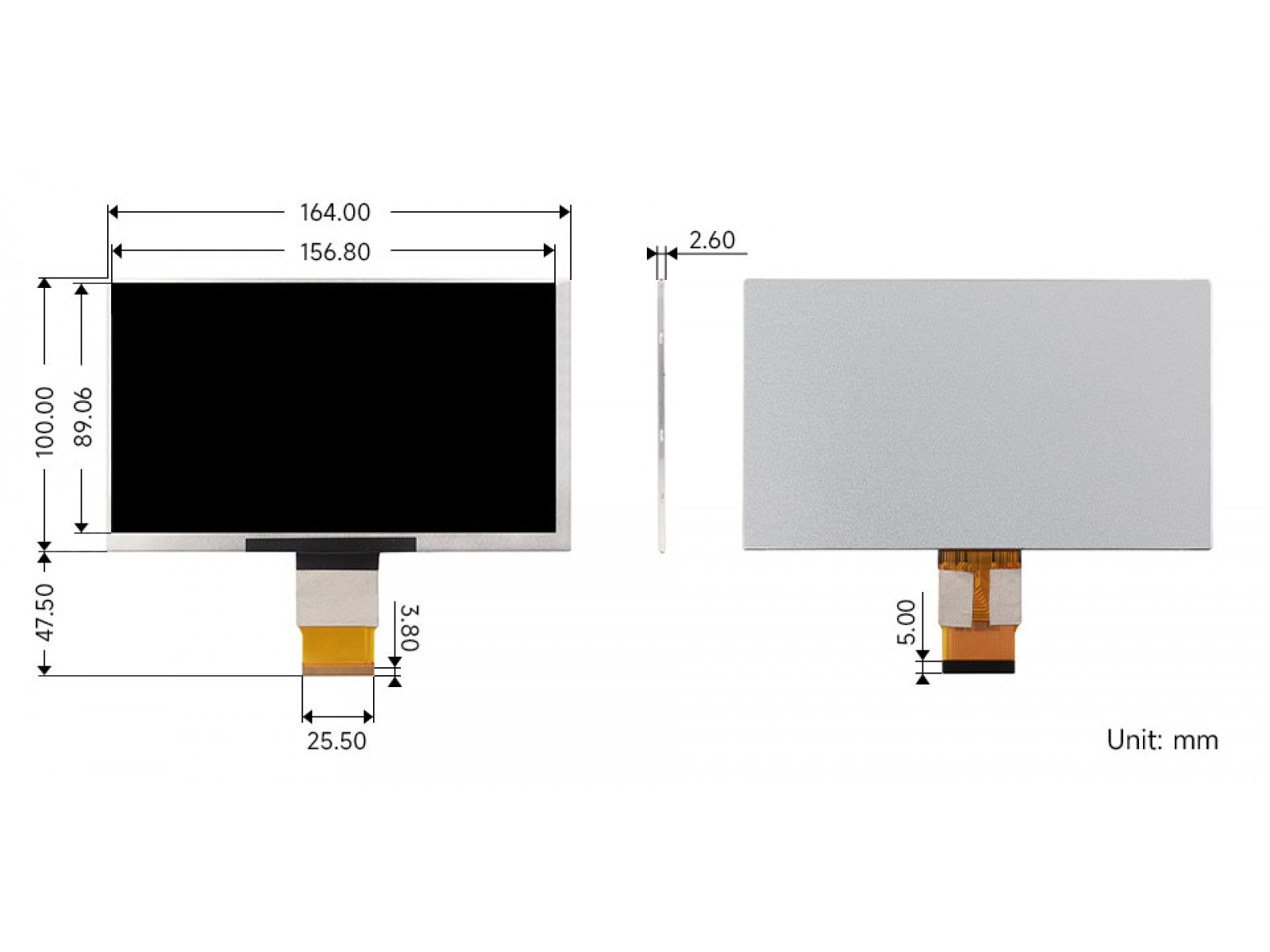

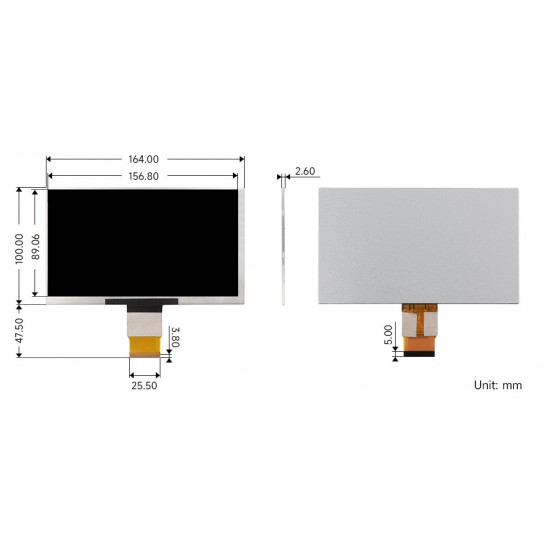

Dimensions
Selection Guide
PRODUCT SIZE RESOLUTION DISPLAY PANEL DISPLAY COLOR GAMUT BRIGHTNESS (MAX) CONTRAST RATIO OUTLINE DIMENSION (mm) DISPLAY AREA (mm) COMMUNICATION INTERFACE
LF43-800480-ARA
LF43-800480-ARA		 4.3" 800×480 IPS 50%NTSC 600cd/m² 1200:1 105.50×67.20×3.00 95.04×53.858 RGB888
LF50-800480-ARA
LF50-800480-ARA		 5" 800×480 IPS 50%NTSC 400cd/m² 1000:1 120.90×75.80×2.95 108.0×64.8 RGB888
LF70-800480-TRA
LF70-800480-TRA		 7" 800×480 TFT - 500cd/m² 500:1 164.9×100.0×3.5 154.08×85.92 RGB888
LF70-800480-ARA
LF70-800480-ARA		 7" 800×480 IPS 50%NTSC 550cd/m² 1000:1 164.00×97.00×2.60 154.84×85.632 RGB888
LF70-1024600-ARA
LF70-1024600-ARA		 7" 1024×600 IPS 55%NTSC 400cd/m² 1000:1 164.00×97.00×2.60 154.2144×85.92 RGB888
LF80-8001280-AMA
LF80-8001280-AMA		 8" 800×1280 IPS 60%NTSC 500cd/m² 1200:1 114.66×184.16×2.60 107.64×172.22 MIPI
LF101-8001280-AMA
LF101-8001280-AMA		 10.1" 800×1280 IPS 60%NTSC 500cd/m² 1200:1 143.0×228.60×2.60 135.36×216.58 MIPI

Package Contains

LF70-1024600-ARA × 1

Display
Size 7inch
Resolution 1024×600
Display Panel IPS
Viewing Angle 170°
Brightness 400cd/m²
Communication Interface RGB888
Contrast Ratio 1000:1
Display Color 16.7M
Display Colour Gamut 55%NTSC
Pixel Pitch (H×V) 0.1506×0.1432mm
Others
Operating Temp. -20~70°C
Storage Temp. -30~80°C
