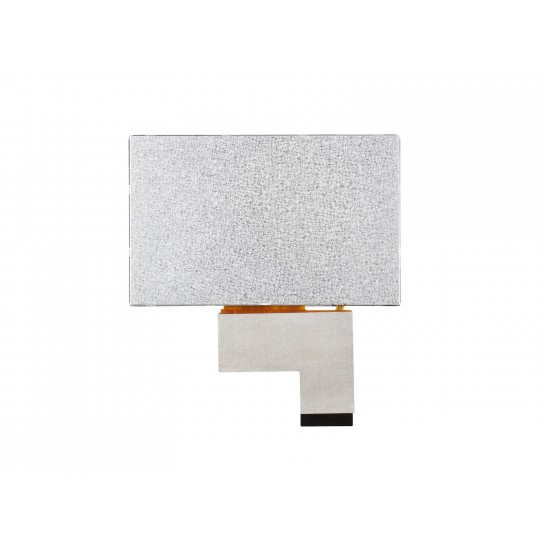

4.3inch IPS LCD Display, 4.3" 800×480 High Resolution IPS LCD Panel, RGB Interface, IPS Screen, 800×480, Full Color, Wide Viewing Angle

Brand:LUCKFOX
Model:LF43-800480-ARA
SKU:26900
Battery:Not included

$15.99

Out Of Stock

Add to Wish List

Compare this Product

Description
Specification
Package Content

Key parameters

Size	4.3"	Resolution	800×480
Display Panel	IPS	Viewing Angle	160°
Display Color	16.7M	Display colour gamut	50%NTSC
Brightness	600cd/m² (MAX)	Contrast ratio	1200:1
Outline Dimension (mm)	105.50(H)×67.20(V)×3.00(T)	Display area	95.04(H)×53.858(V)
Pixel pitch (mm)	0.0396(H)×0.1122(V)	communication interface	RGB888
Operation temperature	-20~70°C	Storage temperature	-30~80°C

RGB Interface Definition

PIN	Symbol	Description
1	LED_K	Backlight LED ground
2	LED_A	Backlight LED power
3	GND	Ground
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	Ground
30	PCLK	Data clock
31	DISP	Standby mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable input
35	NC	NC
36	GND	Ground
37	X1	Touch panel control pin
38	Y1	Touch panel control pin
39	X2	Touch panel control pin
40	Y2	Touch panel control pin

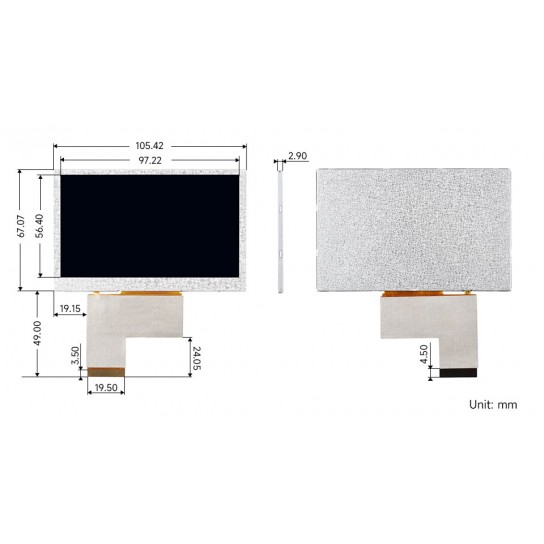

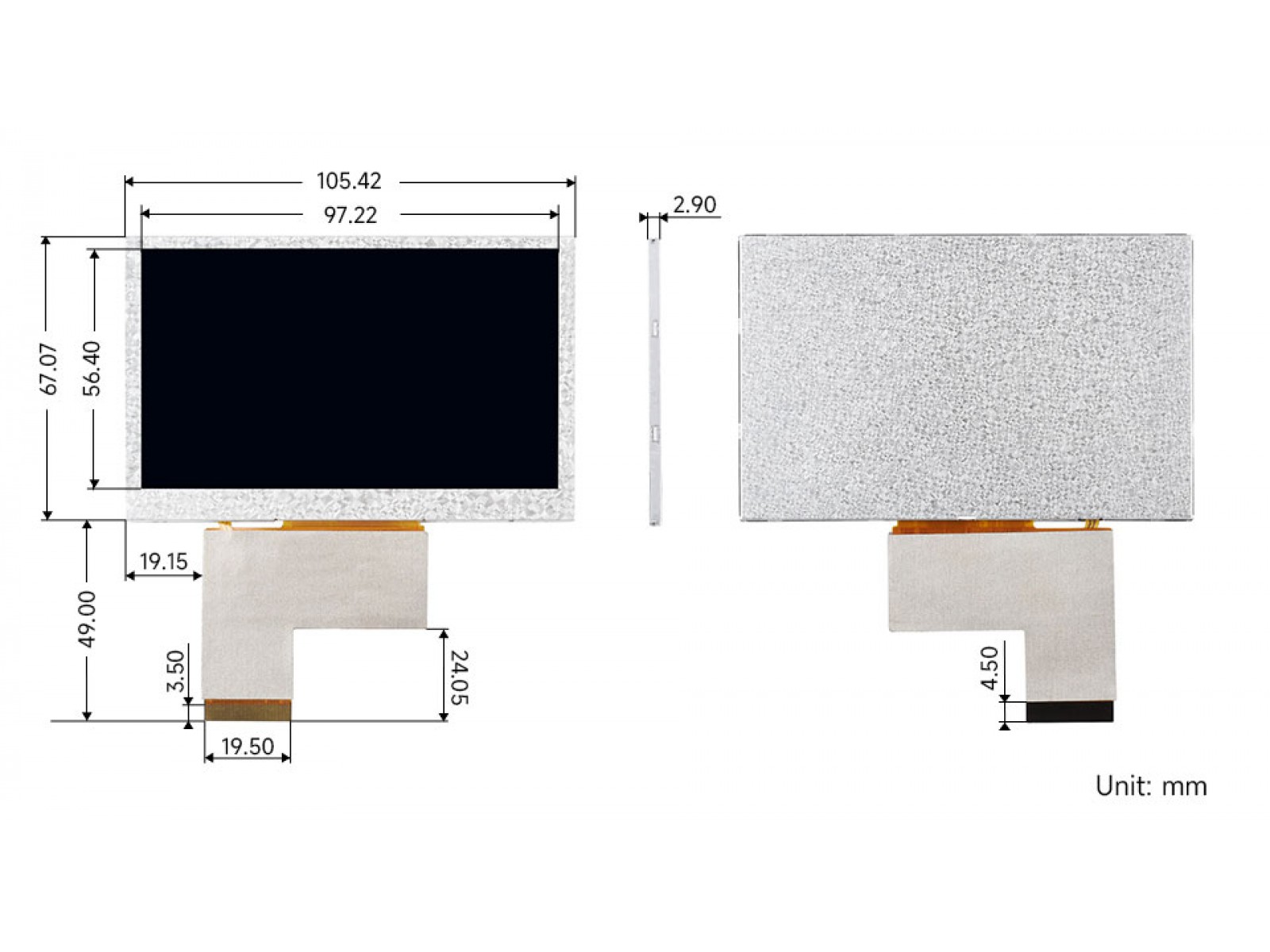

Dimensions

Selection Guide

PRODUCT	SIZE	RESOLUTION	DISPLAY PANEL	DISPLAY COLOR GAMUT	BRIGHTNESS (MAX)	CONTRAST RATIO	OUTLINE DIMENSION (mm)	DISPLAY AREA (mm)	COMMUNICATION INTERFACE
LF43-800480-ARA	4.3"	800×480	IPS	50%NTSC	600cd/m²	1200:1	105.50×67.20×3.00	95.04×53.858	RGB888
LF50-800480-ARA	5"	800×480	IPS	50%NTSC	400cd/m²	1000:1	120.90×75.80×2.95	108.0×64.8	RGB888
LF70-800480-TRA	7"	800×480	TFT	-	500cd/m²	500:1	164.9×100.0×3.5	154.08×85.92	RGB888
LF70-800480-ARA	7"	800×480	IPS	50%NTSC	550cd/m²	1000:1	164.00×97.00×2.60	154.84×85.632	RGB888
LF70-1024600-ARA	7"	1024×600	IPS	55%NTSC	400cd/m²	1000:1	164.00×97.00×2.60	154.2144×85.92	RGB888
LF80-8001280-AMA	8"	800×1280	IPS	60%NTSC	500cd/m²	1200:1	114.66×184.16×2.60	107.64×172.22	MIPI
LF101-8001280-AMA	10.1"	800×1280	IPS	60%NTSC	500cd/m²	1200:1	143.0×228.60×2.60	135.36×216.58	MIPI

Display
Size	4.3inch
Resolution	800×480
Display Panel	IPS
Viewing Angle	160°
Brightness	600cd/m²
Communication Interface	RGB888
Contrast Ratio	1200:1
Display Color	16.7M
Display Colour Gamut	50%NTSC
Pixel Pitch (H×V)	0.0396×0.1122mm
Others
Operating Temp.	-20~70°C
Storage Temp.	-30~80°C

Package Contains

LF43-800480-ARA × 1
