MIS5001 5MP camera module
Adopts MIS5001 sensor chip with 5MP resolution, features high sensitivity and low dark current, enables clear imaging even in low light environments. It is suitable for various complex scenarios, compatible with Luckfox Pico Pro / Luckfox Pico Max / Luckfox Pico Ultra boards equipped with RV1106 chip. Available in wide-angle lens version and wide-angle distortion-free lens version.

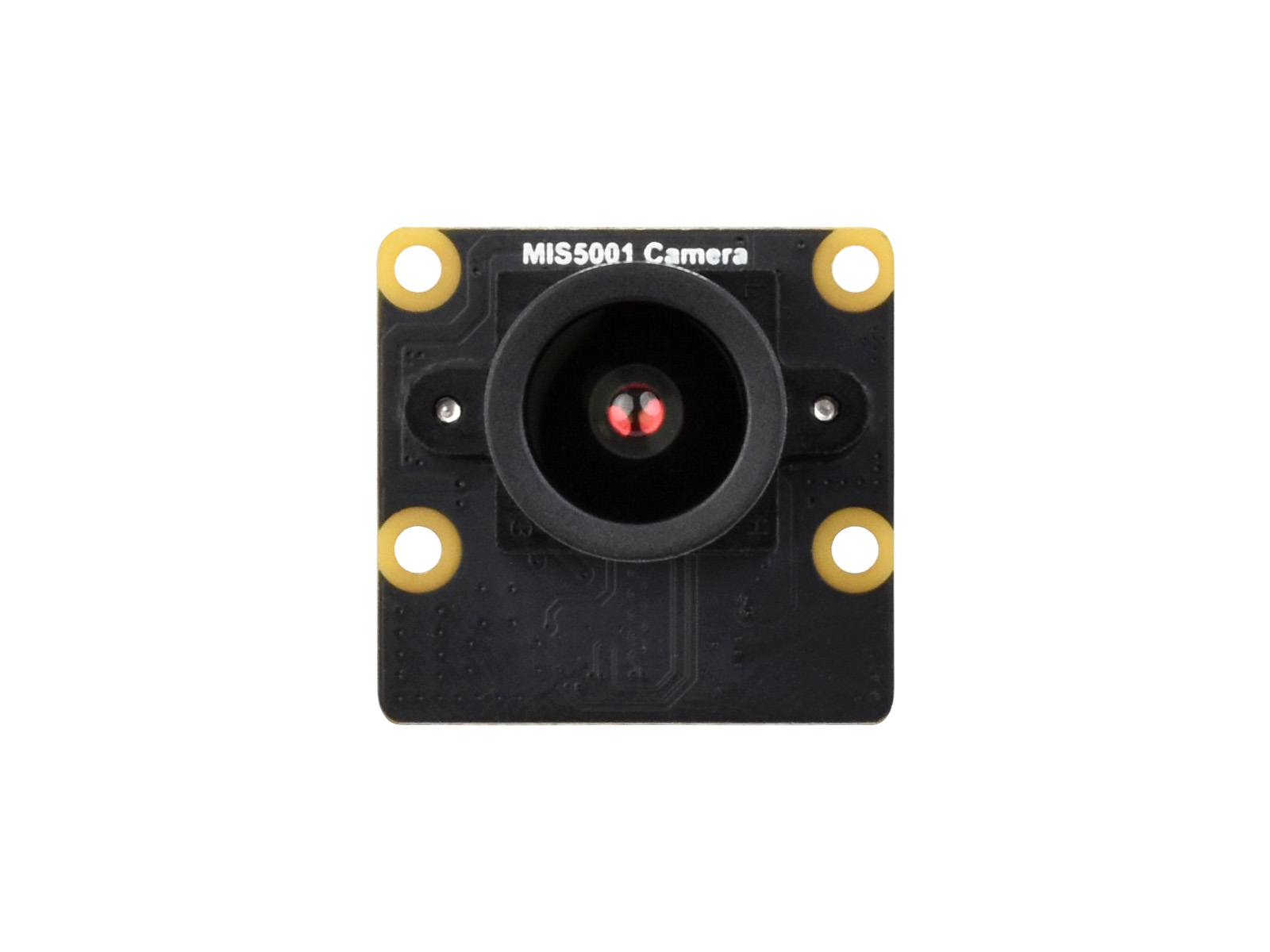

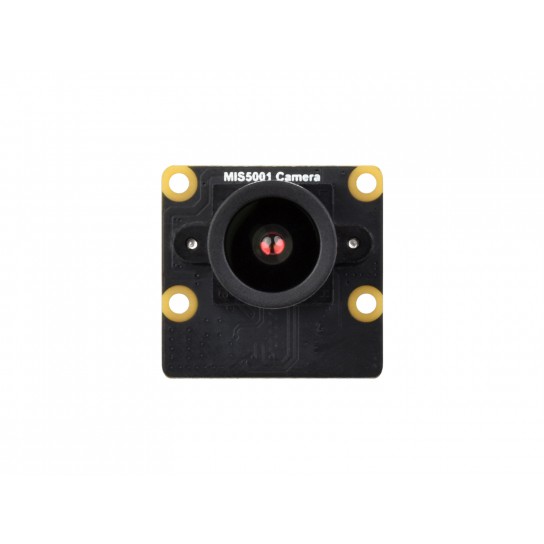

![MIS5001 5MP Wide-Angle Lens Camera Module, front view]()
![MIS5001 5MP Wide-Angle Lens Camera Module, features]()
Specifications
| Sensor |
MIS5001 |
| Camera type |
Color |
| CMOS size |
1/2.7″ |
| Pixel |
5MP (2592 × 1944) |
| Shutter |
Rolling shutter |
| Interface |
2-Lane MIPI CSI-2 |
lens versions
| Version |
Wide-angle lens |
Wide-angle distortion-free lens |
| Model |
MIS5001 5MP Camera (A) |
MIS5001 5MP Camera (B) |
| Focal length |
4.15mm |
2.88mm |
| Aperture |
F1.6 |
F2.4 |
| FOV |
93° |
95.5° |
| Distortion |
< -10.7% |
<1% |
Two lens versions available
The wide-angle lens has a wide field of view and is suitable for capturing large scenes. The wide-angle aberration-free lens can accurately reproduce geometric forms with a larger field of view, suitable for scenarios requiring high fidelity.
![MIS5001 5MP Wide-Angle Lens Camera Module, options for two lens versions]()
* Only MIS5001 5MP Camera (B) adopts the wide-angle distortion-free lens.
High Sensitivity for Accurate Details
Features excellent dark-environment imaging capability, enabling clear imaging even in low light environments
![MIS5001 5MP Wide-Angle Lens Camera Module with clear imaging even in low-light environment]()
Low Dark Current, reduces noise
Effectively reduces noise and enhances image quality
![MIS5001 5MP Wide-Angle Lens Camera Module with better image quality]()
Supports Luckfox Development Boards
Compatible with Luckfox Pico Pro / Luckfox Pico Max / Luckfox Pico Ultra
Connecting with MIS5001 5MP Camera (A)
![MIS5001 5MP Wide-Angle Lens Camera Module (A), connecting with Luckfox Pico boards]()
Connecting with MIS5001 5MP Camera (B)
![MIS5001 5MP Wide-Angle Lens Camera Module (B), connecting with Luckfox Pico boards]()

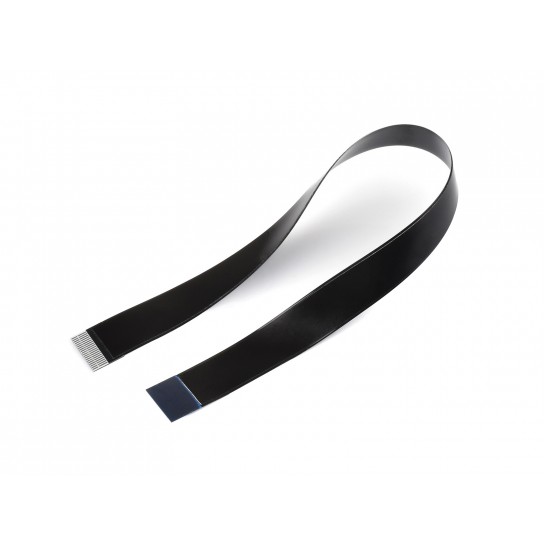

* for reference only, please refer to the Package Content for the detailed part list
Product Show
![MIS5001 5MP Wide-Angle Lens Camera Module, product show]()
outline dimensions
MIS5001 5MP Camera (A)
![MIS5001 5MP Camera (A), outline dimensions]()
MIS5001 5MP Camera (B)
![MIS5001 5MP Camera (B), outline dimensions]()
