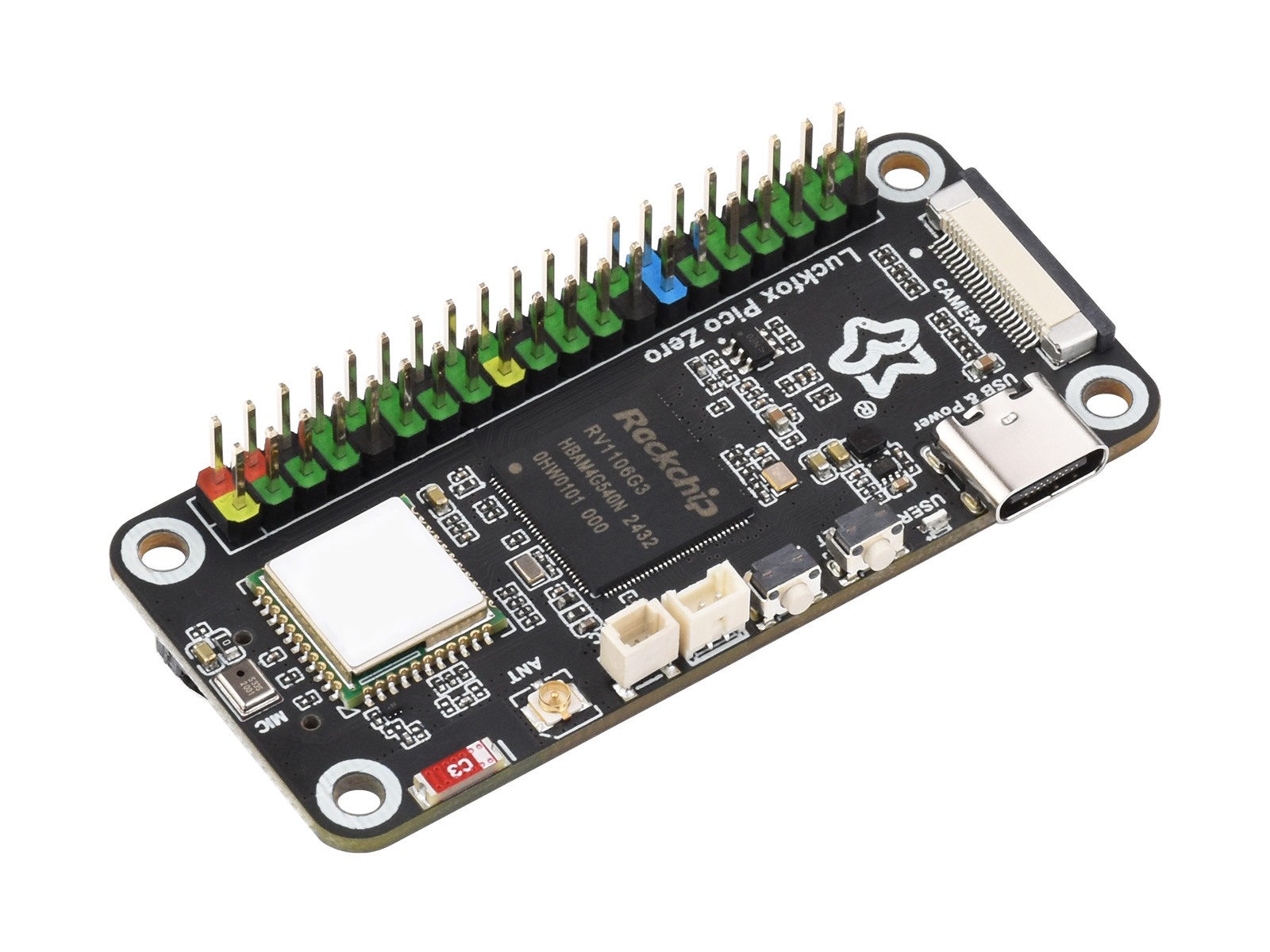

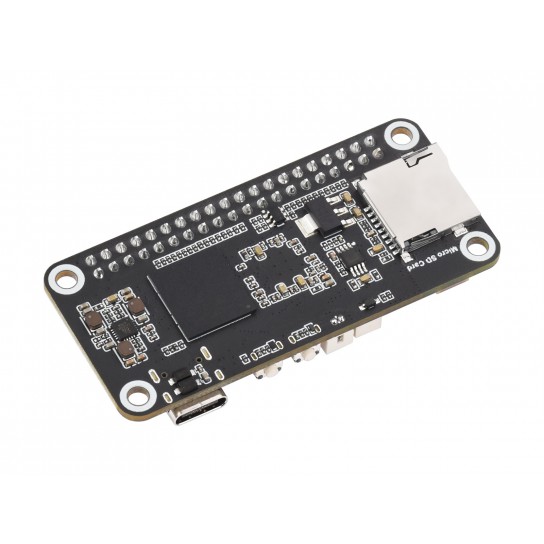

Luckfox Pico Zero Linux Micro Development Board, Based On Luckfox RV1106G3 Chip, 1 TOPS Computing Power, 8GB eMMC, With Wireless Module

Brand:LUCKFOX
Model:Luckfox Pico Zero
SKU:32111
Battery:Not included

WIKI Page

$43.99

In Stock

Add to Wish List

Compare this Product

Description
Specification
Package Content

Prohibited by the manufacturer Rockchip, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Russia, Belarus, Cuba, Iran, North Korea, Syria, Crimea, Donetsk and Luhansk regions of Ukraine. (Countries or regions are subject to change based on updates or revisions to export control regulations)

Luckfox Pico Zero

The Luckfox Pico Zero is a cost-effective Linux micro development board, based On Luckfox RV1106G3 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C and USB etc., with an onboard wireless module, which is ideal for a wide range of embedded applications.

Luckfox Pico Zero Linux Micro Development Board, features

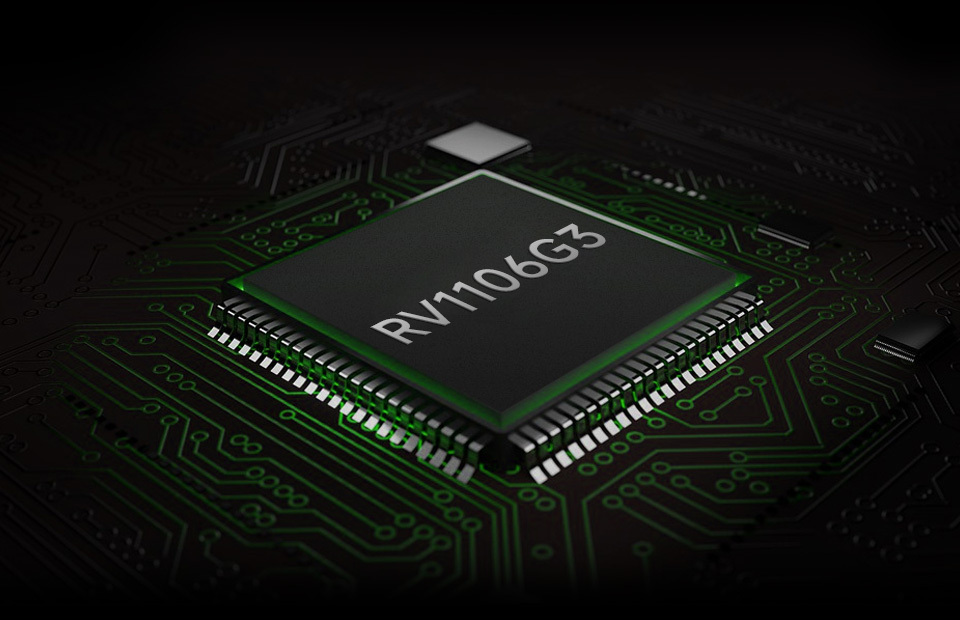

Highly integrated and powerful performance

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS
Built-in self-developed third-generation ISP3.2, supports 8-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from the camera are high-definition with a smaller size
Built-in 16-bit 256MB DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

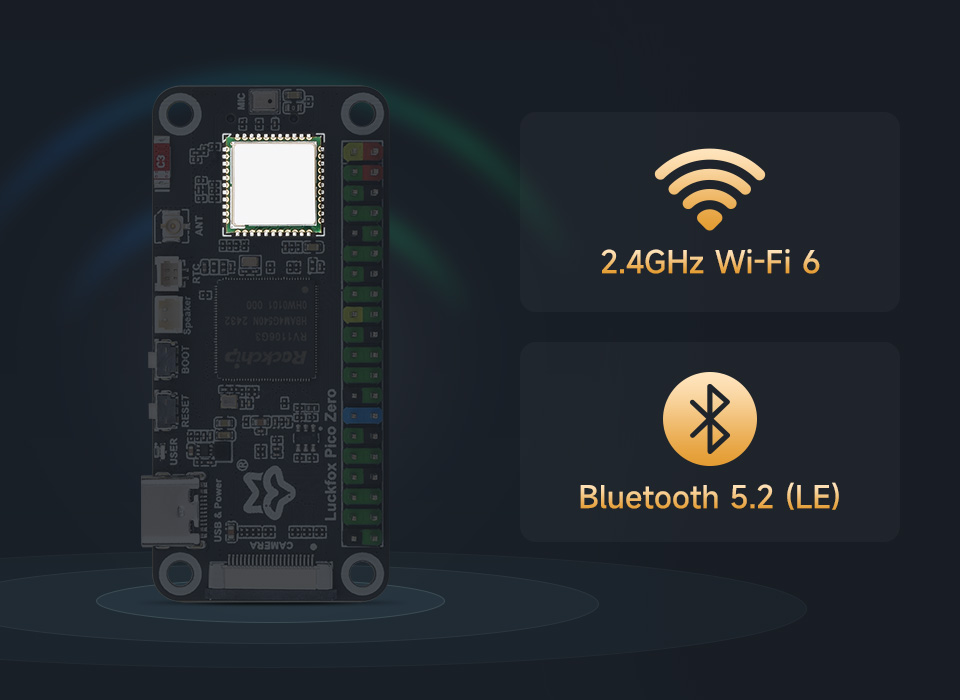

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2 (LE) Bluetooth Module
Providing Stable Connection And Efficient Transmission

Antenna Switching

Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios

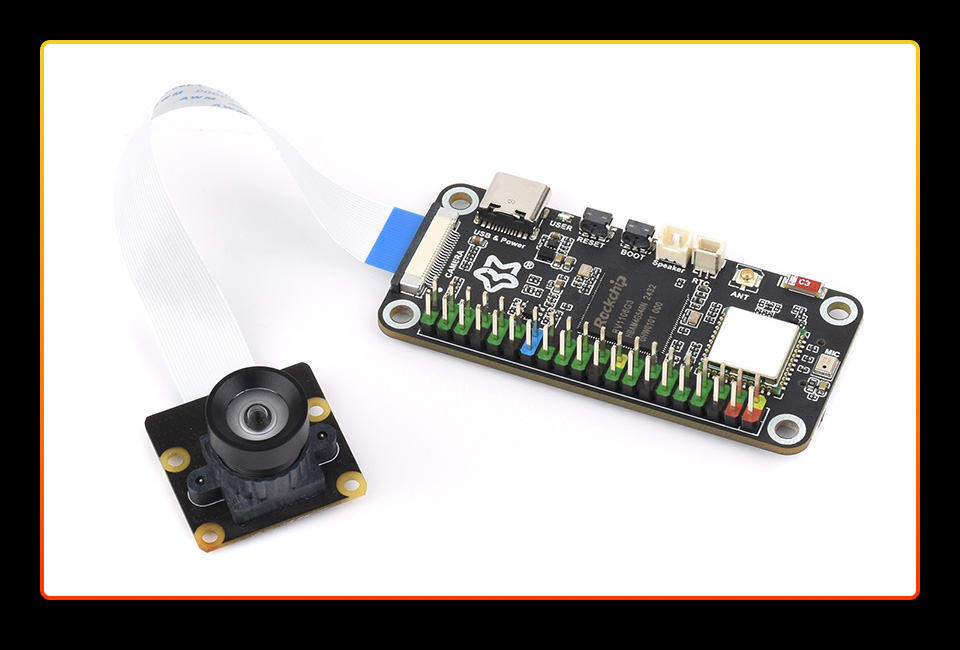

MIPI CSI 4-lane Interface

Composed of dual MIPI-CSI (2-lane) interfaces

* for reference only, please refer to the Package Content for the detailed part list.
The resolution of the camera shown in the picture is 1280 × 1080. This product supports up to 3840 × 2160 (8M) @15FPS input.

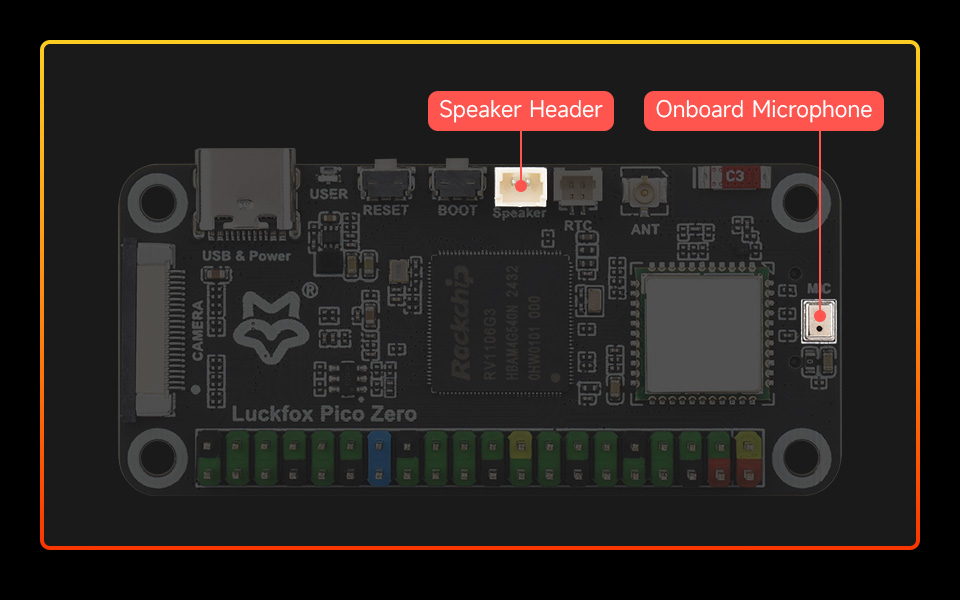

Multiple Audio Interfaces

Onboard microphone + speaker header
meets a variety of audio application scenarios

meets a variety of application scenarios

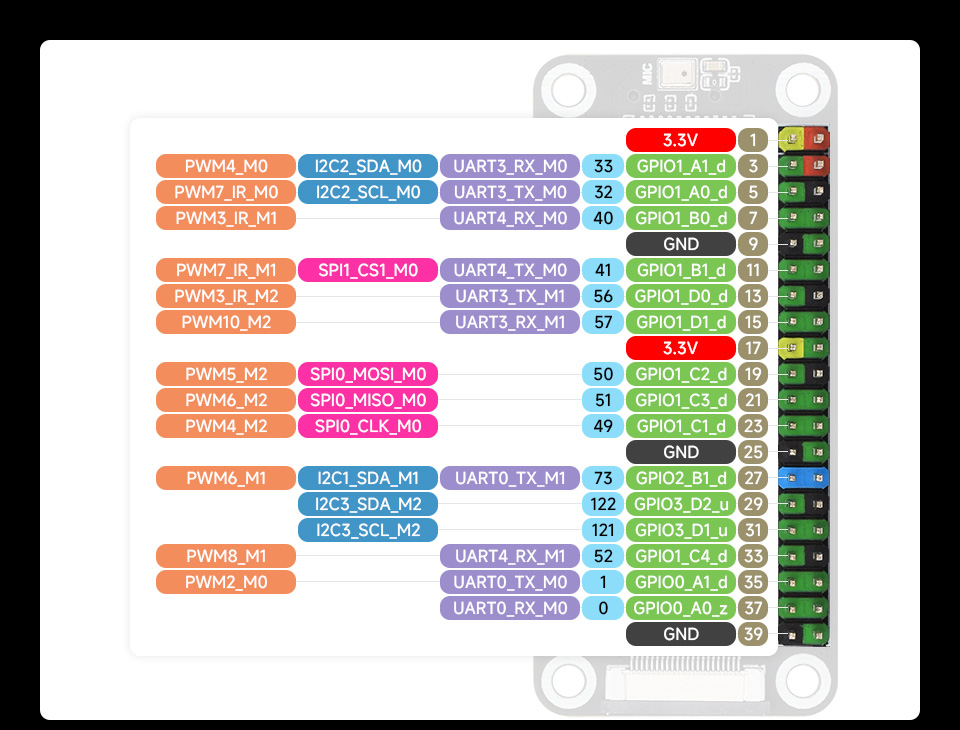

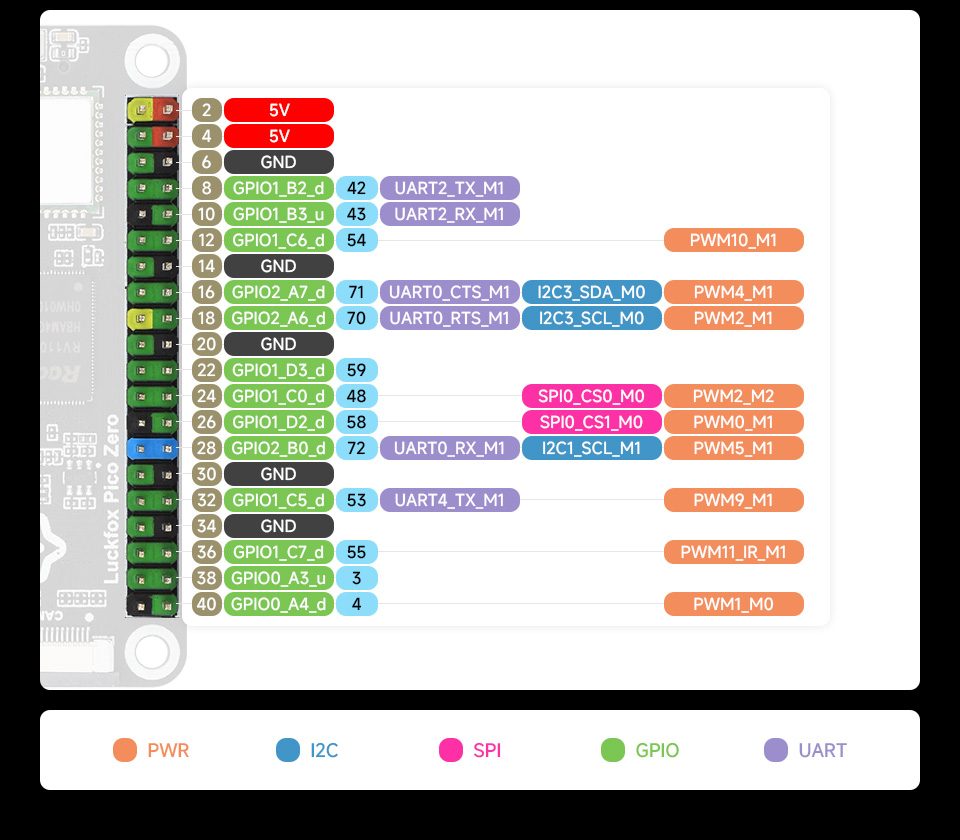

Pin definition

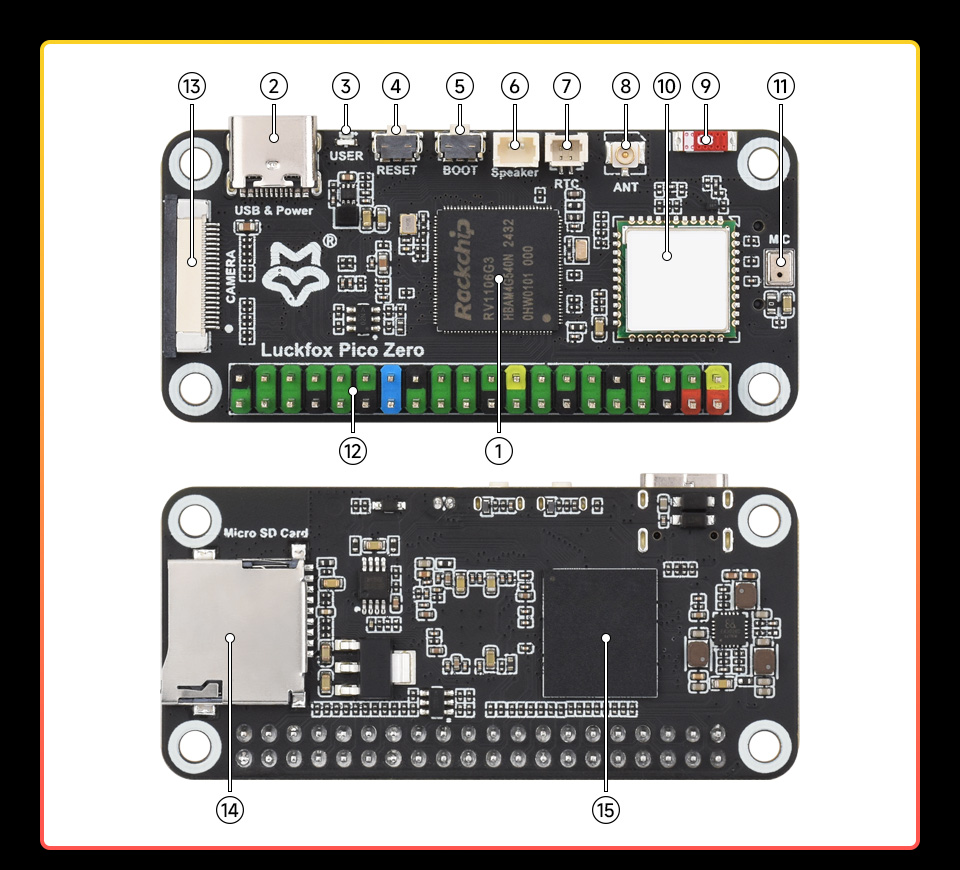

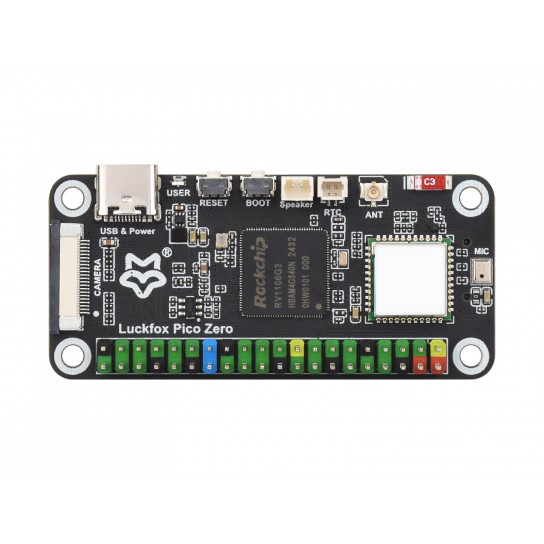

What's On Board

Luckfox Pico Zero Linux Micro Development Board, onboard components

RV1106G3
Vision processor SoC, integrates ARM Cortex-A7 core
USB-C Port
for power supply and program burning
USER-LED
for indicating system operating status in the default image
RESET Button
BOOT Button
Press it when powering on or resetting to enter download mode
Speaker Header
MX1.25 2P connector, supports 8Ω 1W speaker.
RTC Battery Header

External Antenna Connector
Onboard Antenna
Wi-Fi / Bluetooth Module
2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module
Onboard Microphone
40PIN GPIO Header
Compatible with some Raspberry Pi HATs
Camera Interface
MIPI CSI (4-lane)
TF Card Slot
Supports storage expansion only
8GB eMMC

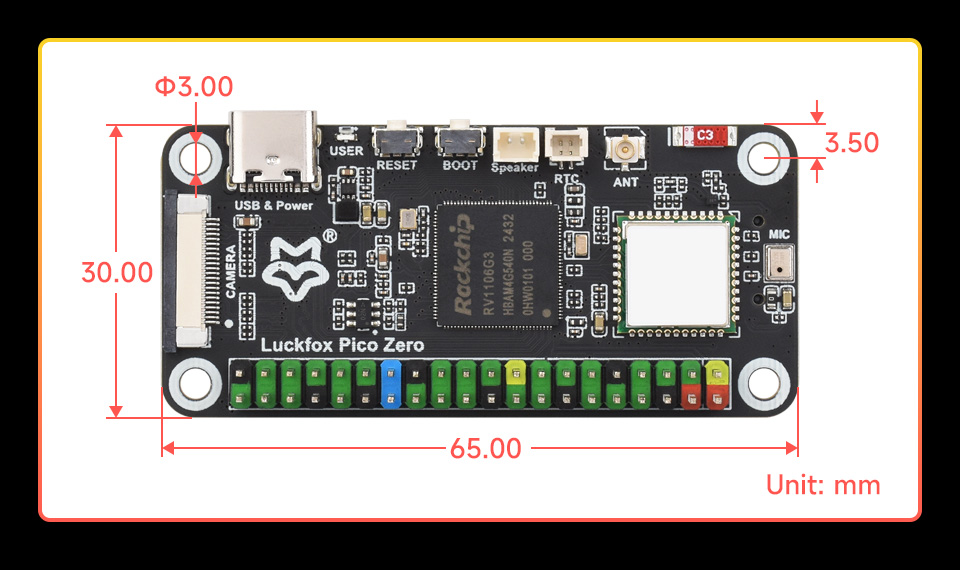

outline dimensions

Connectivity
Bluetooth	Bluetooth 5.2 (LE)
Wi-Fi	2.4GHz Wi-Fi 6
Memory and Storage
eMMC	8GB
Memory	256MB DDR3L
SOC Features
ISP	8M@15fps
NPU	1TOPS
Processor	ARM Cortex-A7
Video Encoding	5M@30FPS
Interfaces & Peripherals
Audio Ouput	MX1.25 2P connector
Camera Interface	MIPI CSI (4-lane)
GPIO	40PIN
Micro SD	Slot
Microphone	Onboard microphone

Luckfox Pico Zero

Luckfox Pico Zero x1
