Prohibited by the manufacturer Rockchip, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Russia, Belarus, Cuba, Iran, North Korea, Syria, Crimea, Donetsk and Luhansk regions of Ukraine. (Countries or regions are subject to change based on updates or revisions to export control regulations)
Specifications
| Processor |
Cortex [email protected] + RISC-V |
| NPU |
0.5TOPS, supports int4, int8 and int16 |
| ISP |
Input 4M @30fps (Max) |
| Memory |
64MB DDR2 |
| USB |
USB 2.0 Host/Device |
| Camera |
MIPI CSI 2-lane |
| GPIO |
24 × GPIO pins |
| Ethernet port |
10/100M Ethernet controller and embedded PHY |
| Default Storage |
TF card (Not included) |
Pinheader options
![]()
Highly integrated and powerful performance
Integrates CPU, NPU, ISP and other processors
![]()
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
- Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
- Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
- Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
- Integrated with built-in POR, audio codec and MAC PHY
Easier to develop

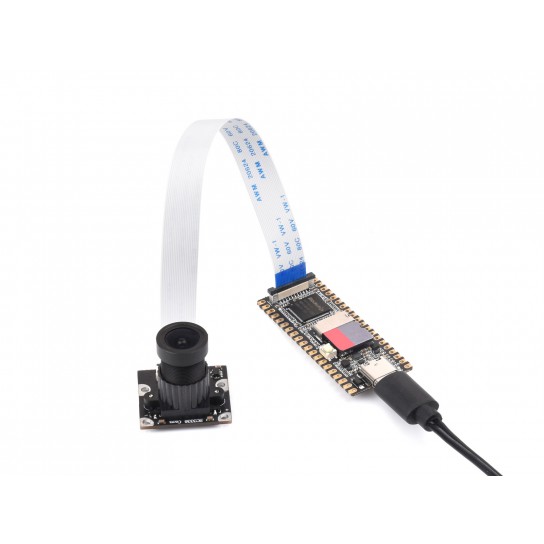

Integrates TF card slot and camera interface
![]()

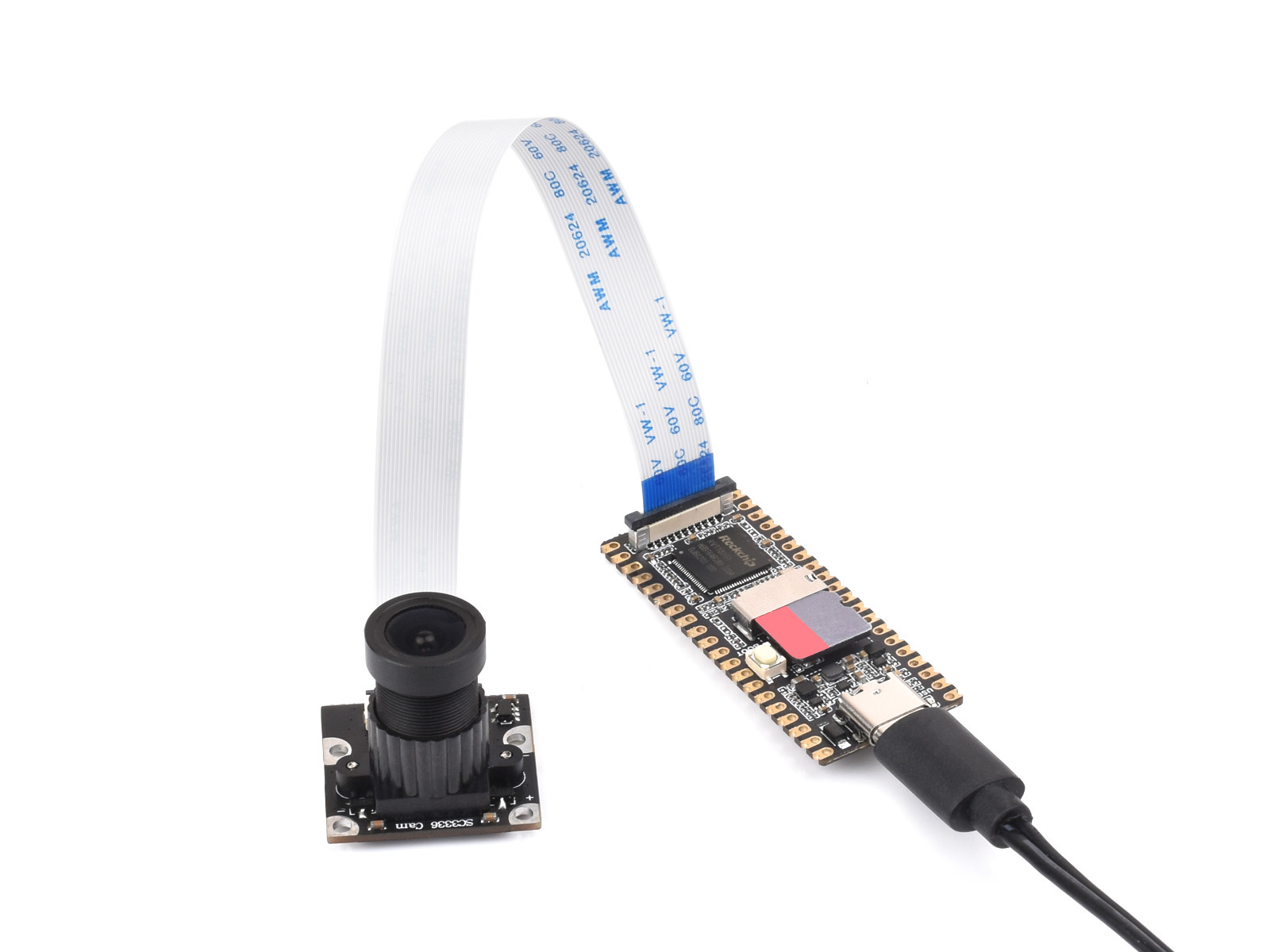

Application Example
![]()
Suitable for more application examples
![]()

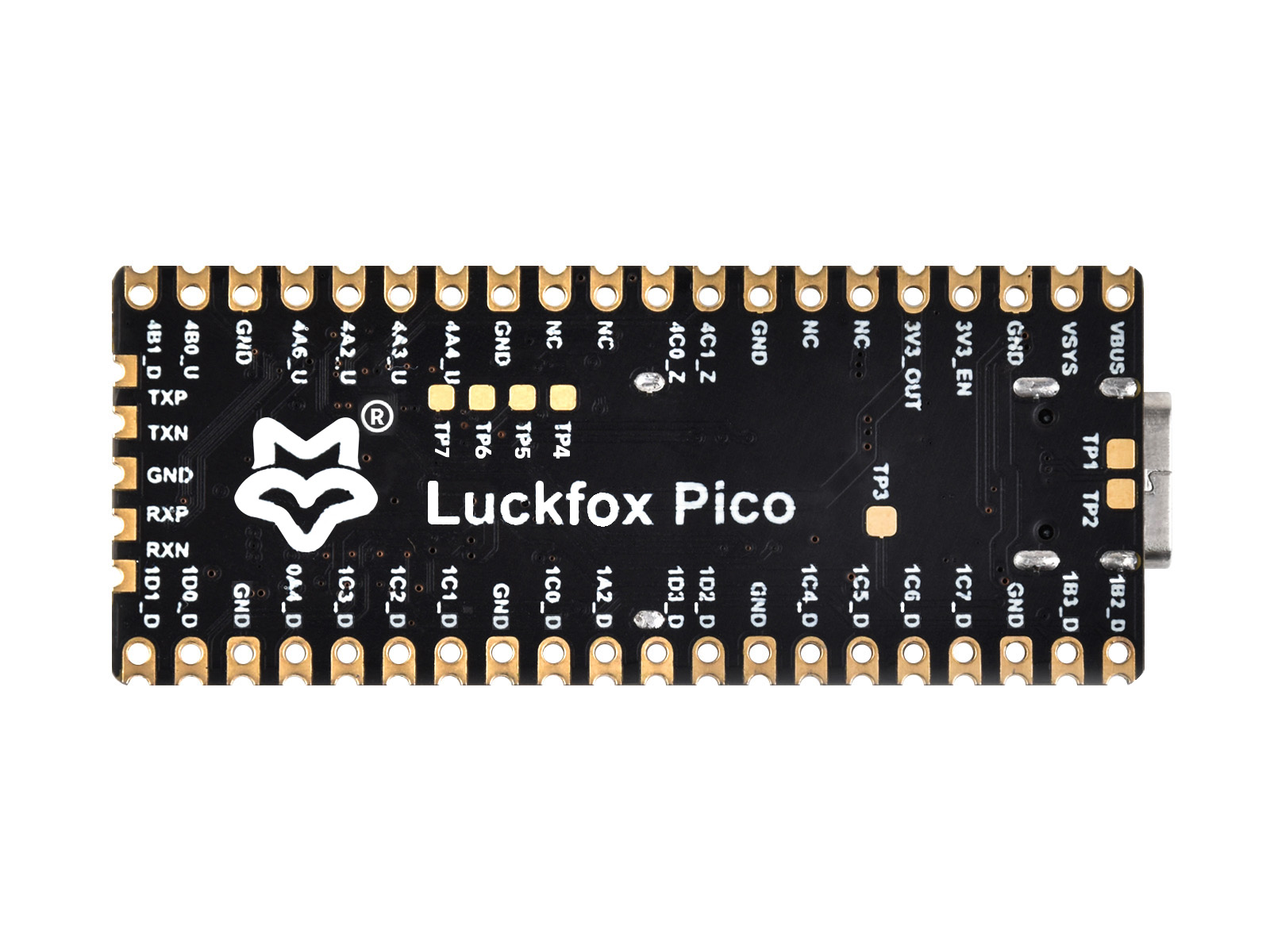

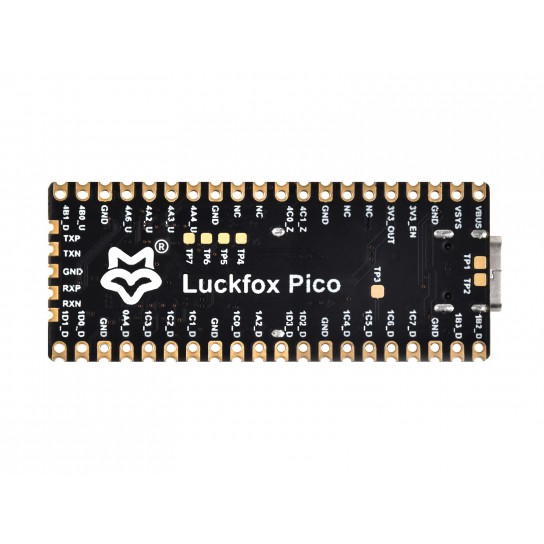

Pin definition
![]()

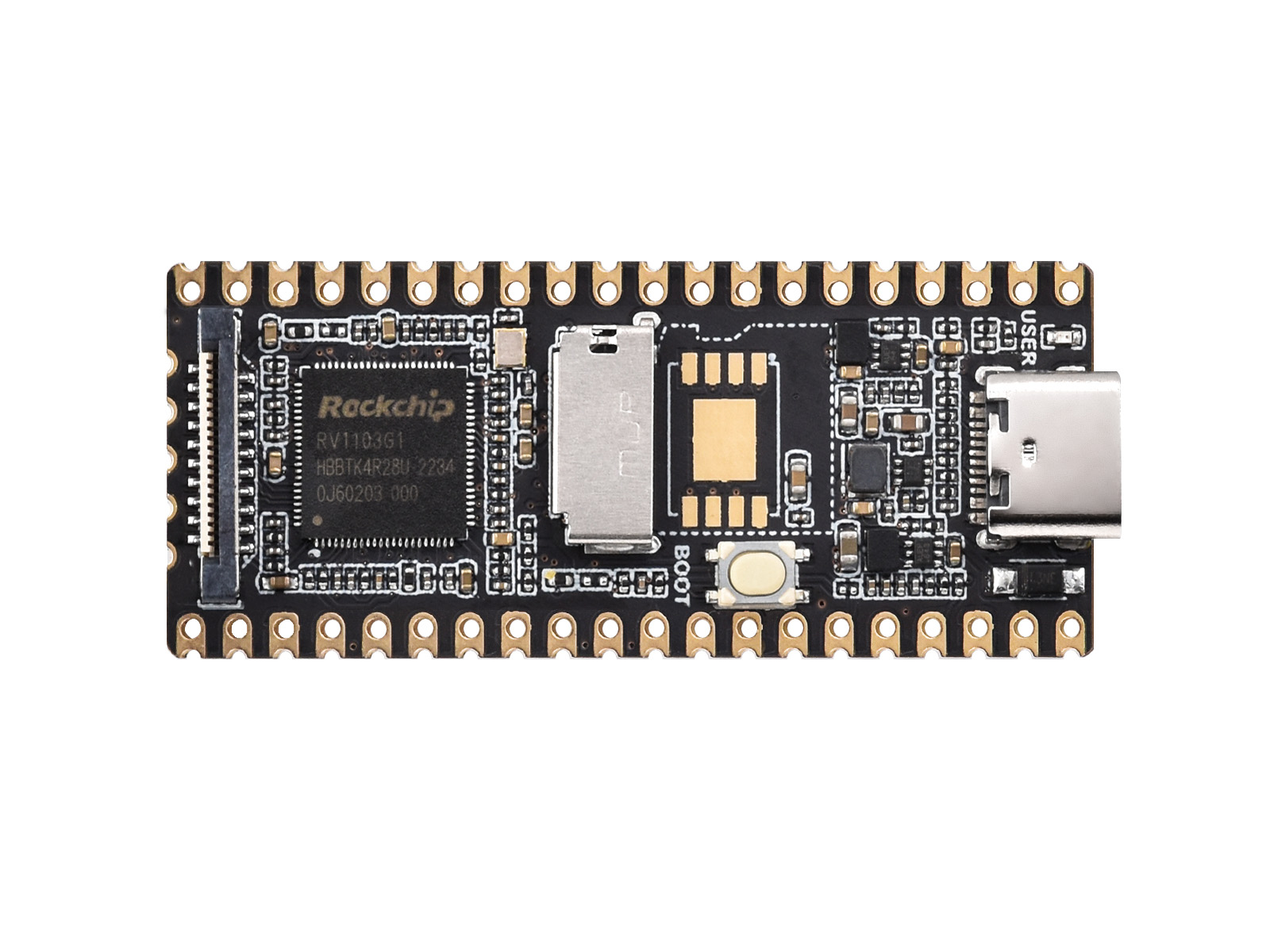

What's On Board
![]()
- USB Type-C connector
- ACT-LED
- BOOT button
Press it when powering on to enter download mode
- TF card slot
- RV1103
Vision processor SoC with built-in ARM Cortex-A7 core
- CSI camera interface
MIPI CSI 2-lane
- GPIO header
- USB test pads
- BOOT test pad
- Microphone test pads
- Ethernet interface pads
Product Show
![]()
outline dimensions
![]()
Luckfox Pico Product Selection
| PRODUCT |
Main chip |
Memory |
NPU |
ISP |
Default Storage |
FEATURES |
![]()
Luckfox Pico Mini A |
RV1103G1 |
64MB |
0.5TOPS, supports int4, int8 and int16 |
Input 4M @30fps (Max) |
TF card (Not included) |
Onboard Type-C port, MIPI CSI Interface, GPIO, etc. |
![]()
Luckfox Pico Mini B |
SPI NAND FLASH (128MB) |
![]()
Luckfox Pico |
TF card (Not included) |
Onboard Type-C port, MIPI CSI Interface, GPIO, etc. |
![]()
Luckfox Pico Plus |
SPI NAND FLASH (128MB) |
Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc. |
![]()
Luckfox Pico Pro |
RV1106G2 |
128MB |
Input 5M @30fps (Max) |
SPI NAND FLASH (256MB) |
Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc. |
![]()
Luckfox Pico Max |
RV1106G3 |
256MB |
| Connectivity |
| Ethernet |
RJ45 100M |
| Memory and Storage |
| Memory |
64MB DDR2 |
| SOC Features |
| ISP |
4MP@30fps |
| NPU |
0.5TOPS |
| Processor |
[email protected] |
| Interfaces & Peripherals |
| Camera Interface |
MIPI CSI 2-lane |
| GPIO |
24-Pin |
| Micro SD |
Slot |
| USB |
USB 2.0 Host/Device, USB Type-C |

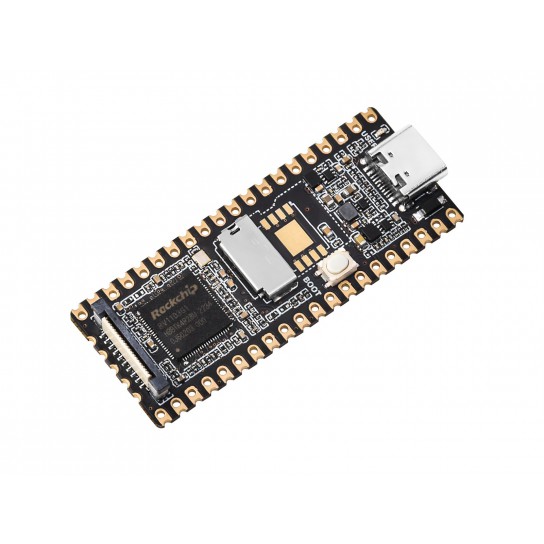

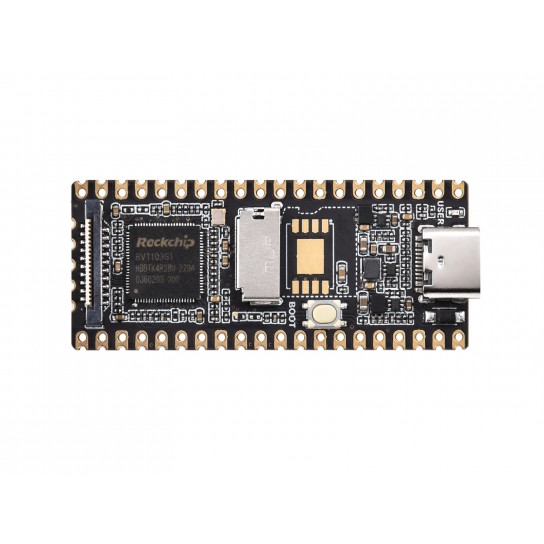

Luckfox Pico
Luckfox Pico x1
![Luckfox Pico]()

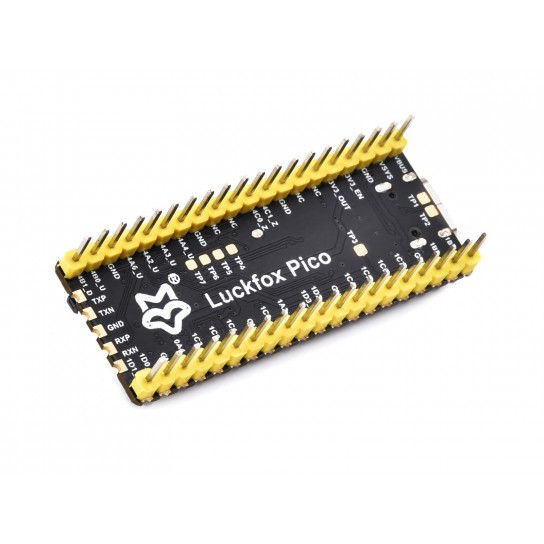

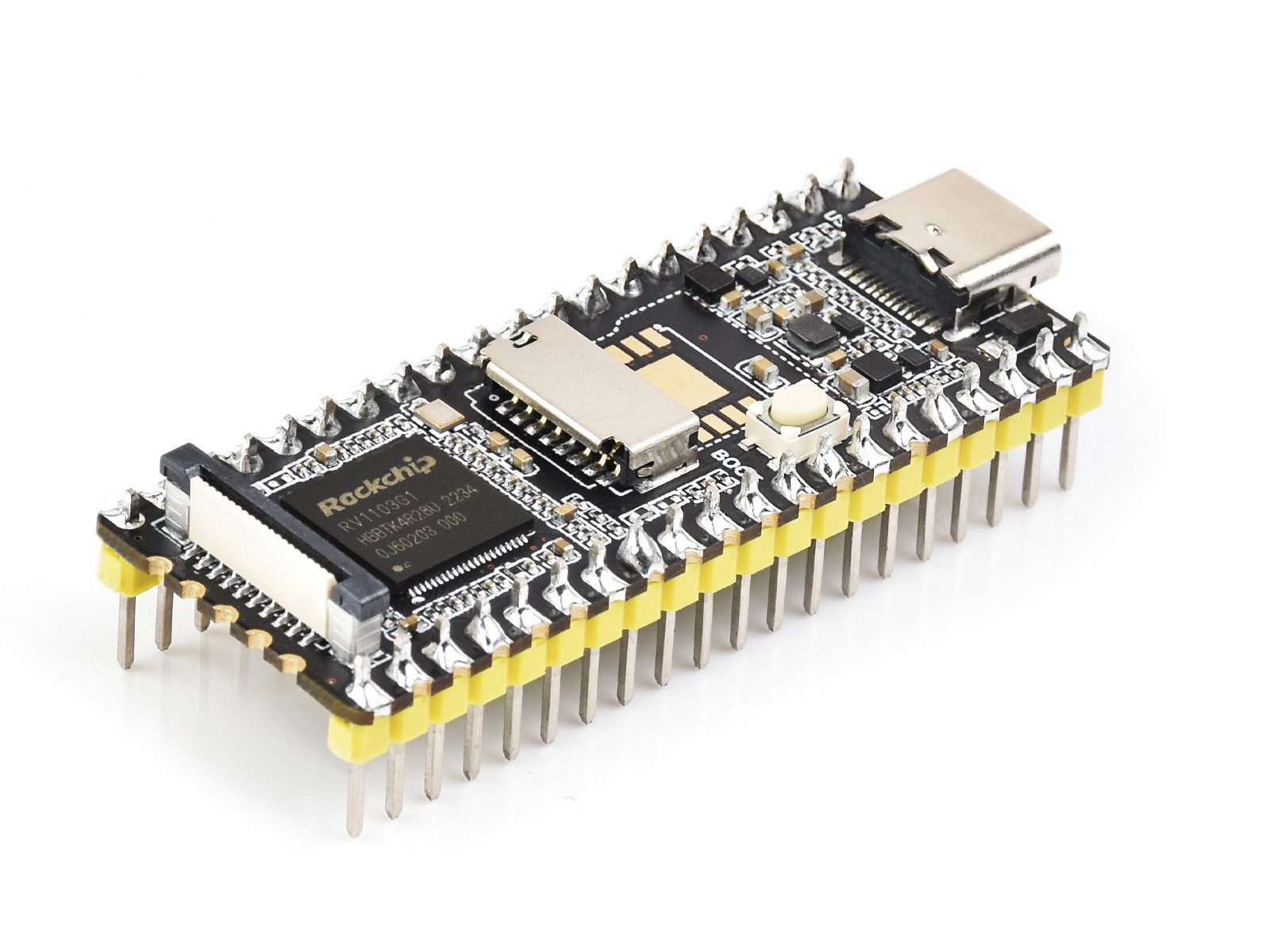

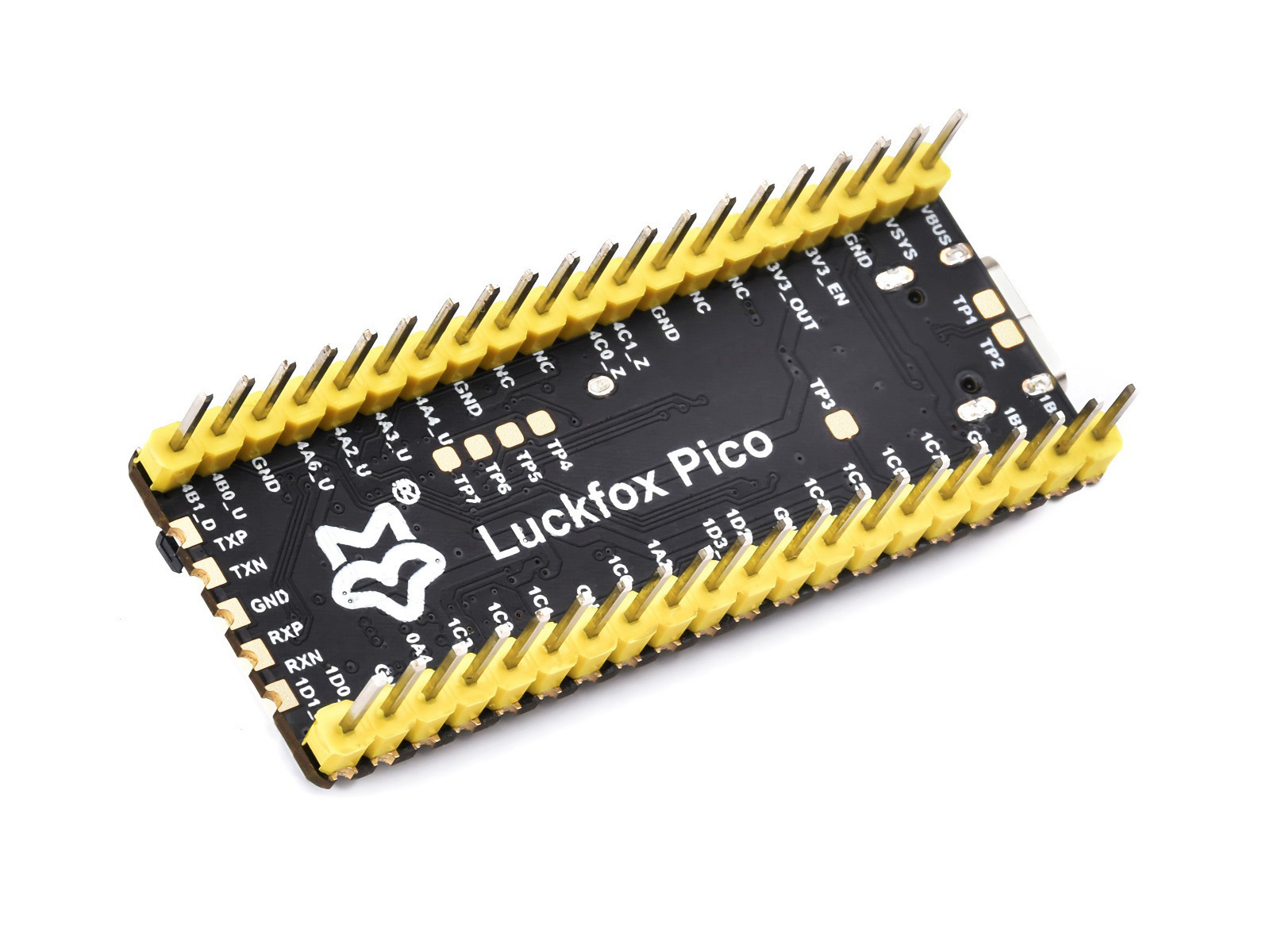

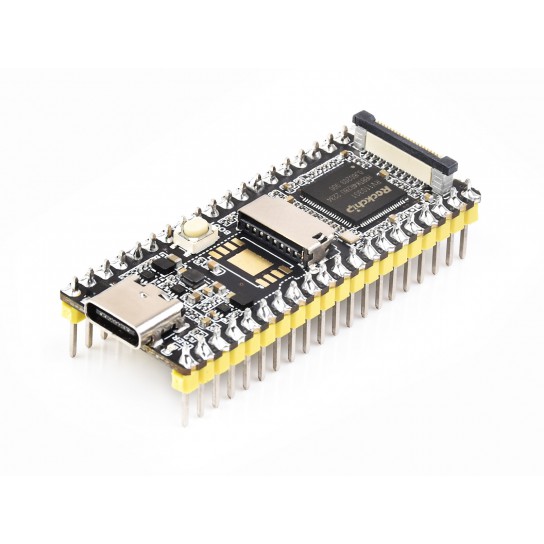

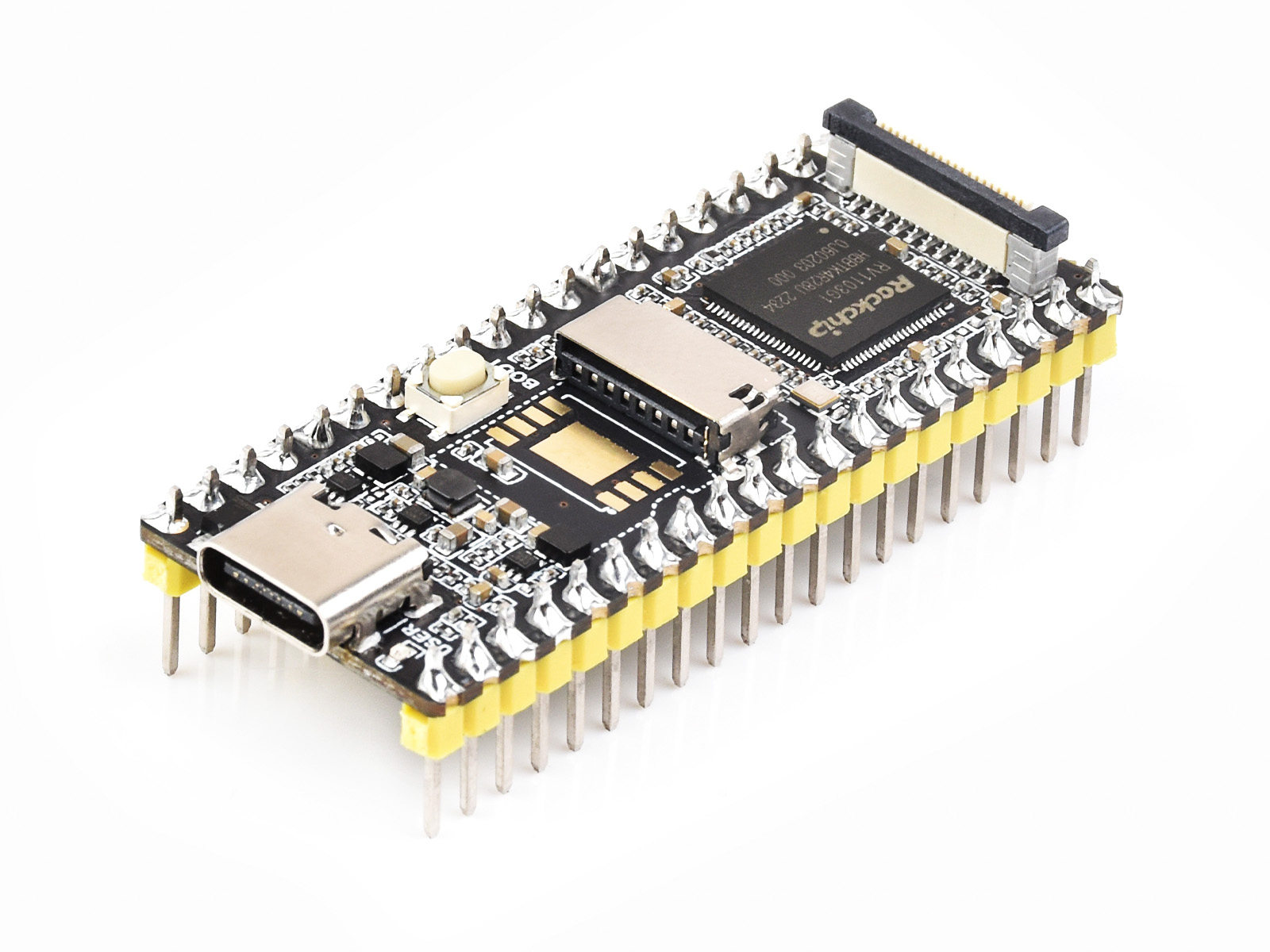

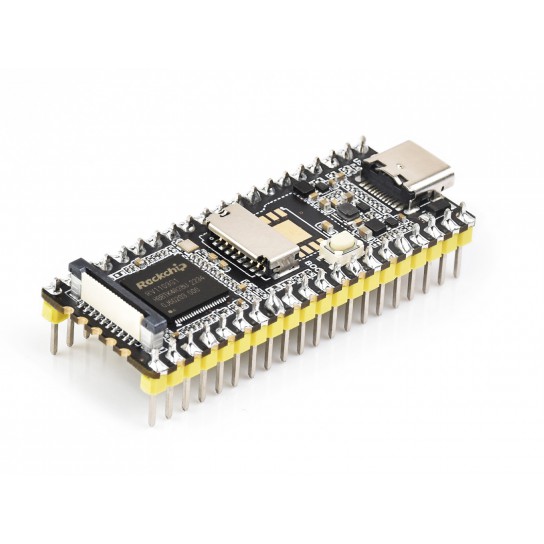

Luckfox Pico M
Luckfox Pico with pre-soldered header x1
![Luckfox Pico M]()
