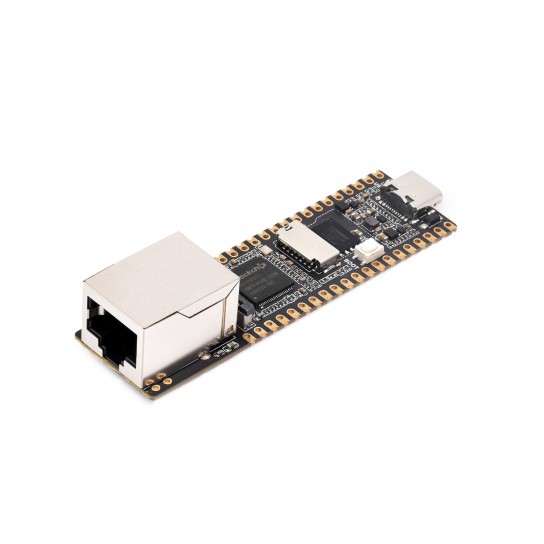

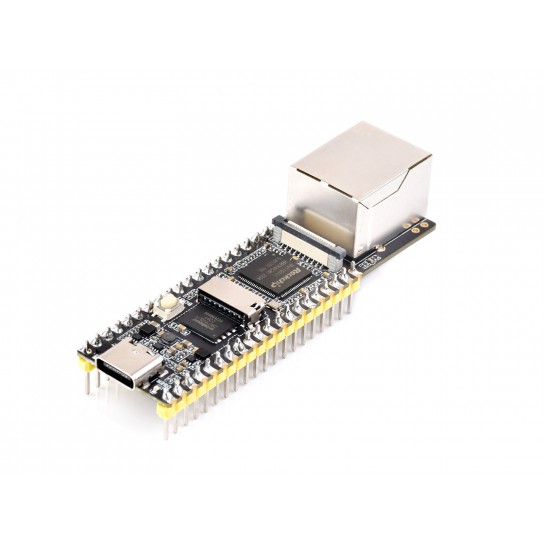

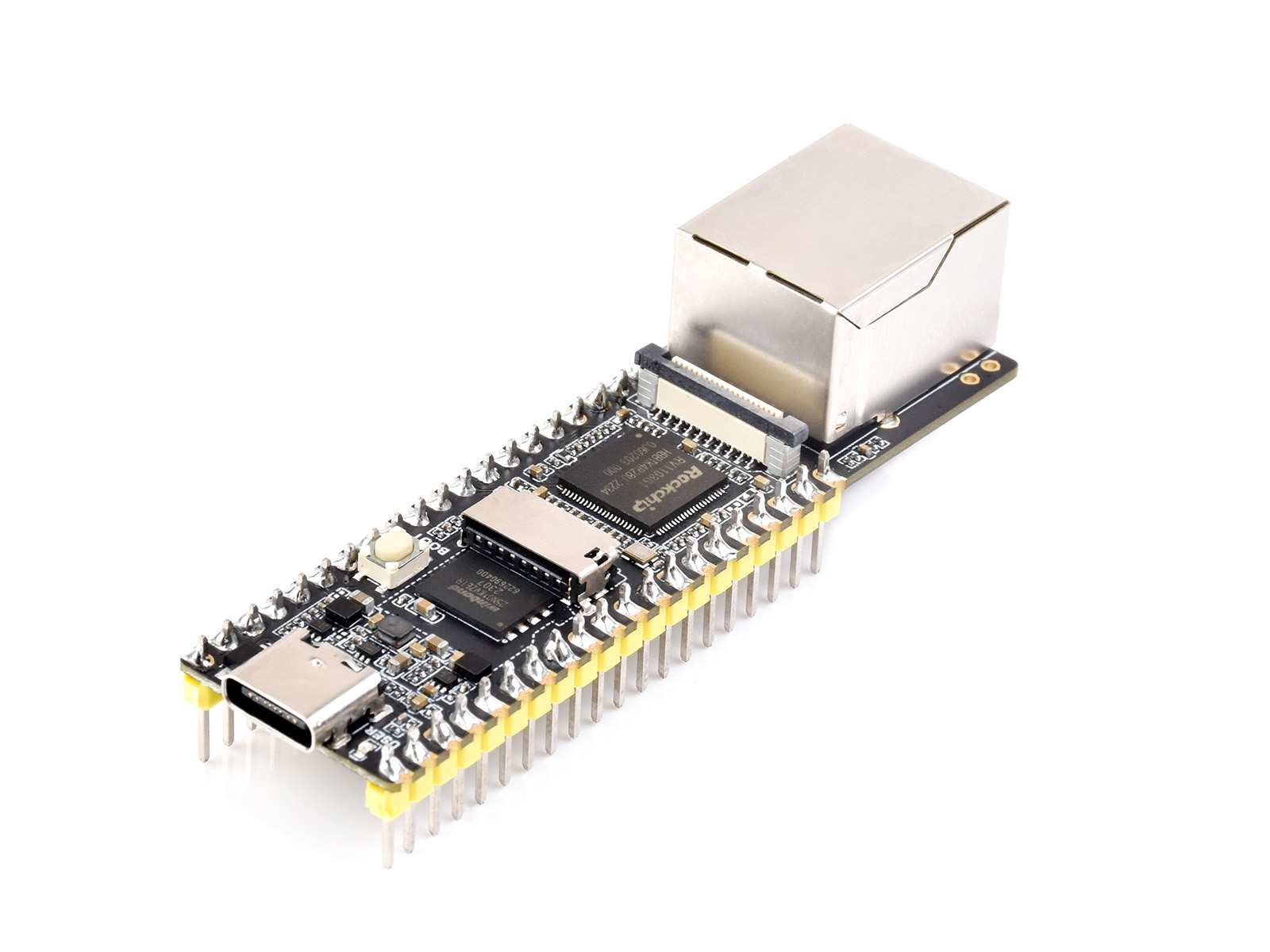

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port

  • Brand:LUCKFOX
  • Battery:Not included

  • $19.99

  • Price Range $19.99 - $20.99
Add to Wish List
Compare this Product
Specifications
Processor Cortex [email protected] + RISC-V
NPU 0.5TOPS, supports int4, int8 and int16
ISP Input 4M @30fps (Max)
Memory 64MB DDR2
USB USB 2.0 Host/Device
Camera MIPI CSI 2-lane
GPIO 25 × GPIO pins
Ethernet port 10/100M Ethernet controller and embedded PHY
Default Storage SPI NAND FLASH (128MB)

Pinheader options
Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
  • Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
  • Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
  • Integrated with built-in POR, audio codec and MAC PHY
Easier to develop

Integrates TF card slot, camera interface and Ethernet port

SLC NAND FLASH

For a better user experience

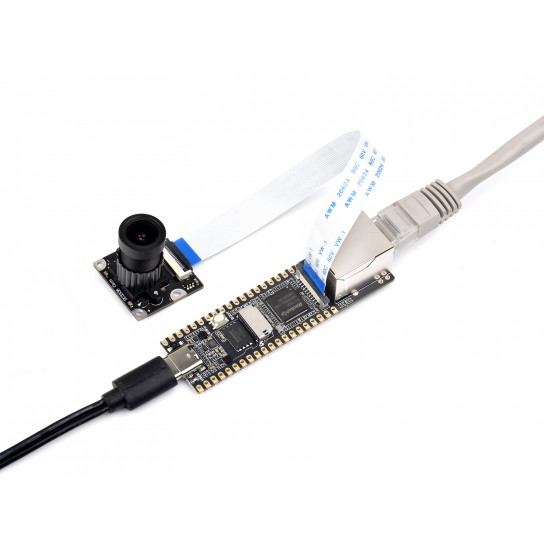

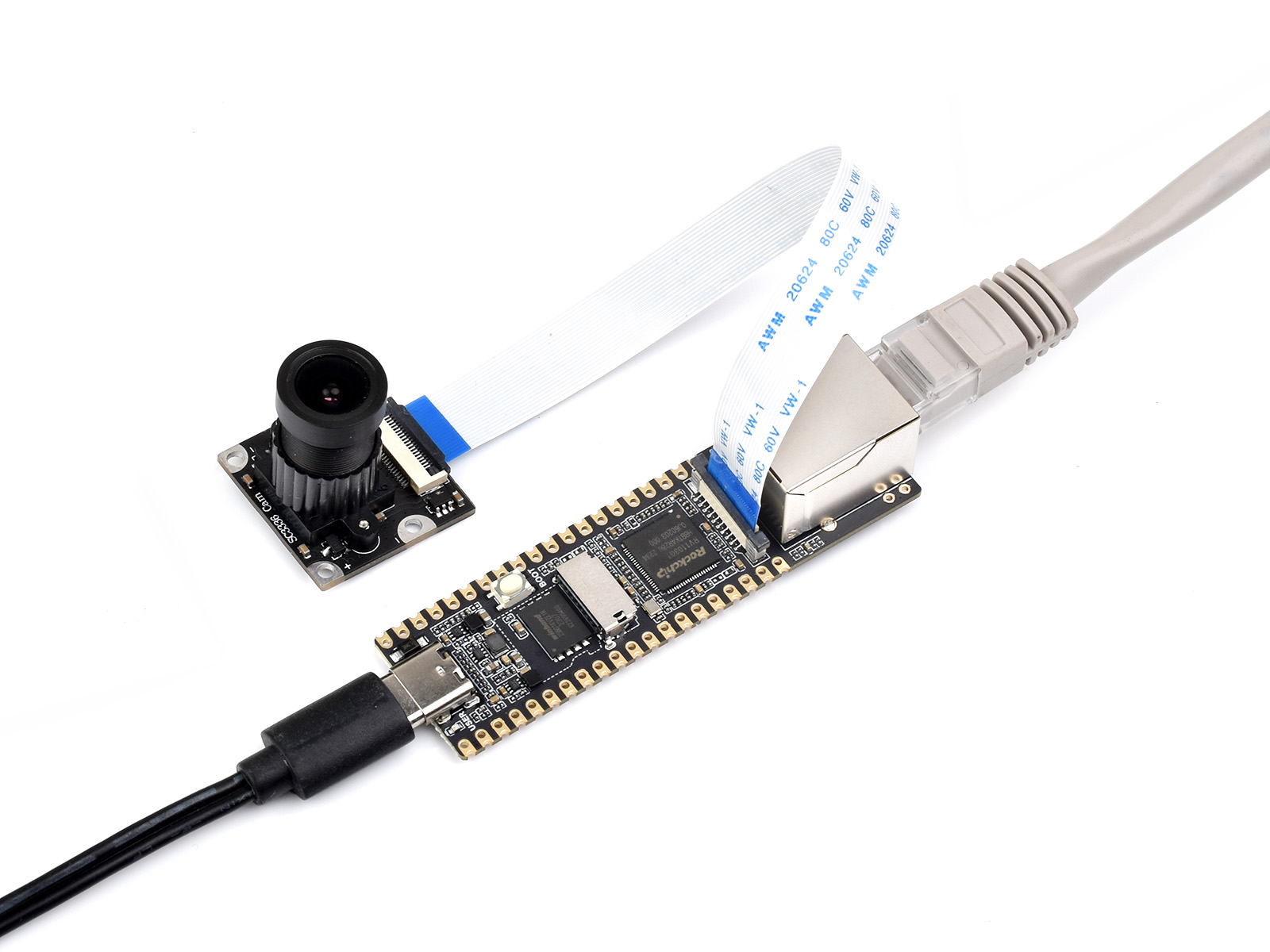

Application Example
Suitable for more application examples

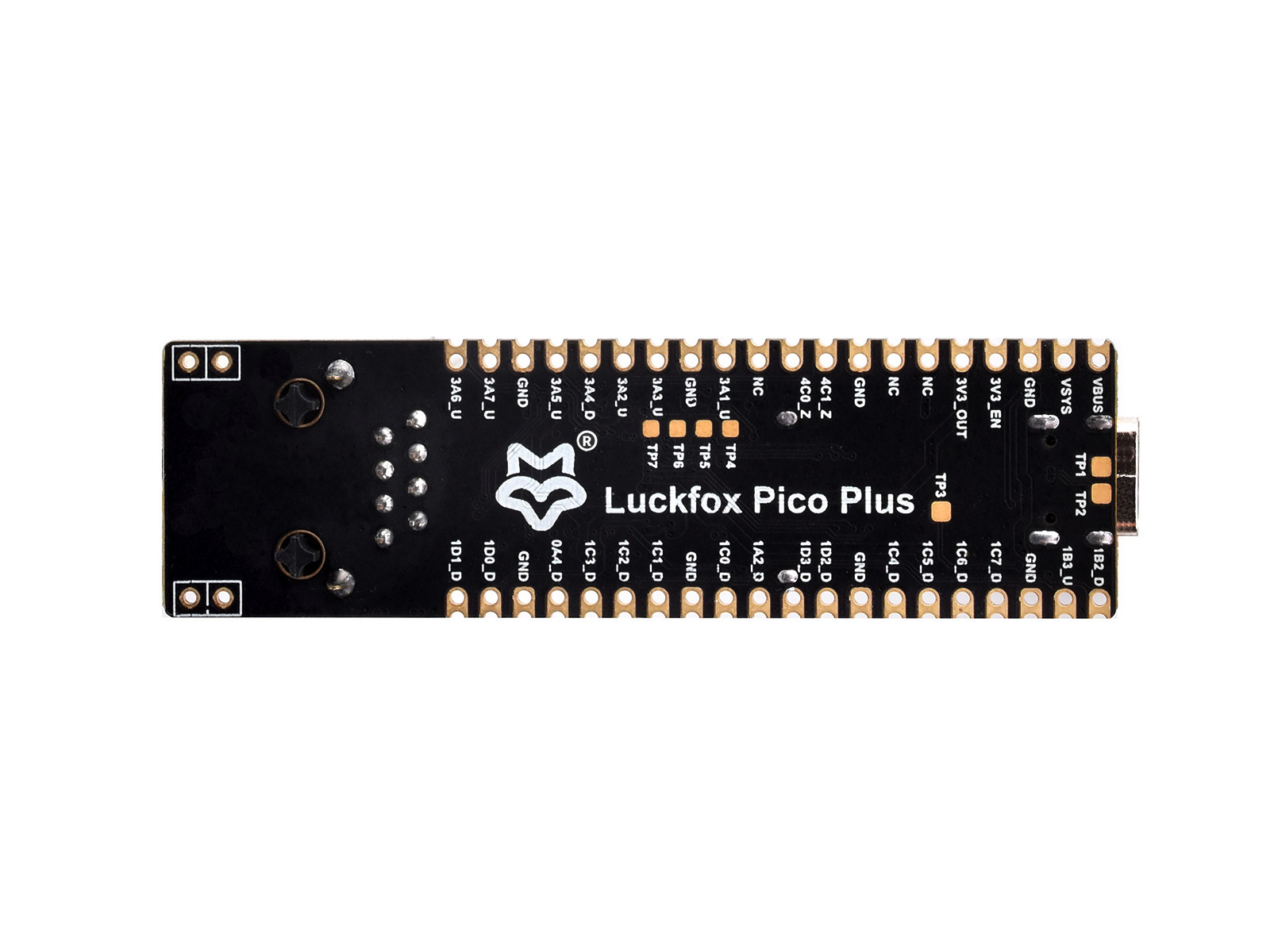

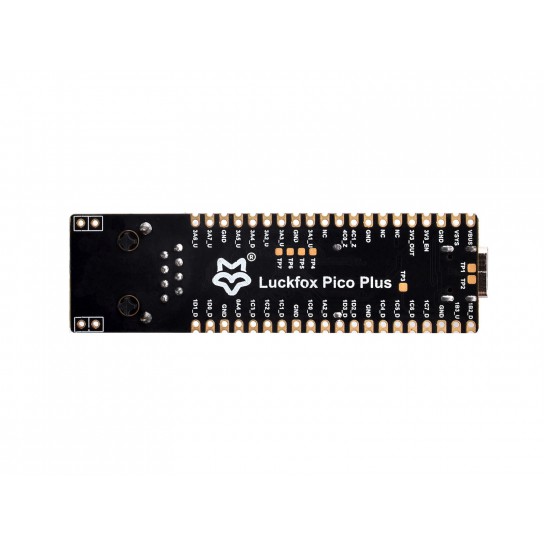

Pin definition

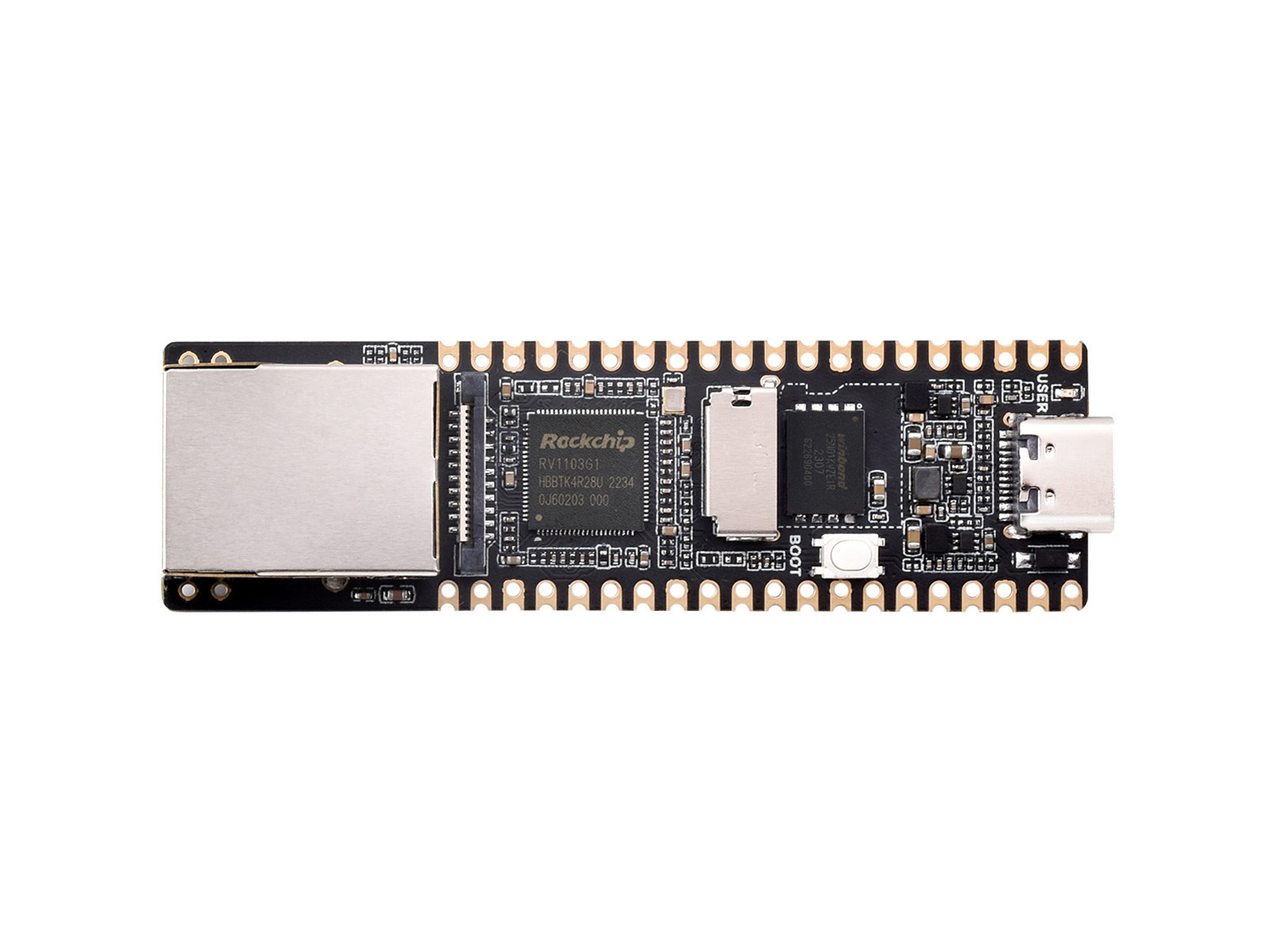

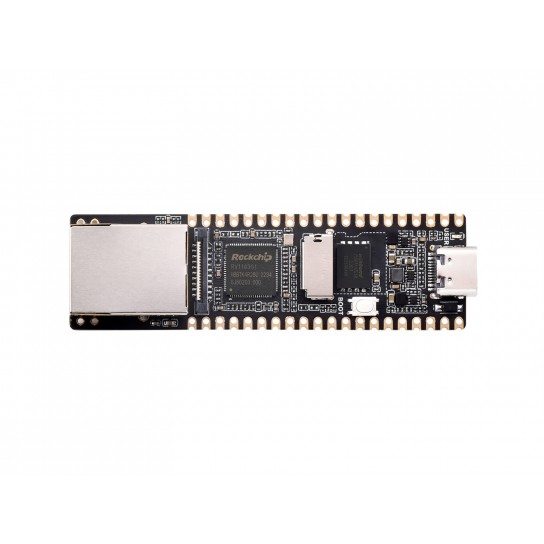

What's On Board
  1. USB Type-C connector
  2. ACT-LED
  3. TF card slot
  4. BOOT button
    Press it when powering on to enter download mode
  5. W25N01GV
    1Gb SLC NAND FLASH
  6. RV1103
    Vision processor SoC with built-in ARM Cortex-A7 core
  1. CSI camera interface
    MIPI CSI 2-lane
  2. RJ45 Ethernet port
  3. GPIO header
  4. USB test pads
  5. BOOT test pad
  6. Microphone test pads
Product Show
outline dimensions
Luckfox Pico Product Selection
PRODUCT Main chip Memory NPU ISP Default Storage FEATURES

Luckfox Pico Mini A		 RV1103G1 64MB 0.5TOPS, supports int4, int8 and int16 Input 4M @30fps (Max) TF card (Not included) Onboard Type-C port, MIPI CSI Interface, GPIO, etc.

Luckfox Pico Mini B		 SPI NAND FLASH (128MB)

Luckfox Pico		 TF card (Not included) Onboard Type-C port, MIPI CSI Interface, GPIO, etc.

Luckfox Pico Plus		 SPI NAND FLASH (128MB) Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.

Luckfox Pico Pro		 RV1106G2 128MB Input 5M @30fps (Max) SPI NAND FLASH (256MB) Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.

Luckfox Pico Max		 RV1106G3 256MB
Connectivity
Ethernet RJ45 100M
Memory and Storage
Flash 128MB
Memory 64MB DDR2
SOC Features
ISP 4MP@30fps
NPU 0.5TOPS
Processor [email protected]
Interfaces & Peripherals
Camera Interface MIPI CSI 2-lane
GPIO 25-PIN
Micro SD Slot
USB USB 2.0 Host/Device, Type-C

Luckfox Pico Plus

Luckfox Pico Plus x1

Luckfox Pico Plus

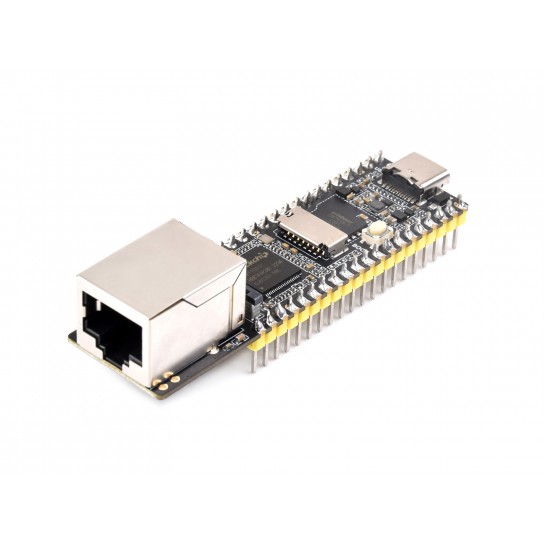

Luckfox Pico Plus M

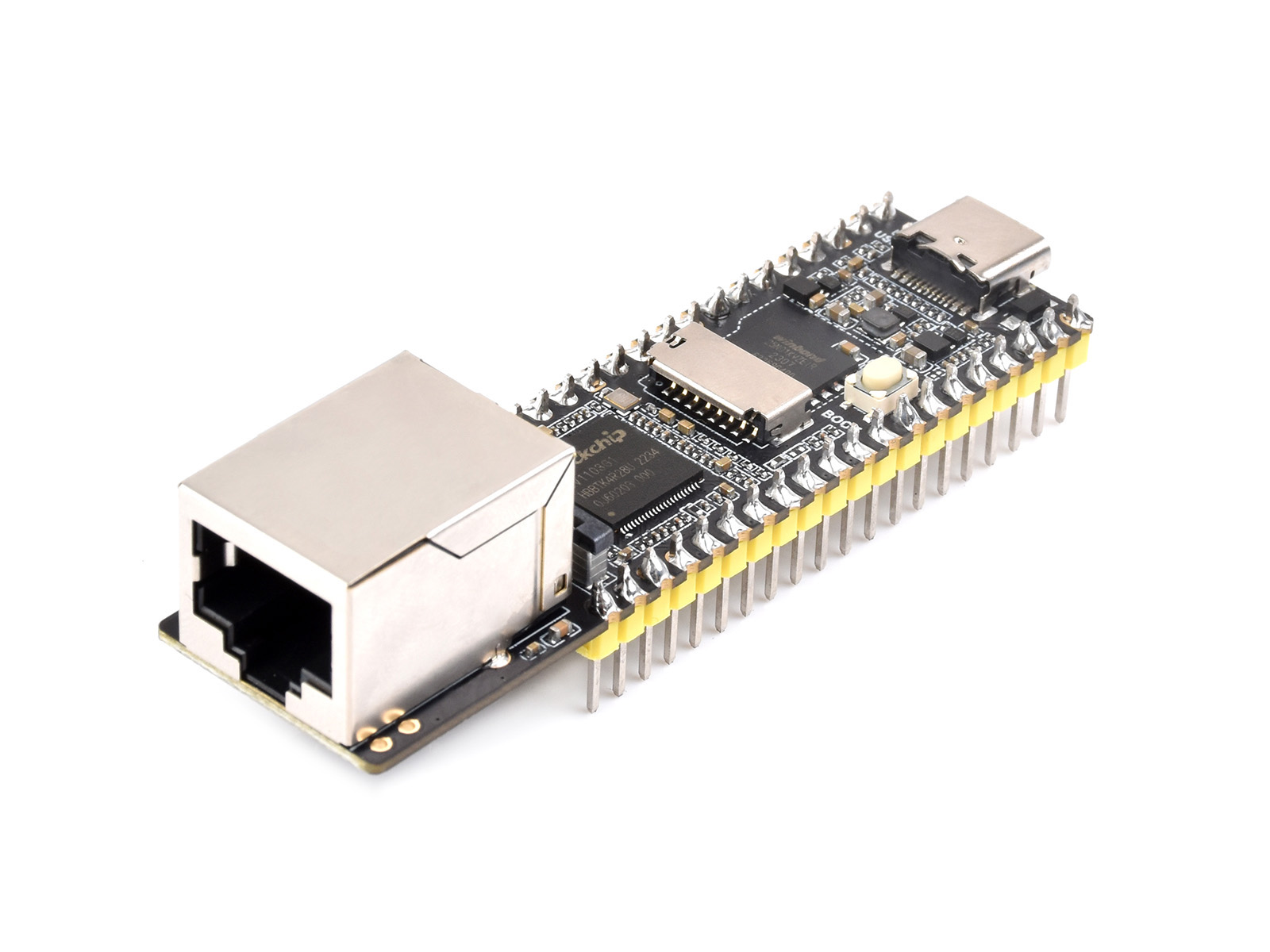

Luckfox Pico Plus with pre-soldered header x1

Luckfox Pico Plus M
