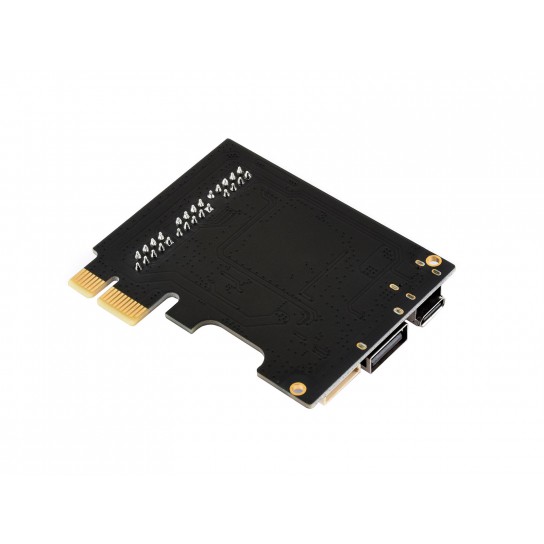

PCIe Interface Compatible
Supports motherboards with PCIe ×1 / ×4 / ×8 / ×16 slot
* Note: the PCIe interface is for 12V power supply only.
Onboard 2 × Front panel header
Allows simultaneous connection to the motherboard front panel header and the chassis front panel, enabling shared power control
Supports PCIe or USB power supply
Two Power Supply Modes selectable via onboard Switch
Adapting motherboard USB ports
Adapting USB-A & USB-C ports via motherboard USB header, for connecting Luckfox PicoKVM or other USB devices

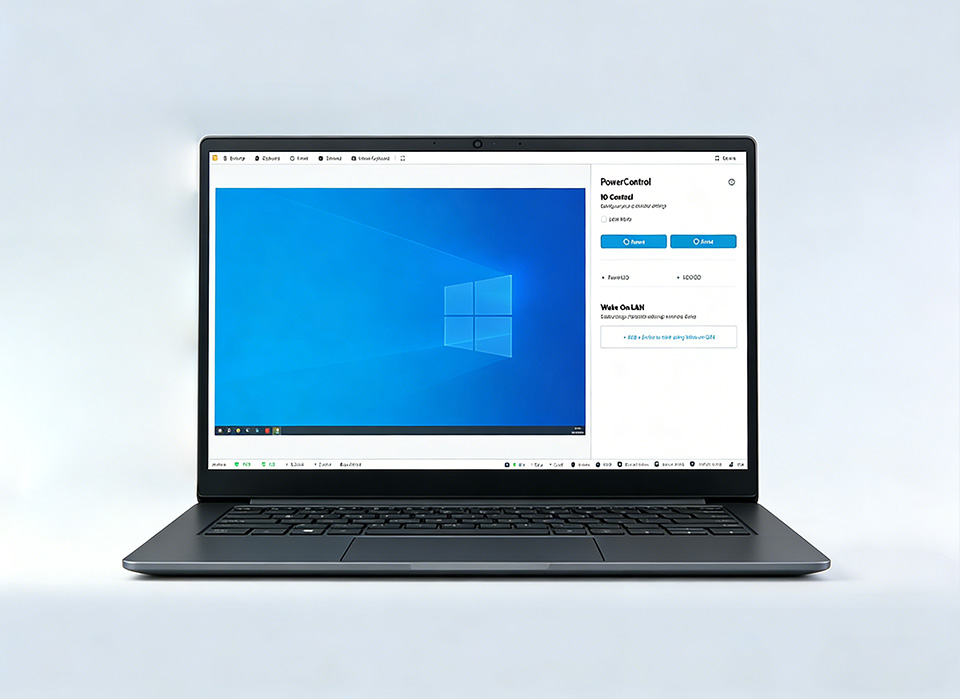

Web Control
Works with Luckfox PicoKVM, remotely control the computer to power on/off, restart, or force shutdown, and retrieve power status
how to install

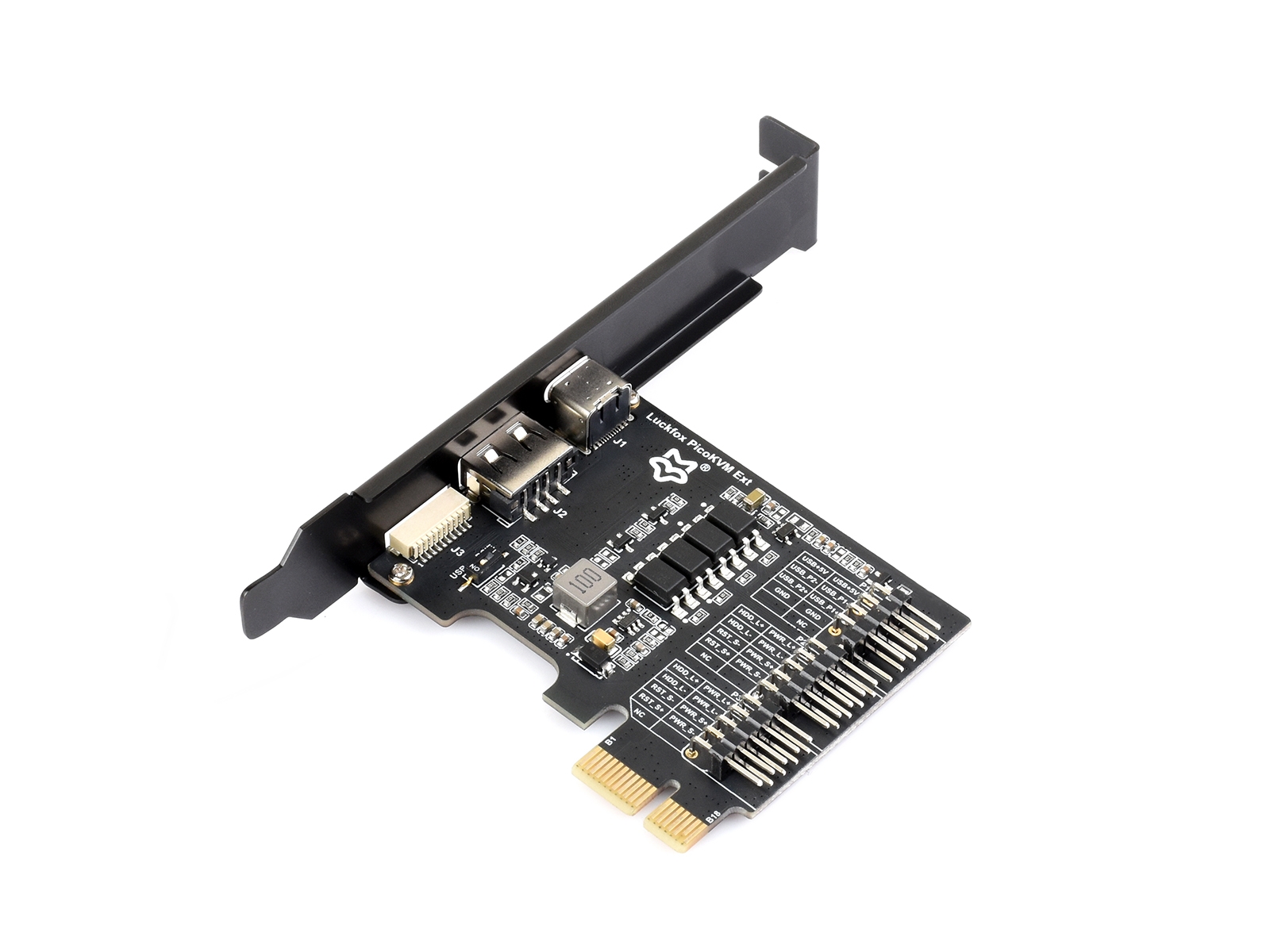

Includes a full-height metal bracket. Compact design compatible with various chassis types, no external space required
* the Luckfox PicoKVM is NOT included, please refer to the package content for the detailed part list.

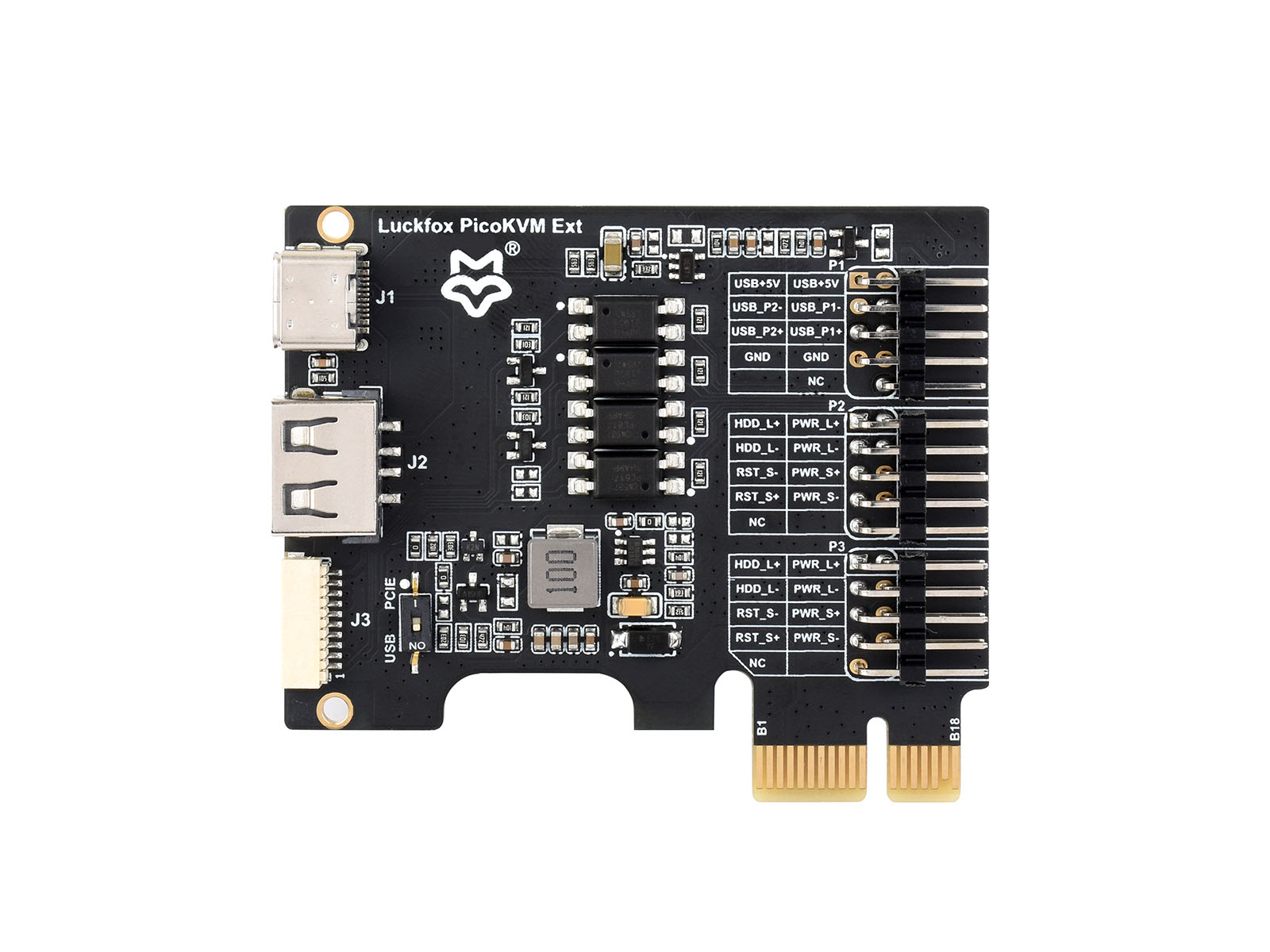

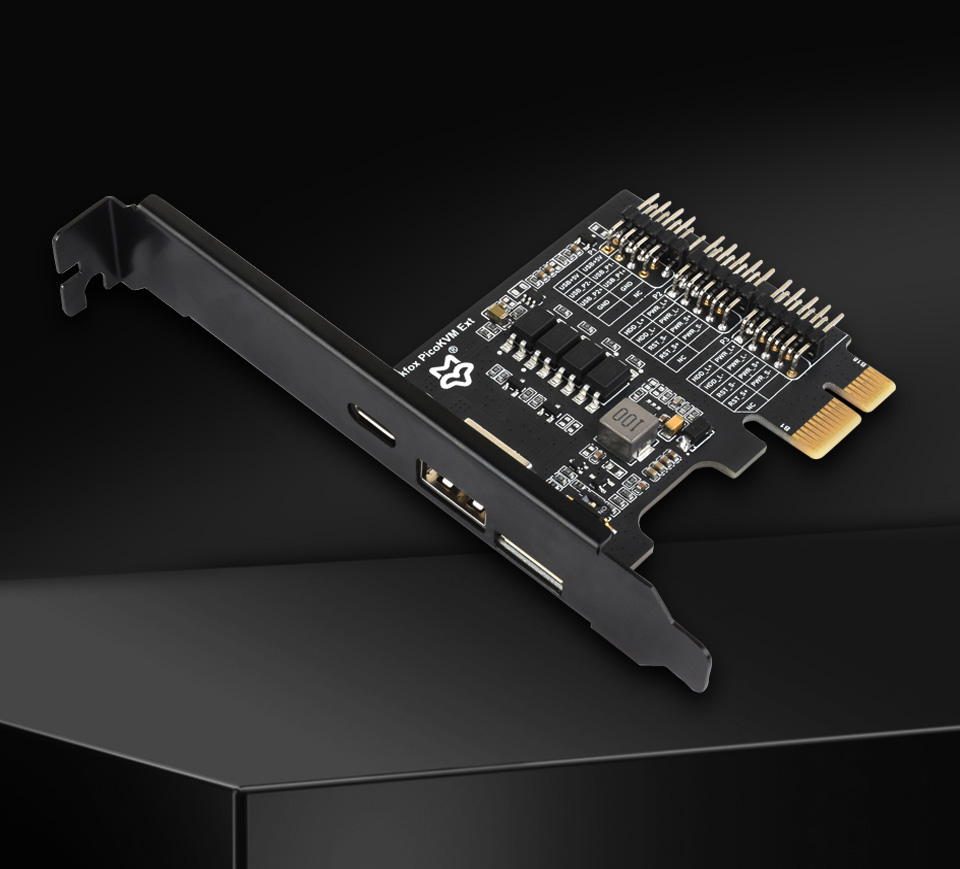

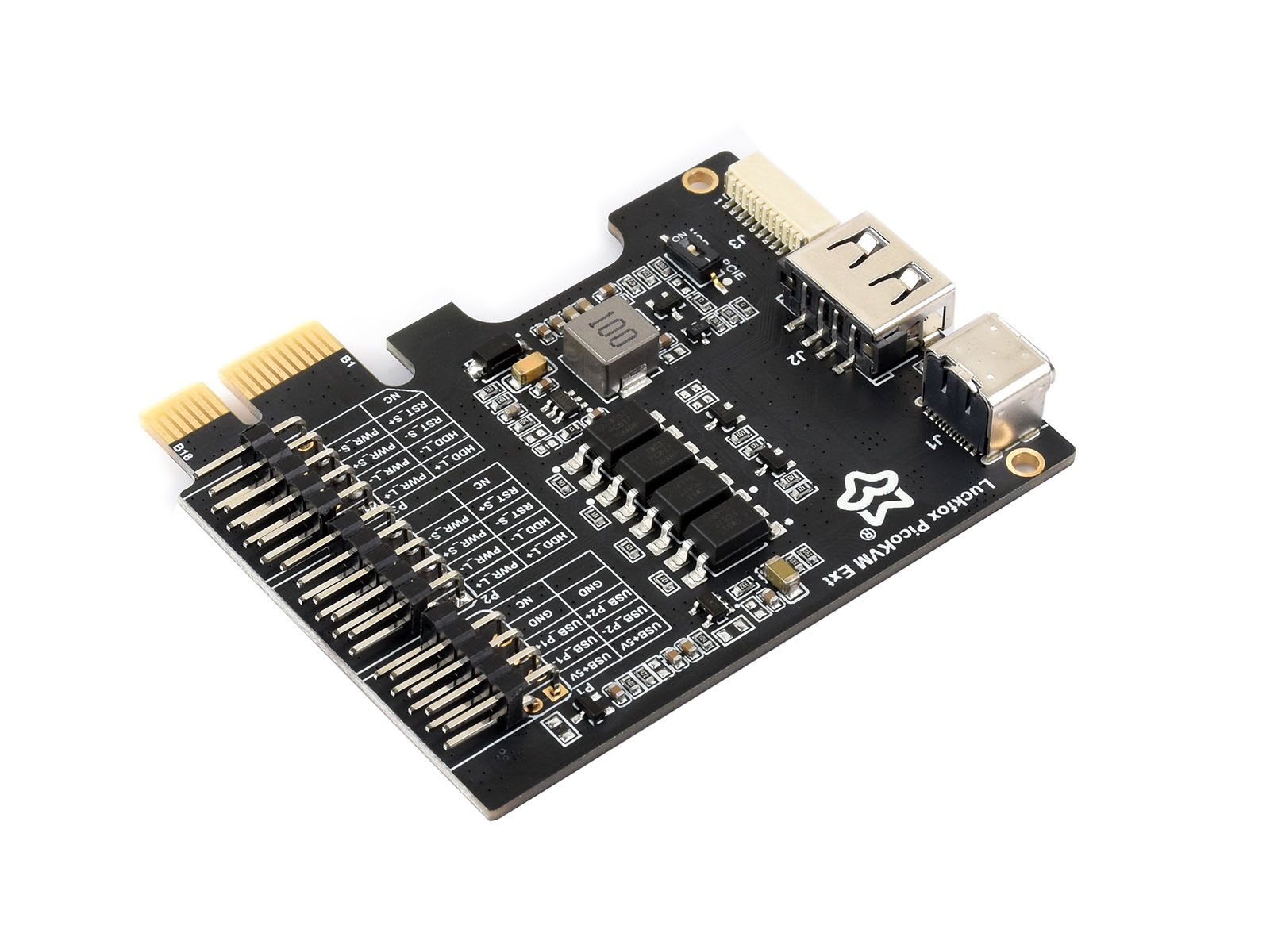

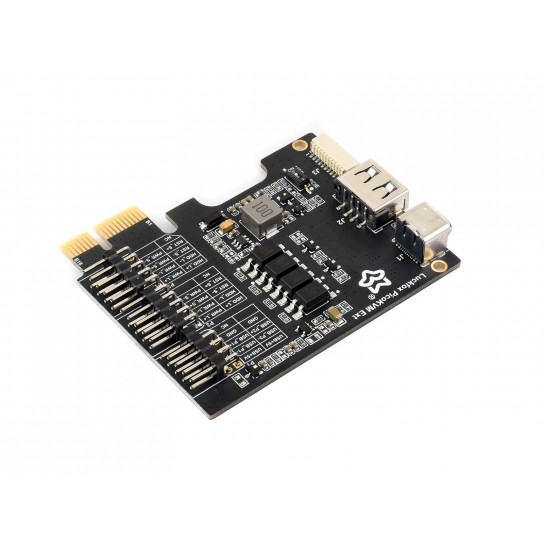

What's On Board
- USB-C port
Adapting from motherboard USB header USB_P1
- USB-A port
Adapting from motherboard USB header USB_P2

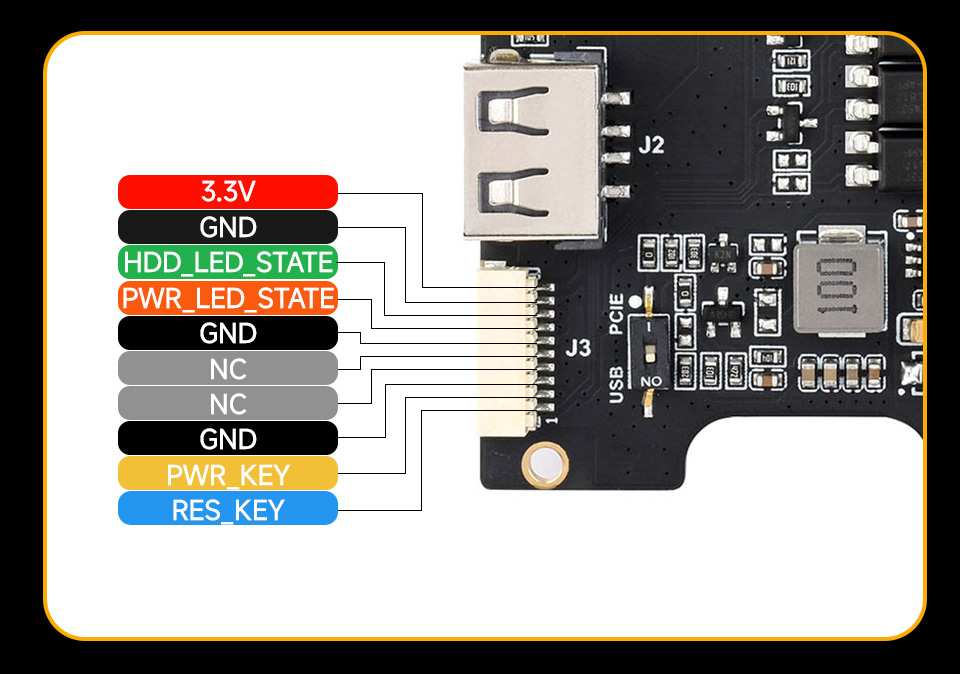

- IO control connector

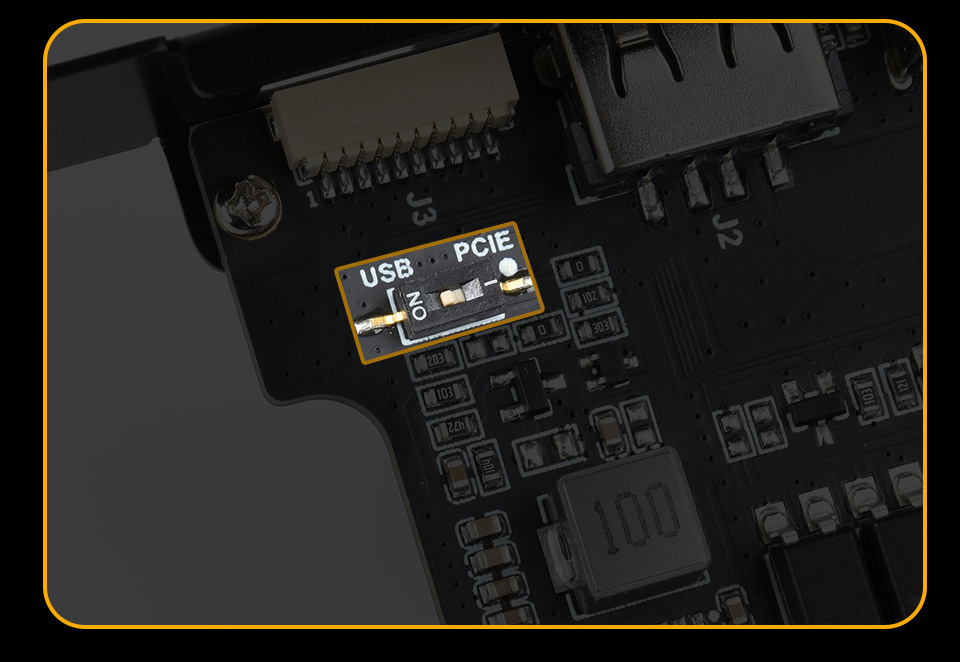

- Power supply selection switch
USB or PCIe power supply switchable
- PCIe interface
for 12V power supply

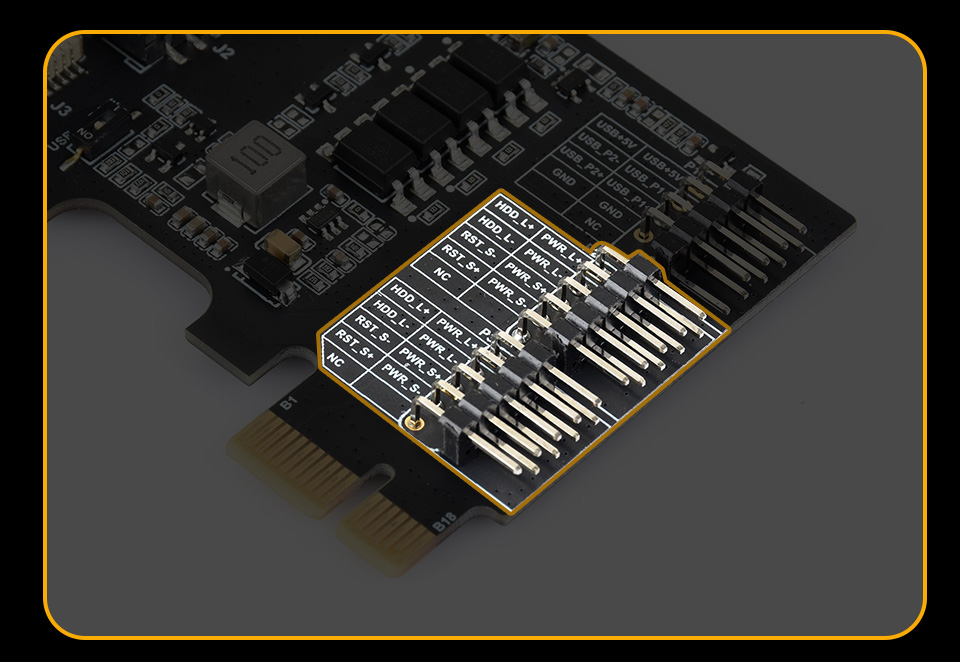

- Motherboard front panel headers
connects to motherboard front panel and chassis front panel
- Motherboard USB header
IO Control Connector Pin Definition

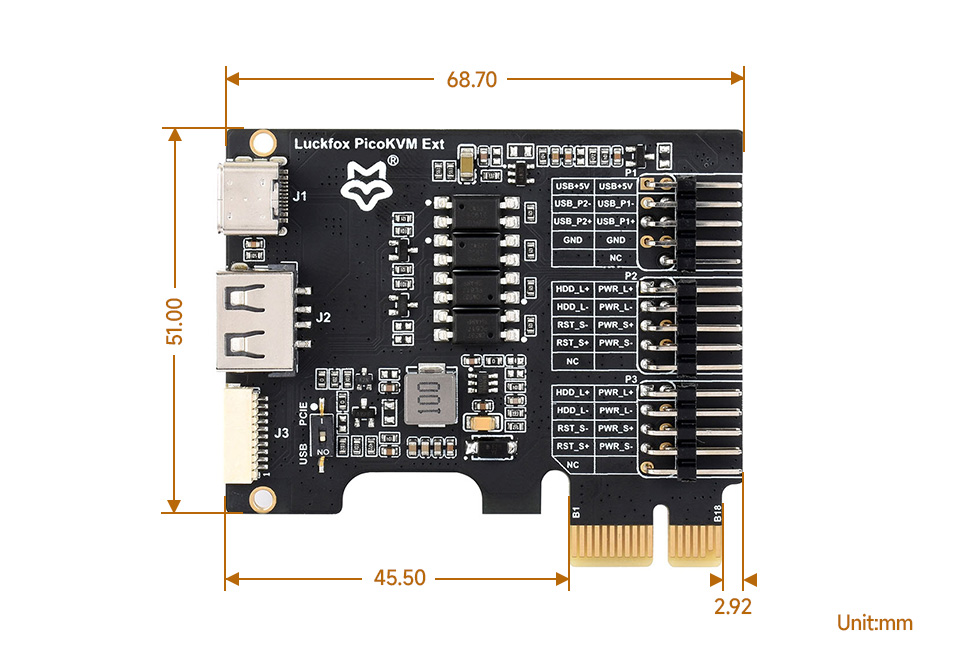

outline dimensions
