Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 Γ— 1080@60fps HDMI Video Input and HID Signal Output for Device Control

  • Brand:LUCKFOX
  • Battery:Not included

  • $34.99

  • Price Range $34.99 - $75.99
Add to Wish List
Compare this Product
Luckfox PicoKVM
Luckfox PicoKVM, front view Luckfox PicoKVM, features
Version options
Luckfox PicoKVM, Luckfox PicoKVM Base Lite

Luckfox PicoKVM Base Lite
Basic version without eMMC

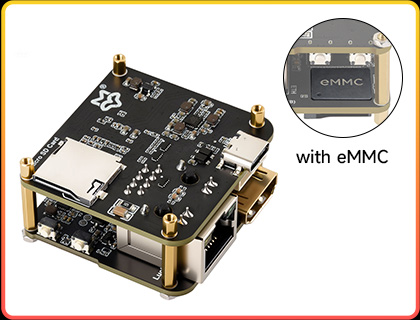

Luckfox PicoKVM, Luckfox PicoKVM Base

Luckfox PicoKVM Base
Basic version with 8GB eMMC

Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

Luckfox PicoKVM Lite
Full version without eMMC
(with metal case and 1.54inch touch display)

Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

Luckfox PicoKVM
Full version with 8GB eMMC
(with metal case and 1.54inch touch display)

Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

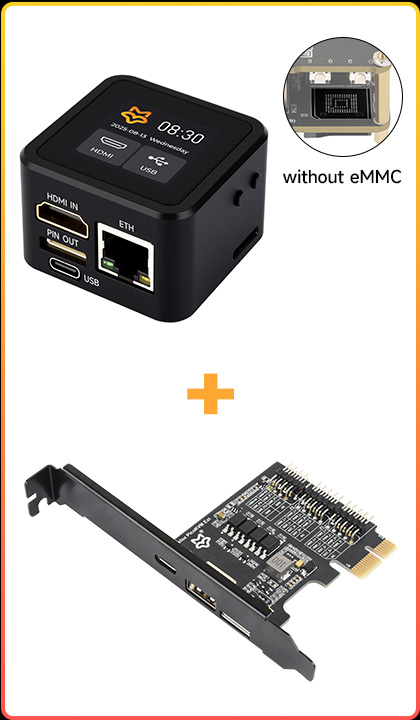

Luckfox PicoKVM Lite Kit
Luckfox PicoKVM Lite Full version (with metal case and 1.54inch touch display, without eMMC) + Luckfox PicoKVM Ext Power Management Expansion Board

Luckfox PicoKVM, Full version (with metal case and 1.54inch touch display)

Luckfox PicoKVM Kit
Luckfox PicoKVM Full version (with 8GB eMMC, metal case, and 1.54inch touch display) + Luckfox PicoKVM Ext Power Management Expansion Board

Note: The Lite versions require a TF card (please purchase separately) for proper operation.


Features

The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.

Key Features:

  • Onboard HDMI input interface: recognized by PC as a display for video capture
  • Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
  • Onboard 100Mbps Ethernet port: for video and control signal transmission
  • 1.54inch touch display: for displaying IP address, connection status, and system operating status
  • TF card slot: supports storage expansion
  • I/O expansion interface: for host power ON/OFF control
Specifications
Product Luckfox PicoKVM Luckfox PicoKVM Lite
Processor RV1106G3
Core 1 Γ— [email protected]
Memory 256M DDR3
Storage 8G eMMC TF card (please purchase separately)
System PicoKVM
Resolution 1080P@60fps
Video Encoding H.264/AVC, H.265/HEVC
Video Latency 80ms ~ 200ms
Audio Transmission √
UEFI / BIOS Support √
USB Keyboard & Mouse Emulation √
USB Storage Emulation √
Wake-on-LAN (WOL) √
Web Terminal √
Custom Script √
TF Card Slot √
Serial Terminal 1-Ch
Power Control GPIO control
Ethernet 100Mbps
LCD Display 1.54inch 240 Γ— 240 touch display (Only included in the Luckfox PicoKVM full versions)
Power Input Type-C
Outline Dimension Luckfox PicoKVM: 48.50 Γ— 48.50 Γ— 29.00 (mm)
Luckfox PicoKVM Base: 44.00 Γ— 42.00 Γ— 23.60 (mm)
Comparison with Commercial Remote Control Software
Luckfox PicoKVM, Comparison with Commercial Remote Control Software
Remote Power Control

Enables Physical-Level Remote Power Control with Luckfox PicoKVM Ext Expansion Board

Luckfox PicoKVM, Comparison with Commercial Remote Control Software

* for reference only, the above host board is NOT included.
Please purchase the Luckfox PicoKVM Ext Expansion Board separately or choose the Luckfox PicoKVM Kit.

Function Demonstrations
Luckfox PicoKVM, supports remote control host system, expandable power control, virtual USB drive mounting, wake on LAN (WOL) Luckfox PicoKVM, supports cross-regional Networking
What's On Board
Luckfox PicoKVM, onboard components
  1. HDMI IN interface
    for connecting to the HDMI output interface of the controlled host
  2. I/O expansion interface
  3. USB Type-C port
    for power supply, simulating HID/UMS devices, and programming
  4. 10/100Mbps RJ45 Ethernet port with indicator
  1. 1.54inch touch LCD
  2. BOOT button
    press it when powering on or resetting to enter download mode
  3. RESET button
  4. TF card slot
Pin definition
Luckfox PicoKVM, pin definition
outline dimensions

Luckfox PicoKVM

Luckfox PicoKVM, Luckfox PicoKVM dimensions

Luckfox PicoKVM Base

Luckfox PicoKVM, Luckfox PicoKVM Base dimensions

Luckfox PicoKVM Ext Expansion Board

Luckfox PicoKVM, Luckfox PicoKVM Base dimensions

Connectivity
Ethernet 10/100Mbps RJ45
Memory and Storage
eMMC 8GB
Memory 256M DDR3
SOC Features
Processor RV1106G3
Video Encoding H264
Display
Size 1.54 inch
Pixel Pitch (HΓ—V) 240 Γ— 240
Interfaces & Peripherals
Micro SD Slot
USB USB Type-C
Video Input HDMI IN

Luckfox PicoKVM Base Lite / Luckfox PicoKVM Base

OPTIONS Luckfox PicoKVM Base (0GB (Lite) / 8GB) x1

Luckfox PicoKVM Base

Luckfox PicoKVM Lite / Luckfox PicoKVM

  1. OPTIONS Luckfox PicoKVM (0GB (Lite) / 8GB) x1
  2. Type-C extension cable with auxiliary power supply x1
Luckfox PicoKVM
Type-C extension cable with auxiliary power supply

Luckfox PicoKVM Lite Kit / Luckfox PicoKVM Kit

  1. OPTIONS Luckfox PicoKVM (0GB (Lite) / 8GB) x1
  2. Type-C extension cable with auxiliary power supply x1
  3. Luckfox PicoKVM Ext (with full-height metal bracket) x1
  4. Motherboard USB extension 9PIN cable x1
  5. Motherboard extension 9PIN cable x1
  6. SH1.0 10PIN cable ~1m x1
Luckfox PicoKVM
Type-C extension cable with auxiliary power supply
