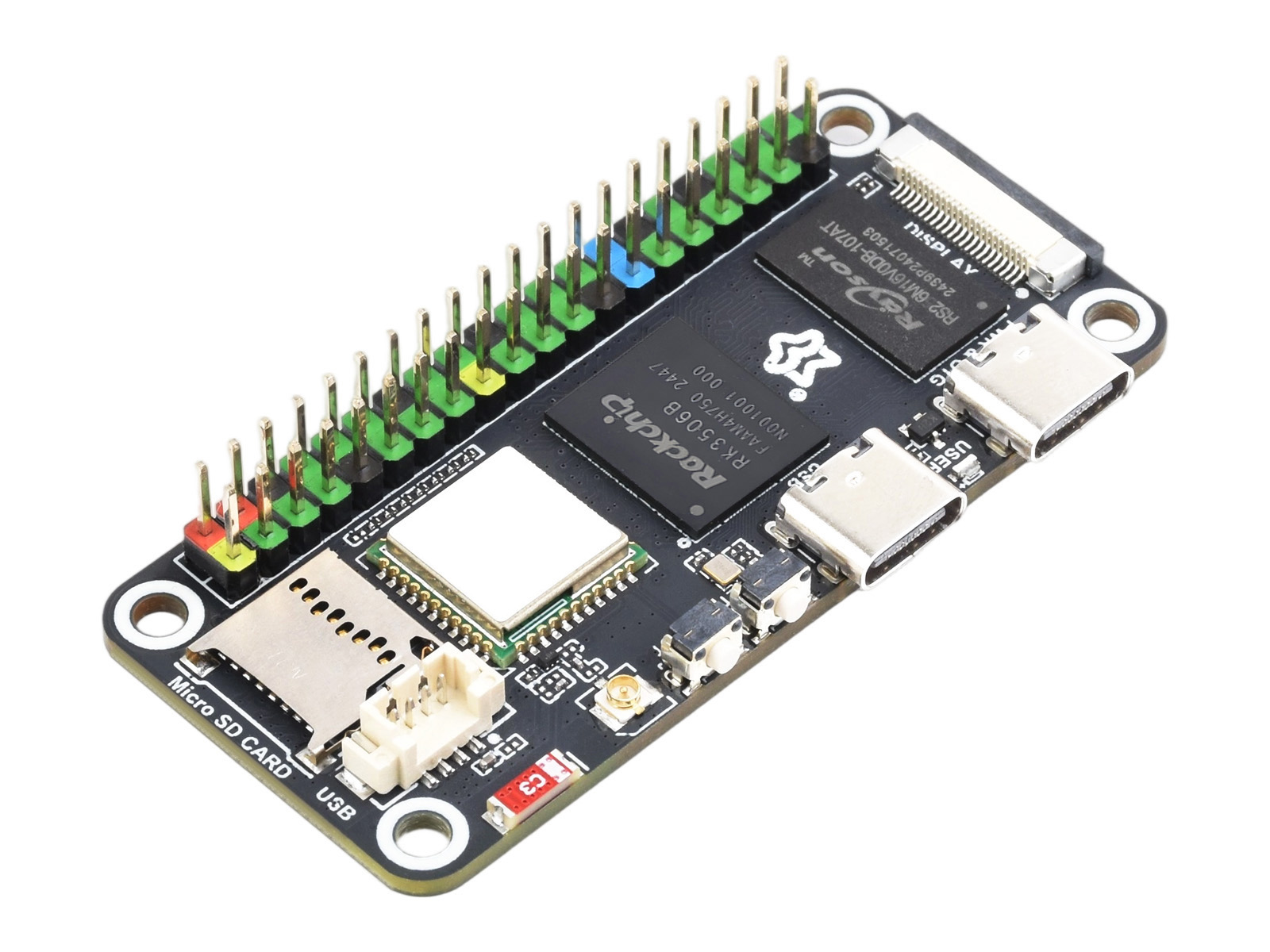

Luckfox Lyra Zero W Micro Linux Development Board Based On RK3506B Chip, Integrated With Triple-core Arm Cortex-A7 And Arm Cortex-M0 Processors

Luckfox Lyra Zero W is a Linux micro development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, SDMMC, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.

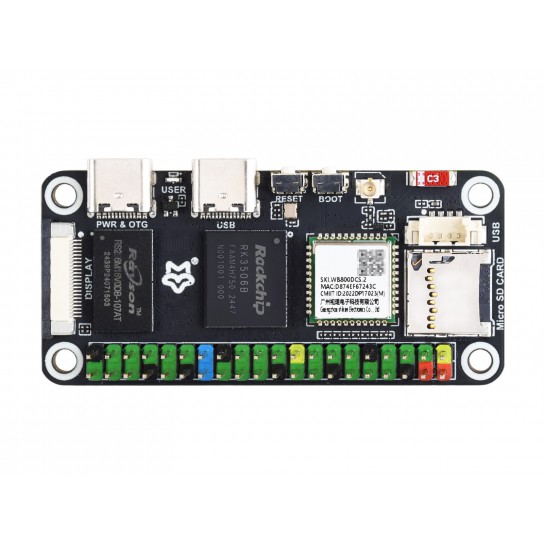

Integrated TF card slot, DSI interface, USB-C HOST port, and MX1.25 USB HOST header

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission

Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios

Compact size, powerful performance, easy to drive large screens

* for reference only, please refer to the Package Content for the detailed part list.
The display resolution of the above LCD is 800 × 1280, Supports up to 1280 × 1280 @ 60Hz resolution.

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration
