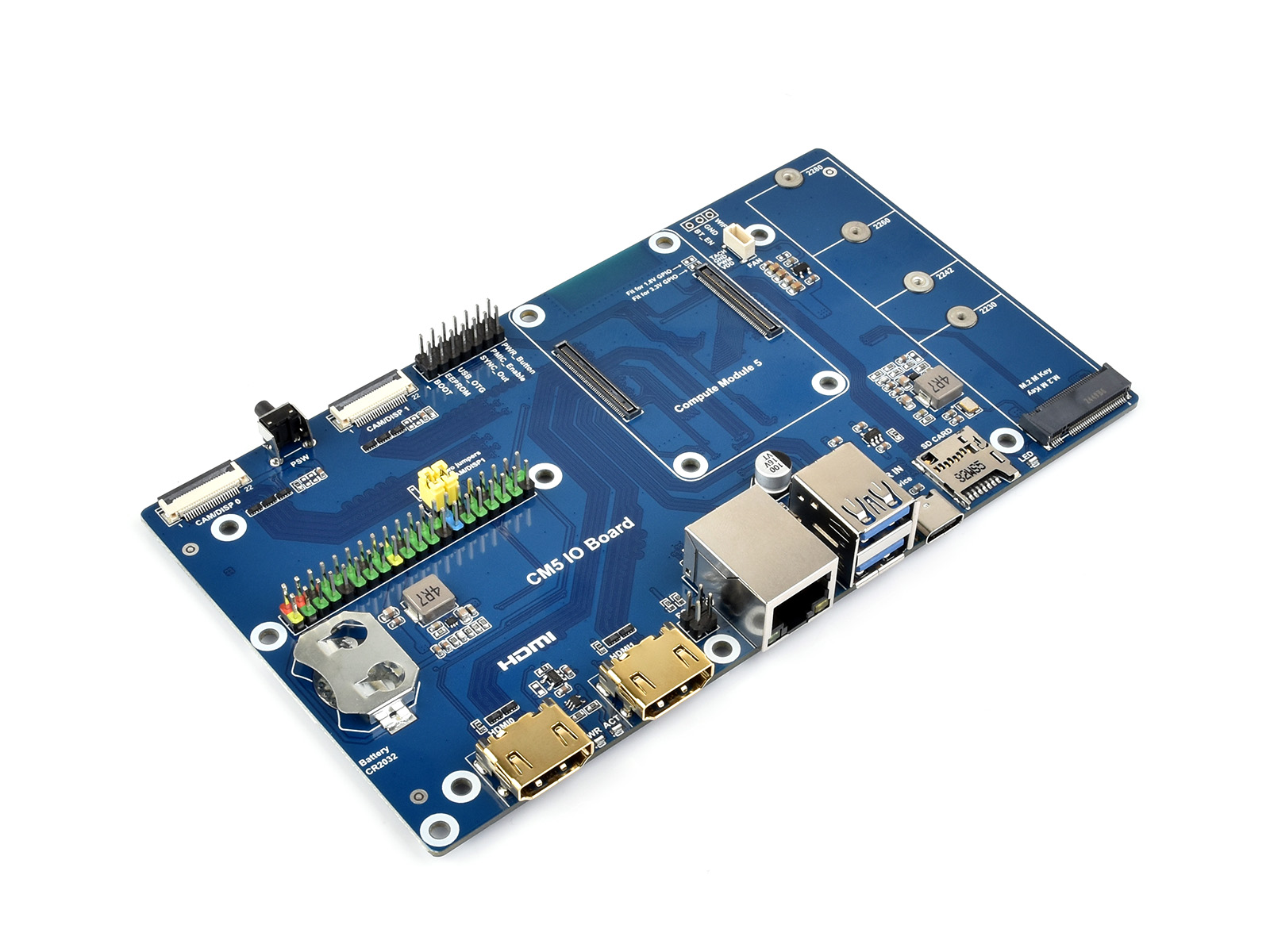

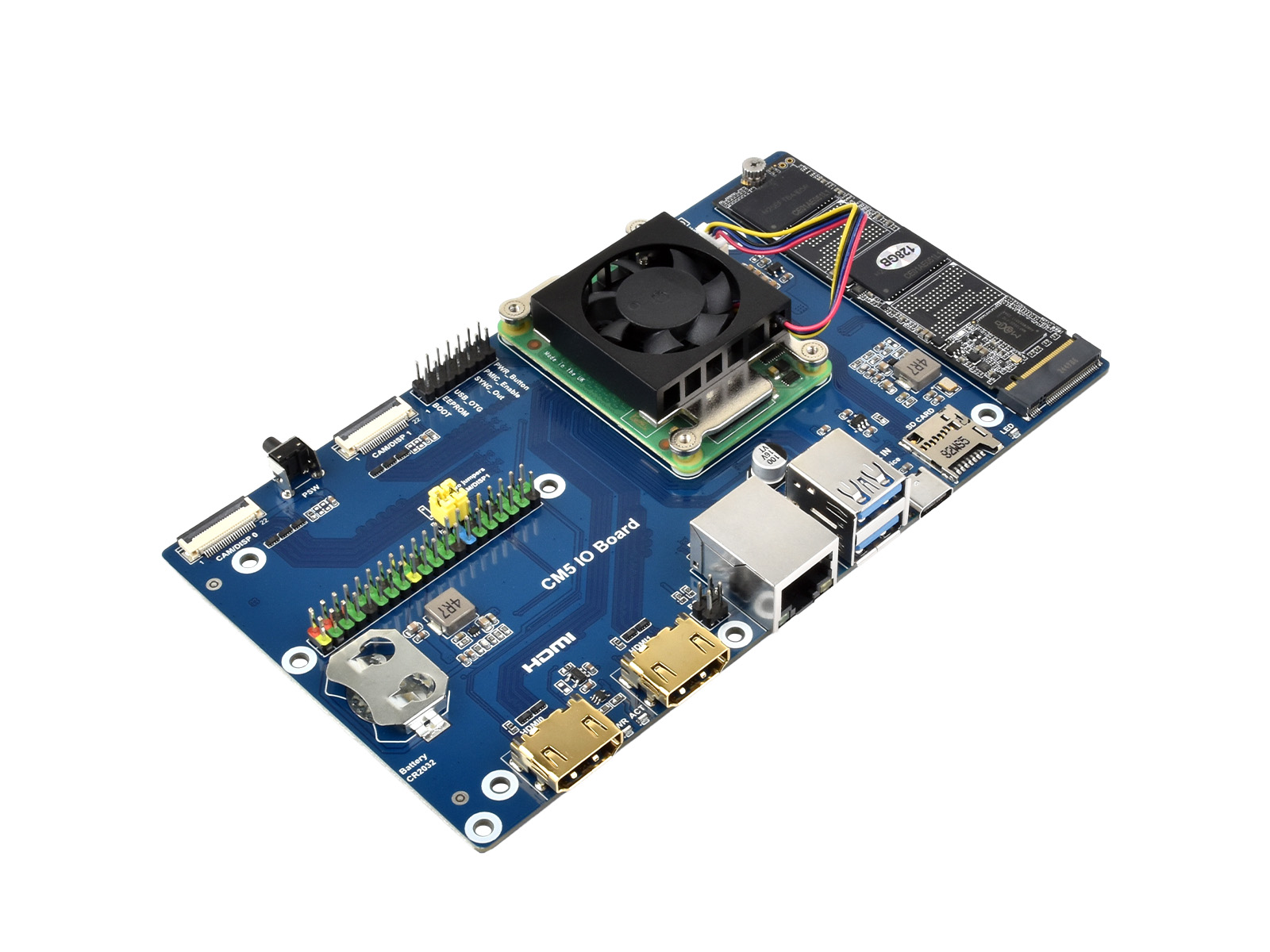

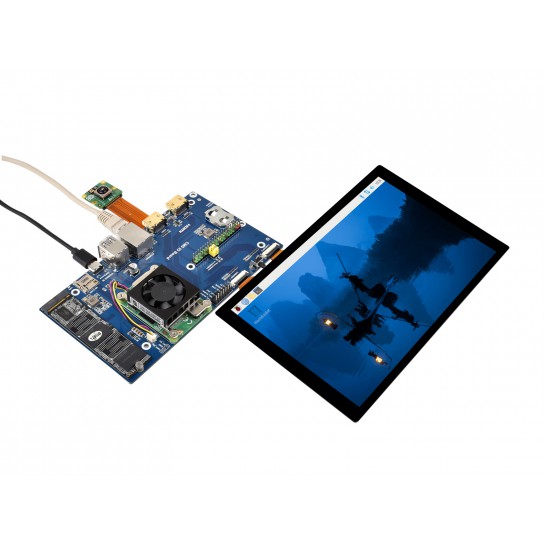

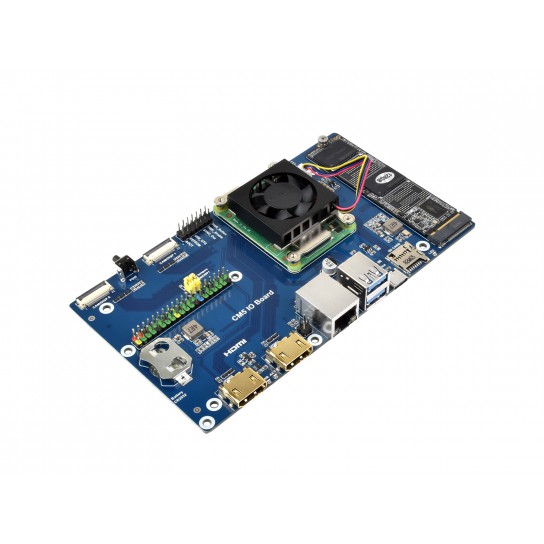

Luckfox CM5 IO Board For Compute Module 5, Dual HDMI Ports, Dual USB3.0 Ports, PoE Gigabit Ethernet RJ45 connector, PCIe M.2 Slot, for all Variants of CM5
suitable for evaluating the Raspberry Pi CM5 or being integrated into end products
IO Base Board for all Compute Module 5 Variants

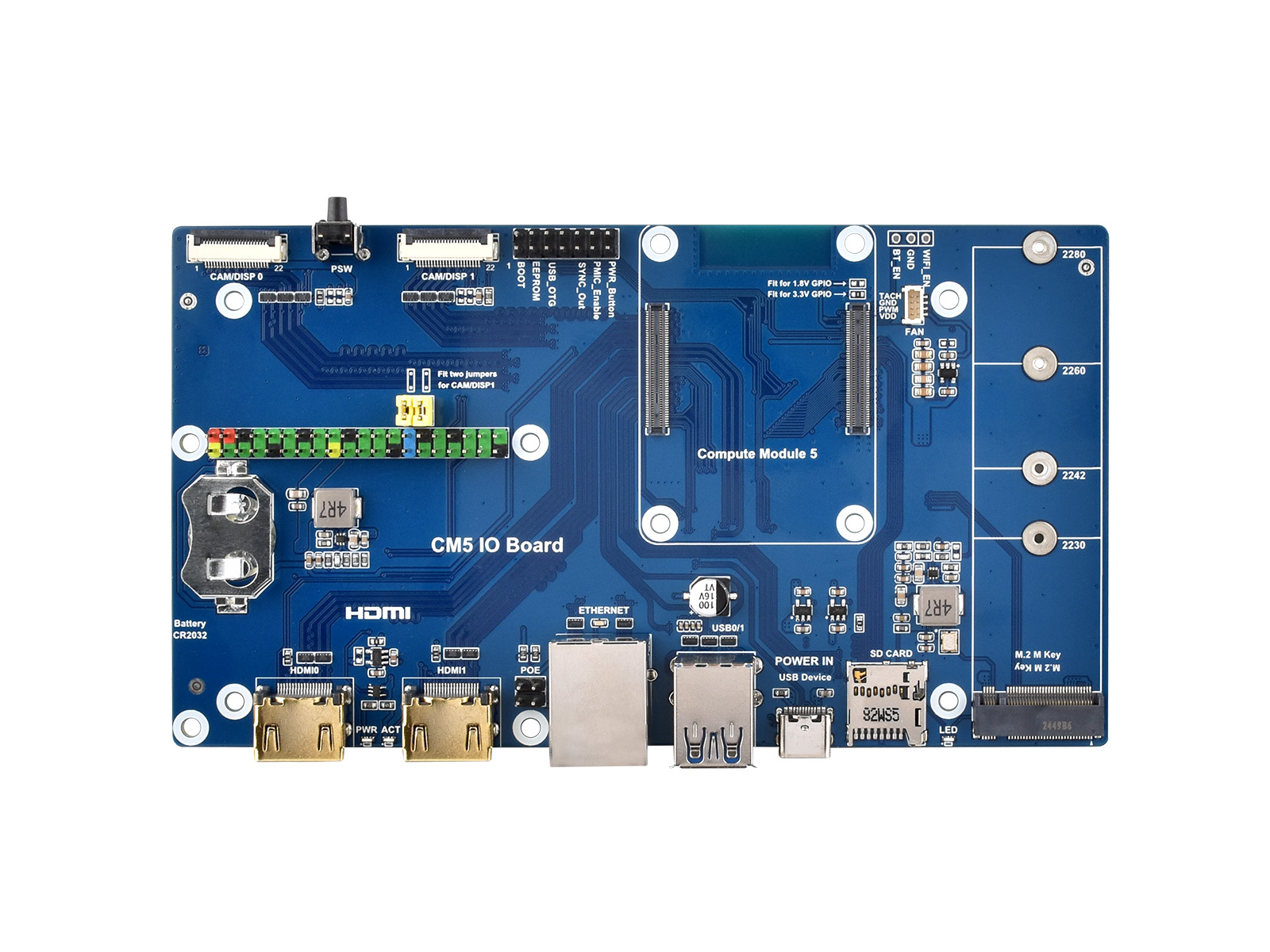

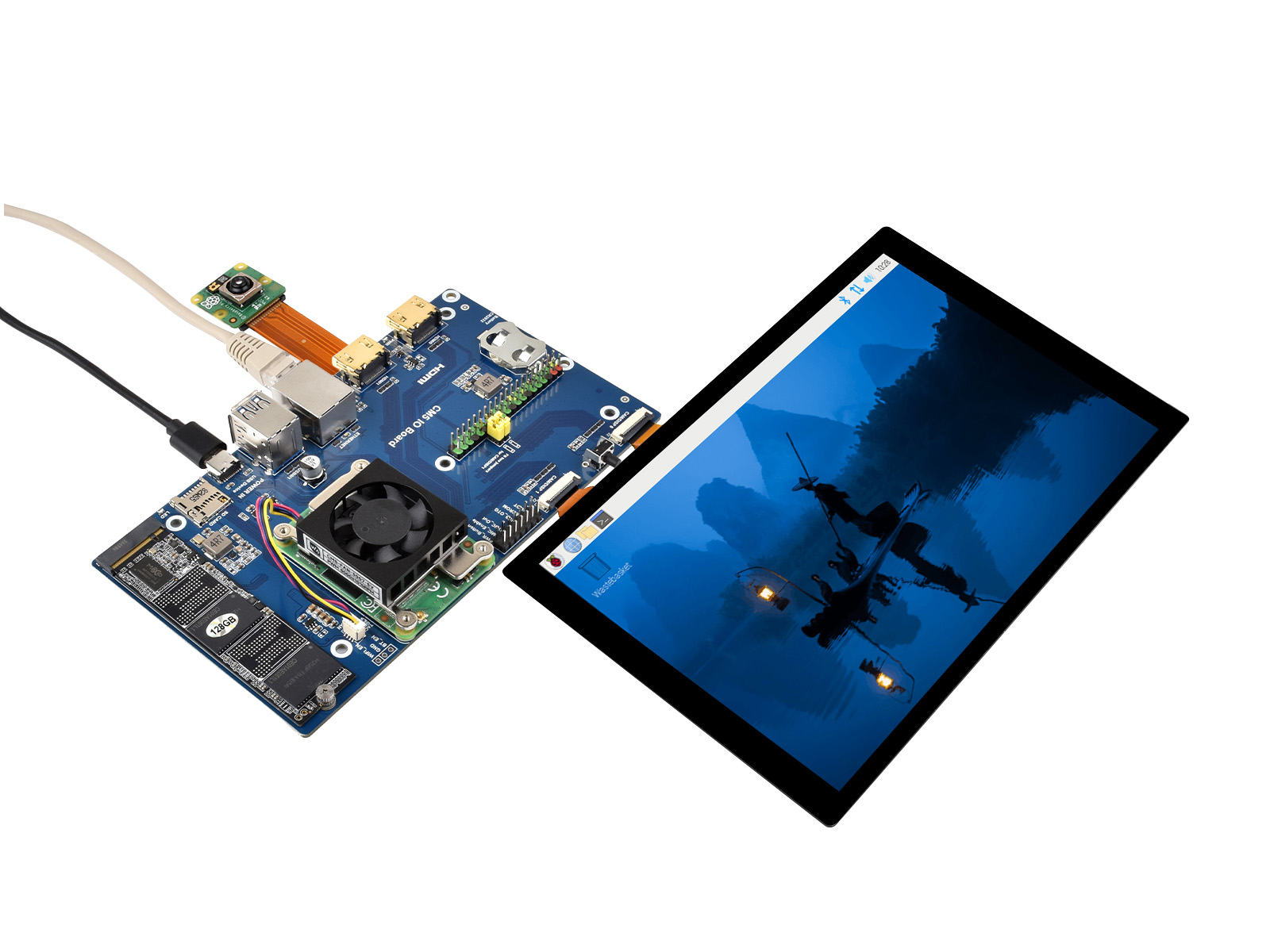

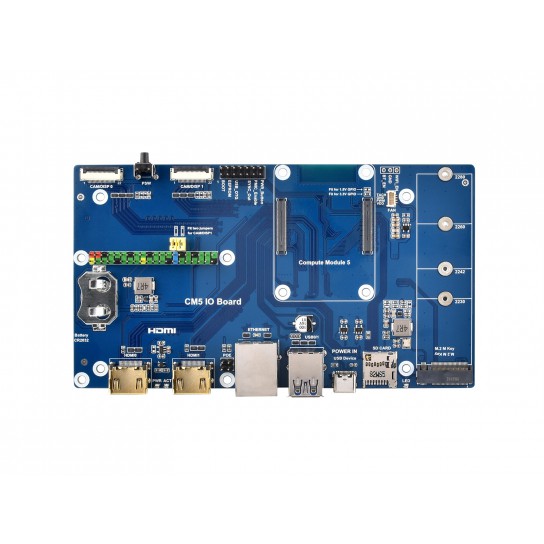

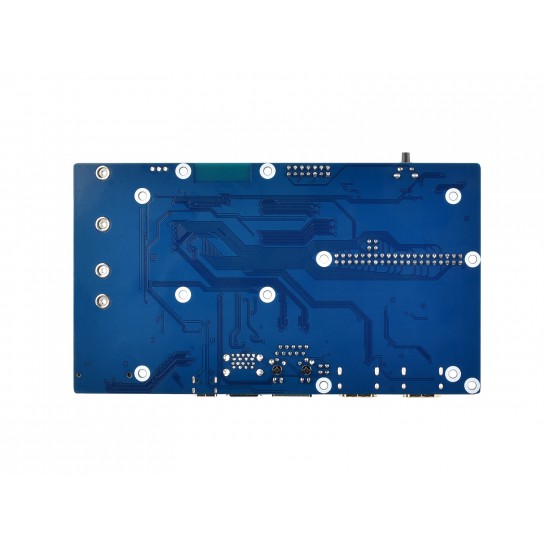

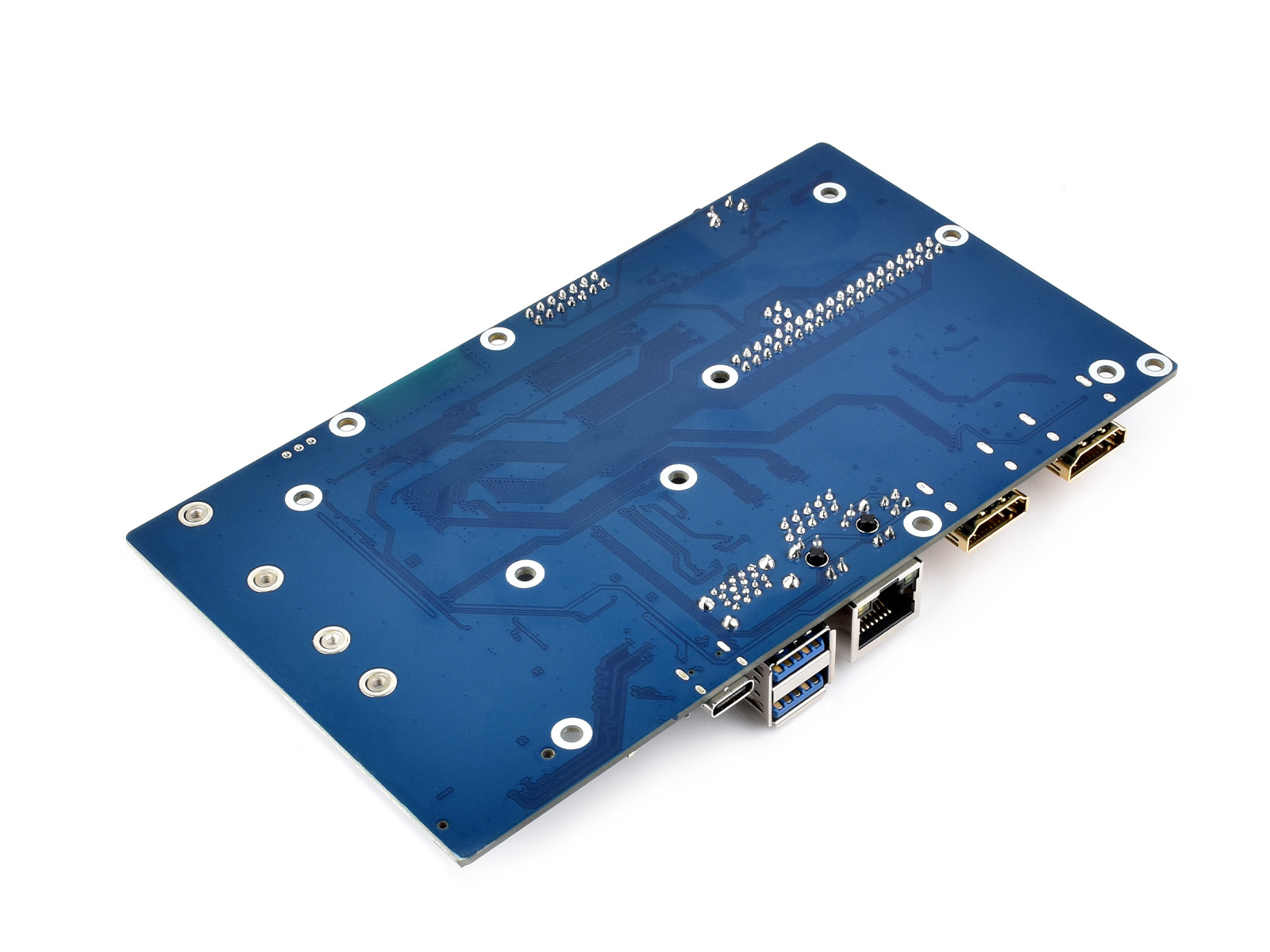

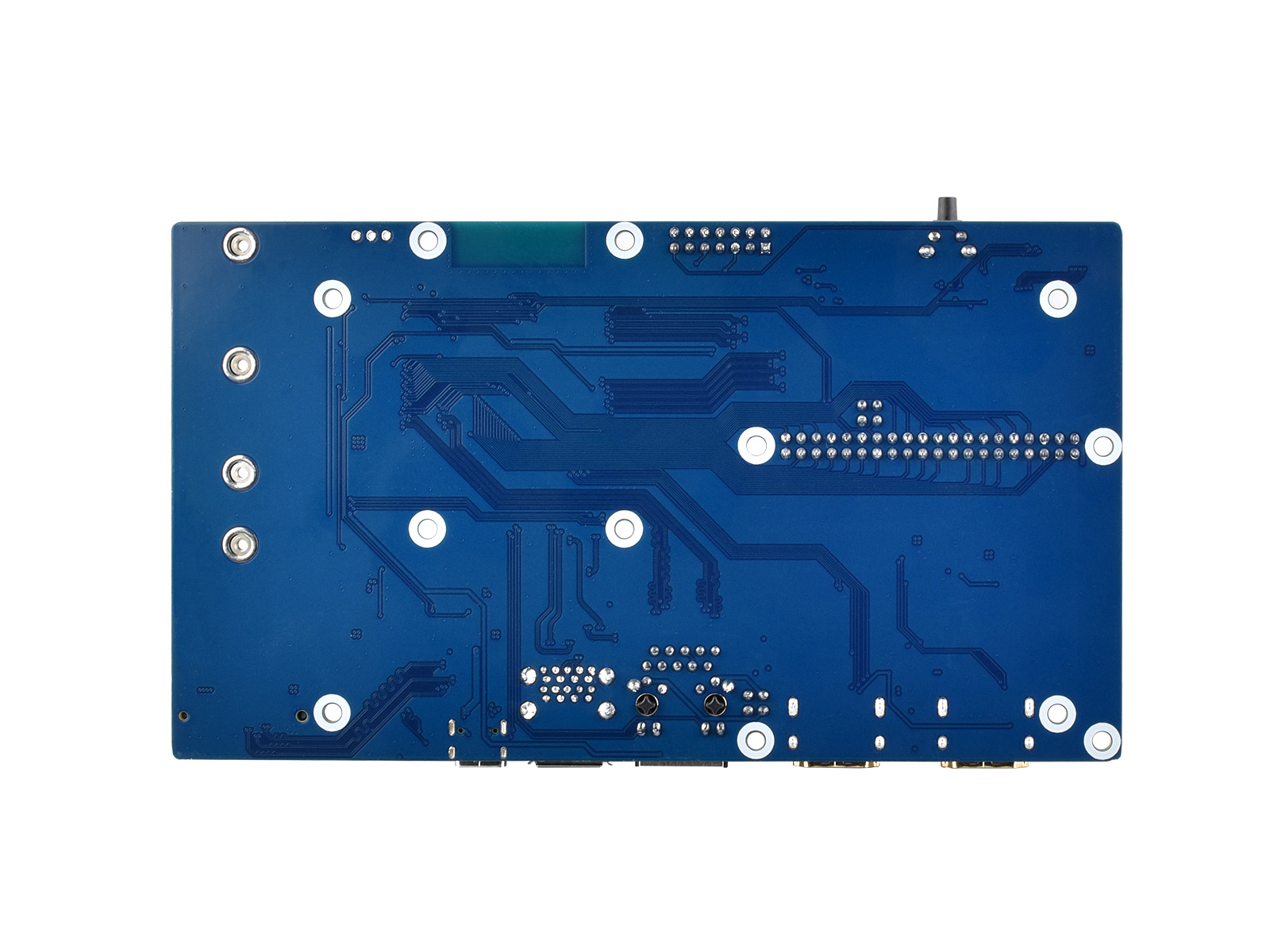

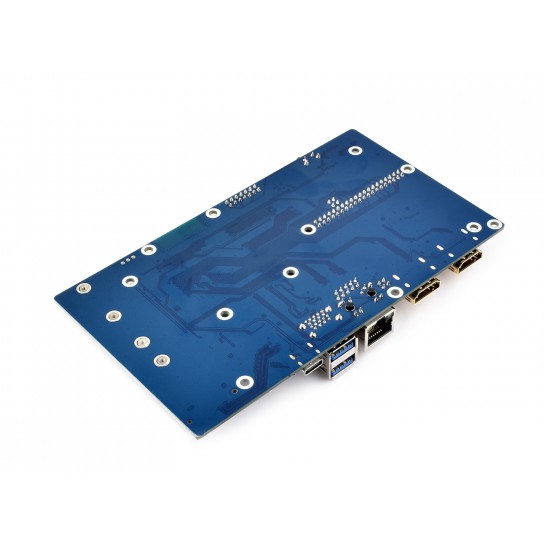

The Luckfox CM5 IO Board is a companion board for Raspberry Pi Compute Module 5. It is designed for use both as a development system for Compute Module 5 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe modules. The major user connectors are located along one side to make enclosures simple.
| CM5 socket | Suitable for all variants of Compute Module 5 |
| Network | Gigabit Ethernet RJ45 port |
| Supports PoE function, onboard PoE header, an external PoE module (NOT included) is required | |
| Connectors | Raspberry Pi 40PIN GPIO header |
| M.2 M-Key PCIe socket, compatible with 2230, 2242, 2260 and 2280 form factors | |
| USB | 2 x USB3.2 Gen1 connectors 1 x Type-C port for updating Compute module 5 |
| MIPI | 2 x 4-lane MIPI DSI/CSI-2 connectors |
| Video | 2 x HDMI ports with 4K support |
| RTC | CR / ML2032 battery socket |
| Storage socket | MicroSD card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan connector | 5V, JST-SH PWM 4PIN connector |
| Power input | 5V @5A via Type-C port, the same standard as the Raspberry Pi 5 |
| Dimensions | 160 × 90mm |
Faster reading/writing speed compared to the Micro SD slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive
* for reference only, the Solid State Drive is NOT included

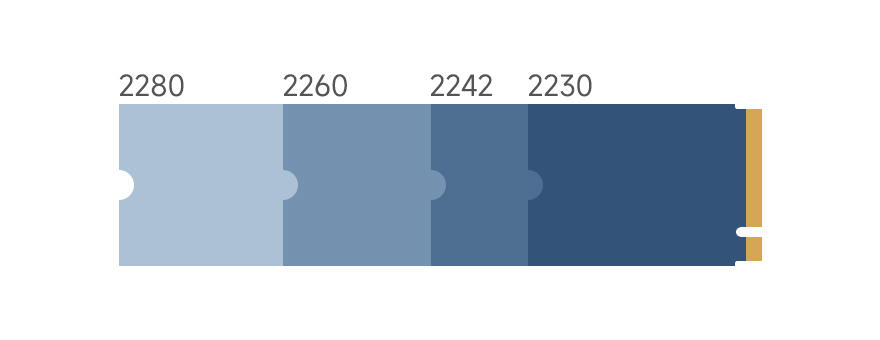

supports 2280 / 2260 / 2242 / 2230 form factors

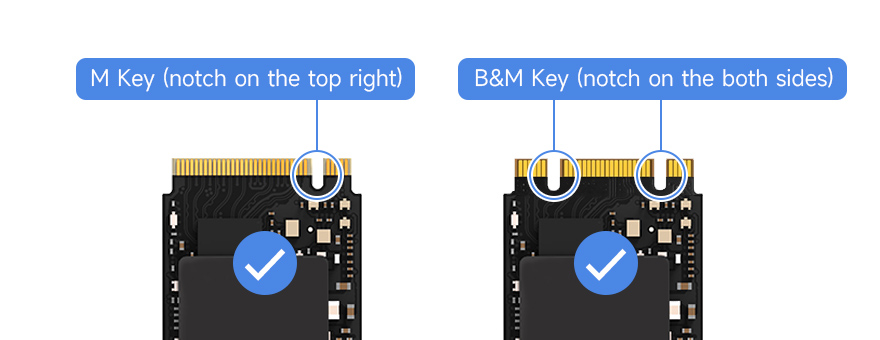

Note: Only supports the NVMe Protocol Solid State Drives.

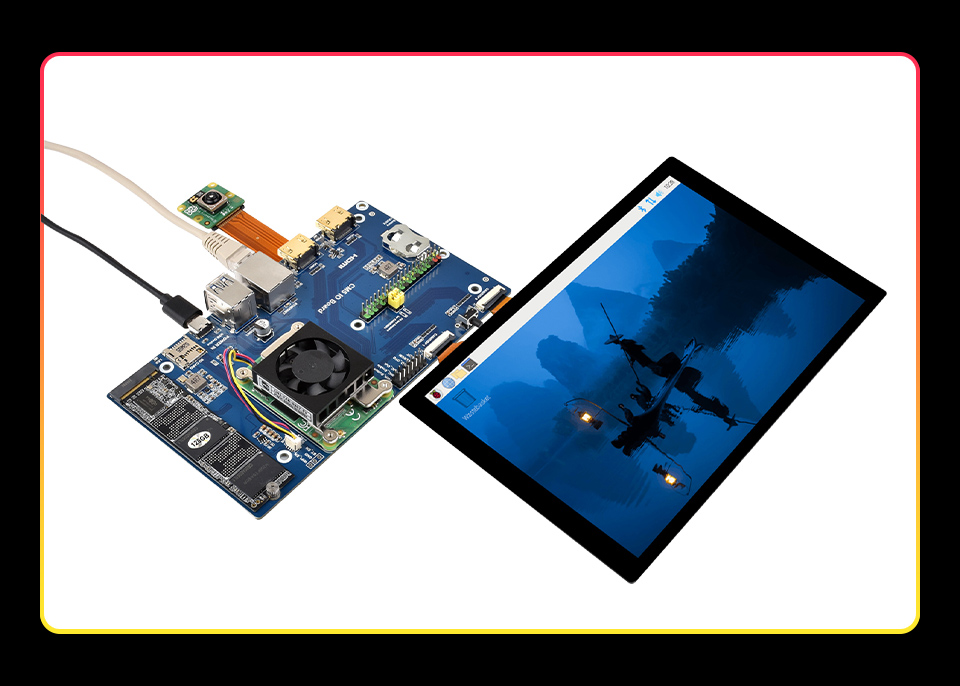

* for reference only, please refer to the Package Content for detailed part list
| Connectivity | |
| Ethernet | PoE RJ45 100M |
| Interfaces & Peripherals | |
| Camera Interface | MIPI |
| Display Interface | MIPI DSI × 2; HDMI × 2 |
| GPIO | Raspberry Pi 40PIN GPIO |
| M.2 | M.2 M |
| Micro SD | Slot |
| USB | USB3.2 Gen1 × 2 |
| Others | |
| Power input | 5V@5A |
