Luckfox Pico Pi
The Luckfox Pico Pi is a cost-effective Linux micro development board, based on the Luckfox Core1106 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C, USB, and an M.2 slot for 4G module, etc., which is ideal for a wide range of embedded applications.

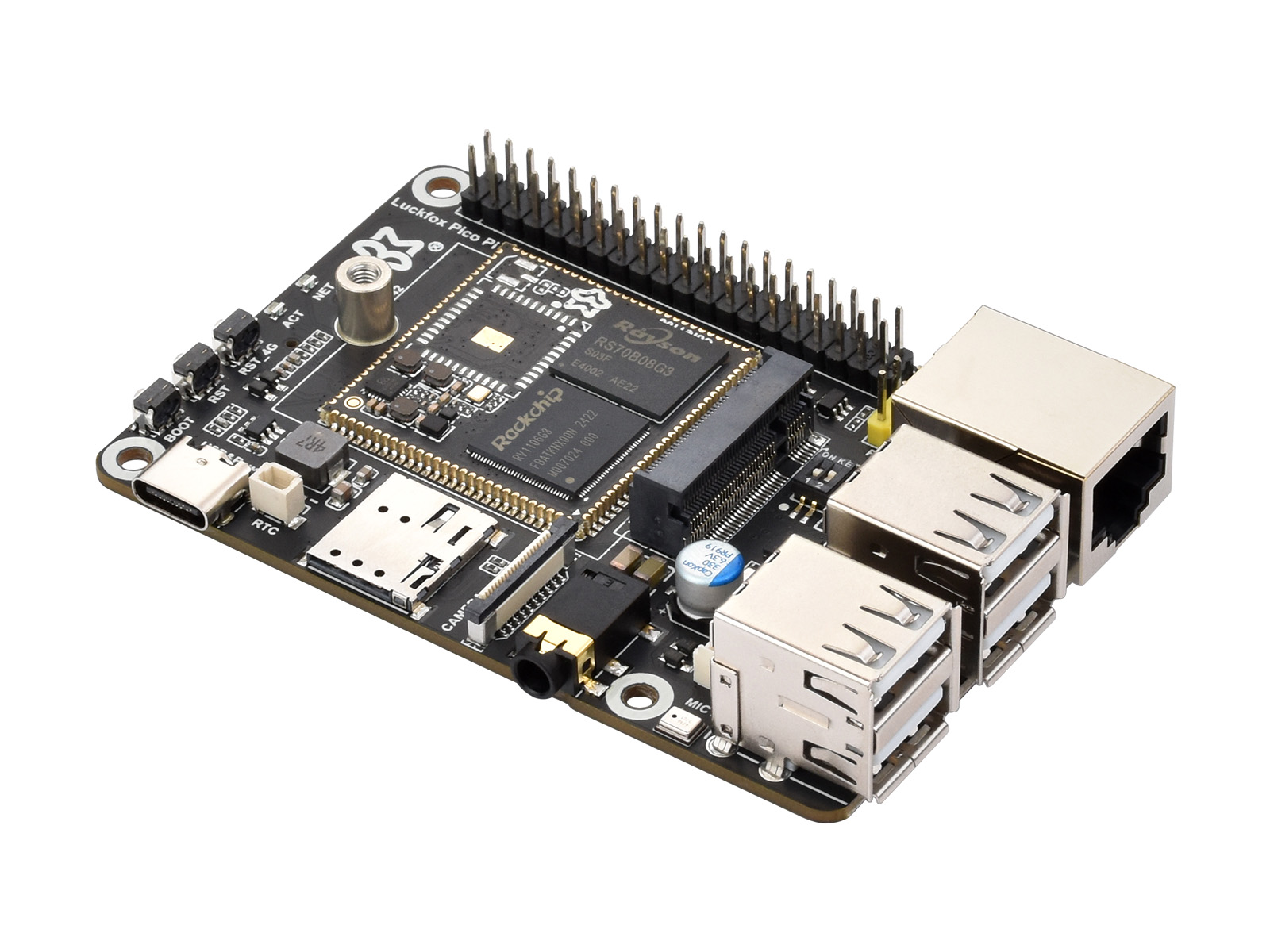

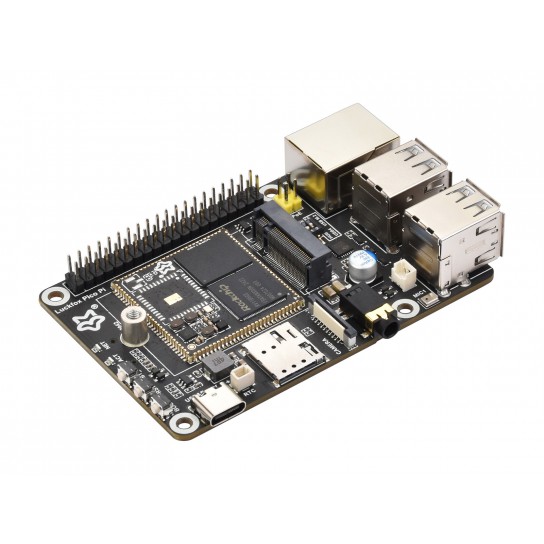

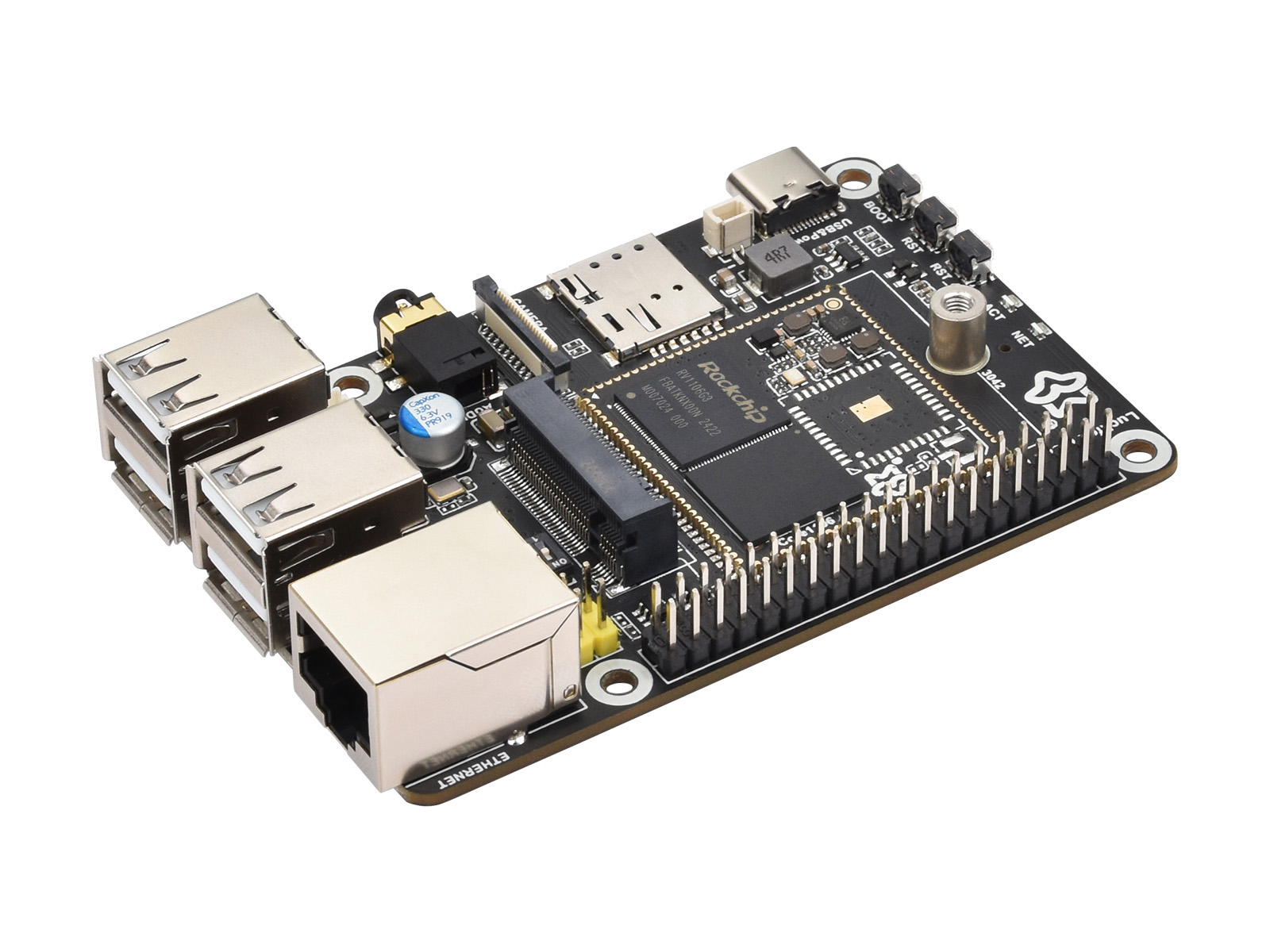

![Luckfox Pico Pi series, front view]()

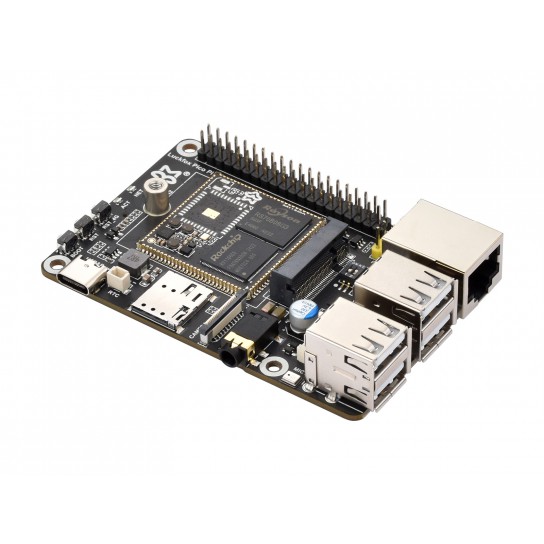

![Luckfox Pico Pi series, features]()
Development Board Versions
![Luckfox Pico Pi series, version options]()
Version Comparison
| Model |
Luckfox Pico Pi A |
Luckfox Pico Pi B |
| Processor |
RV1106G3 |
RV1106G2 |
| NPU |
1TOPS |
0.5TOPS |
| Memory |
256MB DDR3L |
128MB DDR3L |
SIM7600G-H-M.2
The SIM7600G-H-M.2 is a LTE Cat 4 module which supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, and EDGE, etc. It adopts M.2 form factor and can be integrated into the Luckfox Pico Pi series
![SIM7600G-H-M.2 4G module, front and back view]()
Wi-Fi 6 and Bluetooth module
Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission
![Luckfox Pico Pi series, onboard Wi-Fi 6 and Bluetooth module]()
Reserved PoE Module Header
More Flexible for Power Supply
![Luckfox Pico Pi series, onboard reserved PoE module header]()
* the PoE module is NOT included.
Onboard TF card slot
allows storage expansion via TF card
![Luckfox Pico Pi series, onboard TF card slot]()
* Supports storage expansion only, does not support booting system from TF card.
Supports USB HUB Expansion
Flexible switching of USB-C / 4 × USB-A HOST ports via DIP switch
![Luckfox Pico Pi series, onboard USB DIP switch]()
Onboard M.2 slot for 4G Module
The USB-A-4 port can be switched to 4G module M.2 slot via DIP switch, Supports SIM7600G-H-M.2 4G module
![Luckfox Pico Pi series, onboard USB / M.2 slot DIP switch]()
Multiple Audio Interfaces
Onboard microphone + microphone expansion header + 3.5mm audio output jack, meets a variety of audio application scenarios
![Luckfox Pico Pi series, onboard multiple audio interfaces]()
What's On Board

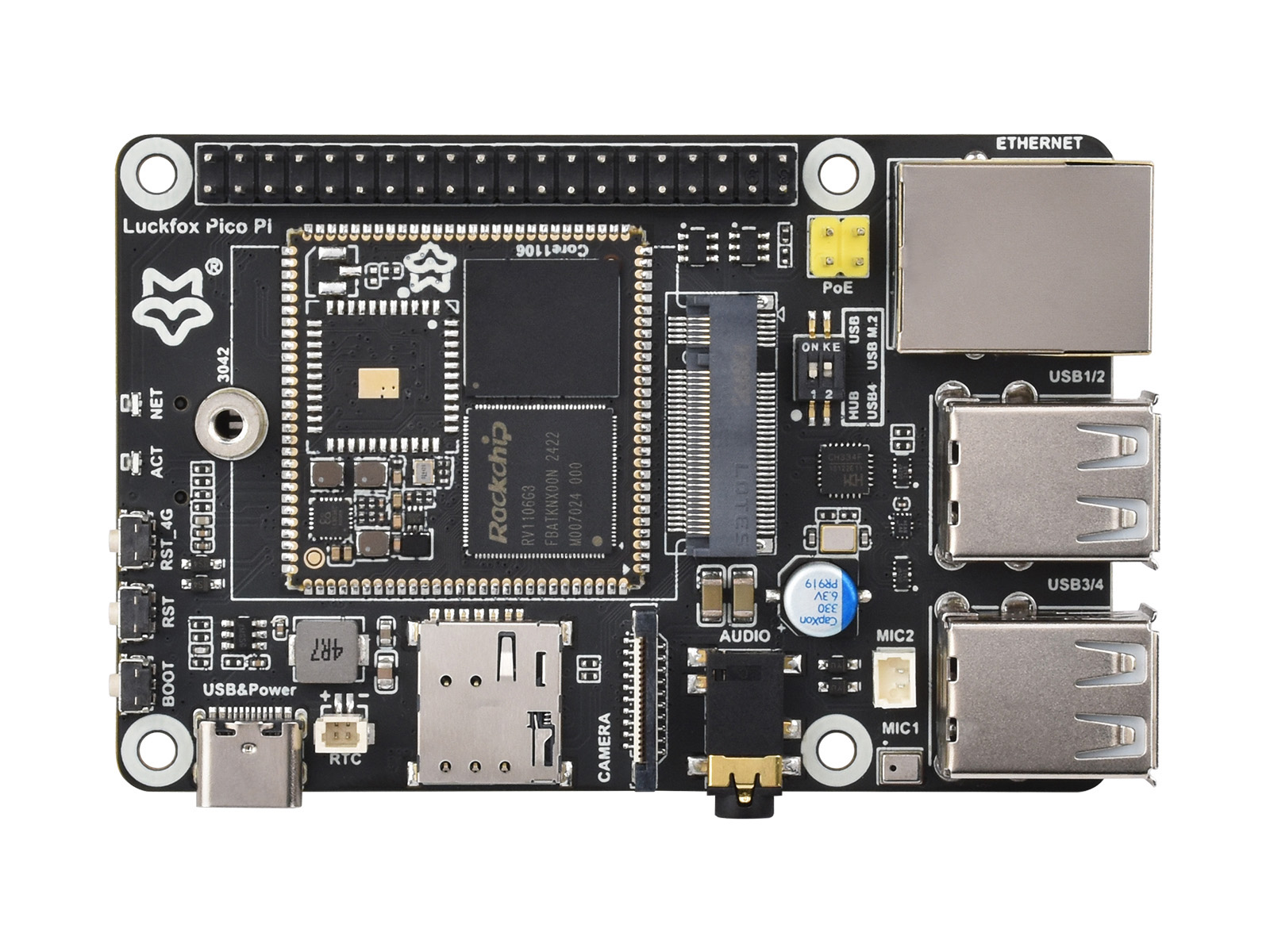

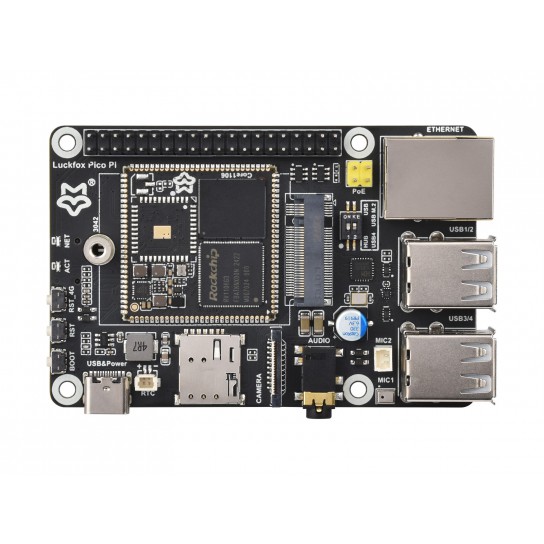

![Luckfox Pico Pi series, onboard components]()
- Core1106
RV1106G3 / RV1106G2 core module, optional for Wi-Fi / Bluetooth wireless module
- 4G NET LED
for indicating the operating status of the 4G module
- USER-LED
for indicating system operating status in the default image, programmable indicator
- 4G-RESET button
for rebooting the 4G module
- RESET button
for rebooting the Core1106 system
- BOOT button
Press it when powering on or resetting to enter download mode
- USB Type-C port
for power supply and program burning
- RTC battery connector
- SIM card slot
- CSI camera interface
MIPI CSI 2-lane
- 3.5mm audio jack
Single channel audio output
- Microphone expansion header
- Onboard microphone
- USB-A Host ports
Expands 4x USB-A ports via USB-HUB chip
- RJ45 100M Ethernet port
- DIP Switches
Switch 1: for switching USB-C port and 4x USB-A ports
Switch 2: for switching USB-A-4 port and 4G module M.2 slot
- 4G module M.2 slot
Supports SIM7600G-H-M.2 4G module
- PoE module header
- 40PIN GPIO header
Compatible with some Raspberry Pi HATs
- TF card slot
Supports storage expansion only
Pin definition

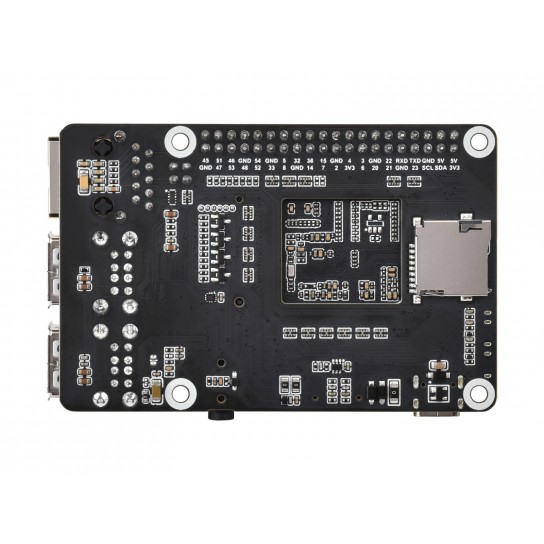

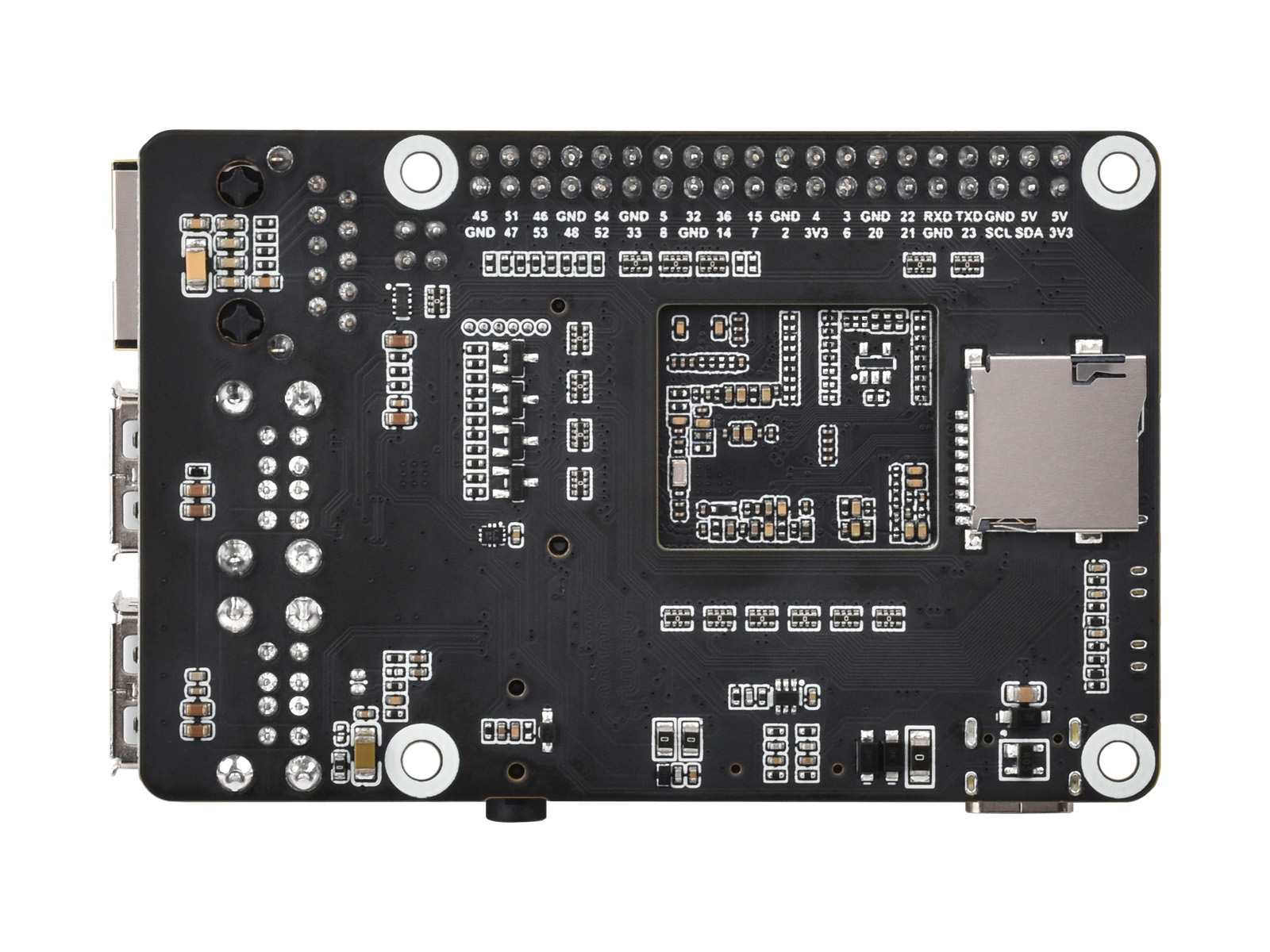

![Luckfox Pico Pi series, pin definition 1]()
![Luckfox Pico Pi series, pin definition 2]()
outline dimensions
![Luckfox Pico Pi series, outline dimensions]()
| Connectivity |
| Bluetooth |
Bluetooth 5.2/BLE (option) |
| Ethernet |
RJ45 100M (PoE opiton) |
| Wi-Fi |
Wi-Fi6 |
| Interfaces & Peripherals |
| Audio Ouput |
3.5mm audio jack |
| Camera Interface |
MIPI CSI 2-lane |
| GPIO |
40PIN |
| M.2 |
4G module M.2 slot |
| Micro SD |
Slot |
| Microphone |
Onboard microphone |
| SIM |
Slot |
| USB |
USB-A Host x 4; USB Type-C × 1 |
Luckfox Pico Pi A / Luckfox Pico Pi B
- Luckfox Pico Pi A / Luckfox Pico Pi B x1
- 4G Module mounting screw x1
![Luckfox Lyra Ultra PoE Kit]()
Luckfox Pico Pi A W / Luckfox Pico Pi B W
- Luckfox Pico Pi A W / Luckfox Pico Pi B W x1
- IPX 2.4G 2DB antenna x1
- 4G Module mounting screw x1
![Luckfox Lyra Ultra PoE Kit]()
Luckfox Pico Pi A 4G Kit / Luckfox Pico Pi B 4G Kit
- Luckfox Pico Pi A / Luckfox Pico Pi B x1
- SIM7600G-H-M.2 x1
- 4G antenna x1
- IPEX4 to SMA cable x1
- Screwdriver x1
- 4G Module mounting screw x1
![Luckfox Lyra Ultra PoE Kit]()
Luckfox Pico Pi A W 4G Kit / Luckfox Pico Pi B W 4G Kit
- Luckfox Pico Pi A W / Luckfox Pico Pi B W x1
- SIM7600G-H-M.2 x1
- IPX 2.4G 2DB antenna x1
- 4G antenna x1
- IPEX4 to SMA cable x1
- Screwdriver x1
- 4G Module mounting screw x1
![Luckfox Lyra Ultra PoE Kit]()
