$35.99
  • Stock: In Stock
  • Model: Luckfox-Pico-86-Panel
  • Weight: 0.19kg
  • Battery: Not included

Available Options

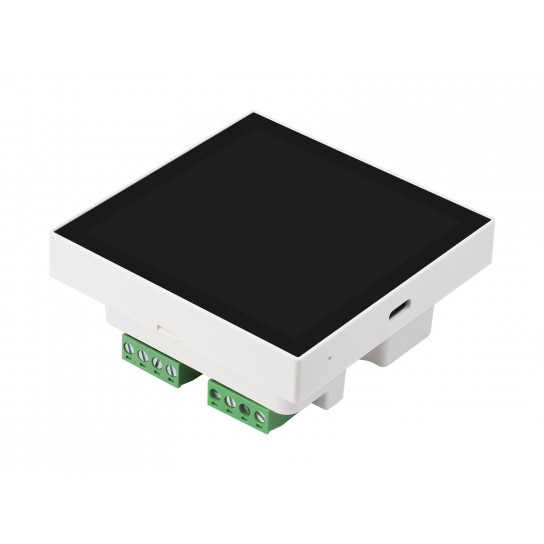

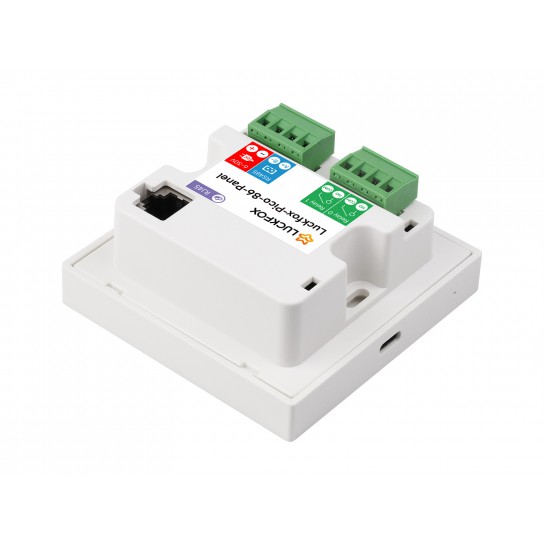

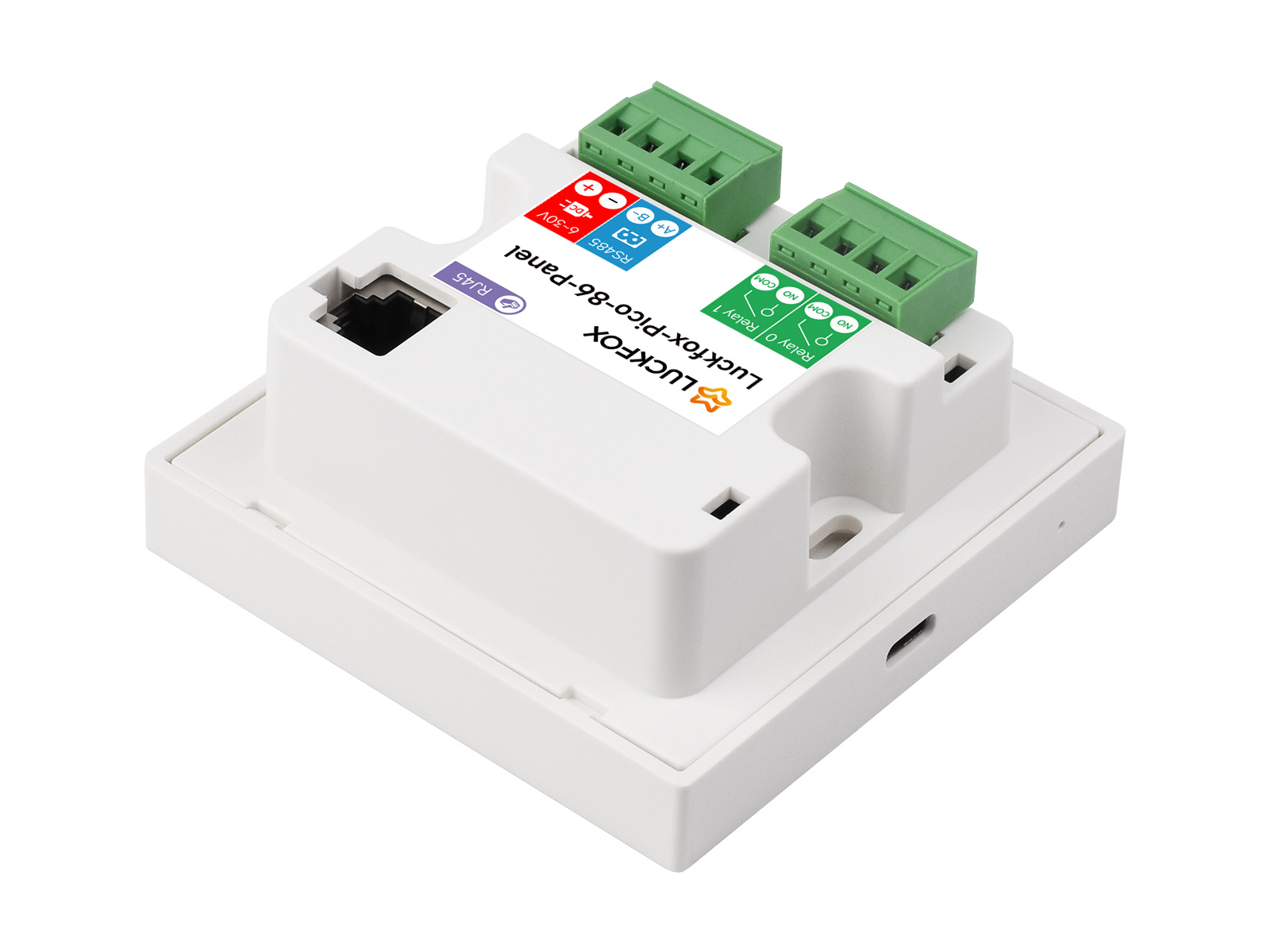

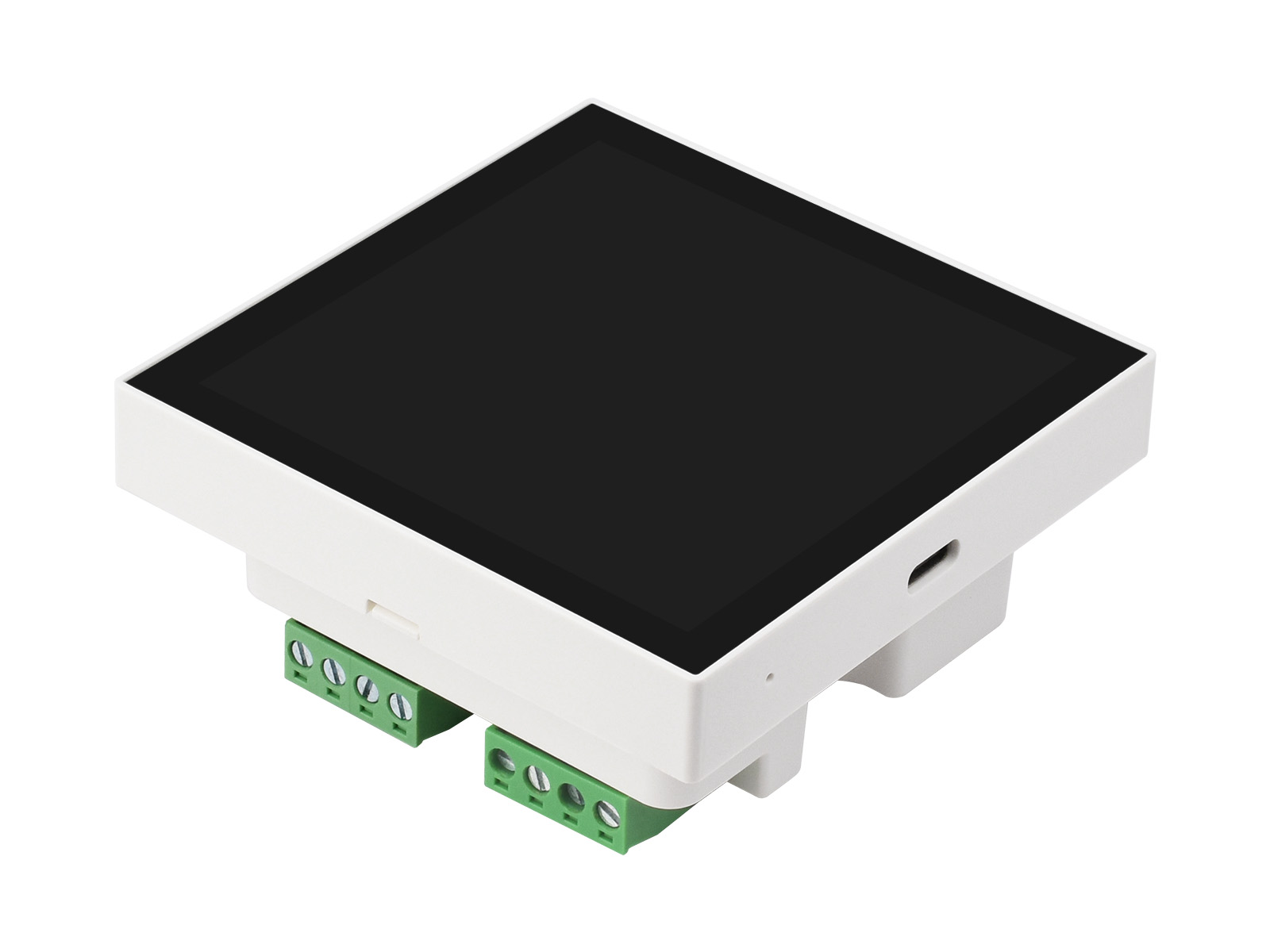

Luckfox Core1106 Smart 86 Box

Based on Luckfox Core1106 series module, supports secondary development

Enable Smart Living & Industrial IoT For Scenario-Based Control

Luckfox Pico 86 Panel series, front view Background blue, screen displays current temperature, humidity, time, date, wifi, Bluetooth Luckfox Pico 86 Panel series, features ARM Cortex-A7 processor, 128MB/256MB DDR3L RAM, 720x720 resolution display, 5-point touch capability, RS485 communication, and dual-channel relay control
Development Board Versions
Luckfox Pico 86 Panel series, version options 0208/0408/1208/1408: optional WiFi and Bluetooth Modules
Model0208120804081408
ProcessorRV1106G2RV1106G3
NPU0.5TOPS1TOPS
Memory128MB DDR3L256MB DDR3L
Wireless module-Wi-Fi 6 & Bluetooth 5.2/BLE-Wi-Fi 6 & Bluetooth 5.2/BLE


4inch IPS Touch Display Introduction



170° wide viewing angle

Excellent display performance, high contrast ratio, Wide viewing angles

Luckfox Pico 86 Panel series, 170° ultra-wide viewing angle
Capacitive 5-point Touch Screen

Supports flexible and responsive touch operation to make development more convenient

Luckfox Pico 86 Panel series, 5-point capacitive touch

* for reference only, the base case in the picture is NOT included

LCD Specifications
Model720×720 4inch IPS Touch Display
Resolution720×720
Communication InterfaceRGB666
Display SIZE4"
Display PanelIPS
Touch TypeCapacitive
Touch ChipGT911
Brightness400cd/m²
Contrast ratio1000:1
Viewing Angle170°
Outline Dimension84.0×84.0mm (H×V)
Display area71.93×71.93mm (H×V)
Pixel pitch0.0999×0.0999mm (H×V)
DISPLAY COLOUR GAMUT68% NTSC

Development Board Introduction


Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

Luckfox Pico 86 Panel series, integrates RV1106
  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
WiFi 6 and Bluetooth module

Optional for 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, providing Stable Connection And Efficient Transmission

Luckfox Pico 86 Panel series, optional  WiFi 6 and Bluetooth module

* WiFi 6 / Bluetooth module is only available in Luckfox-Pico-86-Panel-1208 / 1408

Audio input / playback

Onboard microphone and speaker to meet the needs of daily audio applications

Luckfox Pico 86 Panel series, onboard microphone and speaker
Onboard RS485 interface

Supports Automatic data transmission and reception, built-in power isolation, digital isolation, TVS and other protections

Luckfox Pico 86 Panel series, onboard power isolation, digital isolator chip, RS485 interface
2-Channel Relay

Onboard Optocoupler isolation, prevents the relay from being interfered by high-voltage circuit

Luckfox Pico 86 Panel series, onboard  relay indicator light, optocoupler isolation, relay
100M RJ45 Ethernet Port

Supports 10/100M wired network communication

Luckfox Pico 86 Panel series, onboard 100M RJ45 Ethernet Port

* When connecting the network cable, the depth of the 86-type back box should be considered. A short-body RJ45 connector cable is recommended.

Installation diagram

Designed with standard 86 dimensions and a modular structure for easy installation

Luckfox Pico 86 Panel series, installation diagram of 86-Type back box, relay & comm module, and display module

* the 86-type back box and screws are NOT included
It is recommended to use an 86-type back box with a depth of 33mm or more
If you need to use RJ45 interface, the back box depth of ≥35mm is required
If you need to use a 33~35mm back box, a short-body RJ45 connector cable is recommended

Application Scenarios
Luckfox Pico 86 Panel series, application scenarios of smart switch, human-machine interface, smart home terminal
What's On Board
Luckfox Pico 86 Panel series, onboard components
  1. Core1106
    RV1106G3 / RV1106G2 core module
    optional for Wi-Fi / Bluetooth wireless module
  2. ACT_LED
    for indicating system operation status in the default image
  3. USB Type-C connector
    for power supply and program burning
  4. BOOT button
    Press it when powering on or resetting to enter download mode
  1. RESET button
    for rebooting the system
  2. Onboard microphone
  3. RGB LCD interface
  4. RTC button cell holder
  5. Audio interface
    MX1.25 2P connector, supports 8Ω 1W speaker
  6. Serial port Debug interface
    SH1.0 3P connector
  7. 14pin multi-function pin
    for connecting 86 Panel Bottom Board

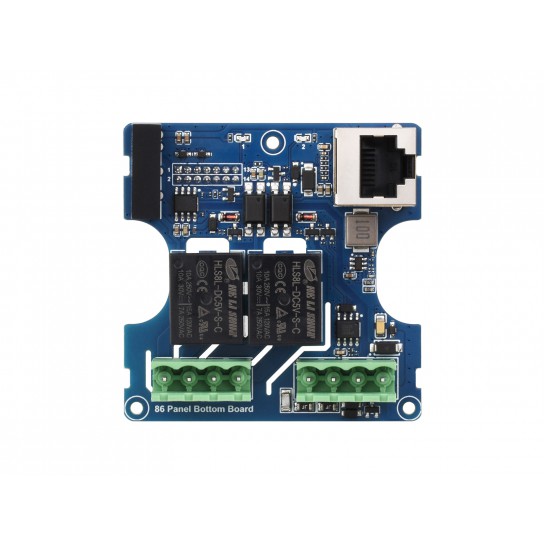

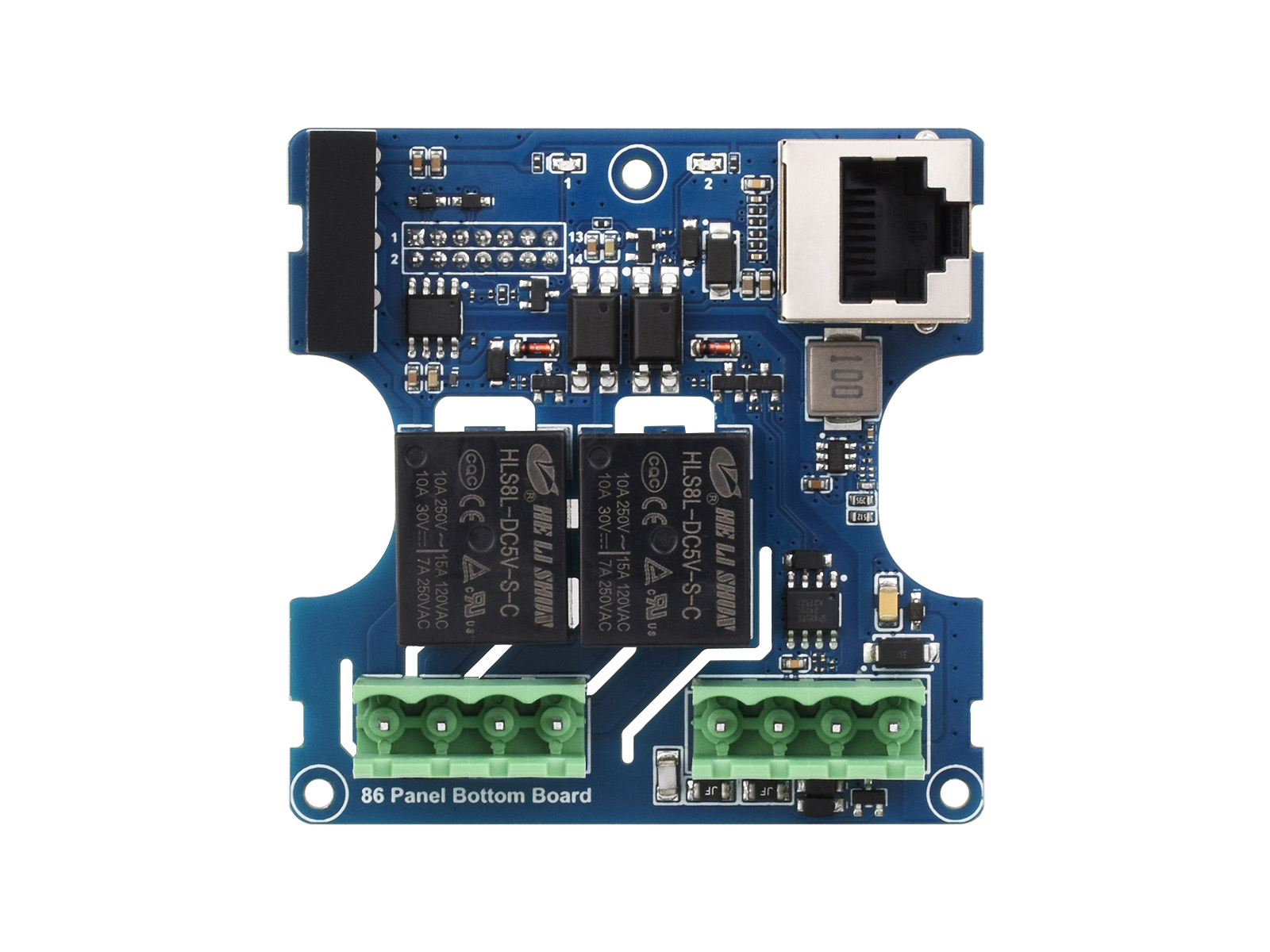

Luckfox Pico 86 Panel series, onboard components
  1. RJ45 100M Ethernet port
  2. Relay indicators
  3. Power isolation module
  4. Digital isolator
  5. Optocoupler isolation
  1. Relay
  2. Relay screw terminal
  3. RS485 screw terminal
  4. Power screw terminal
    wide voltage range input: DC 6V to 30V
outline dimensions
Luckfox Pico 86 Panel series, outline dimensions

Package Contains

  1. Luckfox-Pico-86-Panel x1
1Luckfox CM5 IO Board
Connectivity
BluetoothBluetooth 5.2/BLE
Wi-FiWi-Fi 6
Memory and Storage
Memory128MB / 256MB
SOC Features
ProcessorRV1106G2 / RV1106G3
Display
Size4 inch
Resolution720 × 720
Display PanelIPS
Viewing Angle170°
Brightness400cd/m²
Communication InterfaceRGB666
Contrast Ratio1000:1
Display Colour Gamut68% NTSC
Pixel Pitch (H×V)0.0999×0.0999 (mm)
Touch
Touch ChipGT911
Touch TypeCapacitive
Others
Storage Temp.0.5TOPS / 1TOPS
