Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, 8GB eMMC, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

Brand:LUCKFOX
Battery:Not included

WIKI Page

$36.99
Price Range $36.99 - $45.99

RAM

128MB

256MB

Wireless

without

with

Add to Wish List

Compare this Product

Description
Specification
Package Content

Prohibited by the manufacturer Rockchip, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Russia, Belarus, Cuba, Iran, North Korea, Syria, Crimea, Donetsk and Luhansk regions of Ukraine. (Countries or regions are subject to change based on updates or revisions to export control regulations)

Core1106

Based on the Rockchip RV1106 chip

The Core1106 is a core board based on the Rockchip RV1106 series chips, featuring high performance and high expandability, provides a convenient platform for developers to design their own hardware, enabling quick design verification or direct integration into products, thereby shortening the R&D cycle.
Adapting various interfaces via castellated holes, such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet port, and SDIO, etc. which is suitable for a variety of application scenarios. Optional for wireless module, with two core options of RV1106G2 and RV1106G3 to meet different needs.

Version options

Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

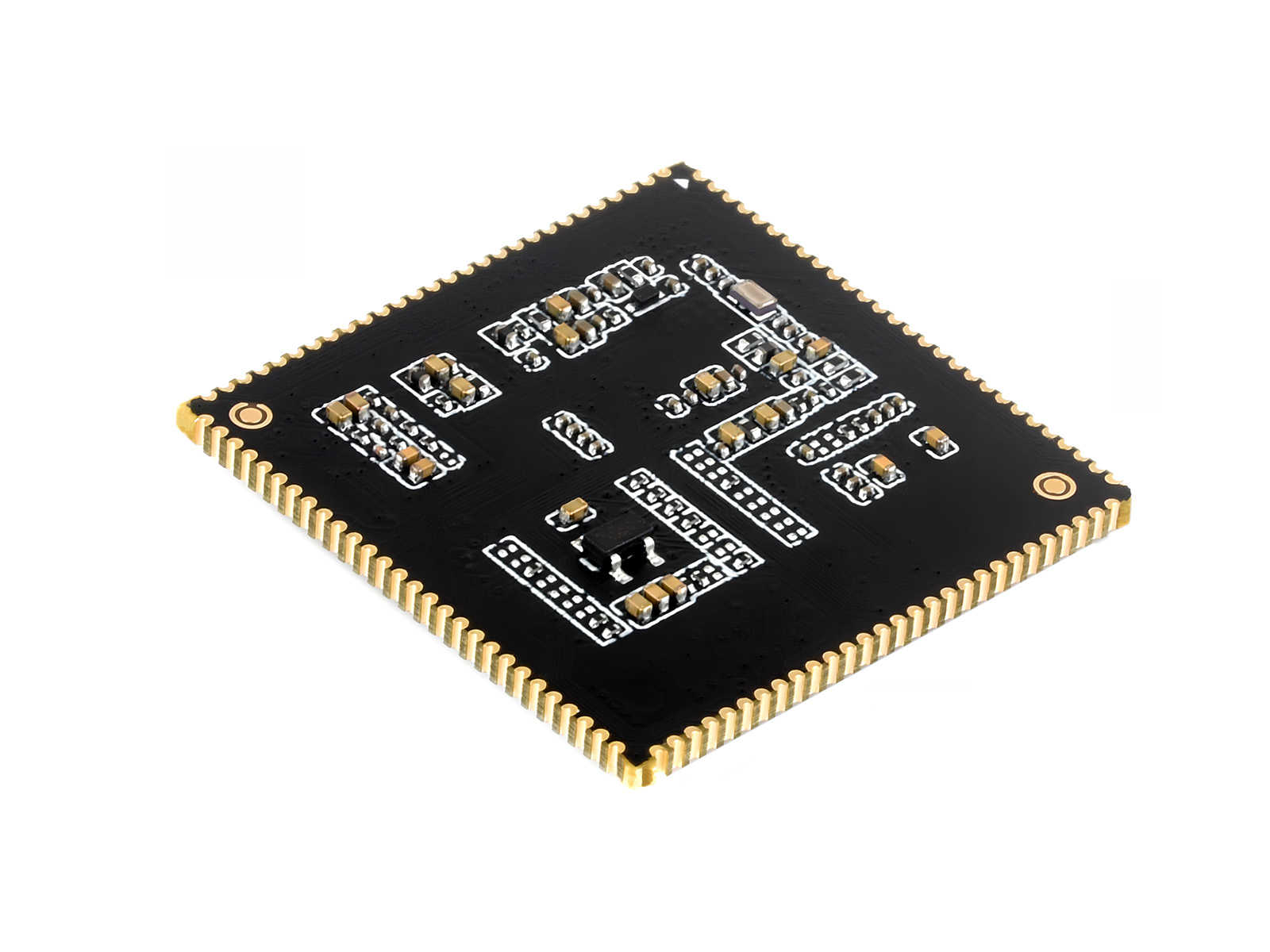

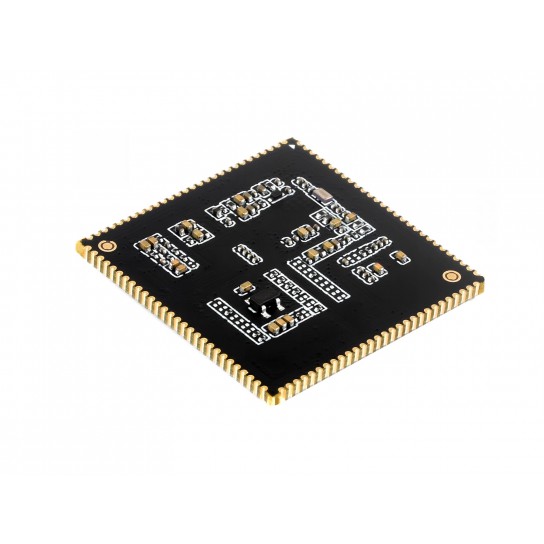

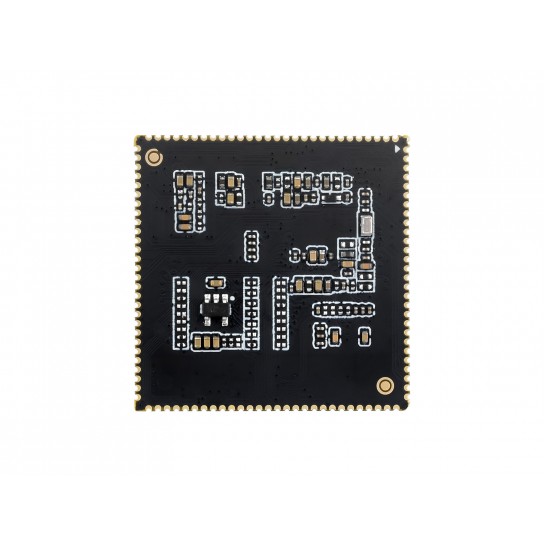

Luckfox Core1106 Core Board, adopts RV1106 chip

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, which can save more than 50% bit rate of the conventional CBR mode, enabling high-definition video quality while efficiently utilizing storage space
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

WiFi 6 / Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission

Luckfox Core1106 Core Board, onboard WiFi 6 and Bluetooth module

* the WiFi 6 / Bluetooth module is optional.

Application Scenarios

Product Show

Development Resources

Complete software and hardware resources and an active community help secondary development

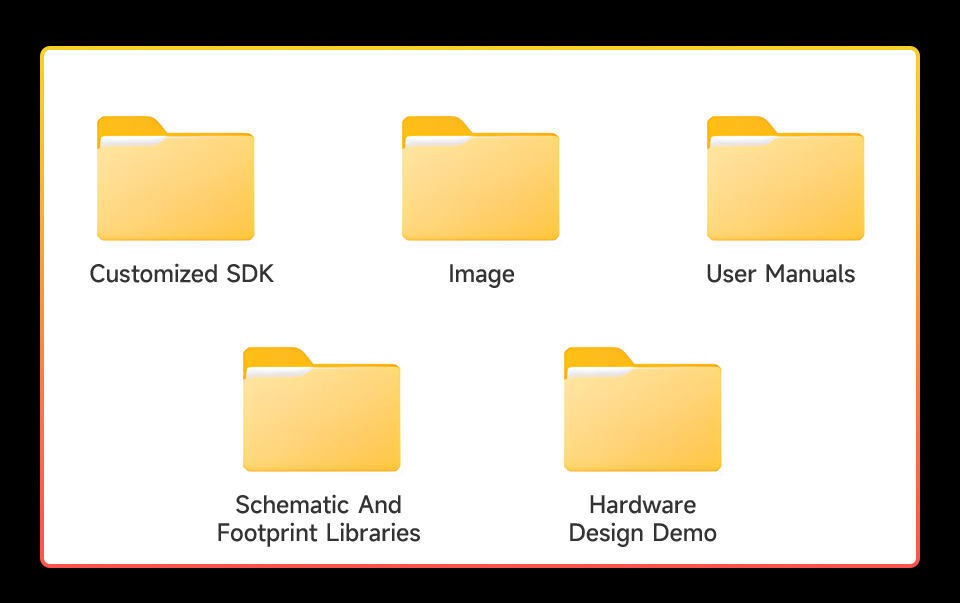

Luckfox Core1106 Core Board, provides complete software and hardware documentation

What's On Board

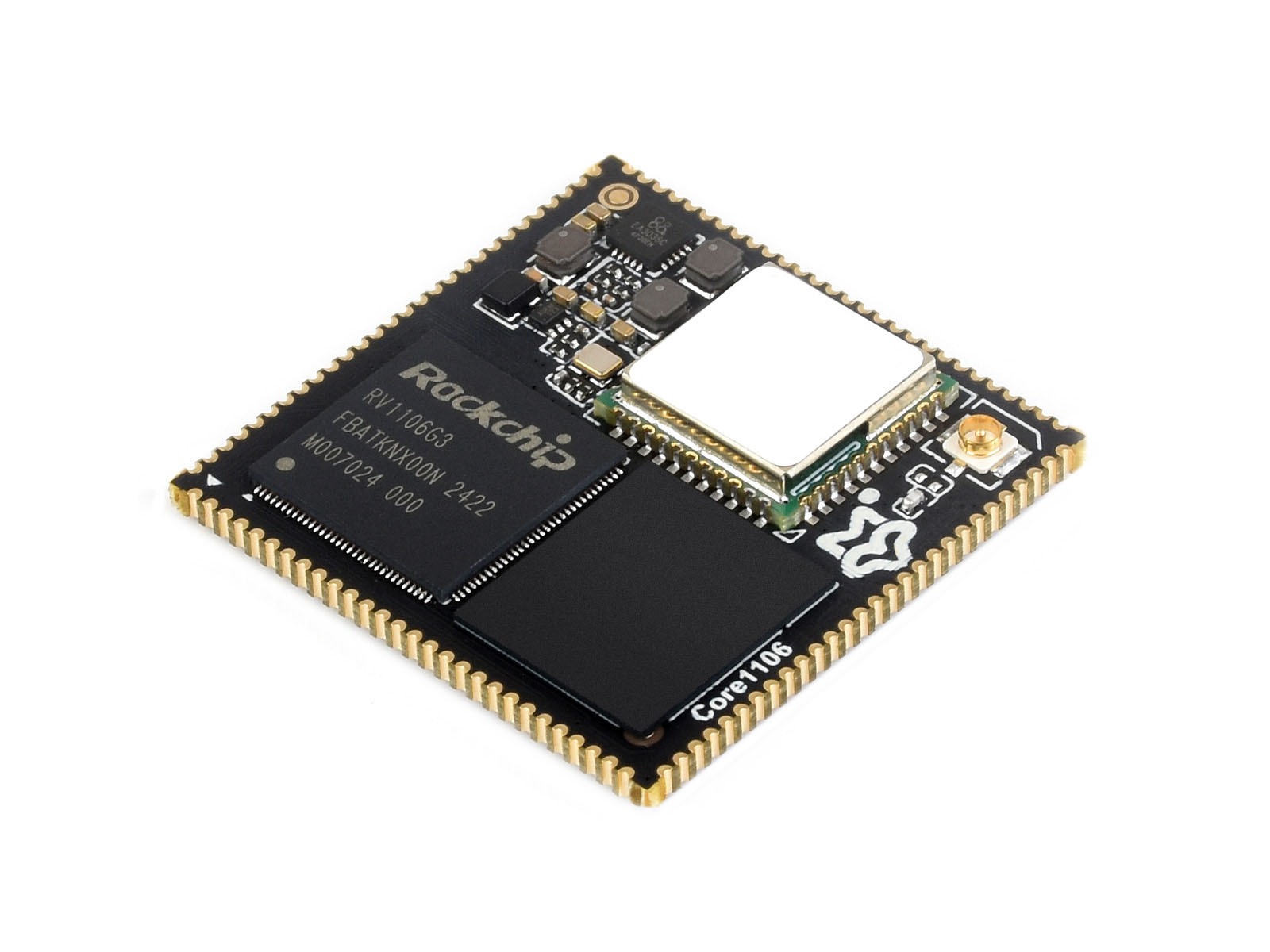

Luckfox Core1106 Core Board, onboard components

RV1106G3 / RV1106G2
Vision processor SoC with built-in ARM Cortex-A7 core
PMIC
3-ch power management chip
8GB eMMC

WIFI/Bluetooth module
2.4G WiFi 6; BT5.2/BLE Bluetooth module (for wireless version only)
Antenna connector
IPEX 1.0 connector (for wireless version only)

Parameter comparison

Model	Core11060208	Core11061208	Core11060408	Core11061408
CPU	RV1106G2		RV1106G3
Processor	Cortex A7 @1.2GHz
NPU	0.5TOPS, supports int4, int8, int16		1TOPS, supports int4, int8, int16
ISP	Supports input 5M@30fps
Video encoding	Hardware encoding, supports MJPEG, H264, H265
Memory	128MB DDR3L		256MB DDR3L
Display interface	Parallel RGB 18-bit × 1
Camera interface	MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1
Microphone	Analog differential MIC interface × 2
Audio output	LINEOUT × 1
USB	USB 2.0 Host/Device
WIFI/Bluetooth	/	2.4 GHz WIFI 6 and Bluetooth 5.2/BLE	/	2.4 GHz WIFI 6 and Bluetooth 5.2/BLE
Ethernet port	10/100M Ethernet controller and embedded PHY
Default storage	eMMC5.1 (8GB)
Other resources	I2S × 3, I2C × 5, SPI × 2, SDIO × 2, ADC × 2, UART × 6, PWM × 12
Dimensions	30 × 30 (mm)
Castellated holes	112 Pin

* Some pin resources are multiplexed, please refer to wiki for detailed pin definitions.

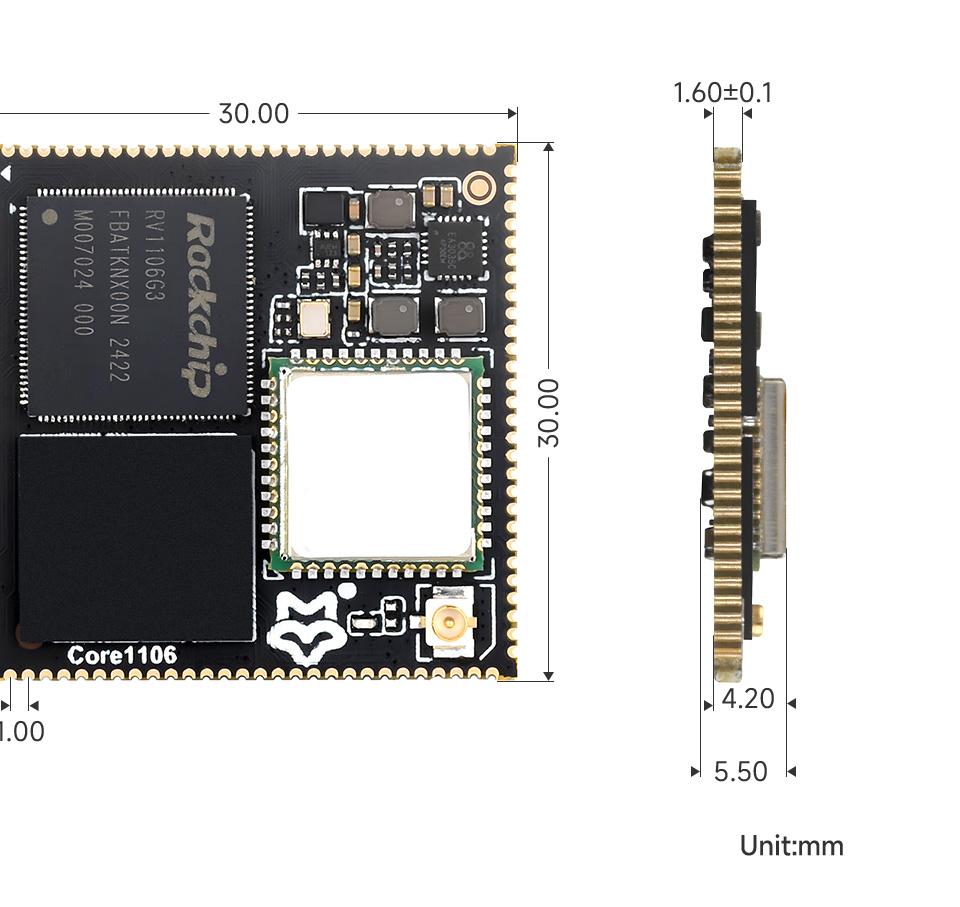

outline dimensions

Connectivity
Bluetooth	Bluetooth 5.2/BLE (optional)
Ethernet	10/100M
Wi-Fi	2.4 GHz WIFI 6 (optional)
Memory and Storage
eMMC	8GB
Memory	128MB/256MB
SOC Features
ISP	5MP@30fps
NPU	0.5TOPS/1TOPS
Processor	Cortex A7 @1.2GHz
Video Encoding	Hardware encoding, supports MJPEG, H264, H265
Interfaces & Peripherals
Audio Ouput	LINEOUT × 1
Camera Interface	MIPI CSI 2-lane × 2, MIPI CSI 4-lane × 1
Display Interface	Parallel RGB 18-bit × 1
GPIO	112 Pin
USB	USB 2.0 Host/Device
Others
Operating Temp.	-10°C ~ 80°C
Power input	5V DC
