Luckfox Nova Micro Development Board, Based On Rockchip RK3308B, 8GB eMMC, Integrated High-Performance Audio Codec, Optional for Wireless / PoE Module

Brand:LUCKFOX
Battery:Not included

WIKI Page

$28.99
Price Range $28.99 - $38.99

Wireless

without

with

PoE Module

NOT Included

Included

Add to Wish List

Compare this Product

Description
Specification
Package Content

Luckfox Nova

The Luckfox Nova is an embedded development board based on the Rockchip RK3308B chip. The Rockchip RK3308B is a high-performance processor designed for smart voice interaction, audio input/output processing, and digital multimedia applications. Its core architecture adopts 64-bit quad-core ARM Cortex-A35, with a maximum clock speed of 1.3GHz, providing powerful computing capability to handle complex embedded tasks with ease.

Development Board Versions

Board Introduction

ARM quad-core 64-bit Cortex-A35 at 1.3GHz, with integrated high-performance Audio Codec and Voice Activity Detection (VAD) modules
Built-in Audio Codec with up to 8-channel microphone inputs for easy development of multi-microphone array applications
Adapting 2 × 26PIN GPIO headers, supports UART, SPI, I2C and other peripheral controls
Onboard 8GB eMMC + TF card expansion (supports SDIO 3.0 protocol), to meet the needs of large-capacity data storage
Onboard 512MB DDR3 memory for smooth multi-tasking operation

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Reserved PoE Module Header

More Flexible for Power Supply

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for Luckfox Nova board In Only One Ethernet Cable

Luckfox Nova series, optional for PoE Module

Luckfox Nova series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

Onboard TF card slot

allows storage expansion via TF card

Audio Input and output interfaces

Onboard microphone + speaker header

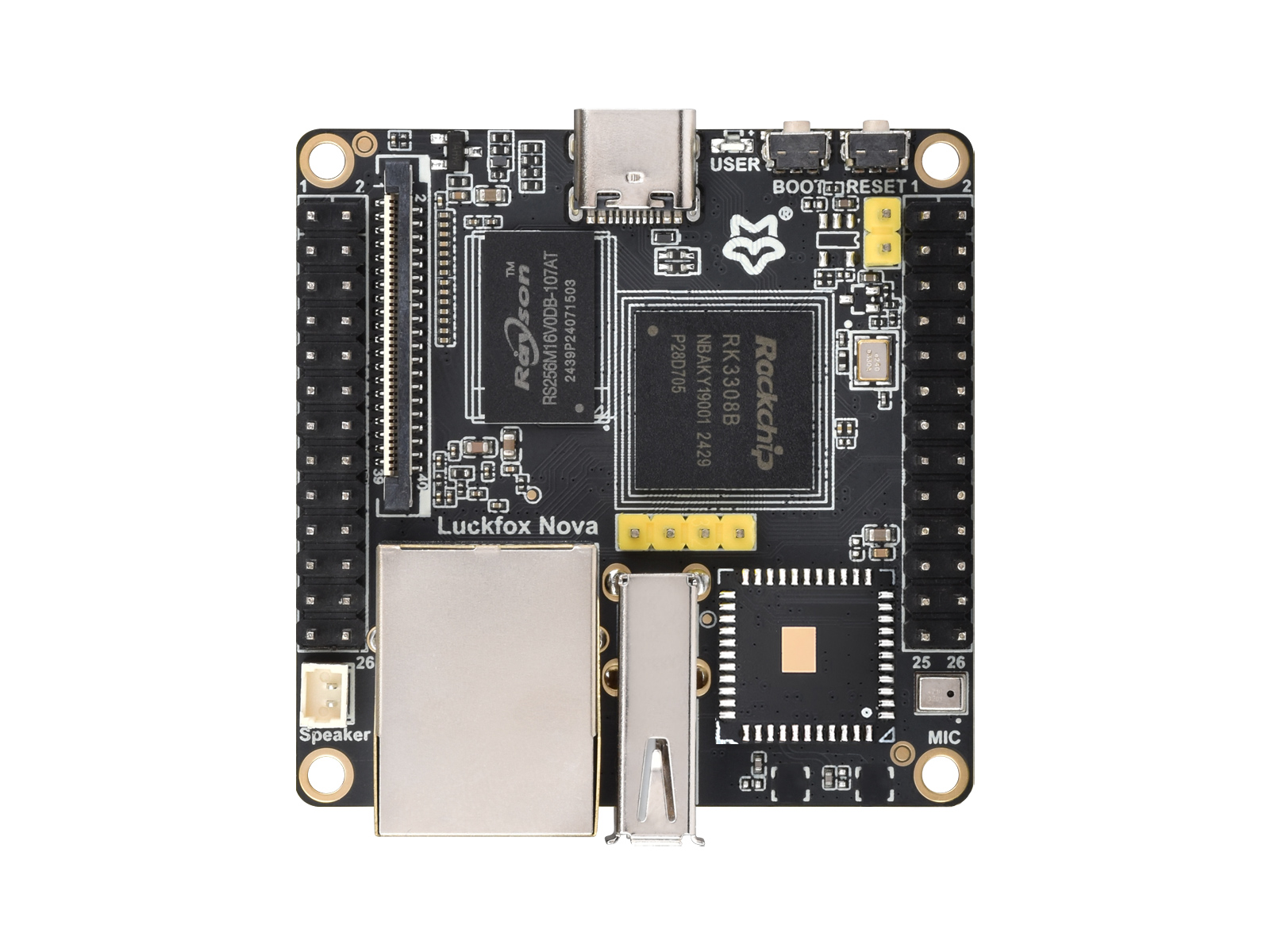

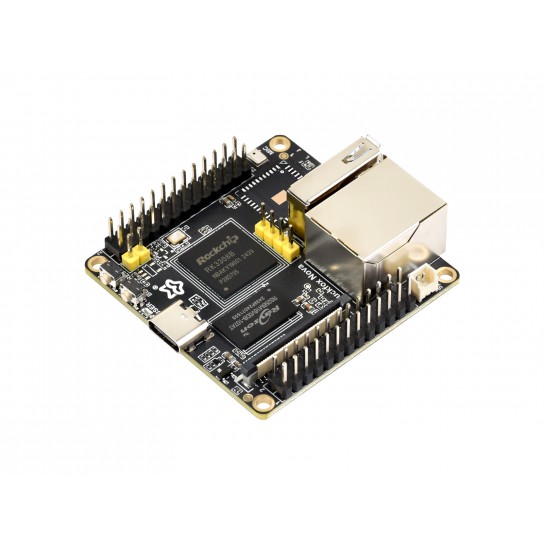

What's On Board

USB Type-C port
for power supply and program burning
USER-LED
for indicating system operating status in the default image, programmable indicator
BOOT button
Press it when powering on or resetting to enter download mode
RESET button
GPIO headers
Onboard microphone
Antenna connector
(for wireless version only)
WIFI/Bluetooth module
2.4G WiFi 6 / BT5.2 / BLE Bluetooth module (for wireless version only)
Type-A port

RJ45 100M Ethernet port
Speaker header
MX1.25 2P connector, supports 8Ω 2W speaker
Analog / Digital audio interface
512MB DDR3
RK3308B
PoE module / external power supply header
for connecting external 5V power supply or PoE module power supply
PoE module header
TF card slot
8GB eMMC

Pin definition

outline dimensions

Connectivity
Bluetooth	Bluetooth 5.2/BLE
Ethernet	RJ45 100M (PoE Options)
Wi-Fi	Wi-Fi 6
Memory and Storage
eMMC	8GB
Memory	512MB DDR3
SOC Features
Processor	[email protected]
Interfaces & Peripherals
Audio Ouput	MX1.25 2P Connector
Camera Interface	MIPI CSI 2-lane
GPIO	2 × 26PIN
Micro SD	Slot
Microphone	Onboard microphone
USB	USB Type-A; USB Type-C
