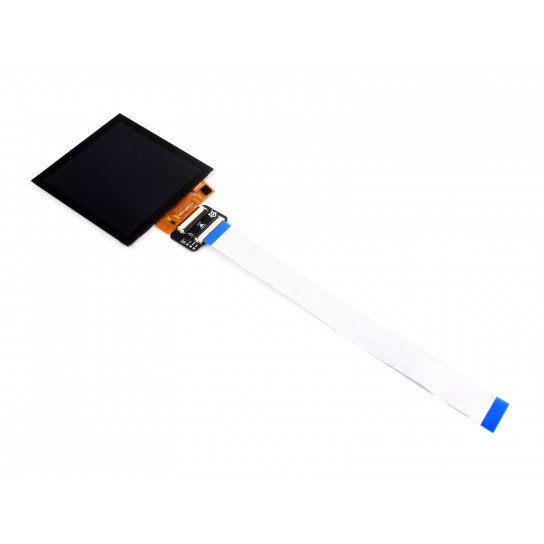

4inch IPS Capacitive Touch Display, 720×720 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board

4inch IPS Capacitive Touch Display, 720×720 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board

$29.99

Stock: In Stock
Model: LF40-720720-ARK
Weight: 0.08kg
SKU: 27739
Battery: Not included
WIKI Page

Date First Available: 2024-07-03

Product Specifications

Size	4"	Resolution	720×720
Display Panel	IPS	Viewing Angle	170°
Touch Type	Capacitive	Touch Chip	GT911
Brightness	400cd/m²	Contrast ratio	1000:1
Outline Dimension	84.0×84.0mm (H×V)	Display area	71.93×71.93mm (H×V)
Pixel pitch	0.0999×0.0999mm (H×V)	Operation temperature	-20~70°C
Communication Interface	RGB666	Display colour gamut	68% NTSC

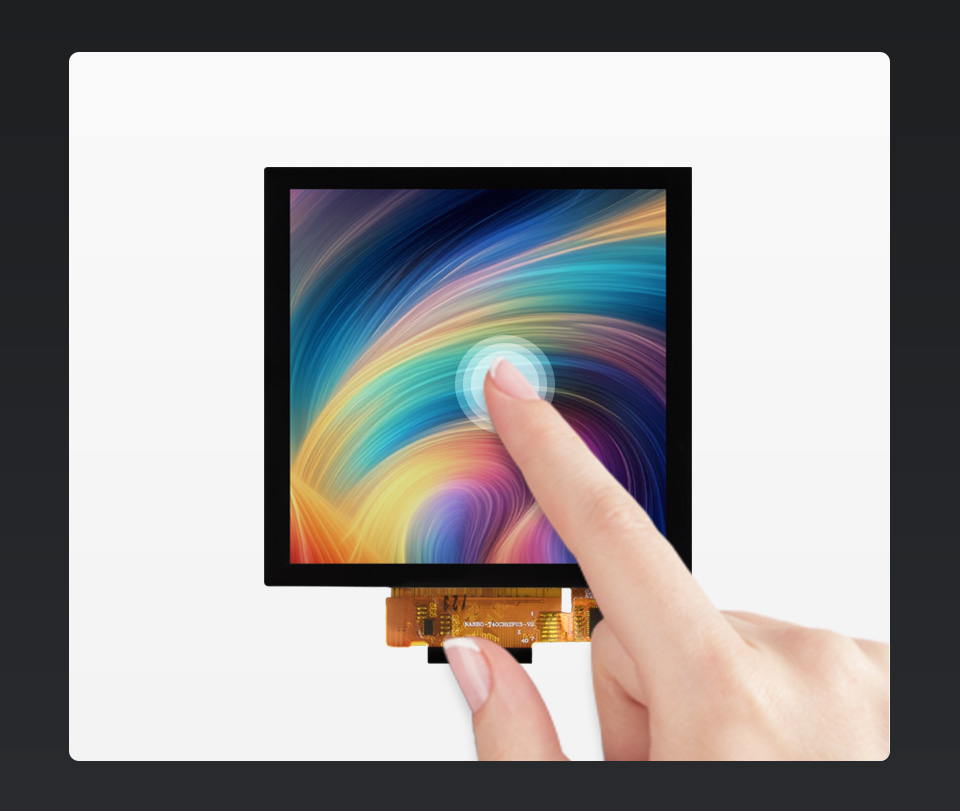

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

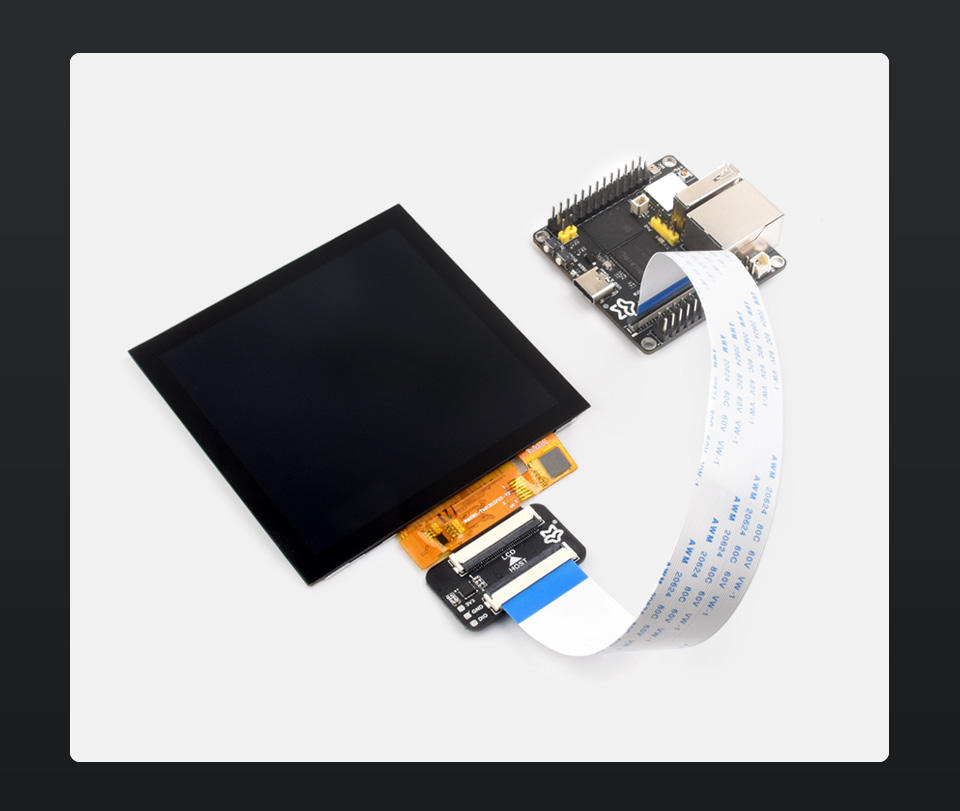

Usage example

* for reference only, the Luckfox Pico Ultra W is NOT included

Outline dimensions

Selection Guide

PRODUCT	SIZE	RESOLUTION	DISPLAY PANEL	DISPLAY COLOR GAMUT	BRIGHTNESS	CONTRAST RATIO	OUTLINE DIMENSION (mm)	DISPLAY AREA (mm)	COMMUNICATION INTERFACE
LF40-480480-ARK	4"	480×480	IPS	-	400cd/m²	380:1	84.2×84.2	71.86×70.18	RGB666
LF40-720720-ARK	4"	720×720	IPS	68% NTSC	400cd/m²	1000:1	84.0×84.0	71.93×71.93	RGB666

Resources & Services

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-Ultra-RGB-Screen/

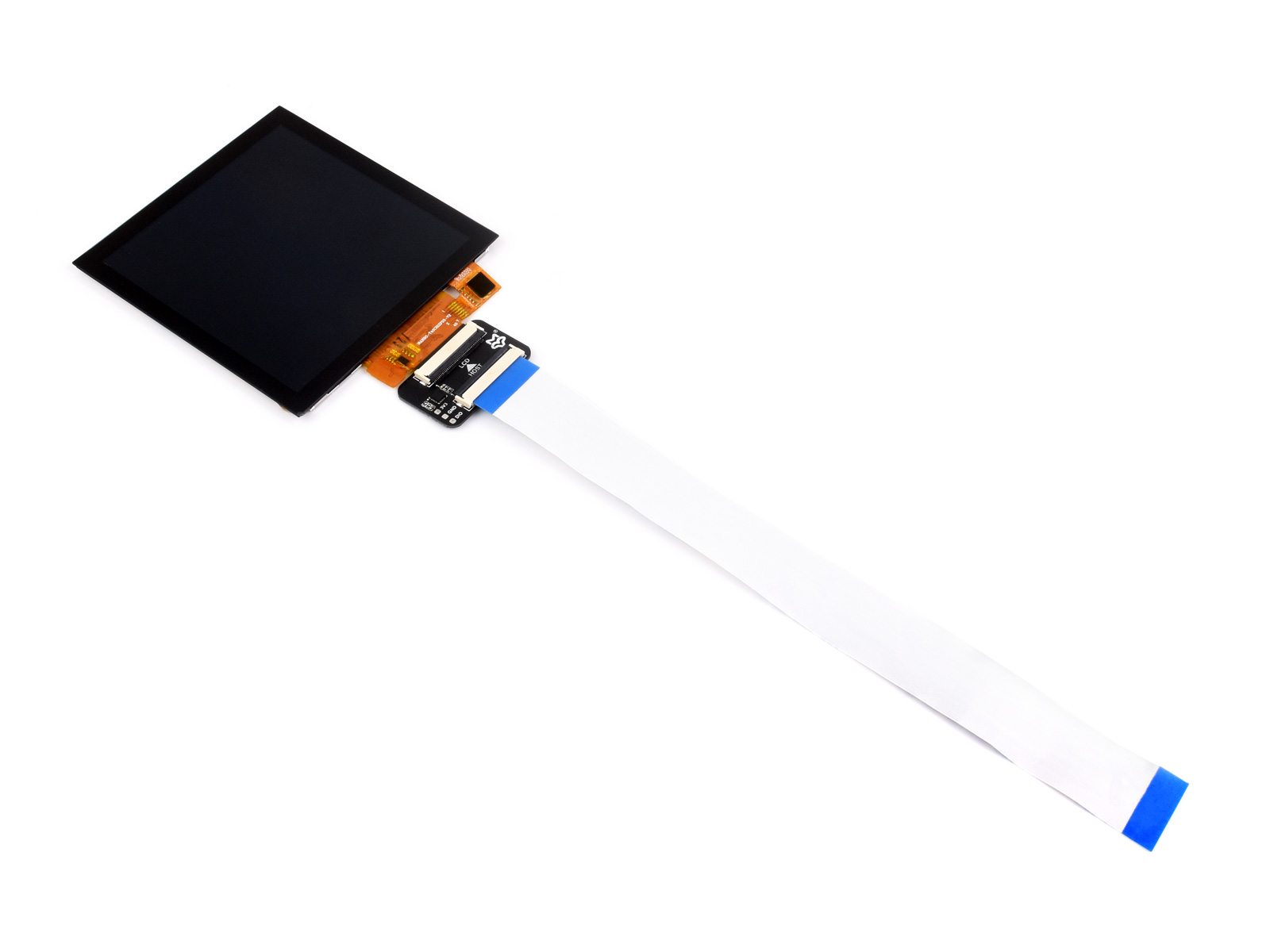

Package Contains

LF40-720720-ARK ×1

Display
Size	4inch
Resolution	720×720
Display Panel	IPS
Viewing Angle	170°
Brightness	400cd/m²
Communication Interface	RGB666
Contrast Ratio	1000:1
Pixel Pitch (H×V)	0.0999×0.0999mm
Touch
Touch Chip	GT911
Touch Type	Capacitive
