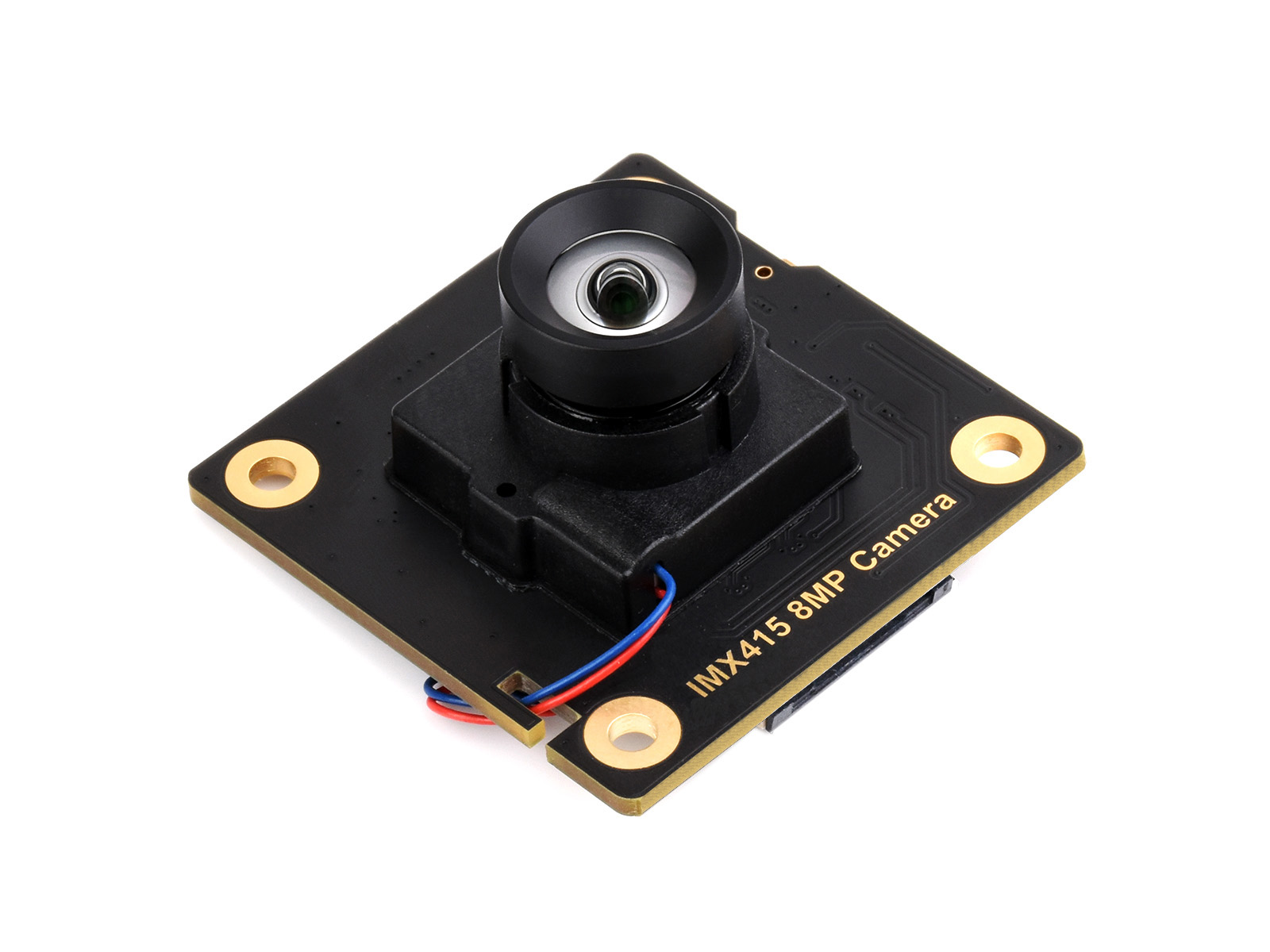

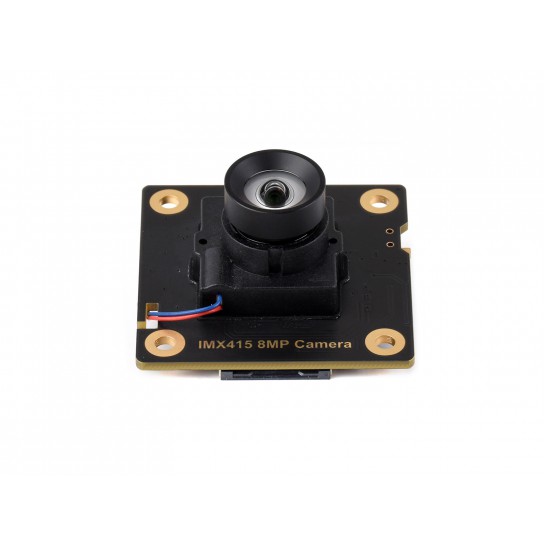

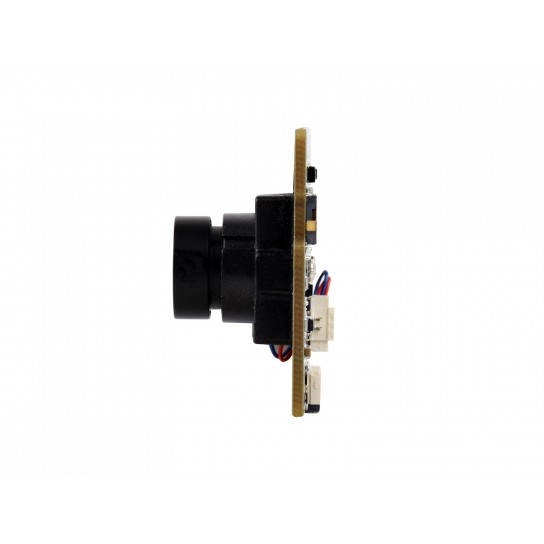

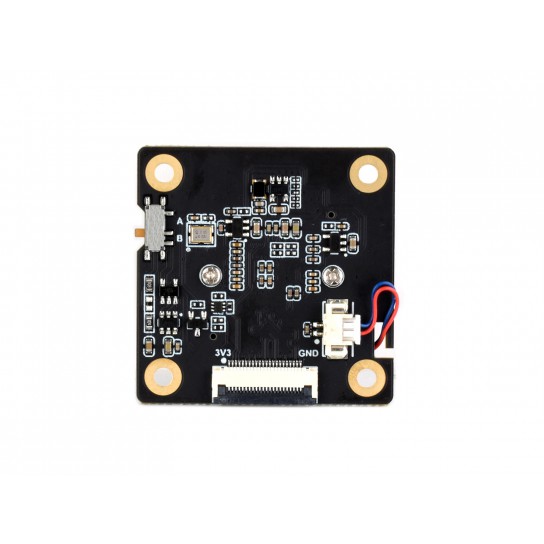

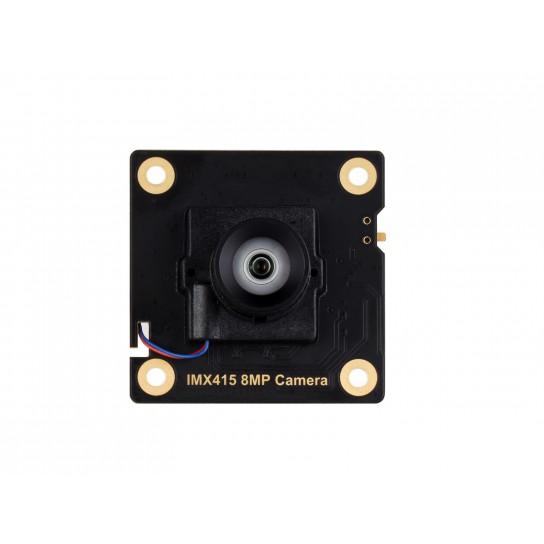

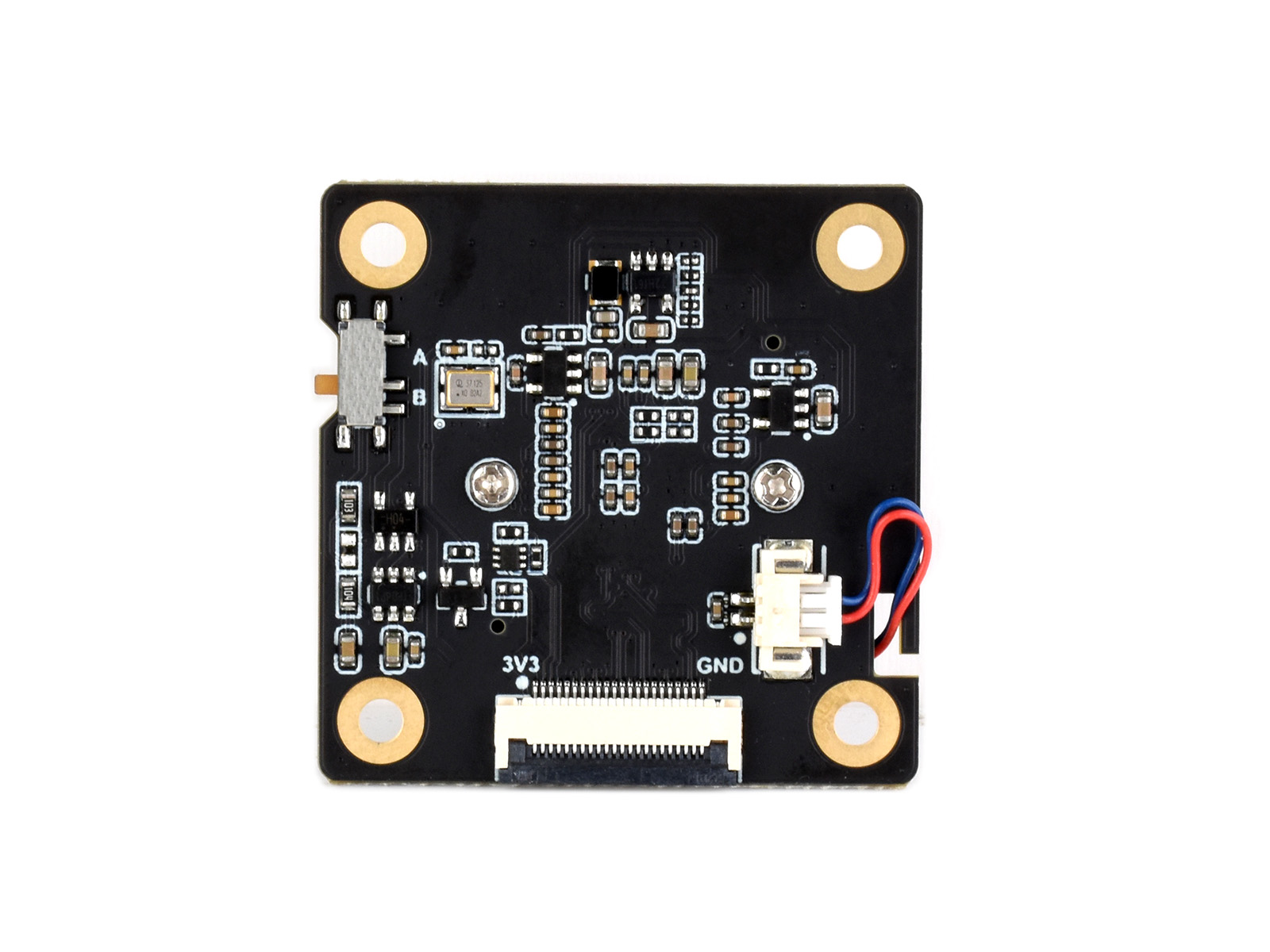

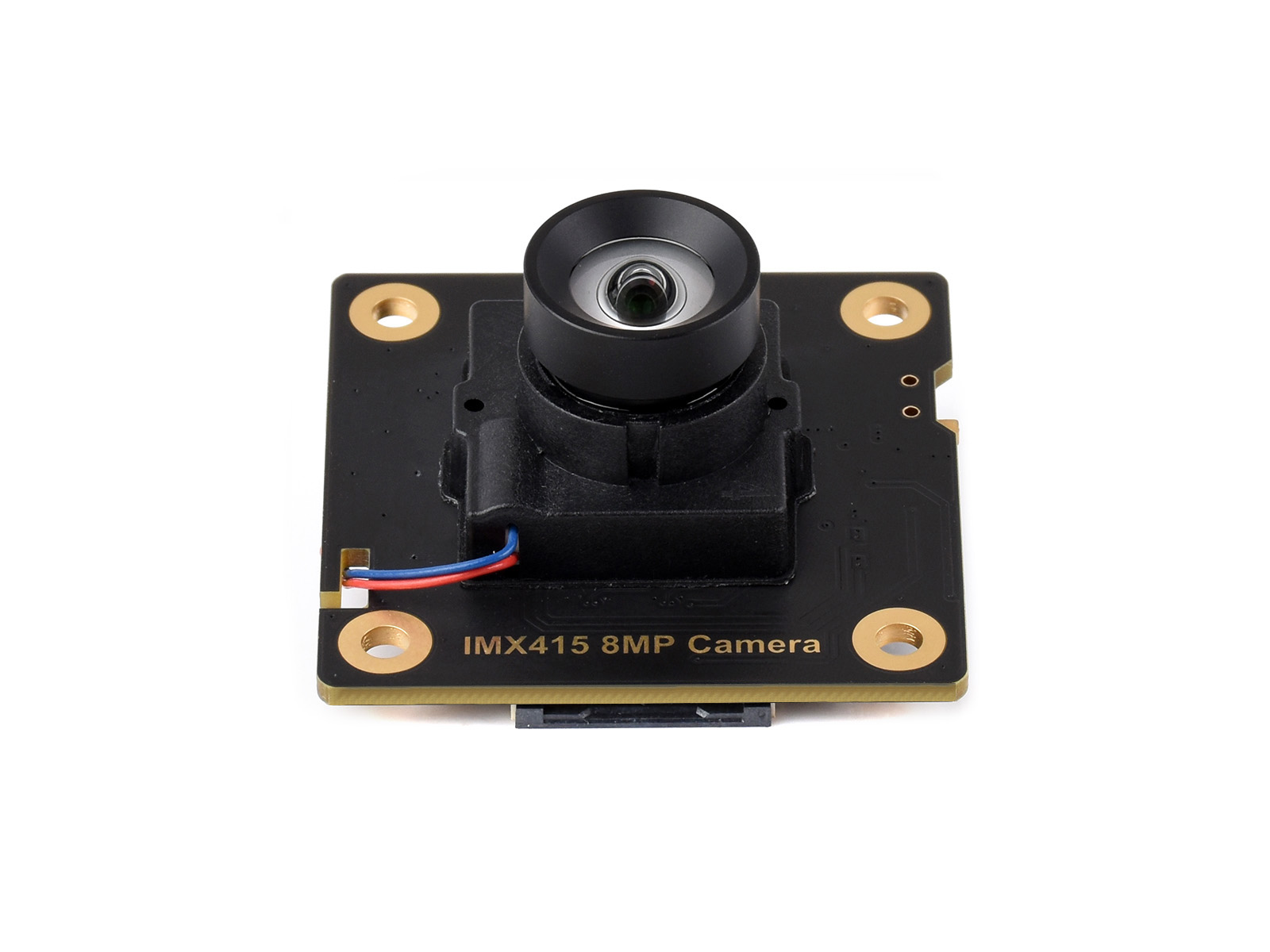

IMX415 8MP Camera Module (A), With High SNR, Good Low Light Performance, Supports Raspberry Pi / Luckfox Series Boards

  • Model:IMX415 8MP Camera (A)
  • SKU:32004
  • Battery:Not included

  • $19.99

    In Stock
Add to Wish List
Compare this Product
IMX415 8MP Camera (A)

Adopts IMX415 Sensor Chip With 95.5° Wide Angle Lens

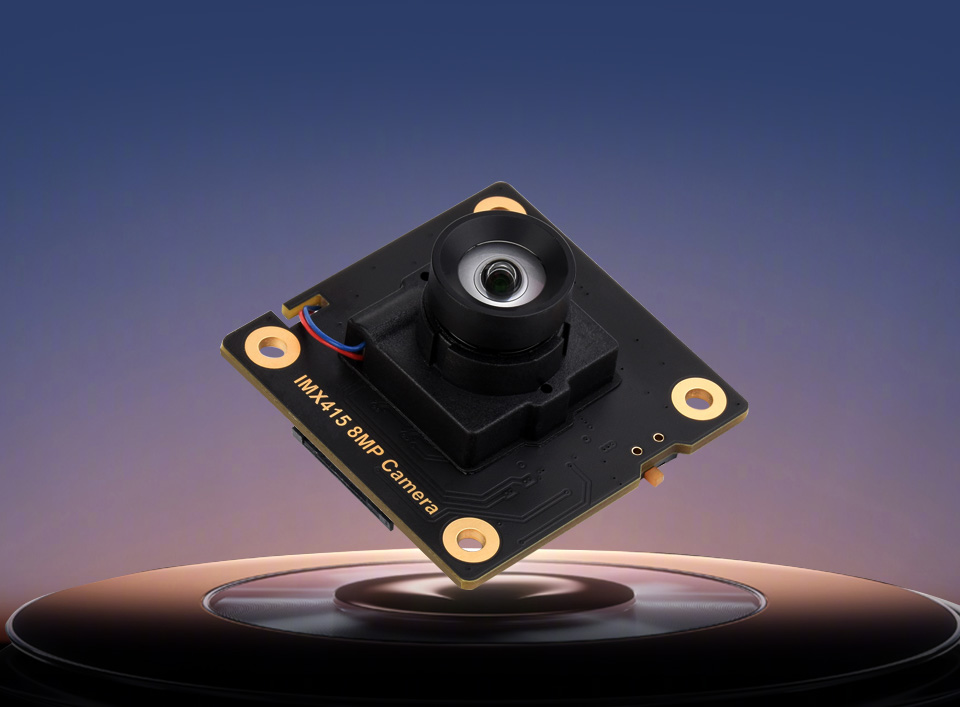

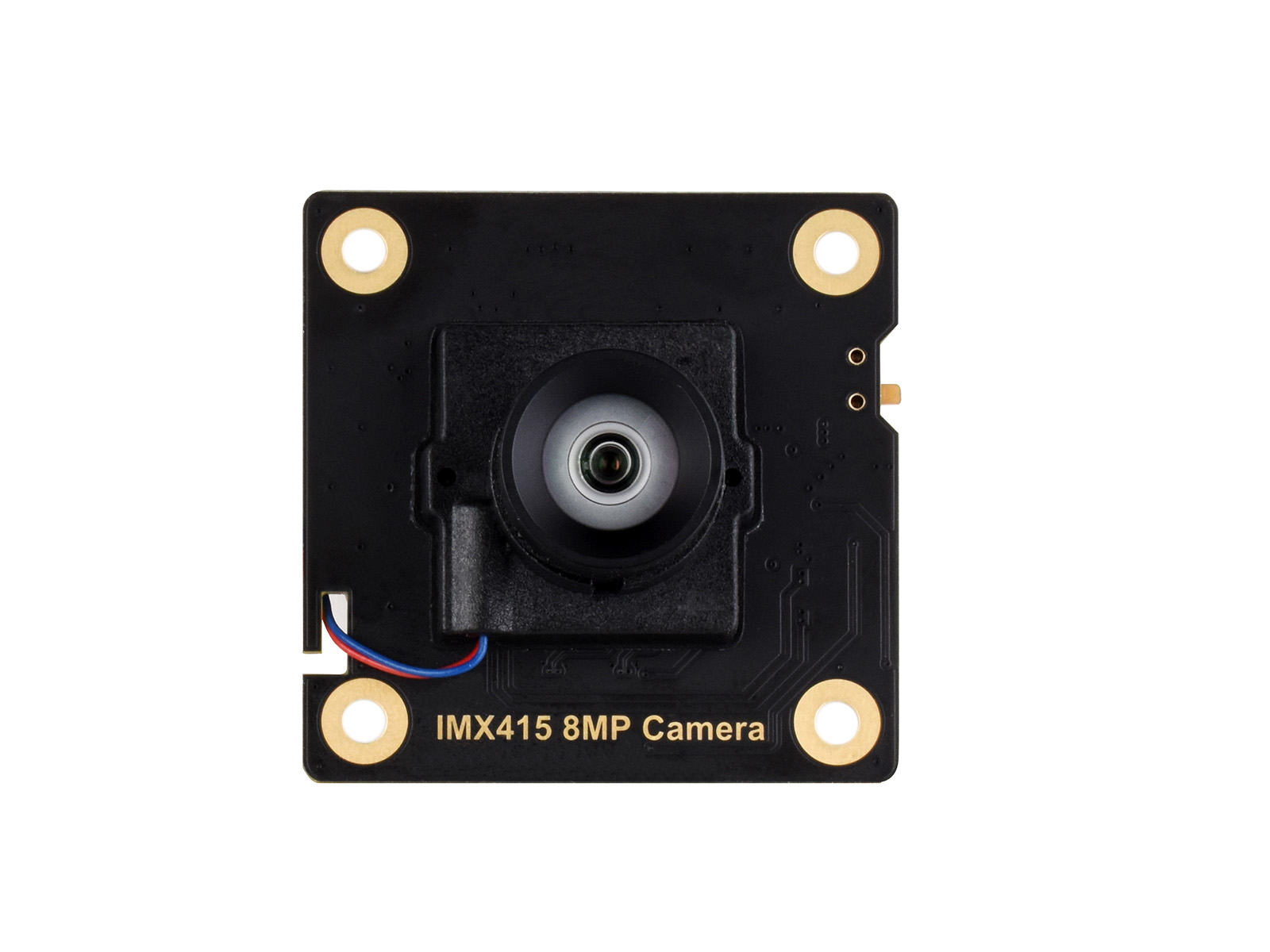

IMX415 8MP Camera Module, front view IMX415 8MP Camera Module, features
Specifications
Sensor IMX415 CMOS size 1/2.8″
Camera type Color Recommended
recording pixels		 Approx. 8.29MP (3840×2160)
Image size Diagonal 6.43mm Unit cell size 1.45um (H) × 1.45um (V)
Aperture F2.4 Focal length 2.88mm
FOV 95.5° Distortion <1%
Applications Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc.

Wide field of view

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle

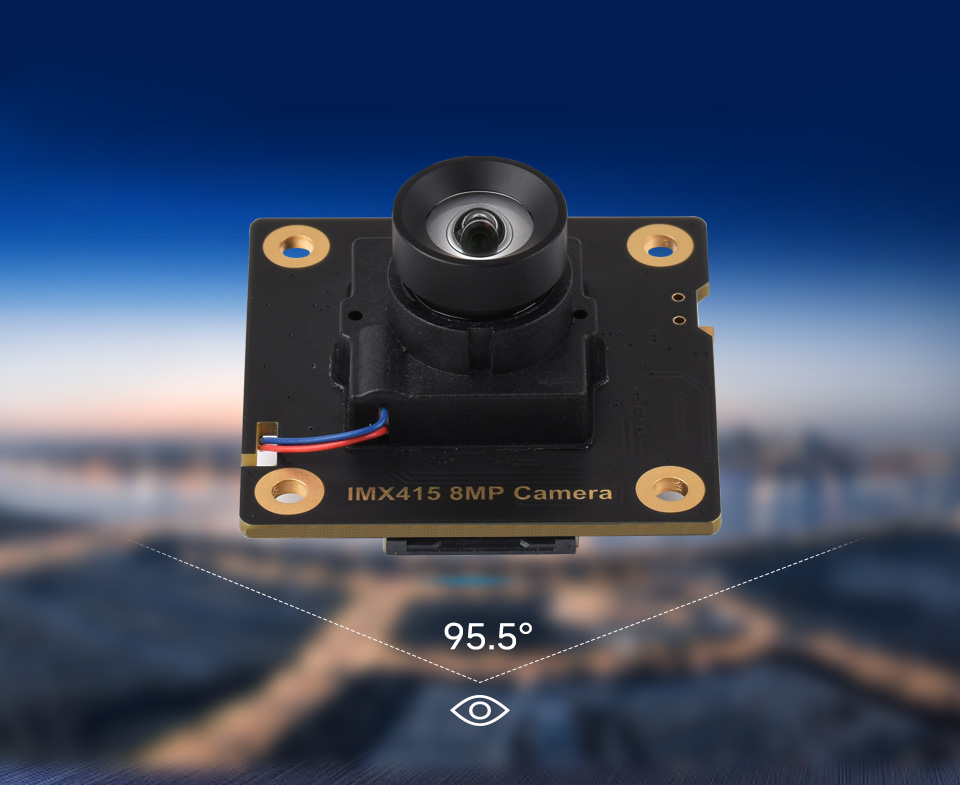

IMX415 8MP Camera Module, with Wide FOV
High SNR and Low Light Performance

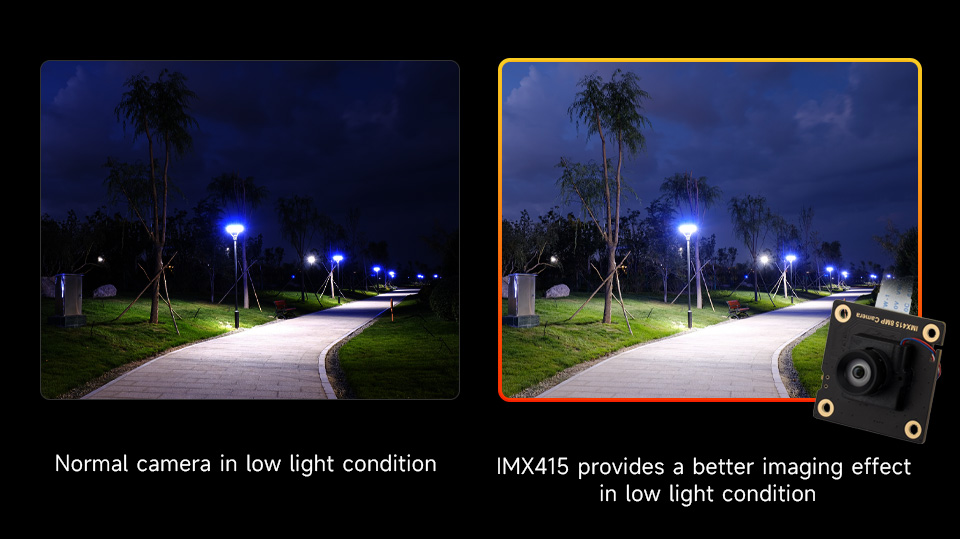

IMX415 8MP Camera Module, features high SNR IMX415 8MP Camera Module, with good low light performance
Multiple Motherboards Support

Compatible With Raspberry Pi 5 / Zero Series / Zero 2W Series Boards
Extra FPC Cable Is Required For Raspberry Pi 4B+ / 3B+ / 3B Series

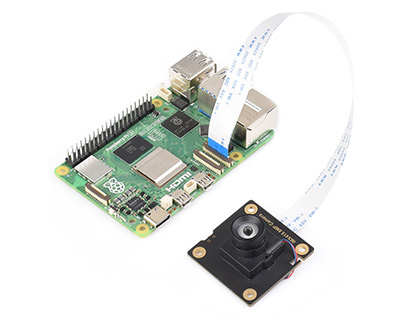

IMX415 8MP Camera Module, connecting with Raspberry Pi 5

Connecting with Raspberry Pi 5

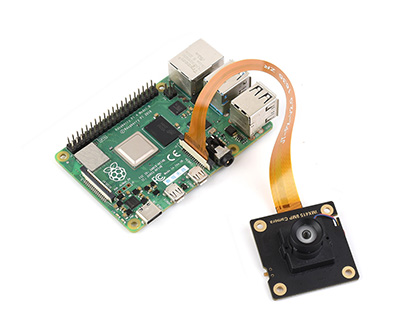

IMX415 8MP Camera Module, connecting with Raspberry Pi 4B

Connecting with Raspberry Pi 4B

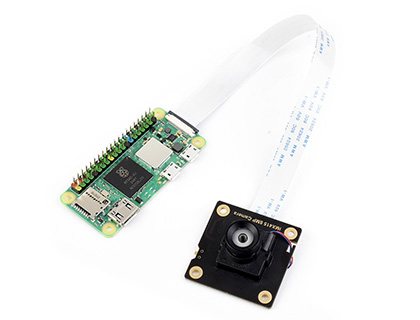

IMX415 8MP Camera Module, connecting with Zero 2 W

Connecting with Zero 2 W

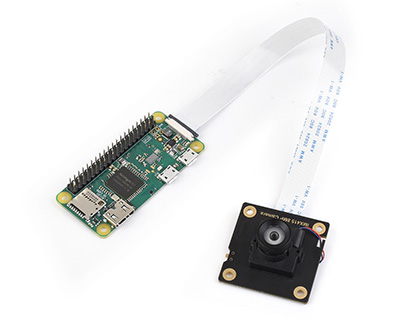

IMX415 8MP Camera Module, connecting with Zero W

Connecting with Zero W

Supports Luckfox motherboards
Can be directly connected to Luckfox-Omni3576 Development Board

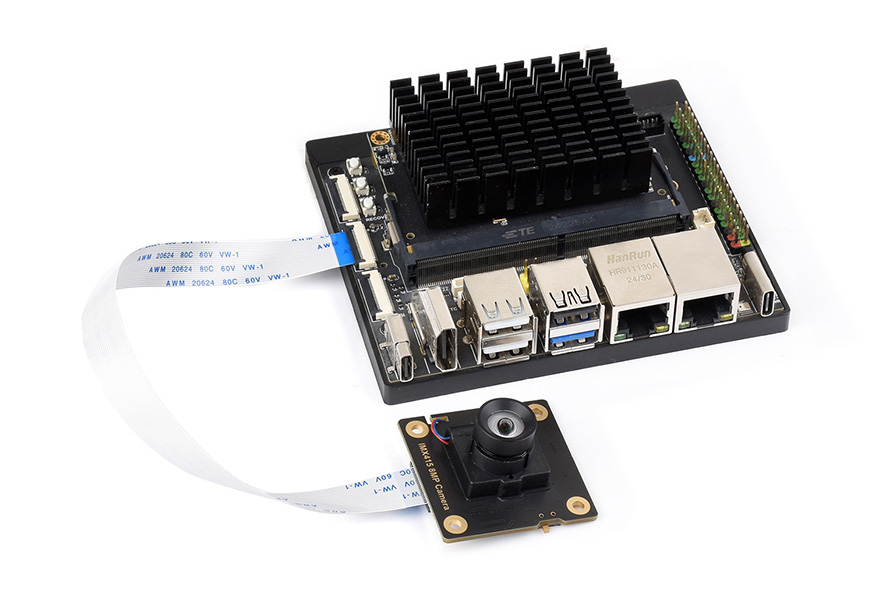

IMX415 8MP Camera Module, connecting with Luckfox-Omni3576 Development Board

Connecting with Luckfox-Omni3576 Development Board


* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Zero W, Zero 2 W, Luckfox-Omni3576, and yellow FPC are NOT included.

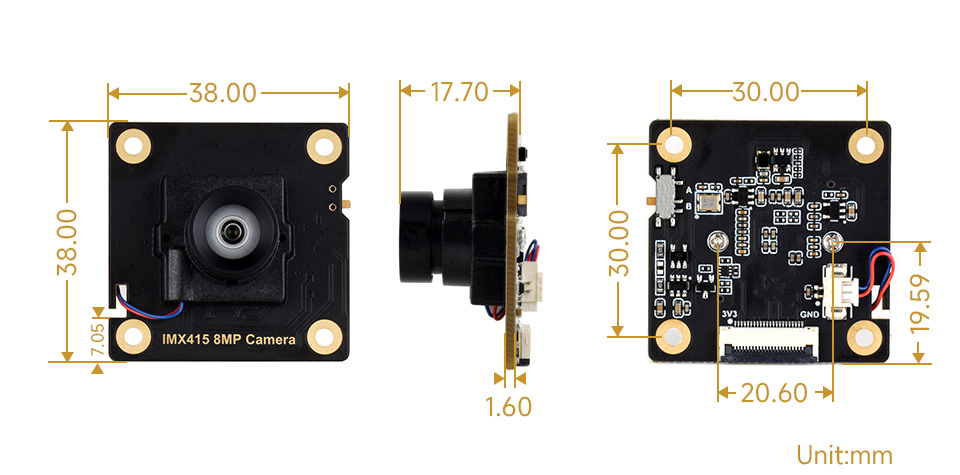

outline dimensions
IMX415 8MP Camera Module, outline dimensions
Camera
Aperture F2.4
Camera type Full-Color
CMOS size 1/2.8″
Distortion <1%
Focal length 2.88mm
FOV 95.5°
Pixel 8.29MP (3840 × 2160)
Sensor IMX415
Interfaces & Peripherals
Camera Interface 4-Lane MIPI CSI-2

Package Contains

  1. IMX415 8MP Camera (A) ×1
  2. 22PIN FPC cable ×1
1IMX415 8MP Camera (A)
