Connection Examples

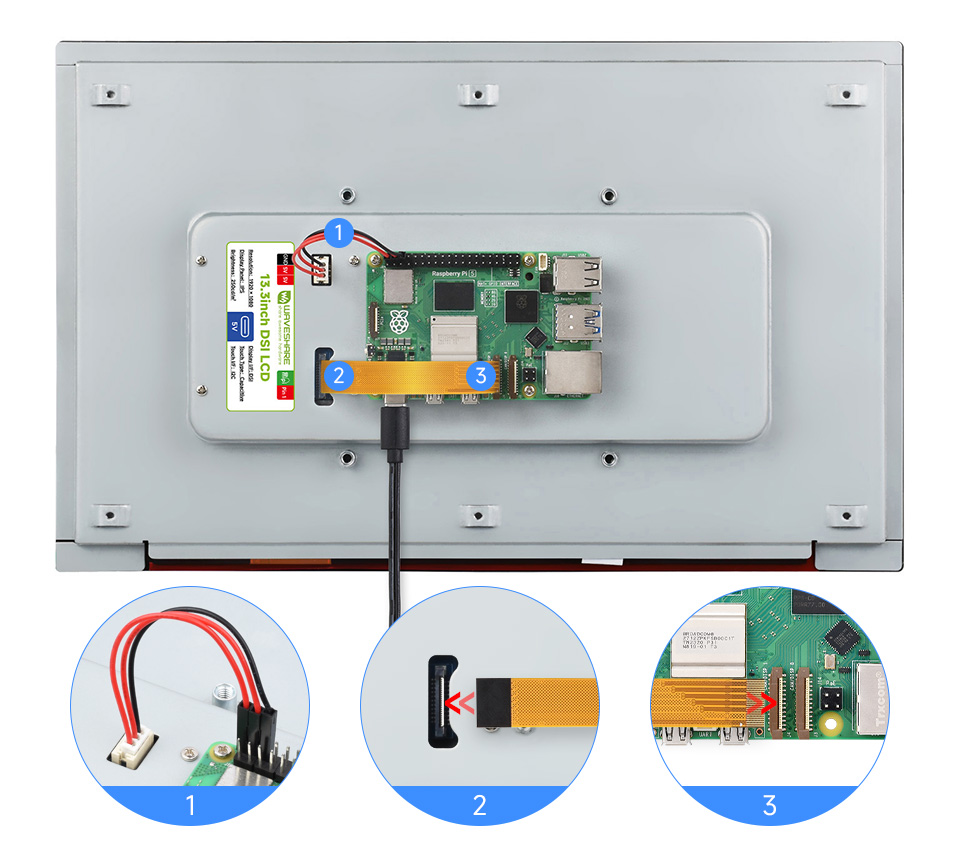

Working with Raspberry Pi
5
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

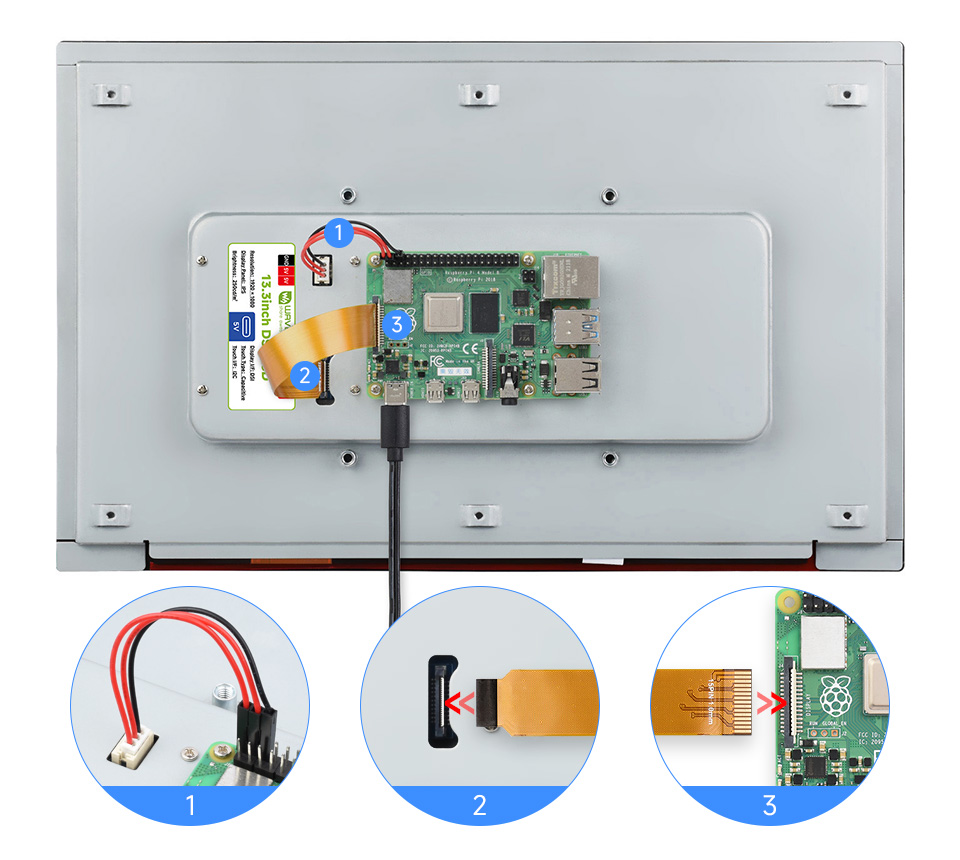

Working with Raspberry Pi
4B
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

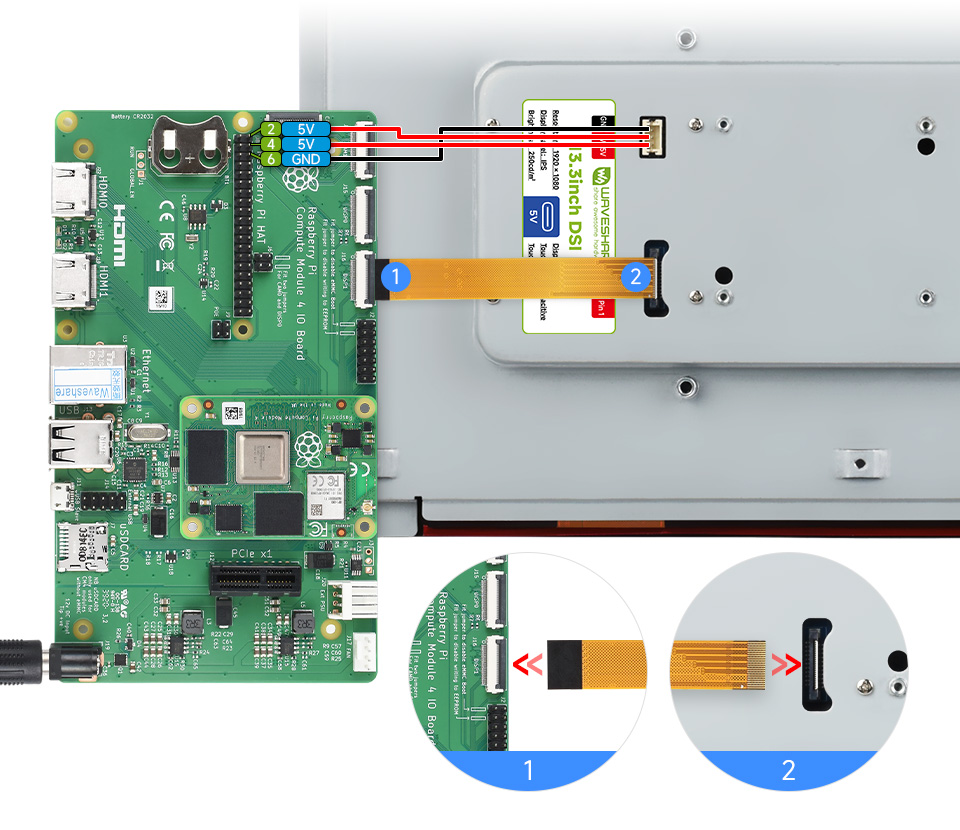

Working with Compute
Module 4 IO Board
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
for reference only, the Raspberry Pi boards are NOT included.

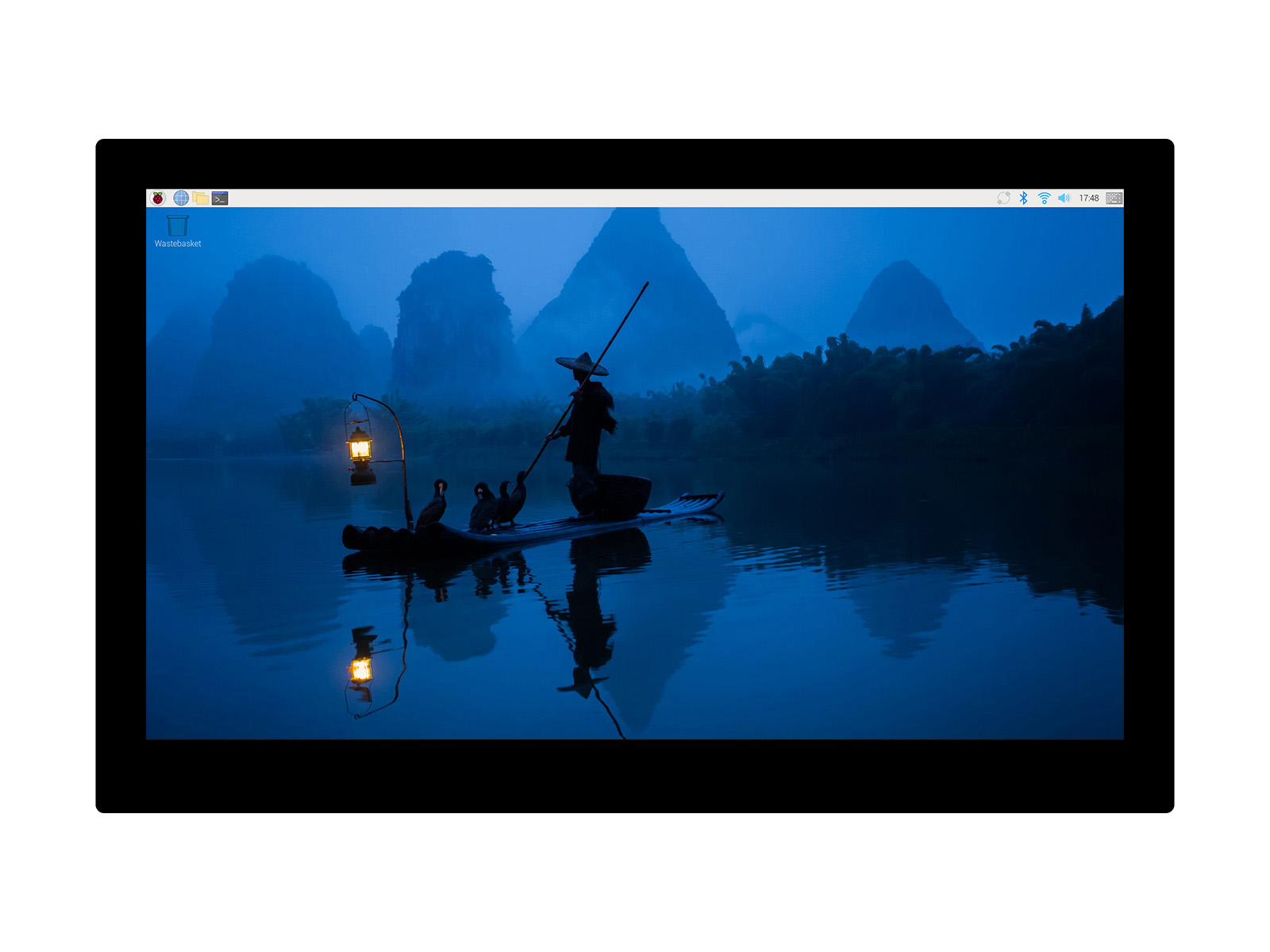

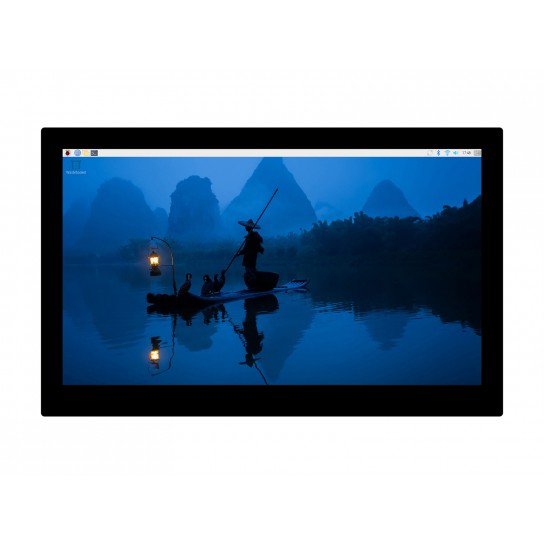

Technology upgrade, Better image quality
1920 × 1080 resolution, provides clear image and vivid color display effect
