10.1inch DSI Capacitive Touch Display, Wide Color Gamut, 720 × 1280, IPS Panel, Supports 10-Point Touch, Toughened Glass Panel

  • Model:10.1-DSI-TOUCH-B
  • SKU:32603
  • Battery:Not included
  • $64.99

    In Stock
Add to Wish List
Compare this Product
10.1″ Wide Color Gamut DSI Touch Display

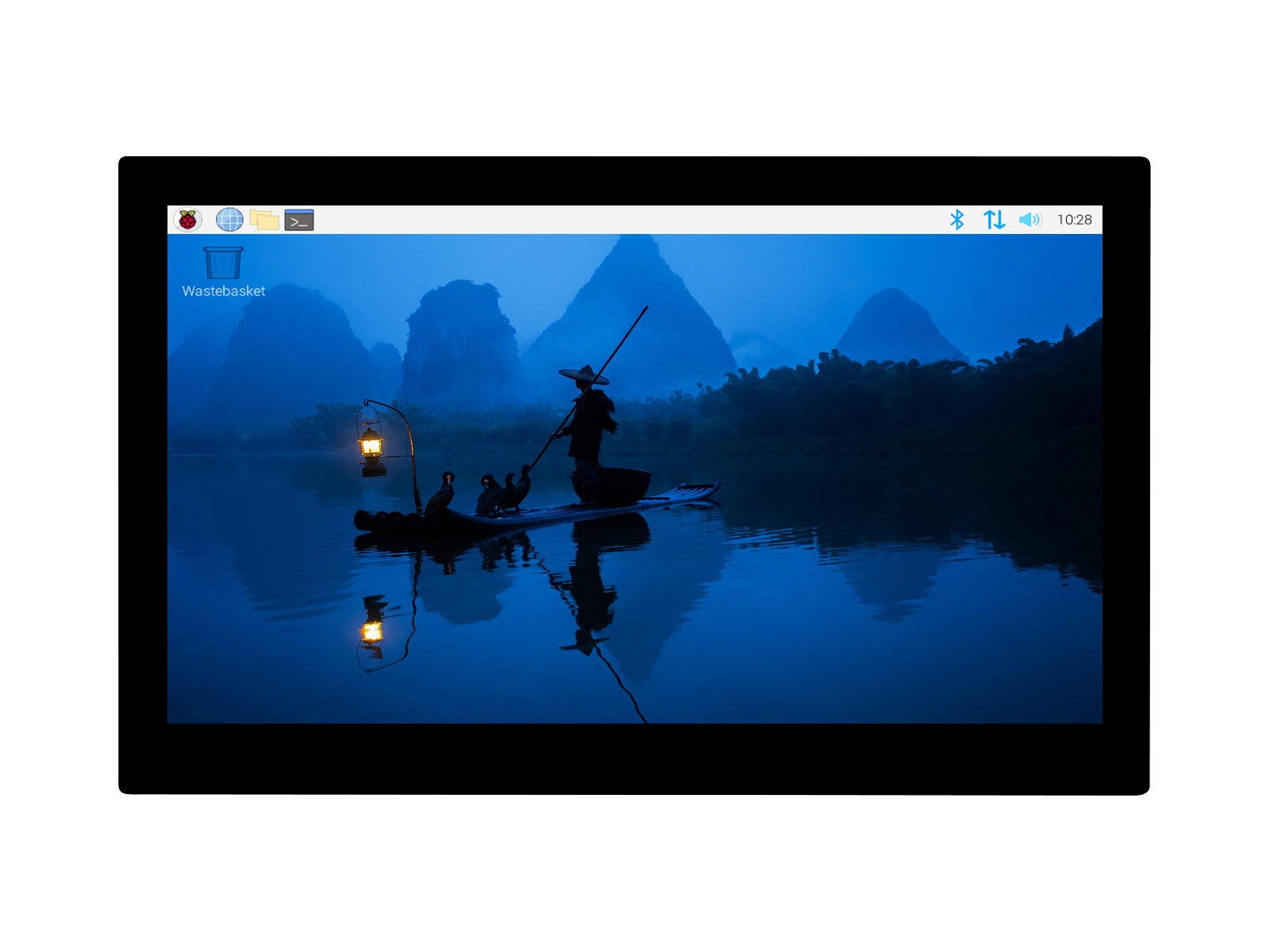

10.1inch capacitive touch display, front view
The display orientation is portrait by default, with 720 × 1280 resolution (H×V). Change the software config for landscape display.
10.1inch capacitive touch display, Device & System Support
connection examples

Connecting to Raspberry Pi 5

10.1inch capacitive touch display, connecting to Raspberry Pi 5

* Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

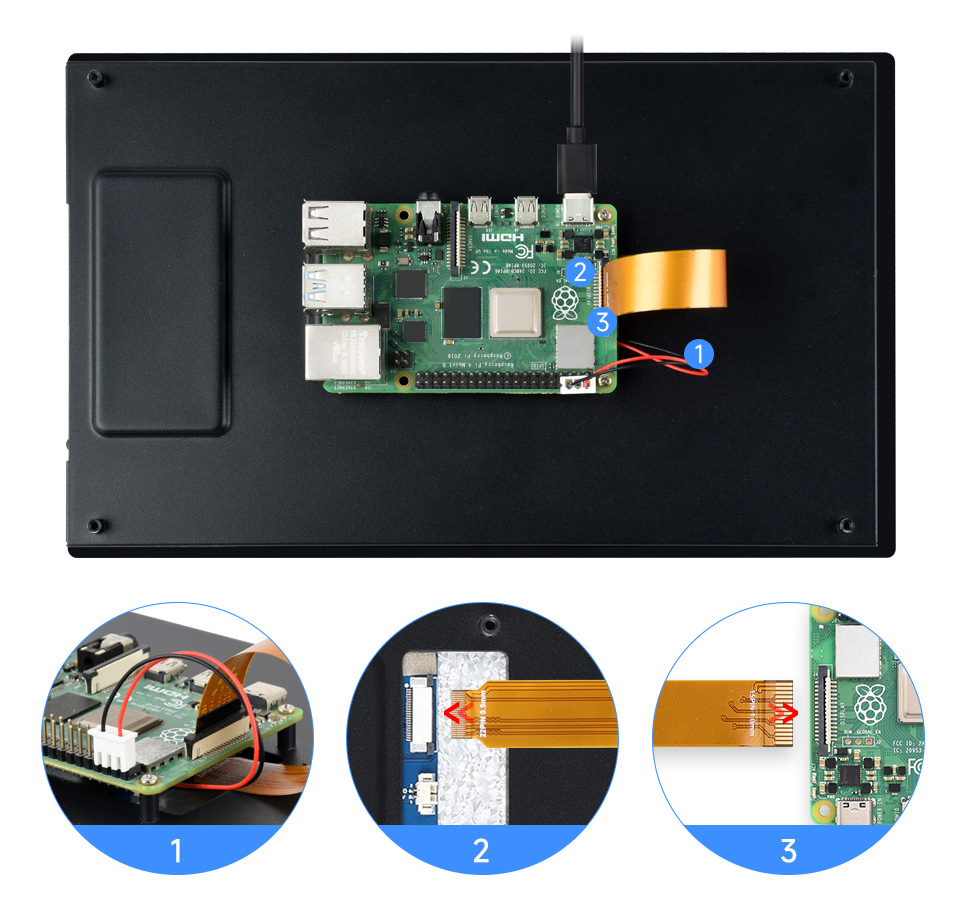

Connecting to Raspberry Pi 4B


10.1inch capacitive touch display, Connecting to Raspberry Pi 4B

* Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

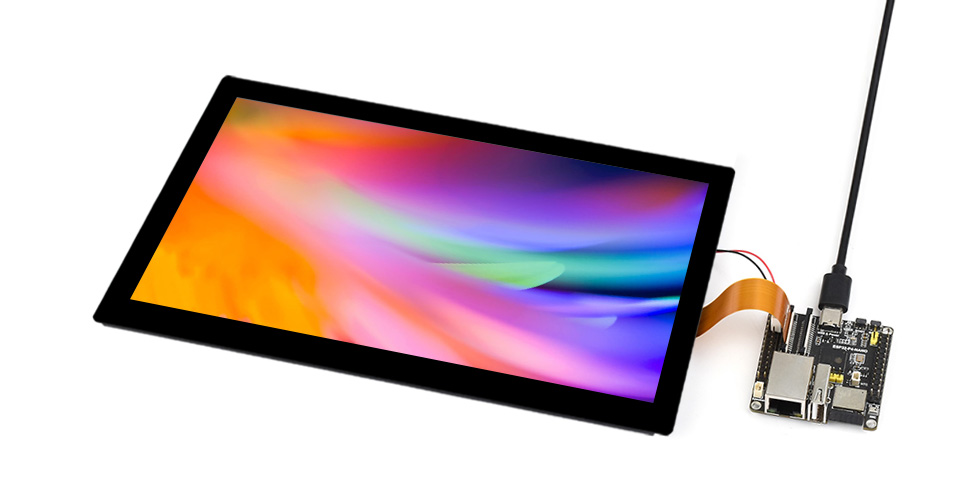

Connecting to ESP32-P4-NANO


10.1inch capacitive touch display, Connecting to ESP32-P4-NANO

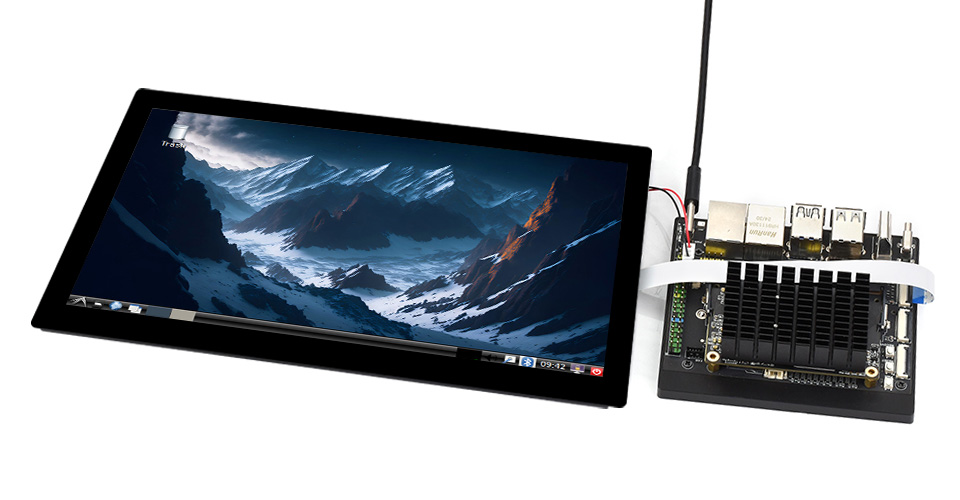

Connecting to Luckfox Omni3576


10.1inch capacitive touch display, Connecting to Luckfox Omni3576

Connecting to Luckfox Lyra


10.1inch capacitive touch display, Connecting to Luckfox Lyra

* for reference only, the above controller boards or hosts are NOT included

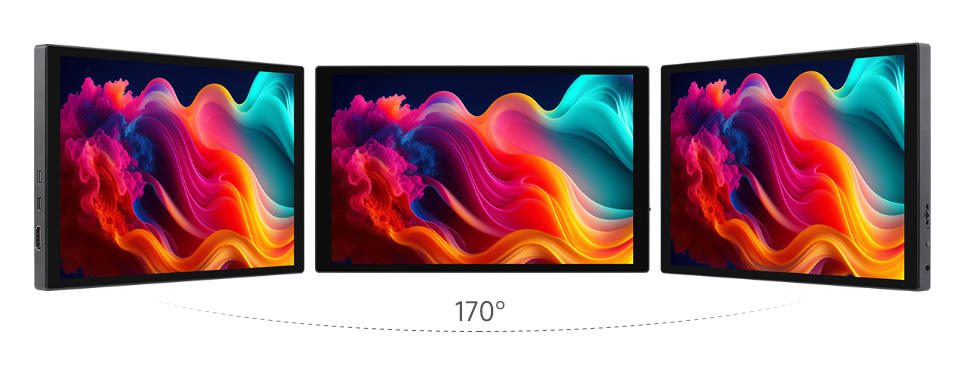

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

10.1inch capacitive touch display, adopts IPS display panel
Wide Color Gamut LED technology

Wider Color Gamut, More Pure Chroma

10.1inch capacitive touch display, Wider Color Gamut, More Pure Chroma
10-Point Capacitive Touch
10.1inch capacitive touch display, supports 10-point capacitive touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
interface definition

10.1inch capacitive touch display, interface definition

Supports backlight adjustment via software


outline dimensions
10.1inch capacitive touch display, outline dimensions

Display
Size 10.1inch
Resolution 720×1280
Display Panel IPS
Viewing Angle 170°
Brightness 500cd/㎡
Communication Interface DSI
Display Colour Gamut 76%NTSC
Pixel Pitch (H×V) 0.174×0.174 (mm)
Touch
Touch Panel Toughened Glass
Touch Point 10-Point
Touch Type Capacitive

Package Contains

  1. 10.1-DSI-TOUCH-B ×1
  2. MIPI-DSI-Cable-12cm x1
  3. MX 1.25 2PIN to 2.54 3PIN cable x1
  4. FFC 22PIN cable ~200mm (opposite sides) x2
  5. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
  6. Screws pack x1
