Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, Integrates Tripe-core ARM Cortex-A7 and ARM Cortex-M0 Processors, With Ethernet Port

Brand:LUCKFOX
Battery:Not included

WIKI Page

$23.99
Price Range $23.99 - $83.99

IPS LCD

NOT Included

10.1inch LCD Kit A

Header

without header

with pre-soldered header

Add to Wish List

Compare this Product

Description
Specification
Package Content

Prohibited by the manufacturer Rockchip, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Russia, Belarus, Cuba, Iran, North Korea, Syria, Crimea, Donetsk and Luhansk regions of Ukraine. (Countries or regions are subject to change based on updates or revisions to export control regulations)

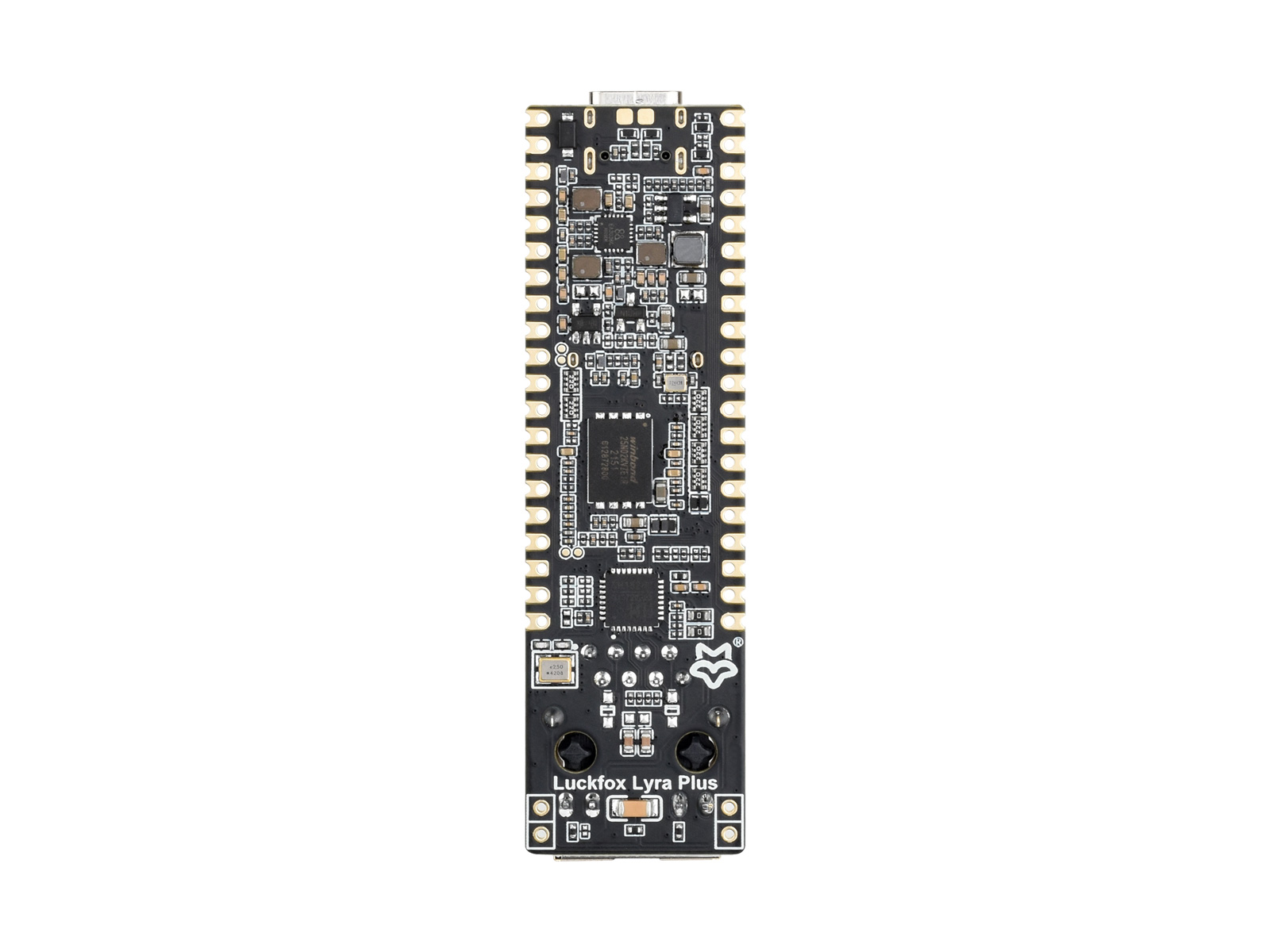

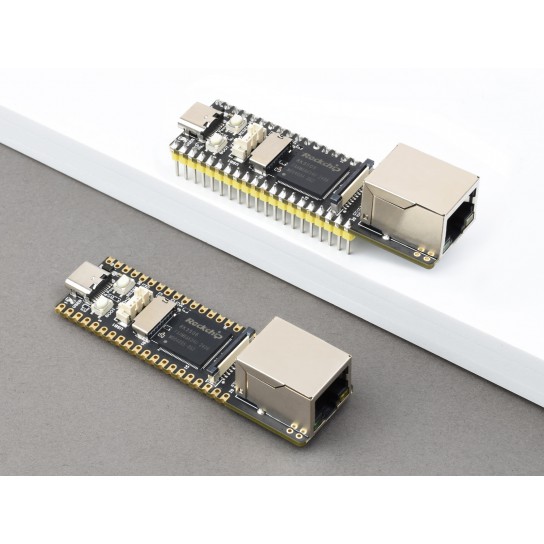

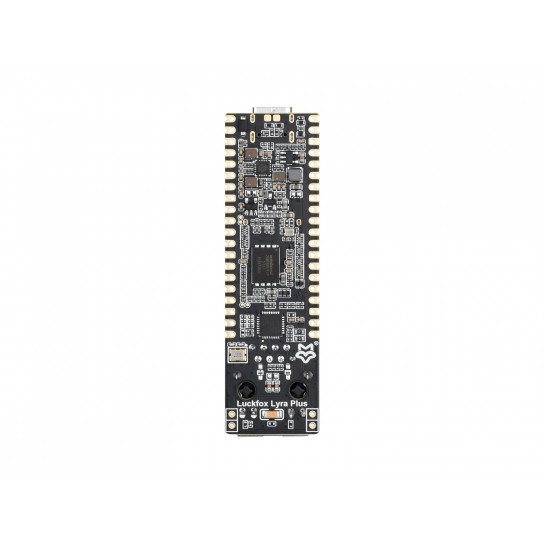

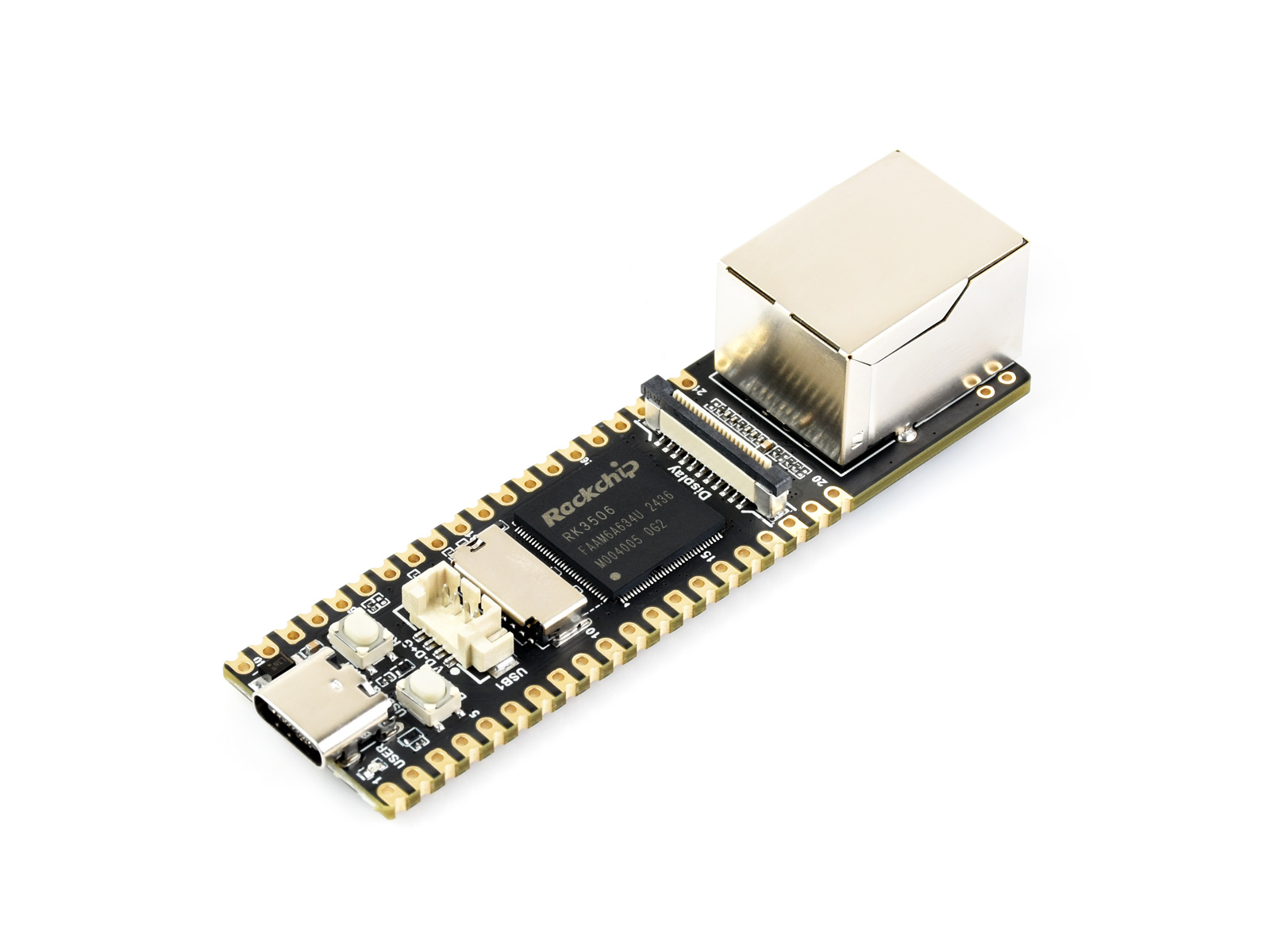

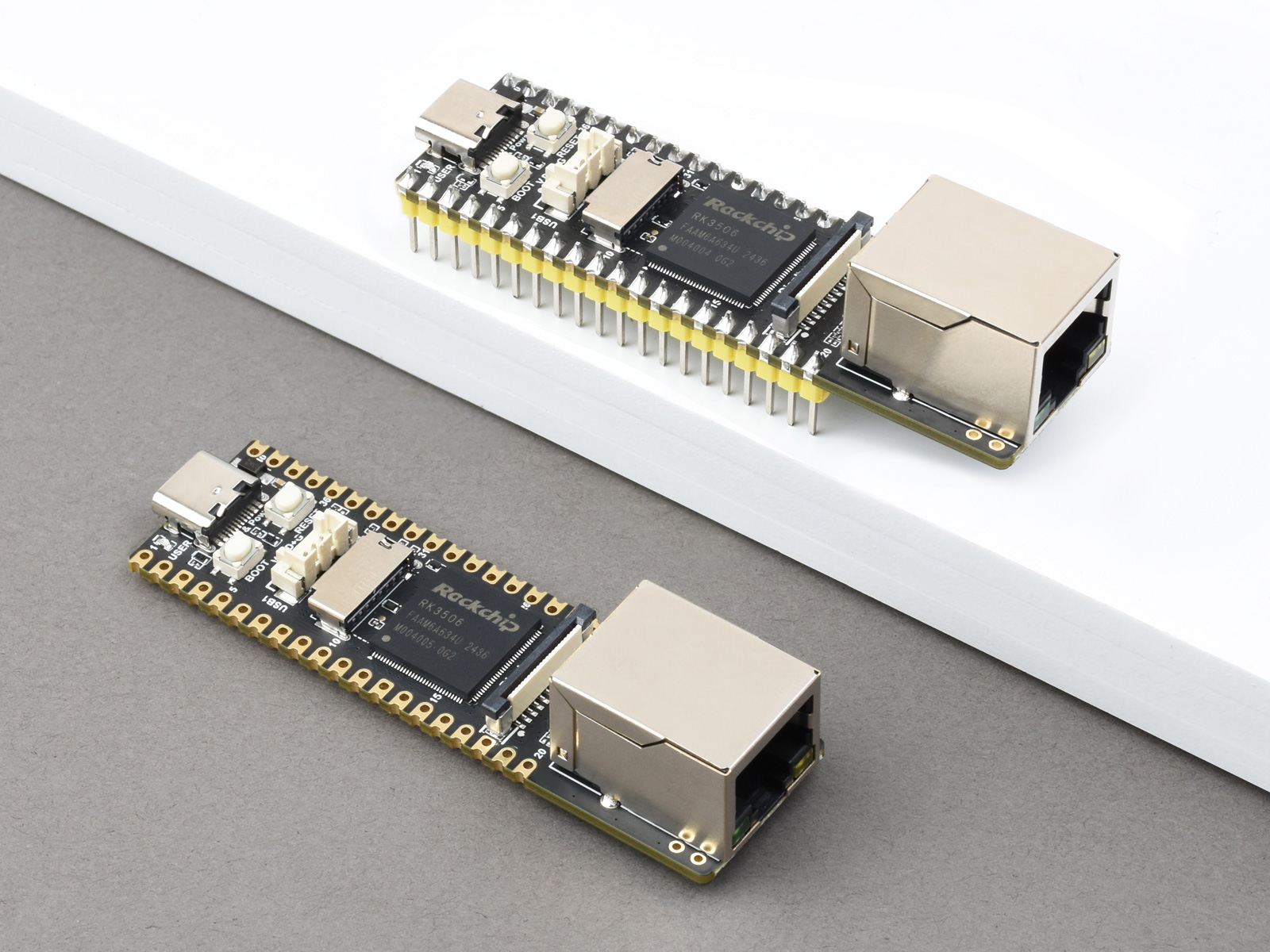

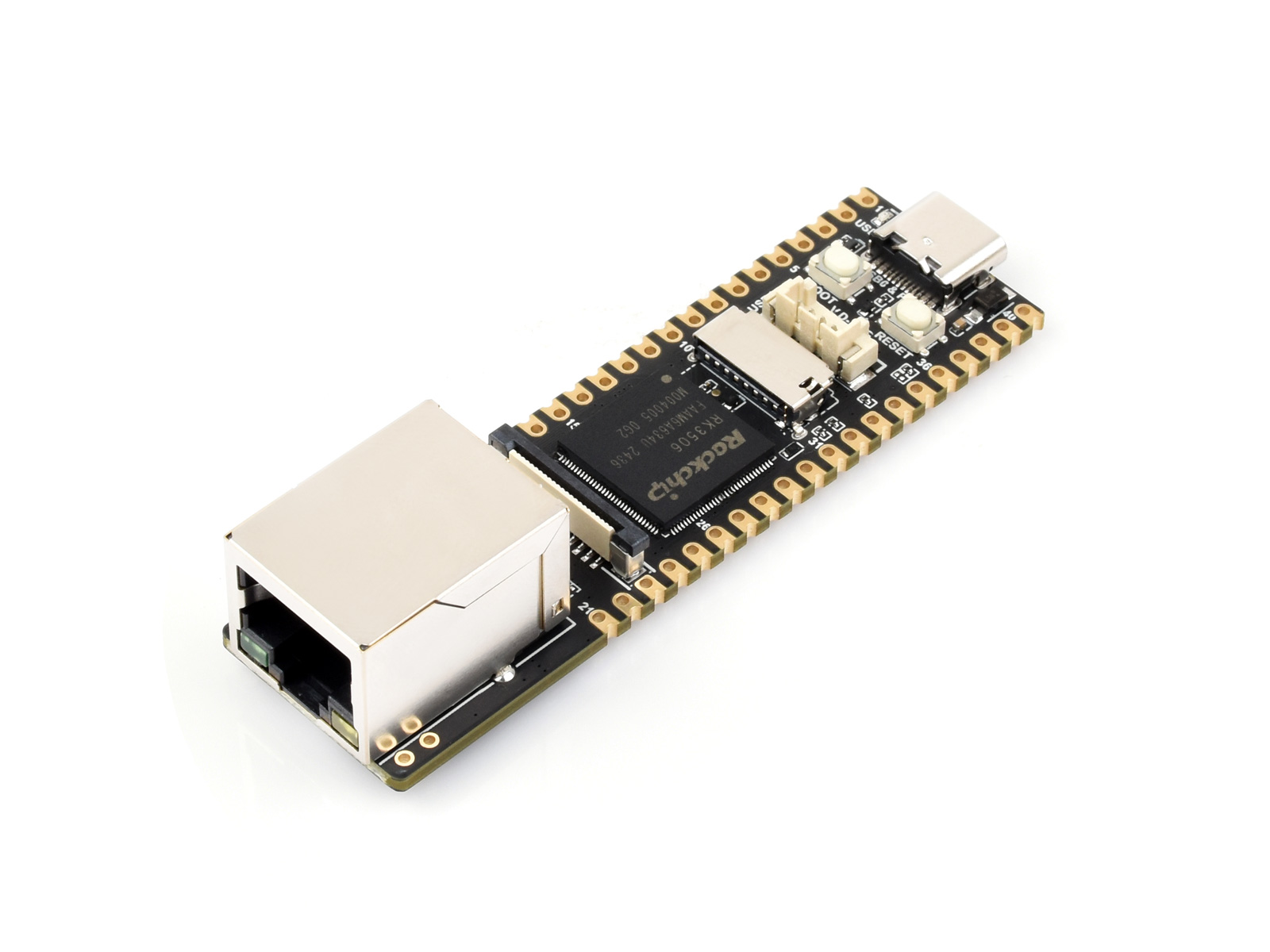

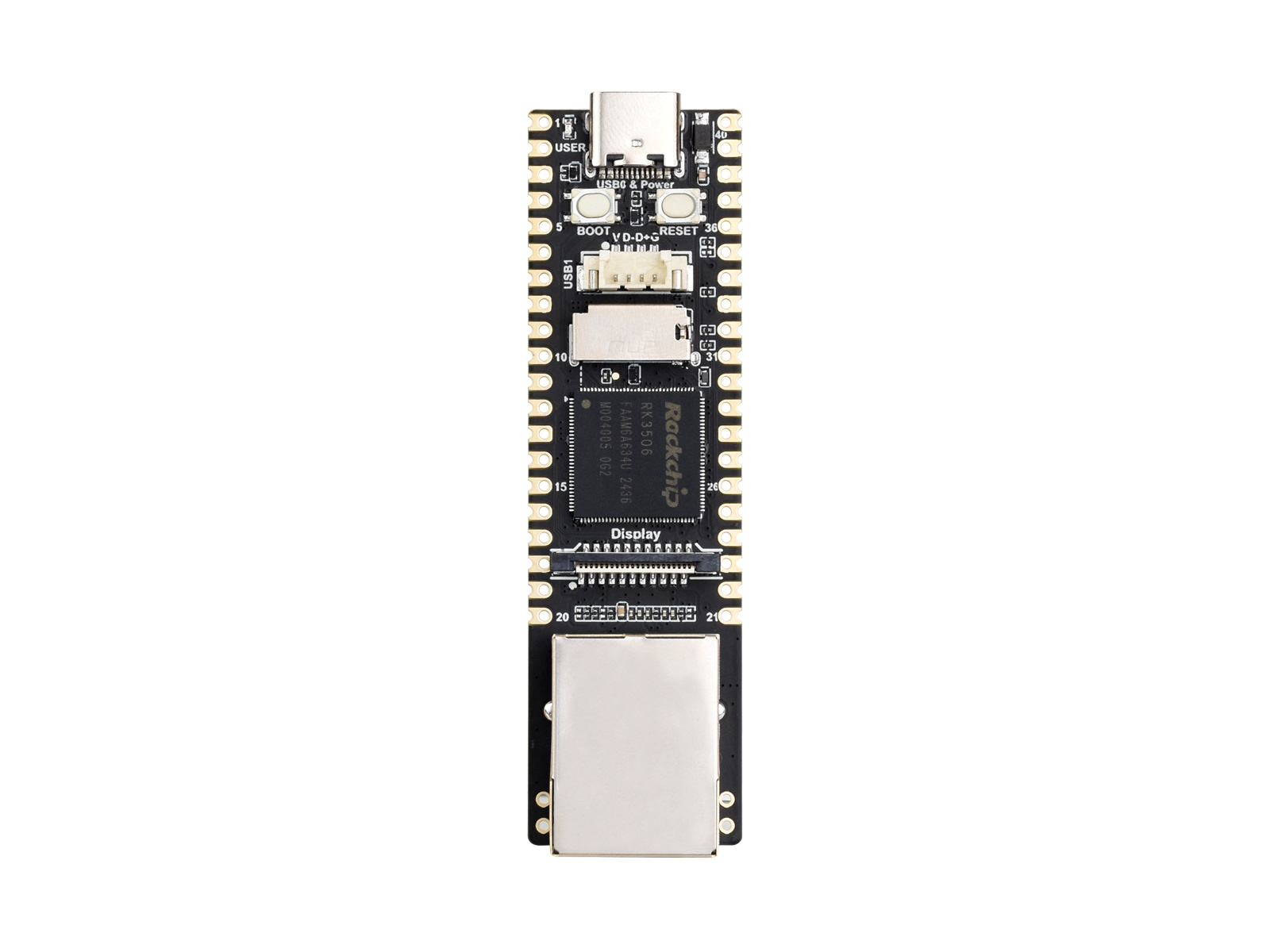

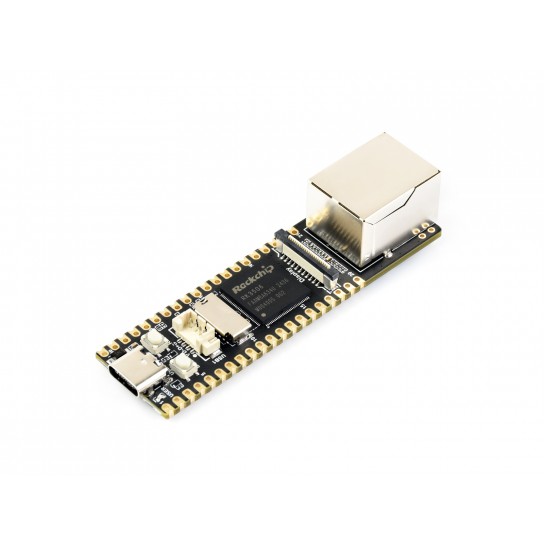

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, front view

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, features

Specifications

Processor	Triple-Core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory	128MB DDR3L
USB	USB OTG2.0 × 2
Display	MIPI DSI 2-lane
GPIO	24 × Rockchip Matrix IO pins
Ethernet port	10/100M Ethernet controller
Default Storage	SPI NAND FLASH (256MB)

Version options

Kit Selection

Highly integrated and powerful performance

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, adopts RK3506G2 chip

Triple-Core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
Built-in 128MB DDR3L for multi-core applications
The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions

Easier to develop

Integrates TF card slot, DSI interface, USB connector and Ethernet port

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, integrates TF card slot, DSI interface and USB connector and Ethernet port

MIPI DSI 2-lane interface

Compact size, powerful performance, easy to drive large screens

* for reference only, please refer to the Package Content for the detailed part list.
Supports up to 1280 × 800 @ 60Hz resolution.

Rockchip Matrix IO design

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

SLC NAND FLASH

onboard 256MB SLC NAND FLASH, provides a better user experience

Suitable for more application examples

Pin definition

What's On Board

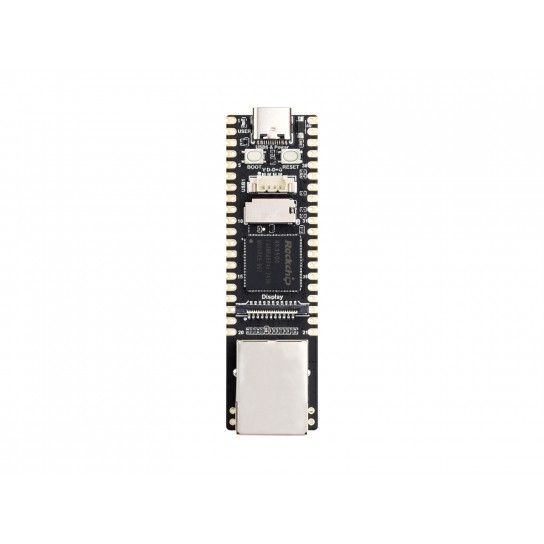

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, onboard components

USB Type-C connector
for power supply and program burning
ACT-LED
BOOT button
Press it when powering on to enter download mode
RESET button
USB MX1.25 4P connector
can be converted to USB Type-A port via an adapter cable
TF card slot

RK3506G2
Multi-core heterogeneous SoC with built-in Triple-Core ARM Cortex-A7 + ARM Cortex-M0
DSI display interface
MIPI DSI 2-lane
RJ45 Ethernet port
W25N02KV
256MB SLC NAND FLASH
CH182H2
100 Mbps Ethernet PHY chip

Product Show

outline dimensions

Resources & Services

Wiki: https://wiki.luckfox.com/Luckfox-Lyra/

Connectivity
Ethernet	RJ45 100M
Memory and Storage
Flash	256MB
Memory	128MB DDR3L(OPTIONS)
SOC Features
Processor	[email protected]
Interfaces & Peripherals
Display Interface	MIPI DSI 2-lane
GPIO	24-Pin
USB	USB OTG2.0
