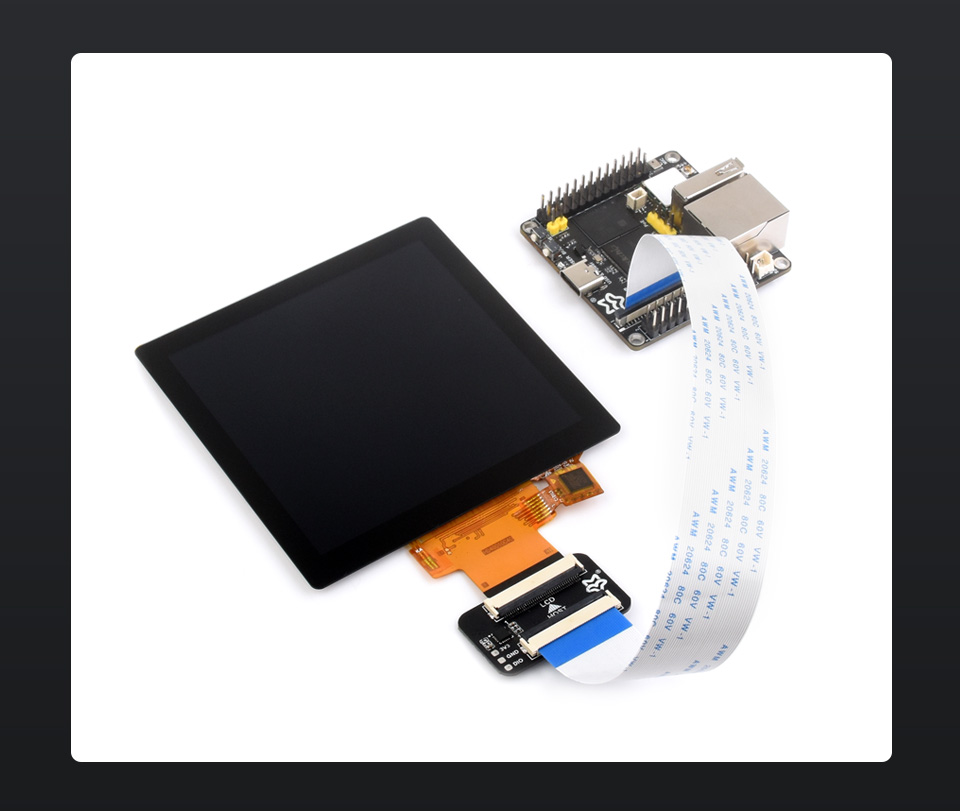

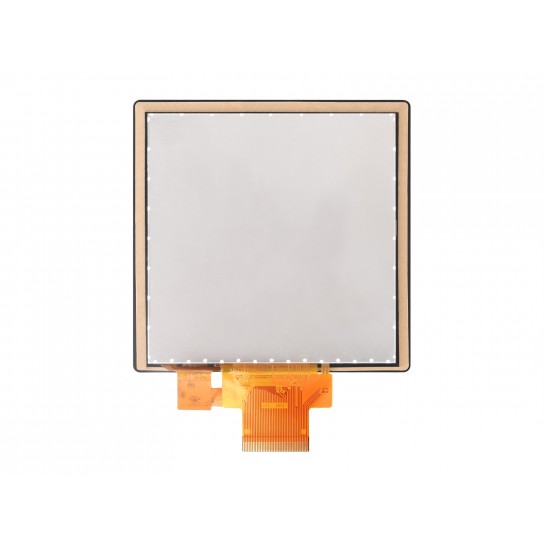

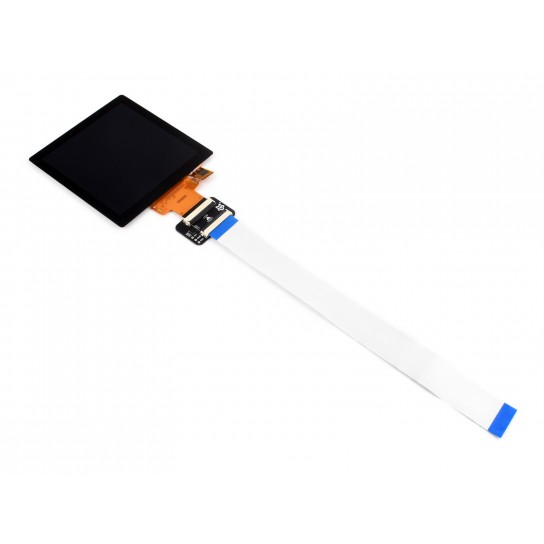

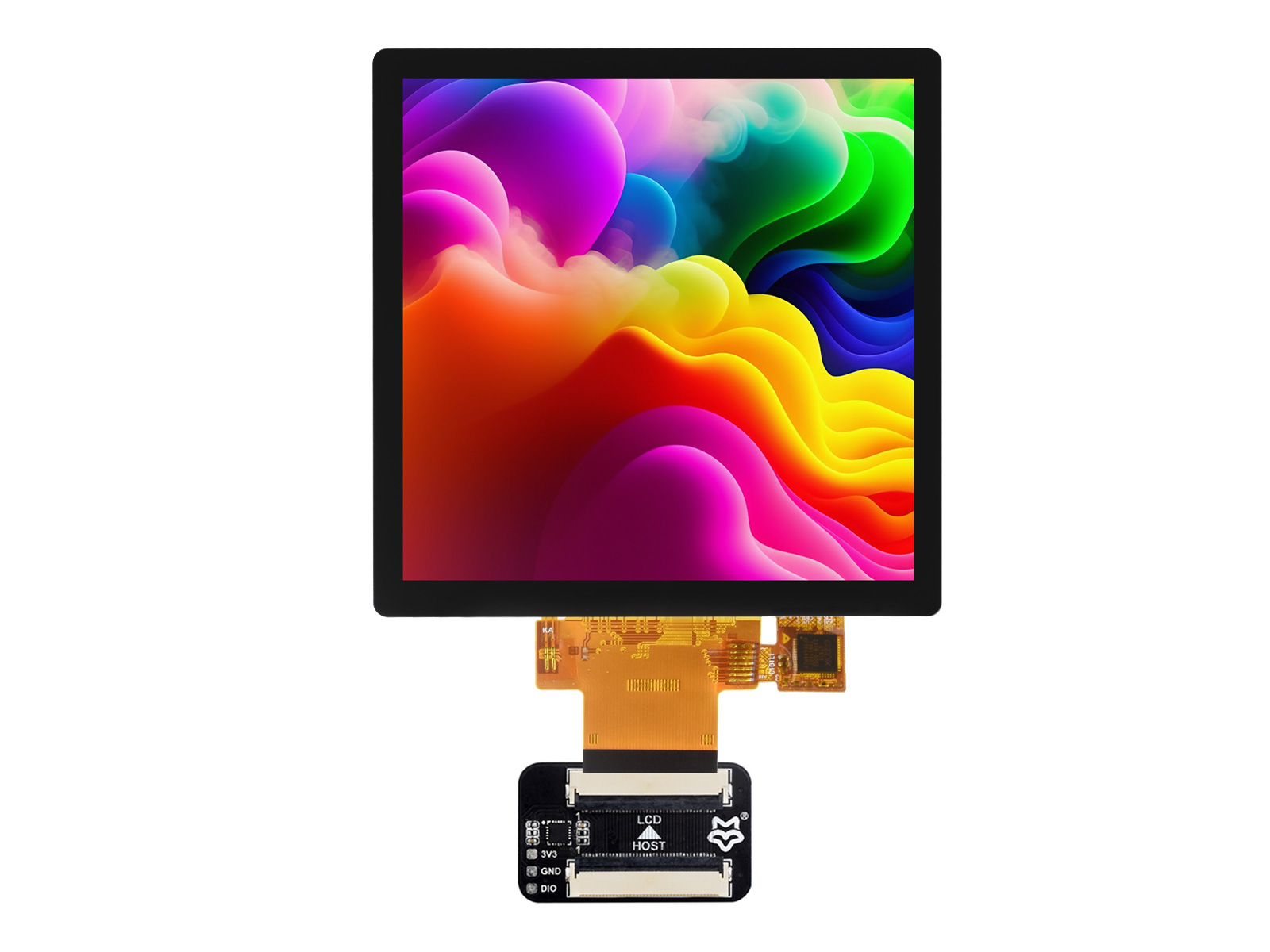

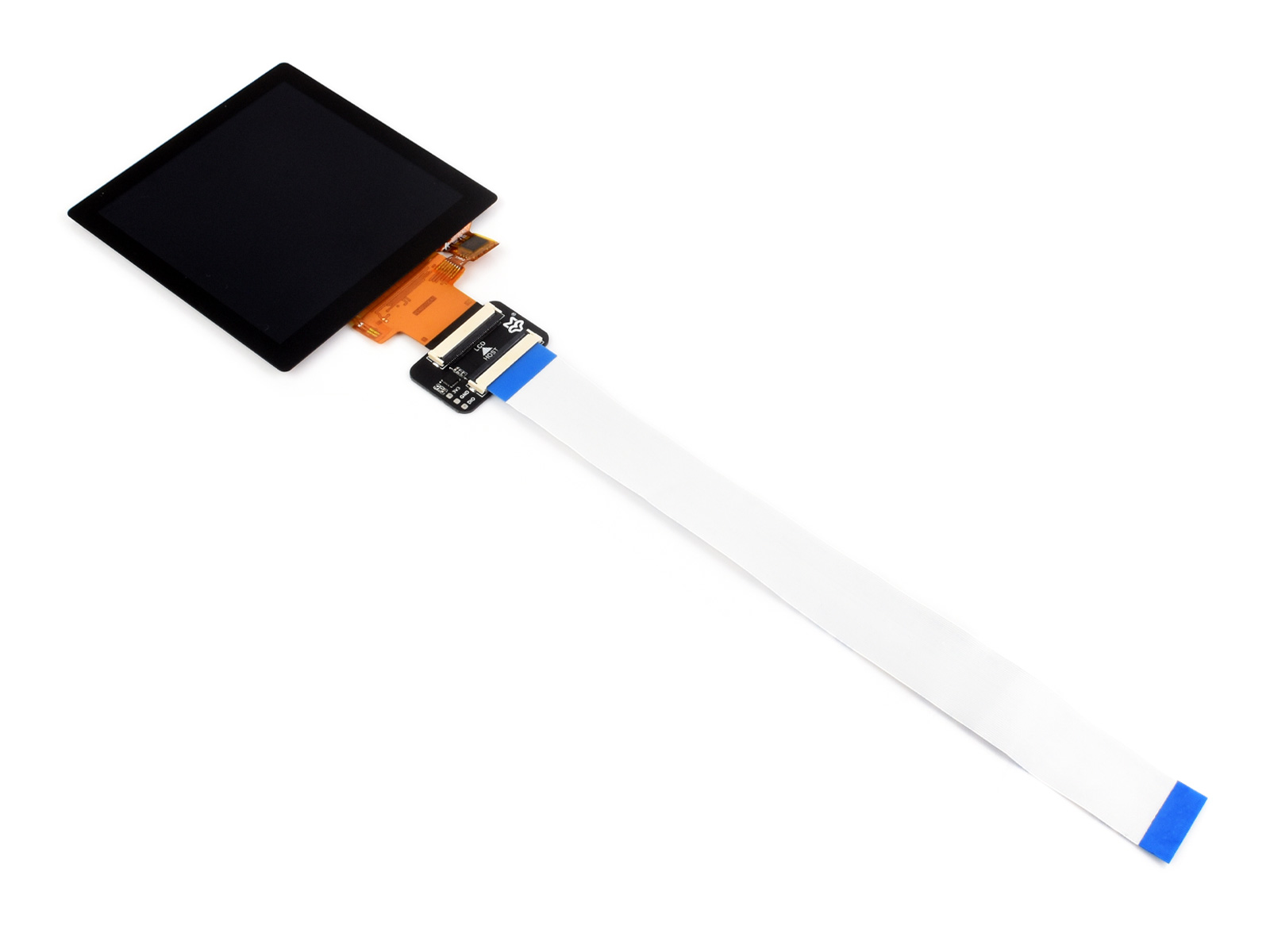

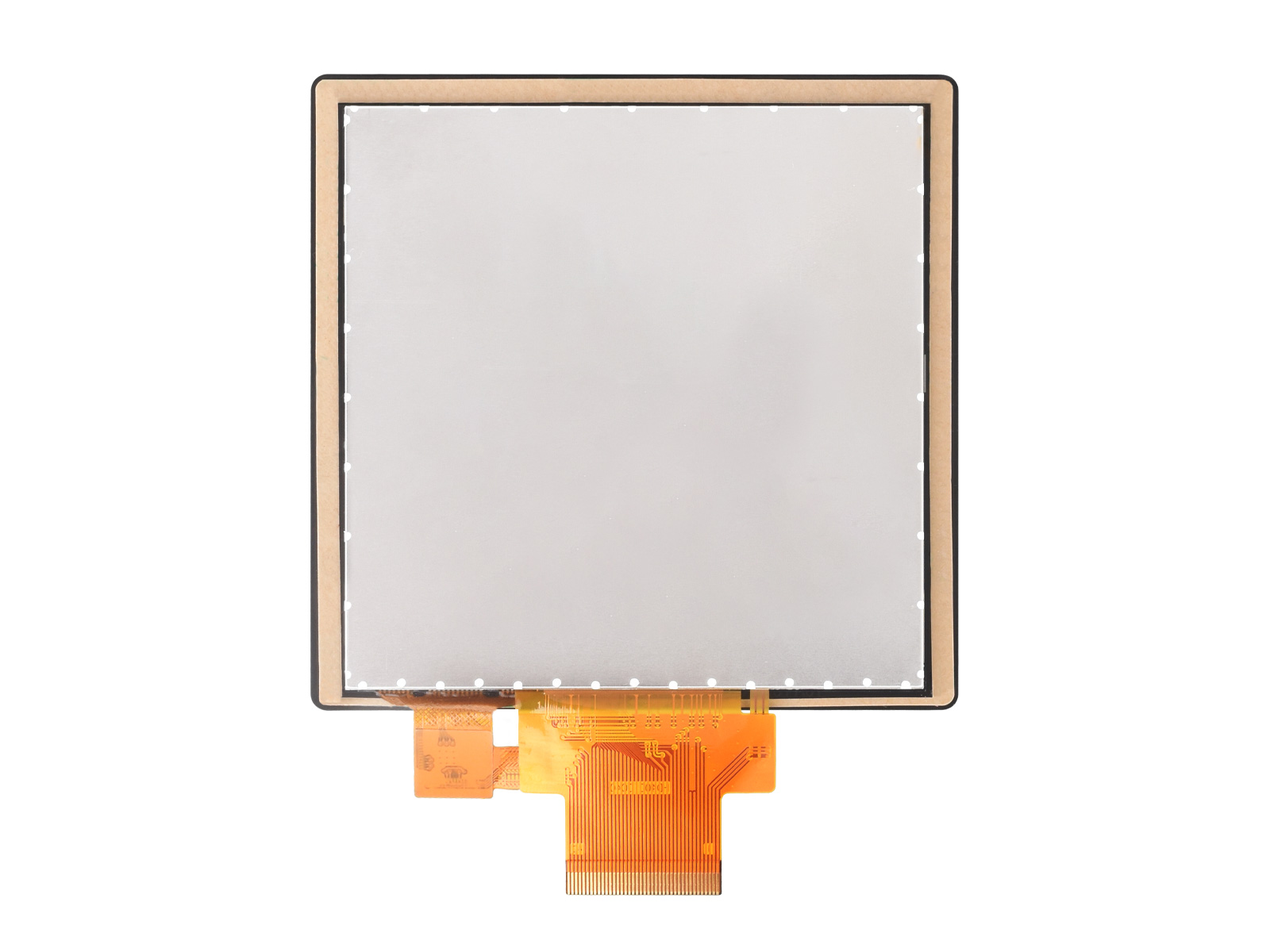

4inch IPS Capacitive Touch Display, 480x480 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board
| Size | 4" | Resolution | 480×480 |
|---|---|---|---|
| Display Panel | IPS | Viewing Angle | 160° |
| Touch Type | Capacitive | Touch Chip | GT911 |
| Brightness | 400cd/m² | Contrast ratio | 380:1 |
| Outline Dimension | 84.2×84.2mm (H×V) | Display area | 71.86×70.18mm (H×V) |
| Pixel pitch | 0.1497×0.1462mm (H×V) | Operation temperature | -20~70°C |
| Communication Interface | RGB666 | - | - |
Supports flexible and responsive touch operation to make development more convenient
| Display | |
| Size | 4inch |
| Resolution | 480×480 |
| Display Panel | IPS |
| Viewing Angle | 160° |
| Brightness | 400cd/m² |
| Communication Interface | RGB666 |
| Contrast Ratio | 380:1 |
| Pixel Pitch (H×V) | 0.1497×0.1462mm |
| Touch | |
| Touch Chip | GT911 |
| Touch Type | Capacitive |
| Others | |
| Operating Temp. | -20~70°C |
LF40-480480-ARK ×1
